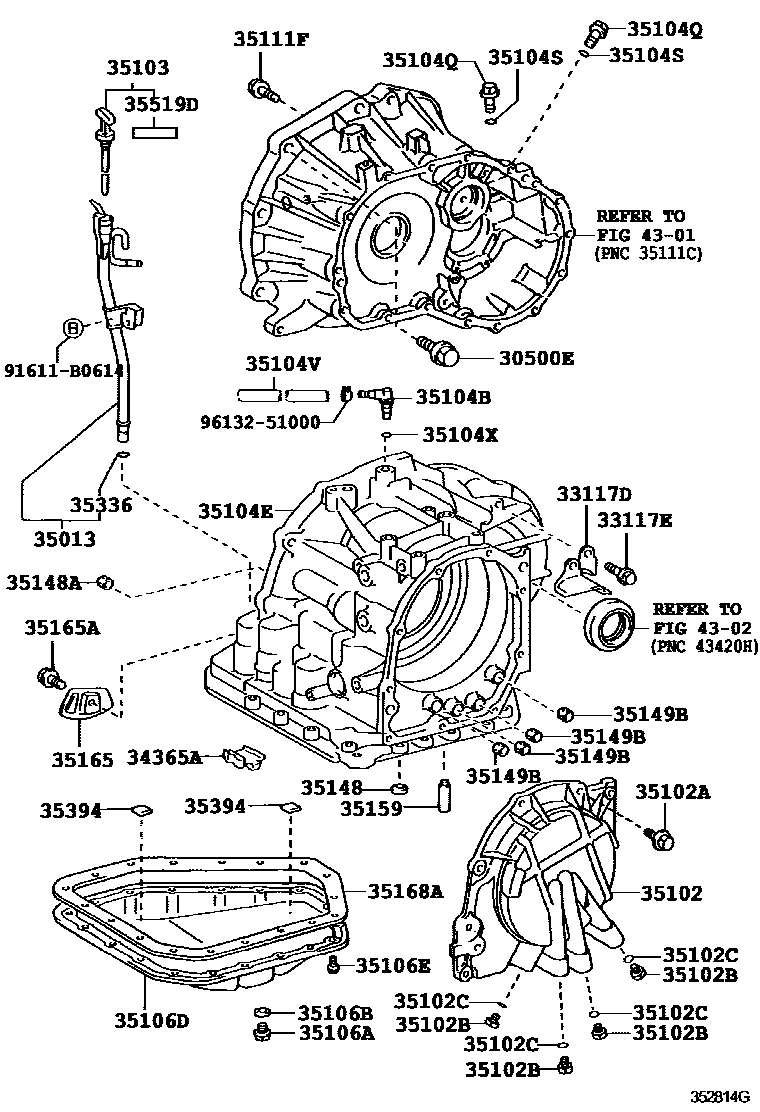

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U441E 0002 1U340E 0003 1A245E,A246E 0005 1U341E,UNLEADED GASOLINE SPEC 0006 1U341E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90119-12168×2iZZE122..LHD..ATM..GEN200209-200404

*12-1.25PX55-30,MIDDLE SOUTH AMERICA SPEC

main91612-61045×7iNZE12#..ATM200510

*10-1.25PX45-30

main91612-61050×7iNZE12#..ATM200008-200404

*10-1.25PX50-30

main91619-61255×2iZZE122..ATM..GCC200108-200209

*12-1.25PX55-30,UNLEADED GASOLINE SPEC

main91642-81055×2iZZE122..SED..ATM..ARL; ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN)200008-200404

*10-1.25PX55-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12050iZZE12#..ATM..(GCC,GEN)200404

main33117-52010iNZE120..ATM200404

main33117-52030iNZE121..ATM; ZZE122..ATM..GCC200209-200404

UNLEADED GASOLINE SPEC

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main91641-H0820×2iZZE121..ATM..PKN200105-200507

main91651-B0820×2iZZE122..ATM..GCC200108-200209

UNLEADED GASOLINE SPEC

34365ARETAINER, OUTER RACE

main34365-52012iZZE122..ATM..ARL200510-200708

main34365-52020iNZE120..ATM200008-200404

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12460iZZE122..SED..ATM..ARL; ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN)200008-200404

main35013-12480iNZE121..ATM200209-200404

main35013-12500iNZE120..ATM200404

main35013-12520iNZE121..ATM200404

main35013-32210iZZE122..ATM..ARL200510-200702

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-52010iNZE120..ATM200008-200112

main35102-52020iZZE122..ATM..ARL200510-200708

main35102-52030iNZE120..ATM200112-200404

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198×2iZZE122..ATM..ARL200404-200510

*6-1.00PX32-32

main90105-08365×11iNZE121..ATM;ZZE122..ATM..GCC200404-200708

*8-1.25PX28-20

main90105-08375×9iNZE120..ATM200404-200708

*8-1.25PX25-25

main91511-80625×11iZZE122..ATM..ARL200404-200510

*6-1.0PX25-25

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001×4iNZE12#..ATM;ZZE122..ATM..GCC200209-200404

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×4iNZE120..ATM; NZE121..ATM200008-200404

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-02100iZZE121..ATM..PKN200202-200507

main35103-12330iZZE122..ATM..ARL200404-200510

main35103-12350iNZE121..ATM200008-200103

main35103-12351iNZE121..ATM200103-200209

main35103-12390iNZE120..ATM200008-200404

main35103-32190iZZE122..ATM..GCC200209-200404

UNLEADED GASOLINE SPEC

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03132iZZE12#..ATM200008-200507

main90930-03156iNZE120..ATM200404-200708

main90930-03164iNZE121..ATM200008-200102

main90930-03166iNZE121..ATM; ZZE122..ATM..GCC200209-200404

UNLEADED GASOLINE SPEC

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-12220iNZE120..ATM200008-200404

main35104-12270iZZE122..ATM..ARL200404-200510

main35104-20130iZZE122..ATM..GCC200108-200209

UNLEADED GASOLINE SPEC

main35104-20131iZZE122..ATM..GCC200604-200708

UNLEADED GASOLINE SPEC

main35104-52030iNZE121..ATM200404-200506

main35104-52031iNZE121..ATM200506-200708

main35104-52090iNZE120..ATM200602-200708

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×2iZZE122..SED..ATM..ARL; ZZE122..WG..ATM..ARL;NZE120,ZZE12#..ATM..(GCC,GEN)200008-200404

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×5iNZE120,ZZE12#..ATM..(GCC,GEN); NZE121..ATM; ZZE122..ATM..GCC200404-200708

UNLEADED GASOLINE SPEC

35104VHOSE (FOR BREATHER PLUG)

main35012-12010iNZE121..ATM200209-200404

main35121-32020iZZE122..ATM..PKN200507

main90447-11038iZZE12#..ATM..(GCC,GEN)200404-200708

main90447-11039iNZE120..ATM200404-200708

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iZZE122..ATM..ARL200510-200708

main90301-06010iZZE12#..ATM200008-200507

main90301-08015iNZE120..ATM200404-200708

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iNZE120,ZZE12#..ATM..(GCC,GEN)200404-200708

main90341-18016iNZE121..ATM; ZZE122..ATM..GCC200209-200404

UNLEADED GASOLINE SPEC

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iZZE122..ATM..ARL200404-200510

main90430-18008iNZE121..ATM; ZZE122..ATM..GCC200209-200404

UNLEADED GASOLINE SPEC

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12100iZZE12#..ATM..(GCC,GEN)200404-200708

main35106-52010iNZE120..ATM200404-200708

main35106-52020iZZE122..ATM..GCC200108-200209

UNLEADED GASOLINE SPEC

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×19iZZE122..ATM..GCC200108-200209

UNLEADED GASOLINE SPEC

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08071×14iNZE120..ATM; NZE121,ZZE12#..ATM..(GCC,GEN)200209-200404

*8-1.25PX30-25

main90105-08288×3iZZE12#..ATM..(GCC,GEN)200209-200404

*8-1.28PX30-25

35148GASKET, GOVERNOR APPLY, NO.1

main35145-60020iNZE120..ATM200404

main35148-16010iZZE121..ATM..GEN;ZZE122..RHD..ATM..GEN;NZE120,ZZE122..ATM..GCC; ZZE122..ATM..ARL;ZZE122..LHD..WG..ATM..GEN; ZZE122..LHD..SED..ATM..GEN200008-200404

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010iZZE122..SED..ATM..ARL; ZZE122..WG..ATM..ARL;NZE120,ZZE12#..ATM..(GCC,GEN)200008-200404

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-12020×4iNZE120..ATM200404-200708

main35149-21010iZZE122..ATM..ARL200510-200708

35159GASKET, BRAKE DRUM

main35159-20010iZZE12#..ATM..(GCC,GEN)200404-200708

main35159-21010iNZE121..ATM; ZZE122..ATM..GCC200209-200404

UNLEADED GASOLINE SPEC

main35159-52010iNZE120..ATM200008-200404

35165PLATE, TRANSMISSION CASE, NO.1

main35165-12020iZZE122..SED..ATM..ARL; ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN)200008-200404

main35165-52010iNZE120..ATM200008-200404

main35165-52030iZZE122..ATM..ARL; ZZE122..ATM..GCC200604-200708

UNLEADED GASOLINE SPEC

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iNZE120,ZZE12#..ATM..(GCC,GEN)200209-200404

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12060iZZE12#..ATM200008-200507

main35168-52010iNZE120..ATM200209-200404

main35168-52020iNZE121..ATM; ZZE122..ATM..GCC200209-200404

UNLEADED GASOLINE SPEC

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iZZE122..SED..ATM..ARL; ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN)200008-200404

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iZZE122..SED..ATM..ARL; ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN)200008-200404

main35394-48010×2iNZE120..ATM200407-200708

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iZZE122..SED..ATM..ARL; ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN)200008-200404

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

91611B0614

main91611-B0614

9613251000

main96132-51000

35 parts on this diagram · 5 diagrams in section
