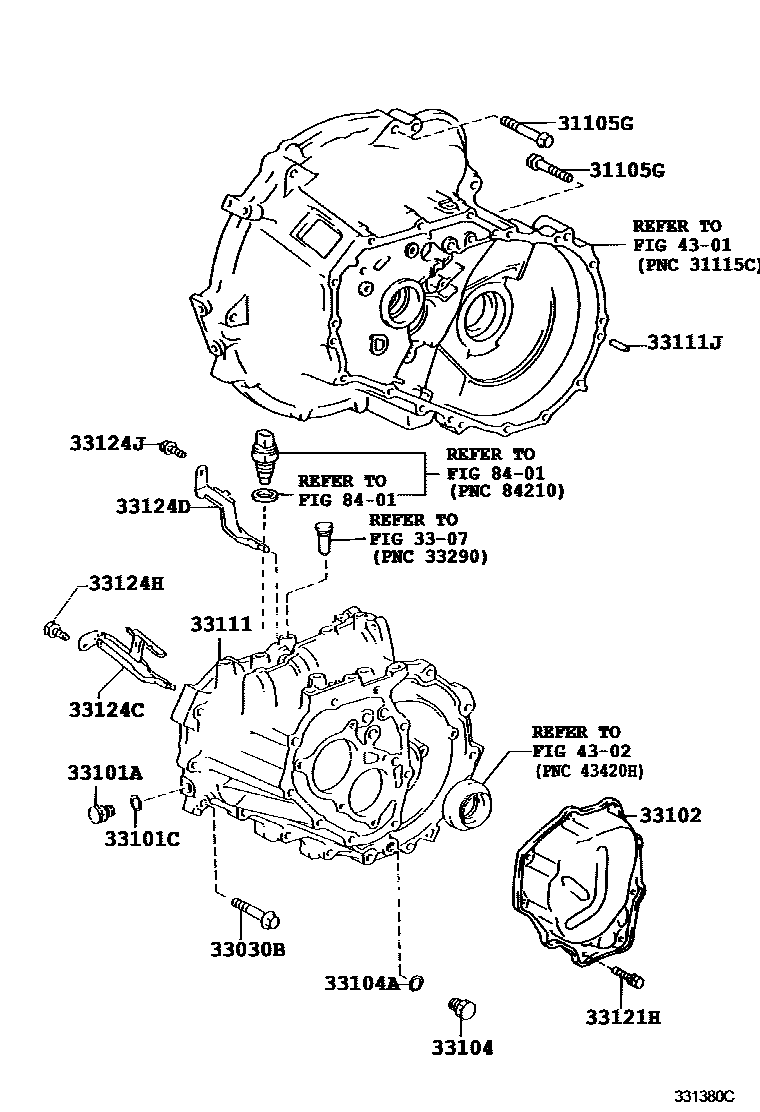

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C150 0002 1C50,C51,C52 0003 1E351

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077iCE120..LHD200110-200404

*10-1.25PX43-26

main90119-12168×3iCE120..PKN200507

*12-1.25PX55-30

main91612-61045×7iNZE12#..MTM..(GCC,GEN); NZE120..PKN200512

*10-1.25PX45-30

main91612-61050×7iNZE120..MTM..GCC;NZE12#..RHD..MTM..GEN200008-200209

*10-1.25PX50-30

main91619-61255×2iZZE122..SED..MTM..ARL200404-200702

*12-1.25PX55-30

main91641-H0820iCE120..PKN200507

*8-1.25PX20-20

main91642-81055×2iZZE122..MTM..PKN200507

*10-1.25PX55-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064×13iNZE121..MTM200008-200209

*8-1.25PX51-28

main90105-08086×16iNZE120..MTM..(GCC,GEN); NZE121,ZZE12#..MTM..(GCC,GEN)200209-200404

*8-1.25PX45-27.5

main90105-08126×17iCE120..GEN200209-200404

*8-1.25PX45-27.5

main90105-08353×13iNZE121,ZZE12#..MTM..(GCC,GEN)200209-200404

*8-1.25PX50-30

main90105-08430×16iNZE120..PKN; ZZE122..MTM..PKN200507

*8-1.25PX45-27.5

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iNZE12#,ZZE12#..MTM..(GCC,GEN)200209-200404

main90341-18033iCE120,NZE120,ZZE122..MTM..PKN200507

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iCE120,ZZE121..MTM..PKN; NZE120..PKN200008-200507

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10023iNZE120..PKN200507

main33102-12021iZZE121..MTM..PKN200008-200507

main33102-12041iCE120200110-200306

main33102-12042iCE120200306-200404

main33102-12043iCE120200404-200507

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iCE120,NZE12#,ZZE12#..MTM..(GCC,GEN)200209-200404

main90341-18033iZZE122..SED..MTM..ARL200506-200702

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNZE120..LHD..MTM..GEN; ZZE122..MTM..ARL;CE120,ZZE122..LHD..MTM..GEN200008-200404

33111CASE, MANUAL TRANSMISSION

main33101-20090iCE120..GEN200503

main33101-28041iCE120200110-200301

main33111-12280iZZE122..MTM..(GCC,GEN); ZZE122..MTM..PKN200706

main33111-16053iNZE120..PKN200507

main33111-16063iNZE121,ZZE121..MTM..GEN200209-200404

main33111-16064iZZE121..MTM..PKN200501-200507

TYPE A:REFER ILLUST.

main33111-17100iZZE122..LHD..MTM..GEN200209-200301

MIDDLE SOUTH AMERICA SPEC

main33111-17101iZZE122..MTM..(GCC,GEN); ZZE122..MTM..ARL200301-200404

main33111-17102iZZE122..WG..MTM..ARL;ZZE122..MTM..(GCC,GEN)200501-200706

main33111-52110iNZE121,ZZE121..MTM..GEN200501-200706

TYPE B:REFER ILLUST.

main33111-52140iNZE121,ZZE121..MTM200706

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iNZE120..LHD..MTM..GEN; ZZE122..MTM..ARL;CE120,ZZE122..LHD..MTM..GEN200008-200404

L=23,OD=8

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08373×9iNZE120..RHD..GEN;NZE120..MTM..GCC200008-200209

main90119-08630×10iCE120..LHD200110-200404

main90119-08782×9iZZE122..MTM..PKN; ZZE122..WG..MTM..ARL;NZE121,ZZE12#..MTM..(GCC,GEN)200603

main91611-60835×9iZZE122..MTM..PKN200507-200603

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012iNZE120..MTM..(GCC,GEN)200209-200404

main33124-20050iZZE122..MTM..PKN200507

main33124-28050iCE120..LHD200110-200404

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021iNZE120..RHD..GEN;NZE120..MTM..GCC200008-200209

main33124-12021iZZE122..WG..MTM..ARL;NZE121,ZZE12#..MTM..(GCC,GEN)200404

main33124-28060iCE120..PKN200507

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08830×2iCE120..GEN200404-200708

main91611-G0820iZZE122..WG..MTM..ARL;NZE12#,ZZE12#..MTM..(GCC,GEN)200404

33124JBOLT, W/WASHER

main91611-G0820iNZE120..RHD..GEN;NZE120..MTM..GCC; ZZE121..MTM..GEN;ZZE122..MTM..GCC;ZZE122..RHD..MTM..GEN200008-200209

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

18 parts on this diagram · 3 diagrams in section
