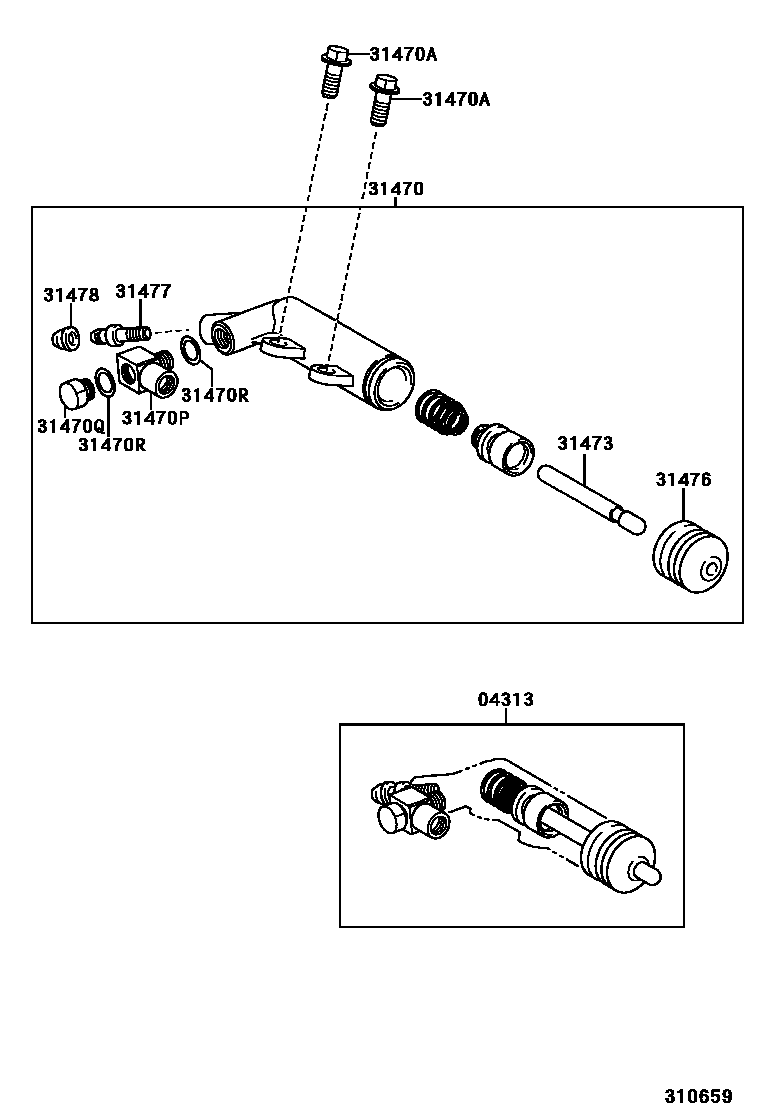

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12060iNZE120..PKN200407-200507

main04313-17040iZZE122..MTM..PKN200008-200708

main04313-18020iNZE12#..MTM200008-200109

main04313-35060iNZE120..PKN200109-200708

main04313-52020iCE120..PKN200401-200708

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12111iZZE12#..MTM..(ARL,GCC,GEN)200008-200710

sub31470-12140

main31470-12140iZZE122..MTM200710

main31470-12200iNZE120200710

main31470-32022iCE120200110-200406

sub31470-32023

main31470-32023iCE120..GEN200404-200708

main31470-52010iNZE12#..MTM200008-200109

sub31470-52011

main31470-52011iNZE12#..MTM200109-200710

sub31470-12200

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iZZE121..LHD..MTM..LX;ZZE121..MTM..(SESAL,XLI);CE120,NZE12#,ZZE122..MTM200008-200702

*8-1.25PX22-17.1

31470PUNION(FOR CLUTCH RELEASE)

main90405-10073iNZE120..PKN200008-200708

31470QBOLT, UNION(FOR CLUTCH RELEASE)

main90401-10056iNZE12#..RHD..MTM..(GLI,LX)..GEN200008-200708

31470RGASKET(FOR CLUTCH RELEASE)

main90029-43002iNZE12#..MTM..(GCC,GEN)200407-200708

main90430-10074iNZE120..LHD..MTM..XLI..GEN200008-200407

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iCE120,ZZE122..MTM..PKN200008-200708

main31473-22010iCE120200110-200406

main31473-32010iNZE12#..MTM200008-200109

main31473-35050iNZE12#..MTM200109-200708

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCE120,NZE12#,ZZE12#..MTM200008-200708

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iCE120,NZE12#,ZZE12#..MTM200008-200708

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCE120,NZE12#,ZZE12#..MTM..(GCC,GEN)200008-200708

10 parts on this diagram · 2 diagrams in section
