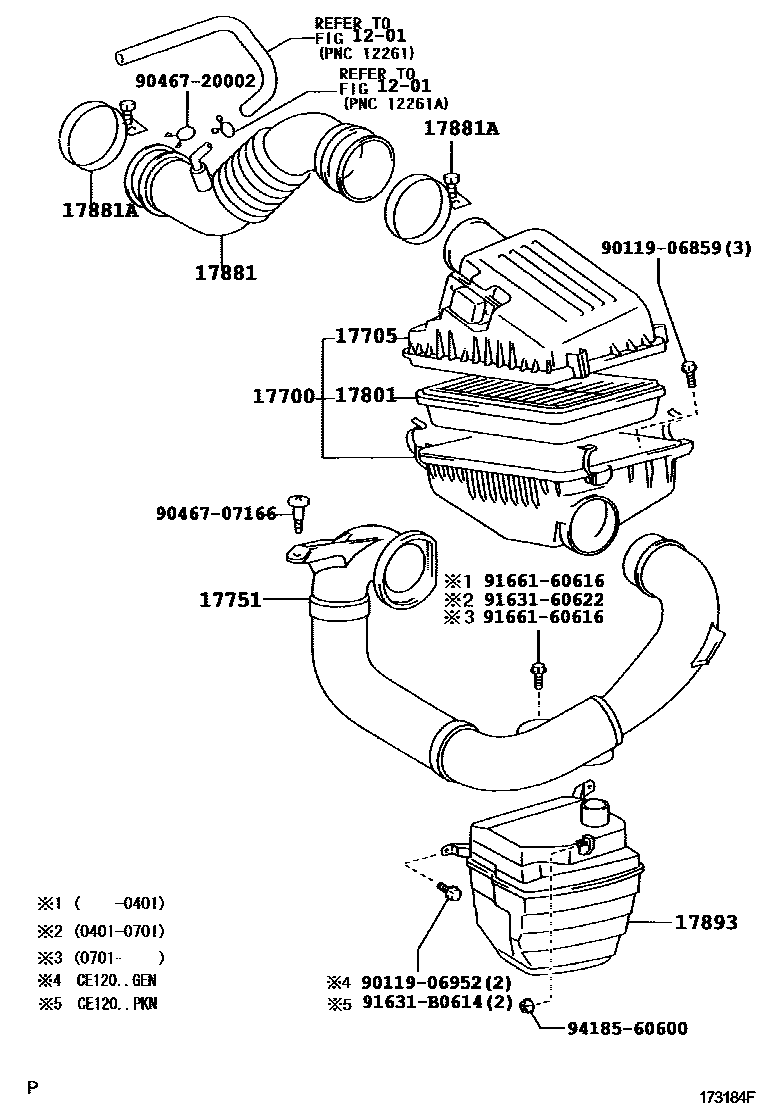

AIR CLEANER

0001 1 0002 1 0004 1 0005 1

1201

17700CLEANER ASSY, AIR

main17700-21070i2NZFE..NZE120..PKN200008-200507

main17700-22120i1ZZFE,3ZZFE..ZZE12#..GCC,GEN200008-200702

main17700-64510i2C..CE120..RHD..GEN200110-200507

17705CAP SUB-ASSY, AIR CLEANER

main17705-21050i2NZFE..NZE120..GCC;1NZFE,2NZFE..NZE12#..RHD..GEN200008-200507

main17705-22120i1ZZFE,3ZZFE..ZZE12#200008-200702

main17705-64350i2C..CE120..PKN200110-200507

17751INLET, AIR CLEANER, NO.1

main17751-21070i3ZZFE..ZZE121200008-200507

sub17751-21150

main17751-21150i3ZZFE..ZZE121..GEN200404

main17751-22090i1ZZFE..ZZE122..GCC,GEN200008-200507

sub17751-22140

main17751-22140i1ZZFE..ZZE122..GCC,GEN;1ZZFE..ZZE122..WG..ARL200404-200702

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-22020i1ZZFE,3ZZFE..ZZE12#..GCC,GEN200008-200702

main17801-64070i2C..CE120..LHD200110-200507

17881HOSE, AIR CLEANER, NO.1

main17881-0D040i3ZZFE..ZZE121..PKN200202-200507

main17881-0D050i1ZZFE..ZZE122..PKN200507

main17881-22070i3ZZFE..ZZE121..GEN200008-200404

main17881-22071i3ZZFE..ZZE121..GEN200404

main17881-22080i1ZZFE..ZZE122..GCC,GEN200008-200510

main17881-22120i1ZZFE..ZZE122..ARL200510-200702

main17881-64410i2C..CE120..RHD..GEN200110-200507

sub17880-64450

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i2C..CE120..RHD..GEN200110-200507

main96111-10730i3ZZFE..ZZE121..GEN200008-200507

NO.2

main96111-10750i1ZZFE..ZZE122..ARL200510-200702

NO.2

main96111-10800i1ZZFE..ZZE122..GCC,GEN200209-200404

NO.1 & NO.2

main96111-10800i1ZZFE..ZZE122..SED..ARL200008-200702

NO.1

main96111-10800i1ZZFE..ZZE122..ARL200008-200510

17893RESONATOR, INTAKE AIR

main17893-22010i1ZZFE..ZZE122..PKN200507

main17893-22020i2C..CE120..PKN200404-200702

main17893-64080i1ZZFE..ZZE122..GCC,GEN200008-200507

9011906859

main90119-06859

9011906952

main90119-06952

9046707166

main90467-07166

9046720002

main90467-20002

9163160622

main91631-60622

91631B0614

main91631-B0614

9166160616

main91661-60616

9418560600

main94185-60600

16 parts on this diagram · 4 diagrams in section
