VENTILATION HOSE

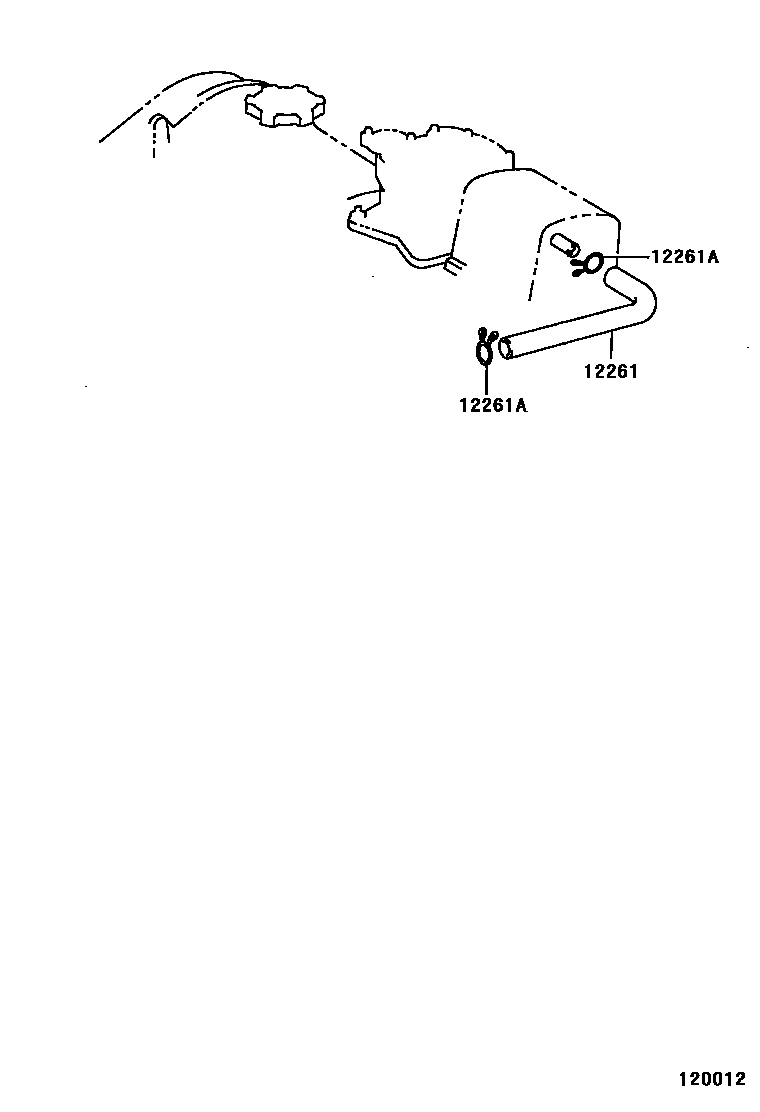

Parts diagram
12261HOSE, VENTILATION
main12261-0D040i200404-200510
(L)
main12261-21030i200512
main12261-21050i200008-200512
main12261-22050i200008-200510
(J)
main12261-22050i200209-200404
main12261-22070i200510-200702
main12261-64310i200110-200507
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-13057i200008-200512
NO.1
main90467-15120i200512
NO.1
main90467-17011i200008-200204
NO.2
sub96134-51700
main90467-18003i200110-200507
main90467-21152i200008-200702
main90467-24038i200512
NO.2
main96134-51700i200204-200512
NO.2

2 parts on this diagram · 3 diagrams in section
