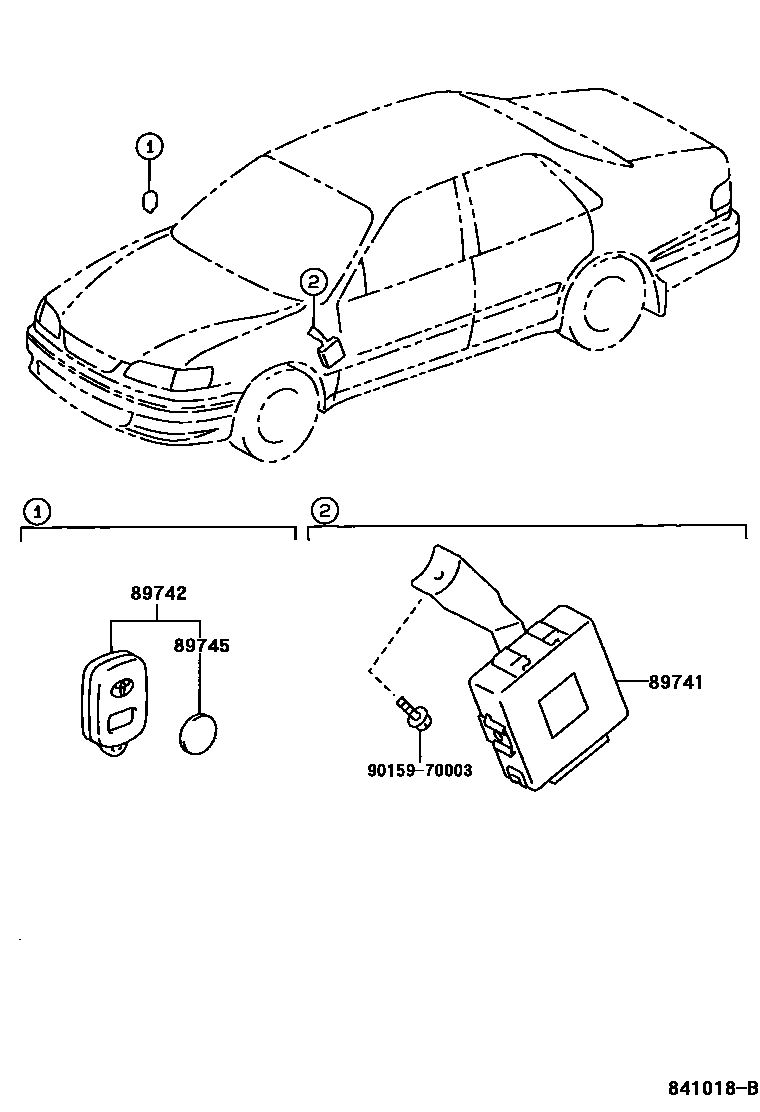

WIRELESS DOOR LOCK

0001 1 0002 1

89741RECEIVER, DOOR CONTROL

main89741-12140iAE111..5F..NZ;AE111..4FC..(MA,NZ,TH);AE112..(GLI,SEG)..(IDN,NZ,TH);AE111,CE110,EE111..(3FC,5F)..(GLI,SEG,XL)..(MA,NZ,TH)199710-200207

main89741-12160iAE111..GLI..TUR;AE111,112,EE110..GCC199704-200005

main89741-12170iAE111,EE110..RHD..(GL,GLI)..GEN199704-199910

main89741-12180iAE111,112,EE110..LHD..(GL,GLI,SEG)..(GEN,GENKD,PHL)199704-200207

main89741-12190iAE111,112..ARL199808-199910

main89741-12210iZZE112..GLI200005-200012

main89741-12211iZZE112..GLI200012-200201

89742TRANSMITTER, DOOR CONTROL

main89742-12180iAE112..XLI..GCC;AE111..4FC..GLI..TUR;AE111..4FC..(GCC,MA,NZ,TH);AE112..(GLI,SEG)..(GCC,IDN,NZ,TH);AE111..5F..(GLI,SEG)..(MA,TH,TUR);AE111,CE110,EE11#..(3FC,5F)..(GLI,XL,XLI)..(GCC,MA,NZ)199704-200207

main89742-12210iAE112,EE110..(GL,SEG)..(GEN,PHL);AE111..(GL,GLI)..(GEN,GENKD,PHL)199704-200207

89745BATTERY, TRANSMITTER

main89745-40010×2iZZE112..GLI200005-200012

main89745-50010iAE111,112,EE110..GCC;AE111,EE110..(GL,GLI)..(GEN,TUR)199704-200109

9015970003

main90159-70003

4 parts on this diagram · 2 diagrams in section
