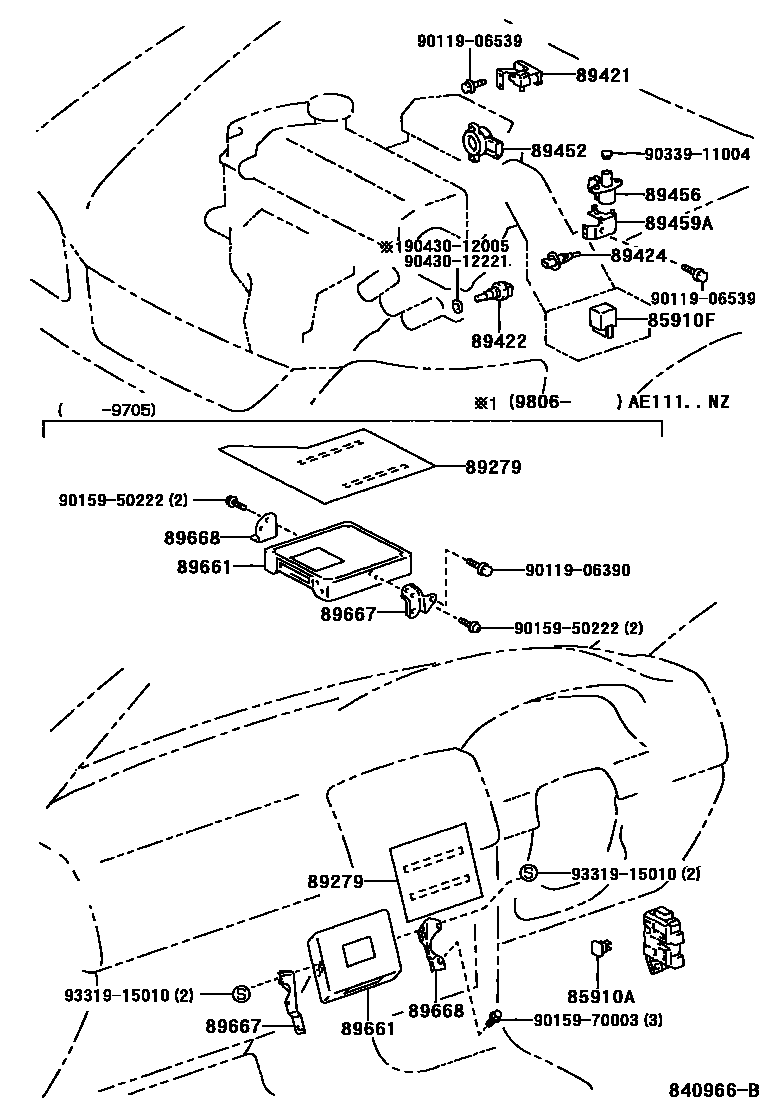

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87008iAE110..4FC; EE111..GEN,VEN;AE110,112..ARL,GCC,GEN;AE111..(GLI,XLI)..(GCC,GEN,TUR,VEN)199909-199910

P/N LABEL=9008087008

main90987-02009iAE11#,EE111199505-199704

main90987-02012iAE110..GLI;AE111..RHD..(GLI,XLI)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN); AE112..VEN199710-199909

P/N LABEL=9098702012

85910FRELAY, COMPUTER (FOR EFI)

main90080-87008iAE112..BZ,VEN199910-200207

P/N LABEL=9008087008

main90987-02009iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main90987-02012iAE110..4FC; AE112..VEN; EE111..GEN,VEN;AE110,112..ARL,GCC,GEN;AE111..(GLI,XLI)..(GCC,GEN,TUR,VEN)199909-199910

P/N LABEL=9098702012

89279COVER, ENGINE CONTROL COMPUTER

main89279-12080iAE110,EE111..XLI..GEN; EE111..GEN199705-199910

THAILAND SPEC OR MALAYSIA SPEC

main89279-12100iAE111199505-199704

main89279-12120iEE111;AE110..TH;AE110..GLI199704-200207

main89279-12140iZZE111200005-200201

main89279-13020iAE111,112..5F..TH;AE111,112..(GLI,SEG,XLI)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TUR,VEN); AE112..ARL,GCC,GEN,VEN;AE111..(GLI,XLI)..(GCC,GEN,TUR,VEN)199809-199812

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-02010iAE111..LHD..(GLI,XLI)..GEN199704-199910

BRAZIL SPEC OR CHILE SPEC OR MIDDLE EAST SPEC

main89420-02020iAE110,112..SED..(ARL,GEN);AE111..RHD..(GLI,XLI)..GEN; AE110..4FC..GEN199809

P/N LABEL=8942002020

main89420-12070iAE111..MA;AE111..RHD..WG..5F;AE110,112..XLI..(IDN,TH);AE110,112..RHD..(GLI,SEG);AE111..RHD..SED..(GLI,XLI)199704-200207

P/N LABEL=8942012070

main89420-12150iAE111,112..LHD..(GLI,XLI)..(GCC,GEN)199910-200109

main89420-12170iEE111..RHD199704-200207

main89420-12190iAE110,112..SED..(ARL,GEN);AE111..RHD..(GLI,XLI)..GEN; AE110..4FC..GEN199808

P/N LABEL=8942012190

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iZZE11#200005-200201

main89422-20010iEE111199505-199705

MALAYSIA SPEC

main89422-22030iEE111199704-200207

MARK 89422-22030*369

main89422-35010iAE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GLI,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)199704-200207

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAE110..4FC..GEN199807

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-05010iZZE111200005-200201

main89452-10040iEE111; EE111..GEN199704-199807

main89452-20130iEE111199807-200207

main89452-22090iAE110..4FC..GEN199807

main89452-33030iAE111..RHD..(GLI,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN)199704-200208

89456RESISTOR, VARIABLE

main89456-30010iAE112..GCC,GEN,IDN,VEN;AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL,VEN); AE112..GCC,GEN,VEN;AE111..RHD..(GLI,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN)199704-199909

main89456-50010iAE111..RHD..SED..5F..(GLI,XLI)..GEN; AE111..SEG..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

89459ABRACKET, VARIABLE RESISTOR

main89459-12020iAE112..IDN;AE111..RHD..WG..5F;AE111..RHD..SED..(GLI,XLI)..GEN199704-200207

89661COMPUTER, ENGINE CONTROL

main89661-0W133iZZE111200104-200112

POLAND SPEC

main89661-0W134iZZE111200112-200201

POLAND SPEC

main89661-0W140iZZE111200005-200006

main89661-0W141iZZE111200006-200007

main89661-0W142iZZE111200007-200102

main89661-0W143iZZE111200102-200112

main89661-0W144iZZE111200112-200201

main89661-1A340iAE111..4FC..SEG; AE111..5F..SEG199505-199712

MALAYSIA SPEC; THAILAND SPEC OR MALAYSIA SPEC

main89661-1A350iAE112..GCC,GEN199704-199910

main89661-1A380iAE111..RHD..SED..5F..(GLI,XLI)..GEN; AE111..SEG..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main89661-1A410iEE111..5F199505-199704

main89661-1A420iEE111..3FC..GEN199705-199910

MALAYSIA SPEC

main89661-1A430iAE110..5F..XLI199701-199711

main89661-1A440iAE110..4FC199505-199701

main89661-1A760iEE111..TUR199807-200005

main89661-1A780iAE111..5F..TUR199807-200005

main89661-1A800iAE111..RHD..(GLI,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN)199704-200109

main89661-1A810iAE111..RHD..5F..(GLI,XLI)..GEN199808-199910

NEW ZEALAND OR SINGAPORE SPEC

main89661-1A830iEE111..GEN,VEN199704-200208

main89661-1A850iAE110..GLI199701

main89661-1E160iAE112..GEN199808-199910

BRAZIL SPEC OR CHILE SPEC OR MIDDLE SOUTH AMERICA SPEC

main89661-1E180iAE110..TH199711-199901

main89661-1E190iAE111..4FC..TUR199807-200005

main89661-1E200iAE111..VEN199805-199909

main89661-1E210iAE112..VEN199805-199909

main89661-1E290iAE112..5F..BZ199808-200202

main89661-1E300iAE112..4FC..BZ199808-200202

main89661-1E310iAE111..WG..4FC200008-200010

SINGAPORE SPEC

main89661-1E320iAE111..5F..VEN199909-200208

main89661-1E330iAE111..4FC..VEN199910-200002

main89661-1E340iAE112..5F..GLI..(ARL,VEN)199910-200002

main89661-1E350iAE112..4FC..(ARL,VEN)199909-200208

main89666-12070iZZE112..5F200005-200201

main89666-12090iZZE112..4FC200005-200201

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12120iAE11#,EE111199505-199704

main89667-12130iAE110..4FC..GEN199807-199809

main89667-12180iZZE111200005-200201

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12050iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main89668-12060iAE110,112,EE111..ARL,GCC,GEN,VEN;AE111..(GLI,XLI)..(GCC,GEN,TUR,VEN); AE110,EE111;AE111,112..5F..TH;AE111,112..(GLI,SEG,XLI)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TUR,VEN); AE110..4FC..GEN199809-199812

main89668-12090iZZE111200005-200201

9011906390

main90119-06390

9011906539

main90119-06539

9015950222

main90159-50222

9015970003

main90159-70003

9033911004

main90339-11004

9043012005

main90430-12005

9043012221

main90430-12221

9331915010

main93319-15010

20 parts on this diagram · 3 diagrams in section
