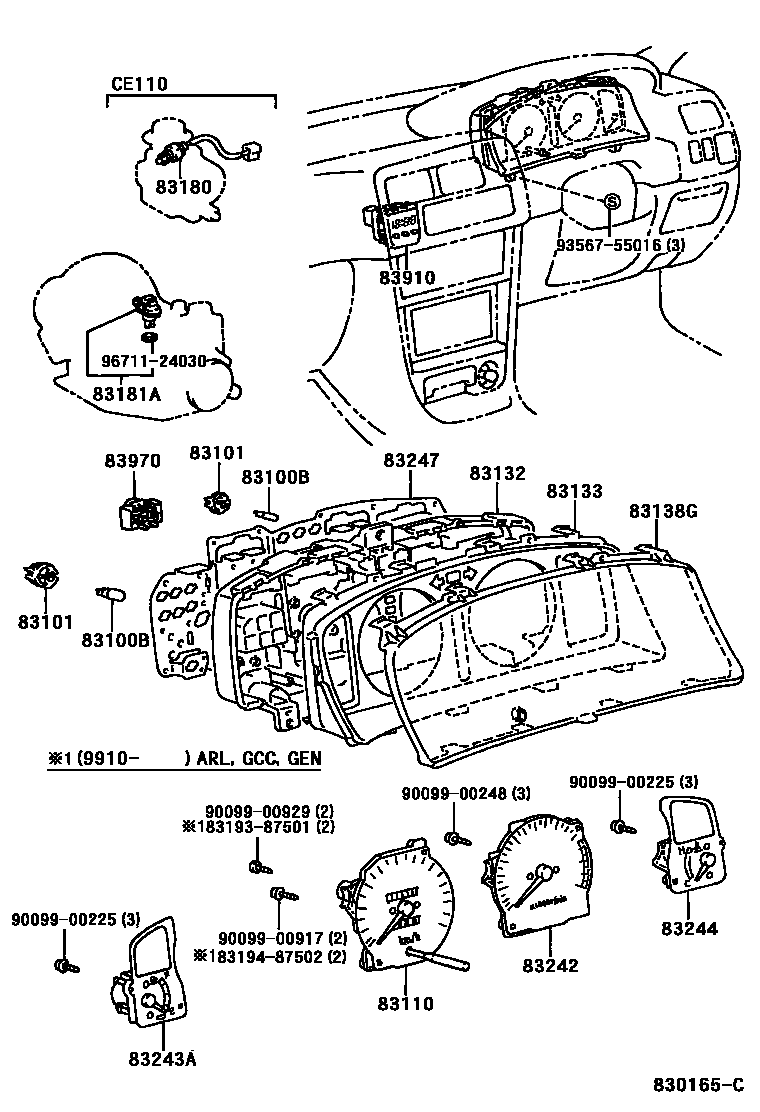

METER
83100BBULB, COMBINATION METER, NO.1
main83109-24010iAE112,EE111..LHD..ATM;AE112..LHD..5F..(GLI,XLI);AE111..LHD..(GLI,XLI)..(GCC,GEN,GENKD,TUR,VEN); ZZE112..4FC;AE112..GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN)199704-200009
12V 1.4W,GREEN CAP
12V3.4W W(GREEN CAP)
main83119-32010iAE111..WG..5F;AE111..LHD..WG..4FC;AE112..LHD..5F..XLI;AE112..LHD..4FC..(SEG,XLI);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN)199704-200009
14V 3.0W
main90981-11018×12iAE110..4FC..GLI; AE110..5F..GLI; AE111,112,CE110..NZ;AE111..(3FC,5F)..(GL,XL); AE111..(3FC,5F)..(GL,XL)199704-199711
12V 1.2W W/O SOCKET
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030×4iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199605-200009
12V 3.4W
main83101-14040×18iAE110..5F..XLI..GEN;AE111..RHD..5F..(GLI,SEG)..GEN; AE111..RHD..5F..GLI..GEN; AE112,CE110..5F..(GLI,XL)..(GCC,GEN); AE112..4FC..(GCC,VEN);AE111..4FC..(GL,GLI,XL,XLI)..(GCC,GEN,VEN); AE112..4FC..(GCC,VEN);AE111..SED..4FC..(GL,GLI,XL,XLI)..(GCC,GEN,VEN); EE110..GCC; EE111..5F..TUR;AE112,CE110..5F..(GLI,XL)..(GCC,GEN)199704-199910
12V 1.4W; INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
14V 3.0W
83110SPEEDOMETER ASSY
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
main83110-1H270iAE110..XLI..GEN;AE111..SEG..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN; AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
W(TACHOMETER),MPH & KM/H
MPH & KM/H
MIDDLE EAST SPEC
main83220-12210iAE111..GL,XL;AE111,112,EE111..RHD..(GLI,XLI)..(GEN,NZ); AE111..GL,XL;AE111,EE111..RHD..(GLI,XLI)..GEN199704-199802
main83220-12211iAE111..GL,XL;EE111..GEN,VEN;AE111..RHD..WG..5F;AE111,112..RHD..SED..(GLI,XLI)..(GEN,NZ)199802-200002
W(TACHOMETER)
MPH & KM/H
MIDDLE EAST SPEC
MPH & KM/H
83132CASE, COMBINATION METER
main83132-1A710iAE110,111,EE111..RHD..SED..(3FC,5F)..XLI..GEN; AE111,EE111..RHD..SED..(3FC,5F)..XLI..GEN; AE111..RHD..5F..(GLI,SEG)..GEN; AE111..RHD..5F..GLI..GEN199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC; INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC & W(TACHOMETER)
THAILAND SPEC
W(TACHOMETER)
main83841-12360iAE110,EE111..XLI..GEN;AE111..RHD..SED..5F..XLI..GEN; AE111,EE111..RHD..SED..(3FC,5F)..XLI..GEN199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
W(TACHOMETER)
main83841-12610iAE111..(3FC,5F)..GL;AE110,111..RHD..5F..GLI..GEN;AE112,EE110..(GL,GLI)..(ARL,GEN); AE111..ARL;AE111..(3FC,5F)..GL;AE110,111..RHD..5F..GLI..GEN;AE112,EE110..(GL,GLI)..(ARL,GEN,NZ); AE111..NZ;AE111..(3FC,5F)..XL;AE111..RHD..5F..XLI..GEN;CE110,EE11#..(XL,XLI)..(GEN,NZ); EE110..LHD..3FC;CE110,EE111..GEN;EE110..5F..XL..GEN;AE111..(3FC,5F)..XL;AE111..RHD..5F..XLI..GEN199704-199910
W(TACHOMETER)
main83841-12630iAE111,112..4FC..(GCC,VEN); AE111..LHD..WG..4FC;AE111,112..4FC..(GCC,VEN)199704-200002
W(TACHOMETER)
main83841-12640iAE112,CE110..5F..(GLI,XLI)..(GCC,GEN,VEN);AE111..LHD..SED..5F..(GLI,XLI)..(GCC,GEN,VEN); AE112..BZ;AE111,112..LHD..5F..(GLI,XLI)..(GCC,GEN,GENKD,VEN)199704-200009
W(TACHOMETER)
main83841-1A050iAE111..XL;EE110..LHD..3FC;CE110,EE111..GEN;AE111..RHD..XLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN); CE110,EE111..GEN;AE111..RHD..XLI..GEN;AE111,EE110..(STD,XL)..(GCC,GEN,GENKD,TUR,VEN)199704-199808
main83841-1A100iAE111,112..LHD..XLI..(BZ,GCC,GEN); AE112..XLI..(GCC,GEN);AE111..LHD..SED..XLI..(GCC,GEN)199704-200009
83133PLATE, COMBINATION METER, NO.1
W(TACHOMETER)
main83133-1H290iAE110,111,EE111..RHD..SED..(3FC,5F)..XLI..GEN; AE111,EE111..RHD..SED..(3FC,5F)..XLI..GEN; AE111..RHD..5F..(GLI,SEG)..GEN; AE111..RHD..5F..GLI..GEN199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC; INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC & W(TACHOMETER)
main83811-12600iAE111,112..4FC..(XL,XLI)..(GCC,GEN); AE111..4FC..VEN;AE11#..4FC..(GL,GLI)..(GCC,GEN,VEN); AE112..4FC..XLI;AE111..SED..4FC..(XL,XLI)..(GCC,GEN)199704-199807
W(TACHOMETER)
main83811-12610iAE111..4FC..NZ;EE110..XL..GEN;AE111,112,CE110,EE111..(3FC,5F)..(XL,XLI)..(GCC,GEN,NZ); AE111..5F..VEN;AE11#,EE110..(3FC,5F)..(GL,GLI)..(GCC,GEN,VEN); AE111..RHD..WG;EE110..LHD..3FC;EE110..5F..XL..GEN;AE112..5F..XLI..GCC;AE111,CE110,EE111..SED..(3FC,5F)..(XL,XLI)..(GCC,GEN); AE112..NZ;AE111..5F..VEN;AE11#,EE110..(3FC,5F)..(GL,GLI)..(GCC,GEN,GENKD,VEN)199704-199807
W(TACHOMETER)
main83811-12720iAE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN); AE111..WG..5F;AE111..LHD..WG..4FC;AE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE111..(STD,XLI)..(BZ,GCC,GEN,VEN);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,TUR,VEN)199704-200009
83138GGLASS, COMBINATION METER
main83852-12700iAE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN); AE111..WG..5F;AE111..LHD..WG..4FC;AE112..LHD..5F..XLI;AE112..LHD..4FC..(SEG,XLI);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN)199704-200009
83180DETECTOR ASSY, REVOLUTION
83181ASENSOR, SPEEDOMETER
main83181-12020iAE111,112..LHD..(GLI,XLI)..(GCC,GEN,GENKD,VEN); AE112..LHD;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN)199704-199807
83242TACHOMETER ASSY, ENGINE
main83242-1H400iAE111..RHD..SED..5F..(GLI,XLI)..GEN; AE111..SEG..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
83243AGAUGE SUB-ASSY, FUEL RECEIVER
main83243-1A770iAE110,EE111..XLI..GEN;AE111..RHD..SED..5F..XLI..GEN; AE111,EE111..RHD..SED..(3FC,5F)..XLI..GEN; AE111..RHD..5F..GLI..GEN; AE111..SEG..GEN;AE111..RHD..5F..GLI..GEN199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC; INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC & W(TACHOMETER)
main83243-1A790iAE110,EE111..XLI..GEN;AE111..RHD..SED..5F..XLI..GEN; AE111,EE111..RHD..SED..(3FC,5F)..XLI..GEN199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
main83882-12700iAE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..GEN;AE111..SED..(XL,XLI)..GEN;AE112,CE110,EE111..(STD,XL,XLI)..(GEN,VEN)199704-200208
main83882-12840iAE111..RHD..WG;EE110..5F..GEN;EE110..LHD..3FC;AE112..XLI..(GCC,GEN);AE112..GLI..(ARL,GCC,VEN);AE111,CE110,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN); AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE112,CE110..GLI,XL;EE110..(GL,XL)..GEN;AE111,EE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,VEN)199704-200009
W(TACHOMETER)
MIDDLE EAST SPEC
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
main83244-1E310iAE111..RHD..SED..5F..XLI..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..5F..GLI..GEN; EE111..GEN;AE111..RHD..5F..GLI..GEN199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC; INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC & W(TACHOMETER)
main83883-12840iAE111,112..LHD..XLI..(BZ,GEN);AE111,CE110..(XL,XLI)..(ARL,NZ,TUR,VEN);AE111,112,EE110..(GL,GLI)..(ARL,BZ,GEN,GENKD,NZ,TUR,VEN); AE111..RHD..WG..4FC;AE111..(GL,GLI)..(GEN,TUR);AE111..LHD..SED..XLI..(GEN,TUR,VEN);AE112,CE110,EE110..(GL,GLI,XLI)..(ARL,GEN,VEN)199704-200009
83247PLATE, METER CIRCUIT
THAILAND SPEC; THAILAND SPEC & W(TACHOMETER)
THAILAND SPEC OR MALAYSIA SPEC
main83861-12230iAE110,111,EE111..RHD..SED..(3FC,5F)..XLI..GEN; AE111,EE111..RHD..SED..(3FC,5F)..XLI..GEN; AE111..RHD..5F..(GLI,SEG)..GEN; AE111..RHD..5F..GLI..GEN199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC; INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC & W(TACHOMETER)
main83861-12360iAE110,EE111..XLI..GEN;AE111..RHD..SED..5F..XLI..GEN; AE111,EE111..RHD..SED..(3FC,5F)..XLI..GEN199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
main83861-1A110iAE111,EE110..GL;AE111..RHD..GLI..GEN; AE111,EE110..XL..GEN;AE111,EE111..RHD..XLI..(GEN,NZ); AE111..GL;AE111..RHD..GLI..GEN;AE112,EE110..(GL,GLI)..(GEN,NZ); AE111..XL;EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,EE111..RHD..XLI..GEN199704-199910
W(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
main83861-1A810iAE111,112..LHD..XLI..(BZ,GCC,GEN); AE112..XLI..(GCC,GEN);AE111..LHD..SED..XLI..(GCC,GEN)199704-199910
W(TACHOMETER)
main83861-1E410iAE111..(3FC,5F)..(GL,XL);AE111..RHD..5F..(GLI,XLI)..GEN;AE112,EE11#..SED..(3FC,4FC,5F)..(ARL,GEN)199910-200109
W(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
83910CLOCK ASSY
main83910-12520iAE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI)199505-199705
83970BUZZER ASSY, REVERSE WARNING
8319387501
main83193-87501
8319487502
main83194-87502
9009900225
main90099-00225
9009900248
main90099-00248
9009900917
main90099-00917
9009900929
main90099-00929
9356755016
main93567-55016
9671124030
main96711-24030
22 parts on this diagram · 5 diagrams in section
