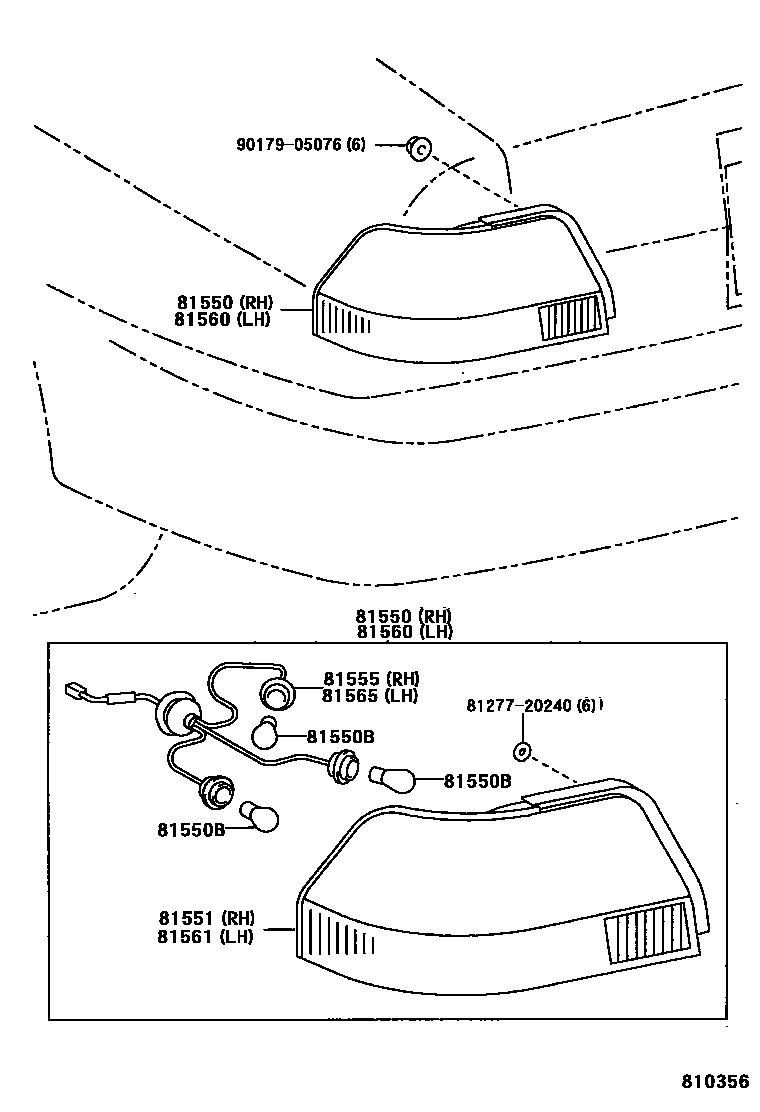

REAR COMBINATION LAMP

0001 1 0002 1TYPE A 0003 1TYPE B 0004 1TYPE B 0005 1TYPE C 0006 1TYPE C 0007 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-13400iAE111..RHD..WG;AE112,EE110..WG199704-199801

sub81550-13401

main81550-13401iAE111,112,EE110..WG199801-200109

main81550-1A660iAE11#,EE11#199505-199605

sub81550-1A661

main81550-1A661iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199605-199910

TYPE A:REFER TO ILLUSTRATION

main81550-1E080iEE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN199704-199904

TYPE C:REFER TO ILLUSTRATION

sub81550-1E180

main81550-1E120iEE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE112,EE111..SED..(ARL,GCC,VEN);AE111,CE110..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)199704-200208

TYPE B:REFER TO ILLUSTRATION

main81550-1E180iAE111,112,EE110..BZ,GENKD199904-200207

TYPE C:REFER TO ILLUSTRATION

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11042iAE111,112,EE110..WG199704-200109

12V 21W

sub90981-13043

main90981-11043iAE111..RHD..WG;AE112,EE110..WG199704-200109

12V 21/5W

sub90981-11048

main90981-13043iAE111,EE111..SED..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN199704-200207

12V 21W,TYPE C:REFER TO ILLUSTRATION

main90981-13044iEE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN199704-200207

12V 21/5W,TYPE C:REFER TO ILLUSTRATION

main99132-11210iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN199704-200208

12V 21W,TYPE B:REFER TO ILLUSTRATION

main99132-11210iAE11#,EE11#199505-199704

12V 21W

main99132-11210iEE110..LHD..3FC;AE112..SED..(ARL,GCC,VEN);EE110..SED..MTM..(GCC,GEN);CE110,EE111..(STD,XL)..(GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)199704-199910

12V 21W,TYPE A:REFER TO ILLUSTRATION

main99132-21210iAE111,112,EE11#..PHL,TUR,VEN199910-200208

12V 21/5W,TYPE B:REFER TO ILLUSTRATION

main99132-21210iAE111,112,CE110,EE11#..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN)199704-199910

12V 21/5W,TYPE A:REFER TO ILLUSTRATION

main99132-21210iAE11#,EE11#199505-199704

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-13400iAE111,112,EE110..WG199704-199801

sub81551-13401

main81551-13401iAE111..RHD..WG;AE112,EE110..WG199801-200109

main81551-1A660iAE11#,EE11#199505-199605

sub81551-1A661

main81551-1A661iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

TYPE A:REFER TO ILLUSTRATION

main81551-1A661iAE11#,EE11#199605-199704

main81551-1E080iAE112..IDN,TH;AE111,EE11#..MA,PHL,TH199704-199910

TYPE C:REFER TO ILLUSTRATION

sub81551-1E180

main81551-1E120iEE11#..SED..(GL,STD,XL)..(GCC,GEN,VEN);AE111,112,CE110..SED..(ARL,GCC,GEN,TUR,VEN)199704-200208

TYPE B:REFER TO ILLUSTRATION

main81551-1E180iAE111,112,EE110..BZ,GENKD199904-200207

TYPE C:REFER TO ILLUSTRATION

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-13380iAE111..RHD..WG;AE112,EE110..WG199704-200109

main81555-1A660iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

TYPE A:REFER TO ILLUSTRATION

main81555-1A660iAE11#,EE11#199505-199704

main81555-1E080iAE112..BZ,IDN,TH;AE111,EE11#..GENKD,MA,PHL,TH199704-200008

TYPE C:REFER TO ILLUSTRATION

main81555-1E120iEE111..LHD;AE111,112,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN)199704-200208

TYPE B:REFER TO ILLUSTRATION

81560LAMP ASSY, REAR COMBINATION, LH

main81560-13400iAE111,112,EE110..WG199704-199801

sub81560-13401

main81560-13401iAE111..RHD..WG;AE112,EE110..WG199801-200109

main81560-1A660iAE11#,EE11#199505-199605

sub81560-1A661

main81560-1A661iAE11#,EE11#199605-199704

main81560-1A661iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

TYPE A:REFER TO ILLUSTRATION

main81560-1E040iEE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN199704-199904

TYPE C:REFER TO ILLUSTRATION

sub81560-1E140

main81560-1E080iEE11#..SED..(GL,STD,XL)..(GCC,GEN,VEN);AE111,112,CE110..SED..(ARL,GCC,GEN,TUR,VEN)199704-200208

TYPE B:REFER TO ILLUSTRATION

main81560-1E140iEE110..MTM..GEN;EE110..LHD..3FC;AE110,111,CE110,EE111..SED..GEN199904-200207

TYPE C:REFER TO ILLUSTRATION

81561LENS, REAR COMBINATION LAMP, LH

main81561-13400iAE111,112,EE110..WG199704-199801

sub81561-13401

main81561-13401iAE111..RHD..WG;AE112,EE110..WG199801-200109

main81561-1A660iAE11#,EE11#199505-199605

sub81561-1A661

main81561-1A661iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

TYPE A:REFER TO ILLUSTRATION

main81561-1A661iAE11#,EE11#199605-199704

main81561-1E040iEE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN199704-199910

TYPE C:REFER TO ILLUSTRATION

sub81561-1E140

main81561-1E080iEE110..LHD..3FC;AE112..SED..(ARL,GCC,VEN);EE110..SED..MTM..(GCC,GEN);CE110,EE111..(STD,XL)..(GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)199704-200208

TYPE B:REFER TO ILLUSTRATION

main81561-1E140iAE110..4FC199904-200207

TYPE C:REFER TO ILLUSTRATION

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-13380iAE111,112,EE110..WG199704-200109

main81555-1A660iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN199704-199910

TYPE A:REFER TO ILLUSTRATION

main81555-1A660iAE11#,EE11#199505-199704

main81555-1E080iAE112..BZ,IDN,TH;AE111,EE11#..GENKD,MA,PHL,TH199704-200008

TYPE C:REFER TO ILLUSTRATION

main81555-1E120iEE11#..SED..(GL,STD,XL)..(GCC,GEN,VEN);AE111,112,CE110..SED..(ARL,GCC,GEN,TUR,VEN)199704-200208

TYPE B:REFER TO ILLUSTRATION

8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-20240

9017905076

main90179-05076

9 parts on this diagram · 7 diagrams in section
