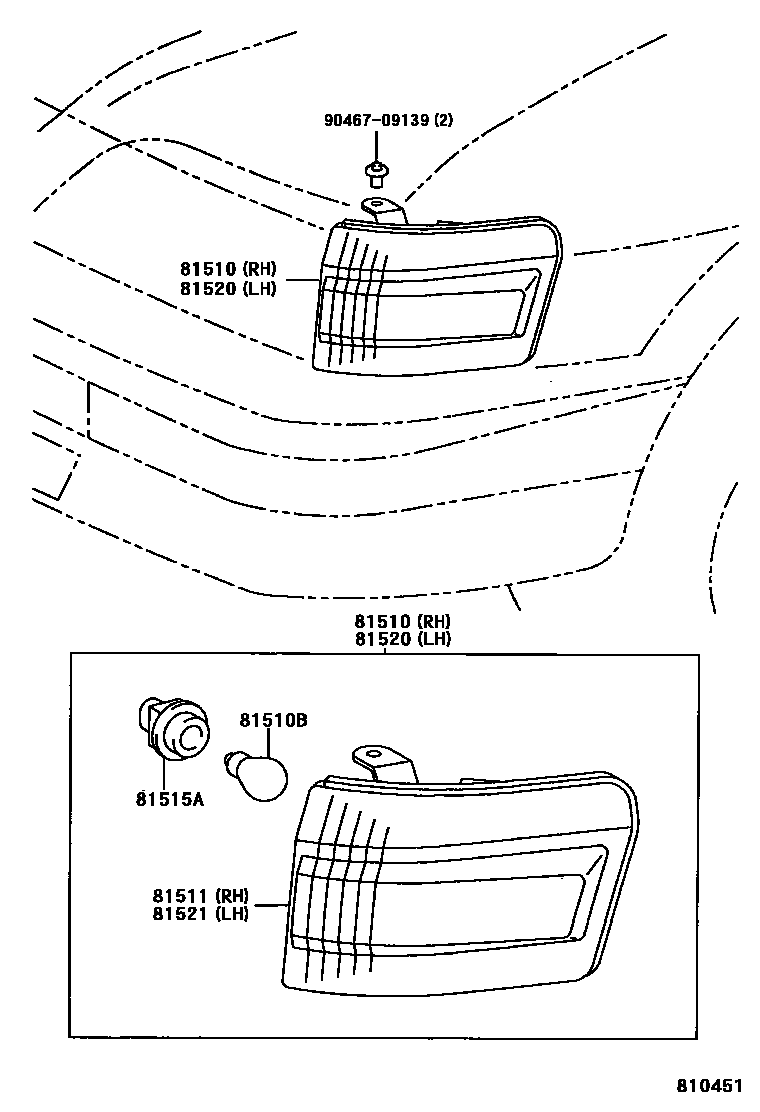

FRONT TURN SIGNAL LAMP

0001 1TYPE A 0002 1TYPE B 0003 1TYPE C 0004 1TYPE D

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-12810iAE11#,EE11#199505-199605

TYPE A:REFER TO ILLUSTRATION

main81510-12811iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

TYPE A:REFER TO ILLUSTRATION

main81510-12830iEE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN); EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)199704-199910

TYPE B:REFER TO ILLUSTRATION

main81510-12870iAE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH); EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN199704-199904

TYPE C:REFER TO ILLUSTRATION

main81510-12890iZZE11#;EE111..VEN;AE111,112,CE110,EE110..ARL,GCC,GEN,VEN200002-200208

TYPE D:REFER TO ILLUSTRATION

main81510-1A010iAE110..4FC; CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD); EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN199904-200008

TYPE C:REFER TO ILLUSTRATION

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15009×2iAE110..4FC; AE111..WG..5F;AE112,EE111..XLI..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,GCC,GEN,VEN); EE111..TUR;AE111,112,EE110..BZ,GENKD,TUR,VEN199910-200008

12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION

main99132-11210×2iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

12V 21W,TYPE A:REFER TO ILLUSTRATION

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-12810iAE11#,EE11#199505-199605

TYPE A:REFER TO ILLUSTRATION

main81511-12811iEE110..RHD..XL;AE110,111..RHD..GLI;AE111,EE111..RHD..SED..(3FC,5F)..XLI199704-199705

TYPE A:REFER TO ILLUSTRATION

main81511-12830iEE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN); EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)199704-199910

TYPE B:REFER TO ILLUSTRATION

main81511-12870iAE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH); EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN199704-199904

TYPE C:REFER TO ILLUSTRATION

main81511-12890iAE111,112,CE110,EE110..ARL,GCC,GEN199910-200002

TYPE D:REFER TO ILLUSTRATION

main81511-1A010iAE110..4FC; CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD); EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN199904-200008

TYPE C:REFER TO ILLUSTRATION

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main90075-60006×2iAE110..4FC..GEN199807-199910

TYPE B OR TYPE C:REFER TO ILLUSTRATION

main90075-99078×2iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

TYPE A:REFER TO ILLUSTRATION

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-12790iAE11#,EE11#199505-199605

TYPE A:REFER TO ILLUSTRATION

main81520-12791iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

TYPE A:REFER TO ILLUSTRATION

main81520-12820iAE111,EE11#..TUR; AE111..TUR200002-200005

TYPE B:REFER TO ILLUSTRATION

main81520-12850iAE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH); EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN199704-199904

TYPE C:REFER TO ILLUSTRATION

main81520-12870iAE111,112,CE110,EE110..ARL,GCC,GEN199910-200002

TYPE D:REFER TO ILLUSTRATION

main81520-12880iAE110..4FC; CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD); EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN199904-200008

TYPE C:REFER TO ILLUSTRATION

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-12790iAE11#,EE11#199505-199605

TYPE A:REFER TO ILLUSTRATION

main81521-12791iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

TYPE A:REFER TO ILLUSTRATION

main81521-12820iEE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN); EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)199704-199910

TYPE B:REFER TO ILLUSTRATION

main81521-12850iAE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH); EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN199704-199904

TYPE C:REFER TO ILLUSTRATION

main81521-12870iZZE11#;EE111..VEN;AE111,112,CE110,EE110..ARL,GCC,GEN,VEN200002-200208

TYPE D:REFER TO ILLUSTRATION

main81521-12880iAE110..4FC; CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD); EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN199904-200008

TYPE C:REFER TO ILLUSTRATION

9046709139

main90467-09139

7 parts on this diagram · 4 diagrams in section
