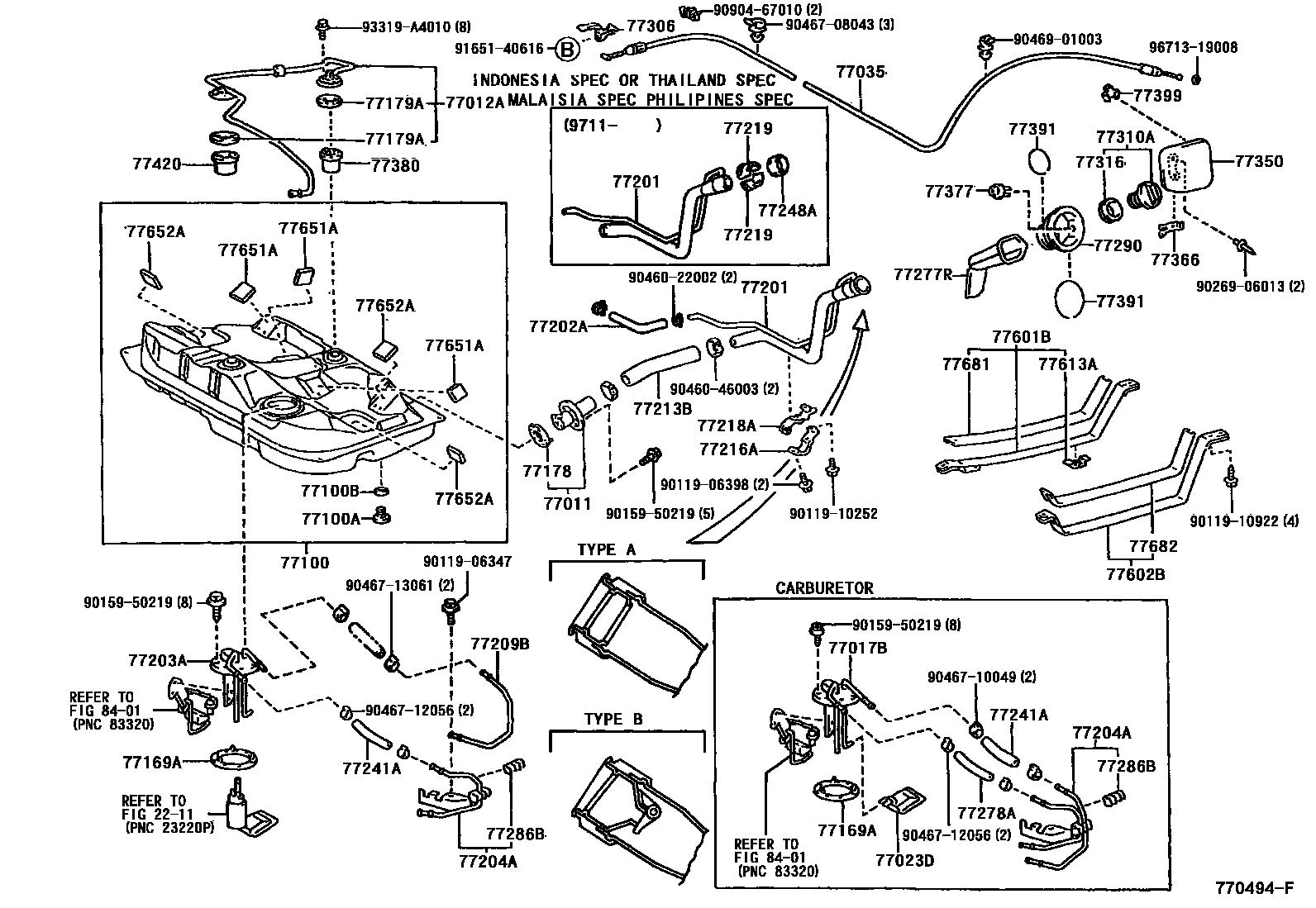

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

2211

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12090iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200207

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-12140iAE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL199505-200207

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-12600iCE110199704-200109

main77017-12620iAE111,EE110..GL,STD,XL199505-200109

77023DFILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-10010iAE111,EE110..(GL,STD,XL)..(GCC,GEN)199505-200109

main77023-32040iCE110199704-200109

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12220iAE110..4FC..GEN199505-200207

main77035-12370iAE111,112,CE110,EE11#..LHD199704-200208

77100TANK ASSY, FUEL

main77001-12931iAE110..4FC199505-200207

77100APLUG(FOR FUEL TANK)

main90341-20004iAE110..4FC..GEN199505-199812

77100BGASKET(FOR FUEL TANK)

main90430-20007iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-199812

77169AGASKET, FUEL SUCTION TUBE SET

main77169-12030iAE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI199505-199812

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200207

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200207

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12430iCE110..XL;AE111..WG..5F;AE111..SED..(GCC,GEN,GENKD);AE112,EE110..BZ,GCC,GEN,GENKD,TUR199505-200207

TYPE A:REFER TO ILLUSTRATION

main77201-12500iAE110,EE111;AE111..GLI,SEG199505-200008

TYPE B:REFER TO ILLUSTRATION

main77201-12500iZZE11#200005-200201

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77269-12050iZZE11#200005-200201

L=220

main95311-13022iAE110..4FC199505-200207

L=220

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-12170iAE110..4FC..GEN199505-200207

main77203-12240iAE112199505-200208

main77203-12280iZZE11#200005-200201

77204ATUBE, FUEL TANK RETURN

main77204-12010iCE110..GEN199704-200109

main77204-12020iAE11#,EE111..GLI,SEG,XLI199505-200207

main77204-12060iAE111,EE110..GL,STD,XL199505-200109

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-12080iAE110,112,EE111..GCC,GEN;AE111..RHD..(GLI,SEG,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN)199505-200207

main77209-12150iZZE11#200005-200201

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-12160iAE111..RHD..5F..GLI..GEN199505-200008

SINGAPORE SPEC

main77213-12160iAE110,EE111199505-199909

main77213-12160iAE111..RHD..WG;AE111..LHD..GLI;AE111..SED..4FC..XLI..GEN;AE111..LHD..SED..5F..XLI..GEN199704-200008

NEW ZEALAND OR SINGAPORE SPEC

main77213-12160iAE111..5F..SEG199505-199712

MALAYSIA SPEC

main77213-12160iAE111..5F..SEG199505-199712

MALAYSIA SPEC OR THAILAND SPEC

main77213-12160iAE111..RHD..5F..GLI..GEN199505-200008

SINGAPORE SPEC OR THAILAND SPEC

main77213-12160iAE111..RHD..SED..5F..XLI..GEN199605-200008

THAILAND SPEC

main77213-12160iAE112..GEN199808-200109

CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC

main77213-12160iAE111..WG..5F;AE111..LHD..(GLI,XLI)..GEN200008-200109

CHILE SPEC OR MIDDLE SOUTH AMERICA SPEC OR BRAZIL SPEC

main77213-12160iAE111..VEN199805-200208

EXHAUST EMISSION CONTROL

main77213-12160iAE111..TUR;AE111..WG..4FC;AE110,112,EE111..SED..(ARL,GEN,VEN)199909-200005

PNC 77201 = TYPE B:REFER TO ILLUSTRATION

main77213-12170iAE111,112,CE110,EE110..GCC,GEN199910-200207

PNC 77201 = TYPE A:REFER TO ILLUSTRATION

sub77213-12220

main77213-12170iEE110..GCC,GEN;AE111..RHD..WG;AE112,CE110..GCC,GEN,VEN;AE111..SED..(GCC,GEN,VEN)199505-199910

sub77213-12220

main77213-12220iZZE11#200005-200201

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12070iAE110,111,CE110..GCC,GEN,TUR;AE112,EE11#..ARL,GCC,GEN,VEN199505-200207

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-12030iAE110..4FC..GEN199505-200207

77219COVER, FUEL TANK FILLER PIPE

main77219-20070iAE111,112,EE11#..IDN,MA,PHL,TH199711-199812

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95333-04020iAE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN)199704-200109

L=200(*H,L=110)

main95333-06020iAE110..4FC..GEN199505-200207

L=200(*H,L=110)

sub95337-06020

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-20030iAE111,112,EE11#..IDN,MA,PHL,TH199711-199812

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12160iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

77278AHOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)

main95333-04020iEE110199505-199704

L=200(*H,L=110)

main95333-06020iCE110..GEN199704-200109

L=200(*H,L=110)

sub95337-06020

main95333-08020iCE110199704-200109

L=200(*H,L=120)

sub95337-08020

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77285-12040iAE110..4FC..GEN199505-200207

main77285-12050iAE111,EE110..GL,STD,XL199505-200109

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-12110iAE110..4FC..GEN199505

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-13060iAE111..RHD..WG199704-200109

main77306-13081iAE112,EE110..WG199704-200109

77310ACAP ASSY, FUEL TANK

main77300-12010iCE110199910-200109

main77300-52010iAE11#,EE11#..ARL,GCC,GEN199910

W(TETHER)

main77300-52010iZZE11#;AE111,112,EE111..VEN200002-200208

main77310-12150iCE110199803-199910

main77310-16011iAE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,EE11#..GCC,GEN199505-199803

sub77310-12140

main77310-32011iCE110..GEN199704-199803

main77310-48010iAE111,112,EE11#..BZ,GENKD,IDN,MA,PHL,TH,TUR199803-200002

77316GASKET, FUEL TANK CAP

main77316-16010iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-199812

77350LID ASSY, FUEL FILLER OPENING

main77350-12360iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main77350-12360iAE11#,EE11#199505-200109

main77350-12410iEE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC199704

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12080iAE110..4FC..GEN199505

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iAE110..4FC..GEN199505-199812

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iAE110..4FC..GEN199505-199812

77391RING, FUEL INLET BOX

main77391-12010iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505

OUTER

main77391-12020iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505

INNER

77399HANGER, FUEL TANK CAP

main77399-12020iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-199812

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-12210iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-199812

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-12130iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-199812

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-16030iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-199812

77651ACUSHION, FUEL TANK, NO.1

main77651-20090iAE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505-199812

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iAE110..4FC..GEN199505-199812

77681SEAT, FUEL TANK BAND, RH

main77681-32060iEE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN199505-199812

77682SEAT, FUEL TANK BAND, LH

main77681-32060iAE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505-199812

8401

9011906347

main90119-06347

9011906398

main90119-06398

9011910252

main90119-10252

9011910922

main90119-10922

9015950219

main90159-50219

9026906013

main90269-06013

9046022002

main90460-22002

9046046003

main90460-46003

9046708043

main90467-08043

9046710049

main90467-10049

9046712056

main90467-12056

9046713061

main90467-13061

9046901003

main90469-01003

9090467010

main90904-67010

9165140616

main91651-40616

93319A4010

main93319-A4010

9671319008

main96713-19008

62 parts on this diagram · 5 diagrams in section
