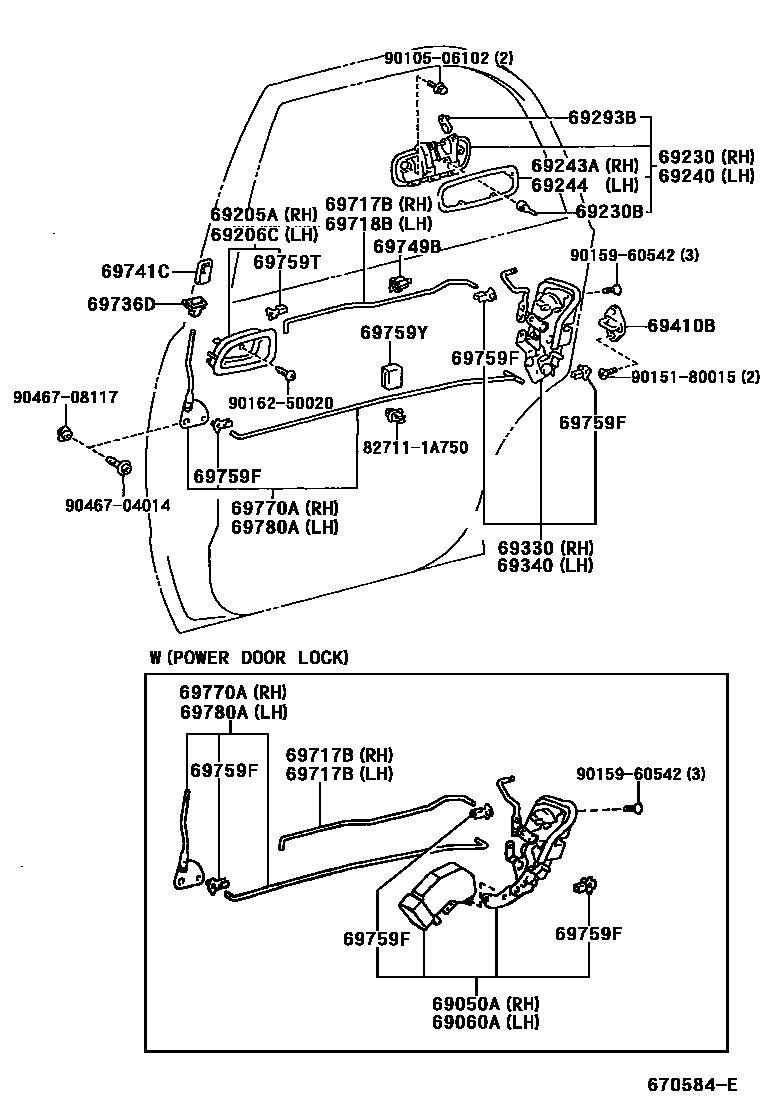

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69207-12030-B1iEE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN199704-199910
MD.CHARCOAL,TRIM10,14
sub69207-12030
main69207-12030-B1iEE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN199704-200208
MD.CHARCOAL,TRIM1#
sub69207-12030
MD.CHARCOAL,TRIM1#,9#
sub69207-12030
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69208-12030-B1iAE110..GLI;EE110..GCC;AE111..RHD..WG;AE111..GCC,TUR,VEN;AE112,EE111..ARL,GCC,GEN,VEN199704-199910
MD.CHARCOAL,TRIM10,14
sub69208-12030
main69208-12030-B1iAE110..GLI;EE110..GCC;AE111..RHD..WG;AE111..GCC,TUR,VEN;AE112,EE111..ARL,GCC,GEN,VEN199704-200208
MD.CHARCOAL,TRIM1#
sub69208-12030
MD.CHARCOAL,TRIM1#,9#
sub69208-12030
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69230-12170iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199505-199910
BLACK
sub69230-12220
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,SUPER WHITE 2,040
sub69230-12230
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,WARM GRAY PEARL ME.,1A5
sub69230-12230
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,BL.GRAY ME,182
sub69230-12230
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,SILVER ME,199
sub69230-12230
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,RED MM,3K4
sub69230-12230
main69230-12180-G0iEE110..RHD..5F..XL;AE111..RHD..GLI..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..XLI..GEN199505-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,DK GREEN MICA,6M1
sub69230-12230
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,MD.GREEN M.M.,6P0
sub69230-12230
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,DK.BLUE M.M.,8L2
sub69230-12230
FOR COLORED OUTSIDE HANDLE(W/O PAINTING)
sub69230-12240
main69230-12220iEE111;AE111..GENKD;AE111..RHD..5F..GLI..GEN;AE111,112,CE110,EE110..(STD,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,IDN,PHL,TH,TUR,VEN)199704-200201
main69230-12220iAE111..GENKD;EE11#..GENKD,MA,PHL,TUR,VEN;AE111,112..XLI..(BZ,IDN,TH,TUR,VEN)199910-200208
NO PAINT REQ.,BLACK
main69230-12230-A0iCE110..XL;EE110..LHD..3FC;AE110,111,EE111..GCC,GEN;AE112,EE110..(4FC,5F)..(ARL,GCC,GEN)199704-199910
SUPER WHITE 2,040
sub69230-12230
main69230-12230-B0iEE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..5F..(GL,XL)..GEN199704-200008
WARM GRAY PEARL ME.,1A5
sub69230-12230
main69230-12230-B1iAE110,CE110,EE110..(GL,GLI,XL)..GEN;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN199704-200008
DK.GRAY ME.,1B4
sub69230-12230
main69230-12230-B3iAE111..RHD..WG;EE110..LHD..3FC;AE112..GLI..(ARL,GCC);AE112,EE110..(4FC,5F)..GEN;AE110,111,CE110,EE111..SED..GEN199704-199910
SILVER ME,199
sub69230-12230
CRYSTAL SILVER PEARL,1C1
sub69230-12230
main69230-12230-D0iAE110,CE110,EE110..(GL,GLI,XL)..GEN;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN199704-199804
RED MM,3K4
sub69230-12230
main69230-12230-D1iAE111..RHD..WG;EE110..LHD..3FC;AE112..GLI..(ARL,GCC);AE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,112,CE110,EE110..(4FC,5F)..(GL,XL,XLI)..GEN199704-199910
CORAL REEF M.M.,3L6
sub69230-12230
main69230-12230-D2iAE111..RHD..WG;EE110..5F..GEN;AE112..GLI..GCC;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN199704-199808
RED,3M7
sub69230-12230
main69230-12230-D4iAE112..GEN;AE112..GLI..(ARL,GCC);AE111,CE110,EE110..(3FC,4FC,5F)..(ARL,GEN)199808-200109
SUPER RED II,3E5
sub69230-12230
RED M.M.,3N8
sub69230-12230
main69230-12230-G0iAE110,CE110,EE110..(GL,GLI,XL)..GEN;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN199704-200008
DK.GREEN M.M.,6P2
sub69230-12230
GREEN M.M.,6P5
sub69230-12230
GREEN MC.,6R8
sub69230-12230
main69230-12230-J2iAE111..RHD..WG;EE110..LHD..3FC;AE112..GLI..(ARL,GCC);AE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,112,CE110,EE110..(4FC,5F)..(GL,XL,XLI)..GEN199704-200109
BLUE M.M.,8L5
sub69230-12230
main69230-12230-J3iAE112..GLI..(ARL,GCC);AE111,CE110,EE110..SED..(GL,GLI,XL,XLI)..(ARL,GEN)199704-200109
DK.BLUE,8M4
sub69230-12230
DK.BLUE M.M.,8L3
sub69230-12230
main69230-12230-K0iAE111..RHD..WG;AE112..GLI..GCC;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4FC,5F)..(GL,XL,XLI)..GEN199704-199808
LAVENDER ME.,932
sub69230-12230
main69230-12230-K1iAE112..GEN;AE112..GLI..(ARL,GCC);AE111,CE110,EE110..(3FC,4FC,5F)..(ARL,GEN)199808-199910
VIOLET M.M.,944
sub69230-12230
FOR COLORED OUTSIDE HANDLE(W/O PAINTING)
main69230-12240iEE110..RHD..XL;AE111..RHD..GLI..GEN;AE111,EE111..RHD..SED..(3FC,5F)..XLI..GEN199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
CHROME PLATED
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,SUPER WHITE 2,040
sub69240-12230
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,WARM GRAY PEARL ME.,1A5
sub69240-12230
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,BL.GRAY ME,182
sub69240-12230
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,SILVER ME,199
sub69240-12230
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,RED MM,3K4
sub69240-12230
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,DK GREEN MICA,6M1
sub69240-12230
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,MD.GREEN M.M.,6P0
sub69240-12230
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,DK.BLUE M.M.,8L2
sub69240-12230
FOR COLORED OUTSIDE HANDLE(W/O PAINTING)
sub69240-12240
main69240-12220iEE111;AE111..GENKD;AE111..RHD..5F..GLI..GEN;AE111,112,CE110,EE110..(STD,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,IDN,PHL,TH,TUR,VEN)199704-200208
BLACK
main69240-12230-A0iCE110..XL;EE110..LHD..3FC;AE110,111,EE111..GCC,GEN;AE112,EE110..(4FC,5F)..(ARL,GCC,GEN)199704-199910
SUPER WHITE 2,040
main69240-12230-B0iAE110,CE110,EE110..(GL,GLI,XL)..GEN;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN199704-200008
WARM GRAY PEARL ME.,1A5
DK.GRAY ME.,1B4
SILVER ME,199
CRYSTAL SILVER PEARL,1C1
BLACK ME,205
RED MM,3K4
main69240-12230-D1iAE112..GEN;AE112..GLI..(ARL,GCC);AE111,CE110,EE110..(GL,GLI,XL,XLI)..(ARL,GEN)199704-199910
CORAL REEF M.M.,3L6
RED,3M7
main69240-12230-D4iAE112..GEN;AE112..GLI..(ARL,GCC);AE111,CE110,EE110..(3FC,4FC,5F)..(ARL,GEN)199808-200109
SUPER RED II,3E5
RED M.M.,3N8
DK.GREEN M.M.,6P2
main69240-12230-G1iEE110..LHD..3FC;AE111,CE110..GCC,GEN;AE112,EE110..(4FC,5F)..(ARL,GCC,GEN)199704-199910
GREEN M.M.,6P5
GREEN MC.,6R8
main69240-12230-J1iEE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..GEN199704-200008
DK.BLUE M.M.,8L2
main69240-12230-J2iAE112..GEN;AE112..GLI..(ARL,GCC);AE111,CE110,EE110..(GL,GLI,XL,XLI)..(ARL,GEN)199704-200109
BLUE M.M.,8L5
DK.BLUE,8M4
DK.BLUE M.M.,8L3
LAVENDER ME.,932
VIOLET M.M.,944
main69240-12240iEE110..RHD..XL;AE111..RHD..GLI..GEN;AE111,EE111..RHD..SED..(3FC,5F)..XLI..GEN199704-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
main69240-12240iAE111..5F..NZ;AE111..4FC..GLI..TUR;AE111..4FC..(MA,NZ,PHL,TH);AE110,CE110,EE111..MA,NZ,TH;AE112..(GLI,SEG)..(BZ,IDN,NZ,TH,VEN);AE111..5F..(GLI,SEG)..(GENKD,MA,PHL,T199710-200208
FOR COLORED OUTSIDE HANDLE(W/O PAINTING)
CHROME PLATED
69243APAD, REAR DOOR OUTSIDE HANDLE, RH
69244PAD, REAR DOOR OUTSIDE HANDLE, LH
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
LH
69330LOCK ASSY, REAR DOOR, RH
THAILAND SPEC OR MALAYSIA SPEC
W(POWER WINDOW)
main69305-12170iEE110..LHD..3FC;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN)199704-199910
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
69340LOCK ASSY, REAR DOOR, LH
THAILAND SPEC OR MALAYSIA SPEC
W(POWER WINDOW)
main69306-12190iEE110..LHD..3FC;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN)199704-199910
main69306-12200iEE110..LHD..3FC;EE110..5F..(GCC,GEN);AE110,111,CE110..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN)199704-199910
W(POWER DOOR LOCK)
main69306-12230iAE111..(XL,XLI)..(GCC,GEN);CE110,EE110..(STD,XL)..(GCC,GEN);AE112,EE111..(STD,XLI)..(ARL,GCC,GEN,VEN)199910-200208
W(POWER DOOR LOCK)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-87001iEE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN199505-199812
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
main69713-12090iAE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505-199812
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69736DGUIDE, REAR DOOR LOCKING LINK
main69736-12130iAE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN199704-199812
69741CKNOB, REAR DOOR LOCK CONTROL
main69741-12040-B3iEE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN199704-199910
MD.CHARCOAL,TRIM10,14
sub69741-12040
main69741-12040-B3iEE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN199704-200208
MD.CHARCOAL,TRIM1#
sub69741-12040
MD.CHARCOAL,TRIM1#,9#
sub69741-12040
69749BCLAMP, REAR DOOR LOCK LINK
main69749-12070iAE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505-199812
69759FSNAP, REAR DOOR LOCK CONTROL LINK
NATURAL
main69759-20030iEE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN199505-199812
BLUE
main69759-20040iEE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN199505-199812
YELLOW
BROWN
69759TSNAP, REAR DOOR INSIDE HANDLE
main69759-22040iAE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505-199812
LH
main69759-22050iEE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN199505-199812
RH
69759YSILENCER, REAR DOOR LOCK LINK
main69759-20390iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-199812
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-12100iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
main69770-12110iEE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN199704-199812
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC
main69780-12110iAE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199704-199812
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A750
9010506102
main90105-06102
9015180015
main90151-80015
9015960542
main90159-60542
9016250020
main90162-50020
9046704014
main90467-04014
9046708117
main90467-08117
30 parts on this diagram · 2 diagrams in section
