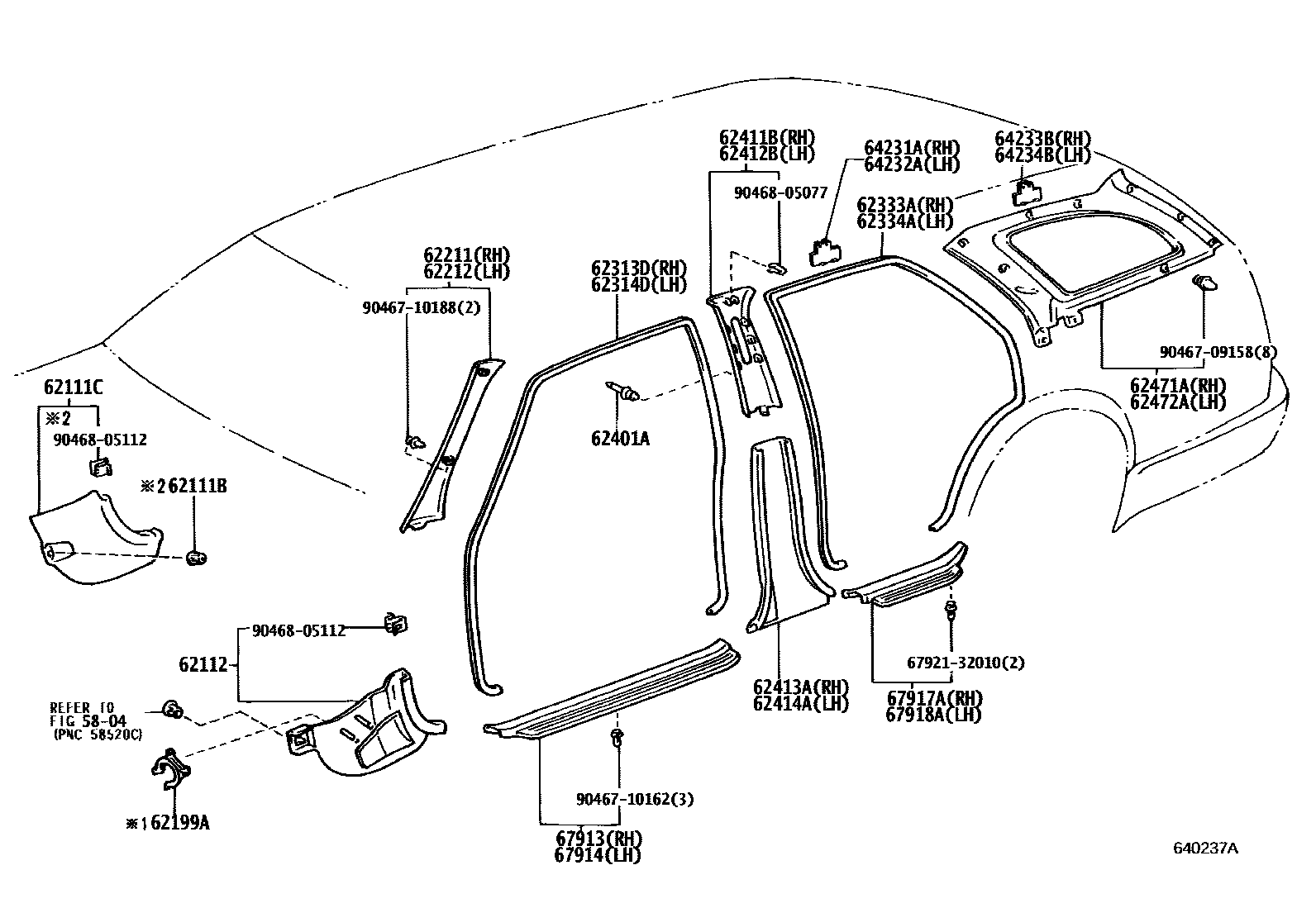

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

5804

62111BCLIP(FOR COWL SIDE TRIM)

main90467-05050-22iAE111..WG;AE112,CE110..SED..(GLI,XLI)..(ARL,GEN)199605-200208

BLACK,TRIM1#

sub90467-05050

main90467-05050-22iAE111..GLI,XLI;AE110,EE11#..XL,XLI199605-199712

BLACK,TRIM1#,4#

sub90467-05050

main90467-05050-22iAE111,CE110,EE110..RHD..SED..(4FC,5F)..(GL,GLI,XL,XLI)..GEN199704-199910

BLACK,TRIM10,14

sub90467-05050

main90467-05050-22iAE111..WG;AE112,CE110..SED..(GLI,XLI)..(ARL,GEN)199910-200008

BLACK,TRIM1#,9#

sub90467-05050

main90467-05050-22iAE110,EE111..GEN199910

BLACK,TRIM9#

sub90467-05050

62111CBOARD, COWL SIDE TRIM, RH

main62111-12230-B0iAE11#,EE11#199505-199605

SHADOW GRAY,TRIM1#

sub62111-12231

sub90467-05050

main62111-12230-E0iAE110..GLI;AE111..SEG199505-199605

OAK,TRIM4#

sub62111-12231

sub90467-05050

main62111-12231-B0iAE111,112,EE111..IDN,MA,TH199605-200207

SHADOW GRAY,TRIM1#

sub62111-12231

main62111-12231-B1iEE111..GEN;AE111..RHD..WG;AE11#,EE110..RHD..(GL,GLI)..(ARL,GEN)199704-199910

MD.CHARCOAL,TRIM10,14

sub62111-12231

main62111-12231-B1iEE111..GEN;AE111..RHD..WG;AE11#,EE110..RHD..(GL,GLI)..(ARL,GEN)199704-200109

MD.CHARCOAL,TRIM1#

sub62111-12231

main62111-12231-B1iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub62111-12231

main62111-12231-B1iAE111..WG;AE112,CE110..SED..(GLI,XLI)..(ARL,GEN)199910-200008

MD.CHARCOAL,TRIM1#,9#

sub62111-12231

main62111-12231-E0iAE111..SEG199605-199712

OAK,TRIM4#

sub62111-12231

main62111-12250-B0iEE110..GCC;AE111..GCC,TUR,VEN;EE110..LHD..(GL,STD)..GEN;AE112,EE111..LHD..(GCC,GEN,VEN)199704-199910

MD.CHARCOAL,TRIM10,14

sub62111-12250

main62111-12250-B0iEE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN199704-200411

MD.CHARCOAL,TRIM1#

sub62111-12250

main62111-12250-B0iAE111,CE110,EE110..LHD..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub62111-12250

62112BOARD, COWL SIDE TRIM, LH

main62112-12240-B0iAE11#,EE11#199505-200207

SHADOW GRAY,TRIM1#

sub62112-12230

main62112-12240-B1iAE110..4FC199910

MD.CHARCOAL,TRIM9#

sub62112-12230

main62112-12240-B1iEE111..GEN;AE111..RHD..WG;AE11#,EE110..RHD..(GL,GLI)..(ARL,GEN)199704-200109

MD.CHARCOAL,TRIM1#

sub62112-12230

main62112-12240-B1iEE111..GEN;AE111..RHD..WG;AE11#,EE110..RHD..(GL,GLI)..(ARL,GEN)199704-199910

MD.CHARCOAL,TRIM10,14

sub62112-12230

main62112-12240-B1iAE111..WG;AE112,CE110..SED..(GLI,XLI)..(ARL,GEN)199910-200008

MD.CHARCOAL,TRIM1#,9#

sub62112-12230

main62112-12240-E0iAE110..GLI;AE111..SEG199505-199712

OAK,TRIM4#

sub62112-12230

main62112-12260-B0iAE111,112,CE110,EE11#,ZZE11#..LHD..(GEN,TUR,VEN)199704-200411

MD.CHARCOAL,TRIM1#

sub62112-12260

main62112-12260-B0iEE110..GCC;AE111,ZZE11#..GCC,TUR,VEN;AE112,EE111..LHD..(GCC,GEN,VEN)199910-200008

MD.CHARCOAL,TRIM1#,9#

sub62112-12260

main62112-12260-B0iAE111,CE110,EE110..LHD..SED..GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub62112-12260

62199AHOLDER, FUSEE

main90468-25003iEE11#..RHD..(XL,XLI)199505-199910

62211GARNISH, FRONT PILLAR, RH

main62211-12280-A0iAE111..SEG199505-199712

IVORY,TRIM4#

main62211-12280-B0iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

LT.GRAY,TRIM16

main62211-12280-B0iAE11#,EE11#199505-199704

LT.GRAY,TRIM1#

main62211-12300-B0iAE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub62211-12300

main62211-12300-B0iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub62211-12300

main62211-12300-B0iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199704-200411

MD.CHARCOAL,TRIM1#

sub62211-12300

main62211-12300-B0iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub62211-12300

main62211-12310-B1iAE110..TH199711-200207

LT.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-12280-A0iAE111..SEG199505-199712

IVORY,TRIM4#

main62212-12280-B0iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

LT.GRAY,TRIM16

main62212-12280-B0iAE11#,EE11#199505-199704

LT.GRAY,TRIM1#

main62212-12300-B0iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199704-200411

MD.CHARCOAL,TRIM1#

sub62212-12300

main62212-12300-B0iEE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub62212-12300

main62212-12300-B0iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub62212-12300

main62212-12300-B0iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub62212-12300

main62212-12310-B1iAE111,112,EE111..IDN,MA,TH199711-200207

LT.GRAY,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-12150-B0iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199812

SHADOW GRAY,TRIM12

sub62313-12150

main62313-12150-B0iAE11#,EE11#199505-200207

SHADOW GRAY,TRIM1#

sub62313-12150

main62313-12150-E0iAE111..SEG199505-199712

OAK,TRIM4#

sub62313-12150

main62313-12170-B0iAE111..SEG..GEN;AE111..RHD..SED..5F..XLI..GEN199511-200207

W(SUSPENDED ROOF HEADLINING),SHADOW GRAY,TRIM1#

sub62313-12150

main62313-12170-E0iAE111..SEG199511-199712

W(SUSPENDED ROOF HEADLINING),OAK,TRIM4#

sub62313-12150

main62313-12180-B1iAE110..4FC199910

MD.CHARCOAL,TRIM9#

main62313-12180-B1iAE111..WG;EE11#..GCC,VEN;AE111..GCC,TUR,VEN;AE112,CE110,ZZE11#..(GLI,XLI)..(GCC,GEN,TUR,VEN)199704-200411

MD.CHARCOAL,TRIM1#

main62313-12180-B1iAE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)199704-199910

MD.CHARCOAL,TRIM10,14

main62313-12180-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-12060-B0iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199812

SHADOW GRAY,TRIM12

sub62314-12060

main62314-12060-B0iAE111,112,EE111..IDN,MA,TH199505-200207

SHADOW GRAY,TRIM1#

sub62314-12060

main62314-12060-E0iAE110..GLI;AE111..SEG199505-199712

OAK,TRIM4#

sub62314-12060

main62314-12070-B0iAE112..IDN199511-200207

W(SUSPENDED ROOF HEADLINING),SHADOW GRAY,TRIM1#

sub62314-12060

main62314-12070-E0iAE111..SEG199511-199712

W(SUSPENDED ROOF HEADLINING),OAK,TRIM4#

sub62314-12060

main62314-12080-B1iAE111..WG;EE11#..GCC,VEN;AE111..GCC,TUR,VEN;AE112,CE110,ZZE11#..(GLI,XLI)..(GCC,GEN,TUR,VEN)199704-200411

MD.CHARCOAL,TRIM1#

main62314-12080-B1iAE111..WG;EE11#..GCC,VEN;AE111..GCC,TUR,VEN;AE112,CE110,ZZE11#..(GLI,XLI)..(GCC,GEN,TUR,VEN)199910-200008

MD.CHARCOAL,TRIM1#,9#

main62314-12080-B1iAE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)199704-199910

MD.CHARCOAL,TRIM10,14

main62314-12080-B1iAE110..4FC199910

MD.CHARCOAL,TRIM9#

62333ATRIM, REAR DOOR OPENING, RH

main62333-12120-B0iAE111,112,EE111..IDN,MA,TH199505-200207

SHADOW GRAY,TRIM1#

sub62333-12120

main62333-12120-B0iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199812

SHADOW GRAY,TRIM12

sub62333-12120

main62333-12120-E0iAE110..GLI;AE111..SEG199505-199712

OAK,TRIM4#

sub62333-12120

main62333-12130-B0iAE112..IDN199511-200207

W(SUSPENDED ROOF HEADLINING),SHADOW GRAY,TRIM1#

sub62333-12120

main62333-12130-E0iAE111..SEG199511-199712

W(SUSPENDED ROOF HEADLINING),OAK,TRIM4#

sub62333-12120

main62333-12140-B1iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub62333-12140

main62333-12140-B1iAE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)199704-199910

MD.CHARCOAL,TRIM10,14

sub62333-12140

main62333-12140-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub62333-12140

main62333-12140-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199704-200411

MD.CHARCOAL,TRIM1#

sub62333-12140

62334ATRIM, REAR DOOR OPENING, LH

main62334-12020-B0iAE111,112,EE111..IDN,MA,TH199505-200207

SHADOW GRAY,TRIM1#

sub62334-12020

main62334-12020-B0iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199812

SHADOW GRAY,TRIM12

sub62334-12020

main62334-12020-E0iAE110..GLI;AE111..SEG199505-199712

OAK,TRIM4#

sub62334-12020

main62334-12030-B0iAE111..SEG..GEN;AE111..RHD..SED..5F..XLI..GEN199511-200207

W(SUSPENDED ROOF HEADLINING),SHADOW GRAY,TRIM1#

sub62334-12020

main62334-12030-E0iAE111..SEG199511-199712

W(SUSPENDED ROOF HEADLINING),OAK,TRIM4#

sub62334-12020

main62334-12040-B1iAE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub62334-12040

main62334-12040-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub62334-12040

main62334-12040-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199704-200411

MD.CHARCOAL,TRIM1#

sub62334-12040

main62334-12040-B1iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub62334-12040

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-07071-B6iEE110..GCC;AE111..RHD..WG;AE111..GCC,TUR,VEN;EE110..(GL,STD)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE110,111..RHD..(GL,GLI)..GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub90467-07071

main90467-07071-B6iEE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN199704-200411

MD.CHARCOAL,TRIM1#

sub90467-07071

main90467-07071-B6iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub90467-07071

main90467-07071-B6iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub90467-07071

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-12490-A0iAE110..GLI;AE111..SEG199505-199712

IVORY,TRIM4#

main62411-12490-B0iAE111,112,EE111..IDN,MA,TH199505-200207

LT.GRAY,TRIM1#

main62411-12490-B0iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199812

LT.GRAY,TRIM16

main62411-12500-B1iAE111..WG;EE11#..GCC,VEN;AE111..GCC,TUR,VEN;AE112,CE110,ZZE11#..(GLI,XLI)..(ARL,GCC,GEN,TUR,VEN)199704-200411

MD.CHARCOAL,TRIM1#

sub62411-12500

main62411-12500-B1iAE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub62411-12500

main62411-12500-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub62411-12500

main62411-12500-B1iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub62411-12500

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-12490-A0iAE110..GLI;AE111..SEG199505-199712

IVORY,TRIM4#

main62412-12490-B0iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199812

LT.GRAY,TRIM16

main62412-12490-B0iAE111,112,EE111..IDN,MA,TH199505-200207

LT.GRAY,TRIM1#

main62412-12500-B1iAE111..WG;EE11#..GCC,VEN;AE111..GCC,TUR,VEN;AE112,CE110,ZZE11#..(GLI,XLI)..(ARL,GCC,GEN,TUR,VEN)199910-200008

MD.CHARCOAL,TRIM1#,9#

sub62412-12500

main62412-12500-B1iAE111..WG;EE11#..GCC,VEN;AE111..GCC,TUR,VEN;AE112,CE110,ZZE11#..(GLI,XLI)..(ARL,GCC,GEN,TUR,VEN)199704-200411

MD.CHARCOAL,TRIM1#

sub62412-12500

main62412-12500-B1iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub62412-12500

main62412-12500-B1iAE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub62412-12500

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12210-B0iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN199505-200207

SHADOW GRAY,TRIM1#

main62413-12210-B0iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199812

SHADOW GRAY,TRIM12

main62413-12210-E0iAE110..GLI;AE111..SEG199505-199712

OAK,TRIM4#

main62413-12220-B1iAE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub62413-12220

main62413-12220-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub62413-12220

main62413-12220-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199704-200411

MD.CHARCOAL,TRIM1#

sub62413-12220

main62413-12220-B1iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub62413-12220

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12210-B0iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN199505-200207

SHADOW GRAY,TRIM1#

main62414-12210-B0iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199812

SHADOW GRAY,TRIM12

main62414-12210-E0iAE110..GLI;AE111..SEG199505-199712

OAK,TRIM4#

main62414-12220-B1iAE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub62414-12220

main62414-12220-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub62414-12220

main62414-12220-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199704-200411

MD.CHARCOAL,TRIM1#

sub62414-12220

main62414-12220-B1iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub62414-12220

62471AGARNISH, ROOF SIDE, INNER RH

main62405-13050-B0iAE111..RHD..WG;AE112,EE110..WG199804-200109

MD.CHARCOAL,TRIM1#

main62405-13090-B0iAE111..RHD..WG;AE112,EE110..WG199704-199808

MD.CHARCOAL,TRIM1#

main62471-12730-A0iAE110..GLI;AE111..SEG199505-199712

IVORY,TRIM4#

sub62471-12730

main62471-12730-B0iAE111,112,EE111..IDN,MA,TH199505-200207

LT.GRAY,TRIM1#

sub62471-12730

main62471-12730-B0iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199812

LT.GRAY,TRIM16

sub62471-12730

main62471-12770-B1iAE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub62471-12770

main62471-12770-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub62471-12770

main62471-12770-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199704-200411

MD.CHARCOAL,TRIM1#

sub62471-12770

main62471-12770-B1iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub62471-12770

62472AGARNISH, ROOF SIDE, INNER LH

main62406-13050-B1iAE111..RHD..WG;AE112,EE110..WG199804-200109

MD.CHARCOAL,TRIM1#

main62406-13090-B0iAE111..RHD..WG;AE112,EE110..WG199704-199808

MD.CHARCOAL,TRIM1#

main62472-12730-A0iAE111..SEG199505-199712

IVORY,TRIM4#

sub62472-12730

main62472-12730-B0iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN199505-200207

LT.GRAY,TRIM1#

sub62472-12730

main62472-12730-B0iAE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199812

LT.GRAY,TRIM16

sub62472-12730

main62472-12770-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub62472-12770

main62472-12770-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199704-200411

MD.CHARCOAL,TRIM1#

sub62472-12770

main62472-12770-B1iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub62472-12770

main62472-12770-B1iAE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub62472-12770

64231AHOOK, ROOM PARTITION NET, FRONT RH

main64231-13010-B1iAE111,112,EE110..WG199704-200109

MD.CHARCOAL,TRIM1#

sub64231-13010

64232AHOOK, ROOM PARTITION NET, FRONT LH

main64232-13010-B1iAE111,112,EE110..WG199704-200109

MD.CHARCOAL,TRIM1#

sub64232-13010

64233BHOOK, ROOM PARTITION NET, REAR RH

main64233-13010-B1iAE111,112,EE110..WG199704-200109

MD.CHARCOAL,TRIM1#

sub64233-13010

64234BHOOK, ROOM PARTITION NET, REAR LH

main64233-13010-B1iAE111,112,EE110..WG199704-200109

MD.CHARCOAL,TRIM1#

sub64233-13010

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12240-B0iAE110..TH199505-200207

SHADOW GRAY,TRIM1#

sub67913-12240

main67913-12240-B1iEE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub67913-12240

main67913-12240-B1iEE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN199704-200411

MD.CHARCOAL,TRIM1#

sub67913-12240

main67913-12240-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub67913-12240

main67913-12240-B1iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub67913-12240

main67913-12240-E0iAE111..SEG199505-199712

OAK,TRIM4#

sub67913-12240

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12210-B0iAE111,112,EE111..IDN,MA,TH199505-200207

SHADOW GRAY,TRIM1#

sub67914-12210

main67914-12210-B1iAE110..4FC199910

MD.CHARCOAL,TRIM9#

sub67914-12210

main67914-12210-B1iEE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub67914-12210

main67914-12210-B1iEE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN199704-200411

MD.CHARCOAL,TRIM1#

sub67914-12210

main67914-12210-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub67914-12210

main67914-12210-E0iAE110..GLI;AE111..SEG199505-199712

OAK,TRIM4#

sub67914-12210

67917APLATE, REAR DOOR SCUFF, RH

main67917-12110-B0iAE111,112,EE111..IDN,MA,TH199505-200207

SHADOW GRAY,TRIM1#

sub67917-12110

main67917-12110-B1iAE110..GLI;EE110..GCC;AE111..RHD..WG;AE111..GCC,TUR,VEN;AE112,EE111..ARL,GCC,GEN,VEN199704-199910

MD.CHARCOAL,TRIM10,14

sub67917-12110

main67917-12110-B1iAE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN199704-200411

MD.CHARCOAL,TRIM1#

sub67917-12110

main67917-12110-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub67917-12110

main67917-12110-B1iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub67917-12110

main67917-12110-E0iAE111..SEG199505-199712

OAK,TRIM4#

sub67917-12110

67918APLATE, REAR DOOR SCUFF, LH

main67918-12100-B0iAE11#,EE11#199505-200207

SHADOW GRAY,TRIM1#

sub67918-12100

main67918-12100-B1iEE110..GCC;AE111..RHD..WG;AE111..GCC,TUR,VEN;EE110..(GL,STD)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE110,111..RHD..(GL,GLI)..GEN199704-200411

MD.CHARCOAL,TRIM1#

sub67918-12100

main67918-12100-B1iEE110..GCC;AE111..RHD..WG;AE111..GCC,TUR,VEN;EE110..(GL,STD)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE110,111..RHD..(GL,GLI)..GEN199704-199910

MD.CHARCOAL,TRIM10,14

sub67918-12100

main67918-12100-B1iAE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN199910-200008

MD.CHARCOAL,TRIM1#,9#

sub67918-12100

main67918-12100-B1iAE110,EE111..GEN199910

MD.CHARCOAL,TRIM9#

sub67918-12100

main67918-12100-E0iAE111..SEG199505-199712

OAK,TRIM4#

sub67918-12100

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9046709158

main90467-09158

9046710162

main90467-10162

9046710188

main90467-10188

9046805077

main90468-05077

9046805112

main90468-05112

32 parts on this diagram · 2 diagrams in section
