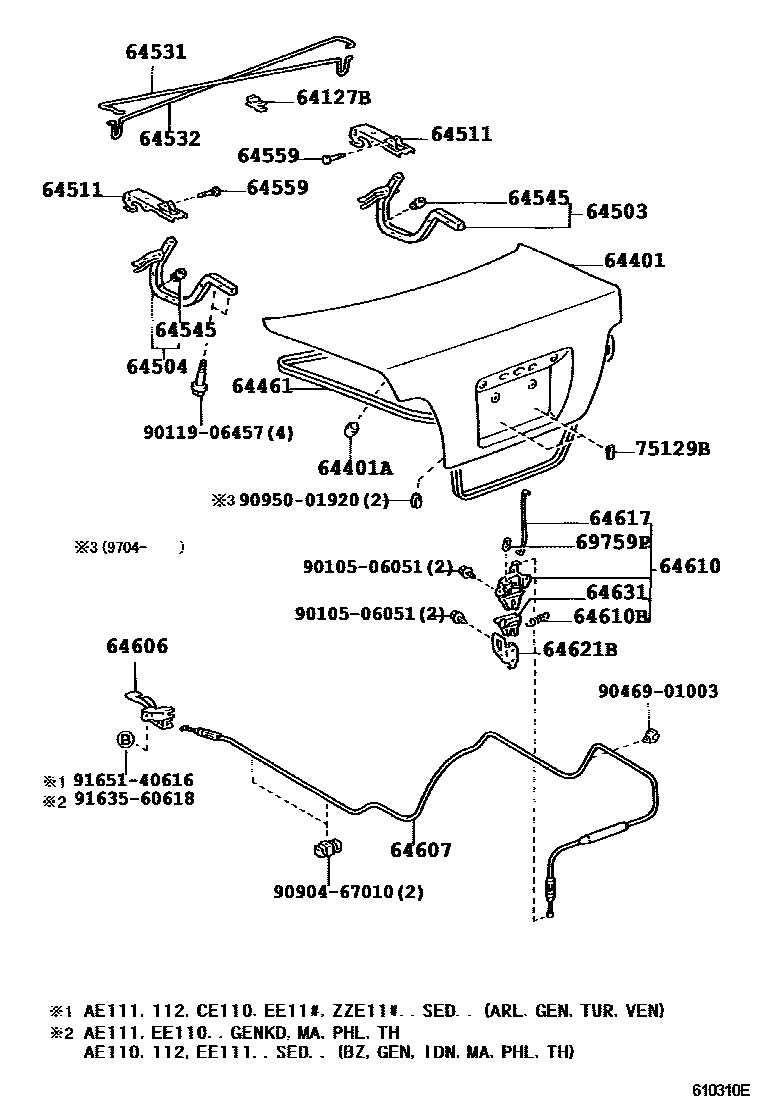

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-12100iAE110..4FC..GEN; AE111,EE111..SED;AE112..SED..XLI..(BZ,GCC,IDN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL); EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN)199812

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-1A640iAE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI)199505-199705

main64401-1A650iAE111..RHD..5F..GLI..GEN; AE111..SEG..GEN;AE111..RHD..5F..GLI..GEN199705-199910

W(REAR SPOILER)

main64401-1A700iAE112,ZZE11#..ARL,TUR200005-200201

main64401-1A710iAE110,CE110,EE110..SED..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,VEN);AE111,112,EE111..SED..(GL,GLI,SEG,XL,XLI)..(GCC,GEN,GENKD,MA,VEN); AE110..4FC; EE110..LHD..3FC;AE111,112,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)199905-200005

LICENSE PLATE(330 X 165)

main64401-1A720iAE110..4FC; EE110..LHD..XL..GEN;AE11#,EE11#..(GL,GLI,SEG)..(GCC,GEN,GENKD,IDN,MA,VEN); EE110..LHD..XL..GEN;AE11#,EE110..(GL,GLI)..(GCC,GEN,VEN)199901-199905

LICENSE PLATE(330 X 165) & W(REAR SPOILER)

main64401-1A780iEE110..LHD..XL..GEN;AE111,112,EE110..(GL,GLI)..(ARL,GEN)199704-200109

LICENSE PLATE(520 X 120) & W(REAR SPOILER)

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09035×2iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12510iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main64461-12530iAE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL); EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)199704

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-12130iAE110..4FC..GEN; AE111,EE111..SED;AE112..SED..XLI..(BZ,GCC,IDN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL); EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN)199812

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-12130iEE110..SED..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN)199505-199812

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-12240×2iAE110..4FC..GEN; AE111,EE111..SED;AE112..SED..XLI..(BZ,GCC,IDN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL); EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN)199812

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12600iAE11#,EE11#199505-199509

main64531-12601iAE11#,EE11#199509-199704

main64531-12610iAE11#..GLI,SEG199505-199704

W(REAR SPOILER)

main64531-12640iAE110..4FC..GEN; AE111,EE111..SED;AE112..SED..XLI..(BZ,GCC,IDN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL); EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN)199812-200003

main64531-12650iAE110..4FC..GEN199807

W(REAR SPOILER)

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12590iAE11#,EE11#199505-199509

main64532-12591iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main64532-12600iAE11#..GLI,SEG199505-199704

W(REAR SPOILER)

main64532-12630iAE110..4FC; AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..SED..(ARL,GCC,GEN,VEN); AE112..BZ,IDN,PHL;AE111,EE11#..GENKD,MA,PHL,TH,TUR200003

main64532-12640iAE111..ARL,MA;EE110..LHD..XL..GEN;AE112..(GLI,SEG)..(ARL,GCC,IDN,PHL,TH,VEN);AE110,111,EE11#..(GL,GLI)..(GEN,GENKD,MA,PHL,TH)199704-200207

W(REAR SPOILER)

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07040×2iEE110..SED..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN)199505-199812

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2iAE110..4FC..GEN; AE111,EE111..SED;AE112..SED..XLI..(BZ,GCC,IDN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL); EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN)199812

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20091iEE110..LHD..SED..(GCC,GEN);AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..SED..(GCC,GEN,VEN)199704-200208

main64606-20160iAE11#,EE11#199505-199508

main64606-20161iAE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..RHD;AE111..RHD..SED..(GL,GLI,XL,XLI)199704-199812

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12720iAE110..4FC..GEN; AE111,EE110..RHD..SED..(4FC,5F)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN)199812

main64607-12760iEE110..LHD..SED..(GCC,GEN);AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..SED..(GCC,GEN,VEN)199704-200208

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12270iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main64610-12300iAE111,112,EE111..VEN199805-200208

main64610-12310iAE110..4FC..GEN; AE112..SED..XLI..(BZ,GCC,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,TUR);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,IDN,PHL,TH,TUR); EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN)199812

64610BSPRING, TENSION(FOR LOCK)

main90506-05001iAE11#,EE11#199505-199609

WD=0.55,CW=17.5

main90506-05002iAE110..4FC; AE111,112,EE11#..BZ,GENKD,IDN,MA,PHL,TH,TUR,VEN; AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..SED..(ARL,GCC,GEN,VEN)199910

WD=0.55,CW=17.25

main90905-06021iAE110..4FC; AE111,112,EE11#..BZ,GENKD,IDN,MA,PHL,TH,TUR,VEN; AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..SED..(ARL,GCC,GEN,VEN)199910

WD=0.55,CW=17.5

64617LINK, LUGGAGE COMPARTMENT DOOR LOCK

main64617-12120iAE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN; AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN199705-199910

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main64617-12150iAE110..4FC..GEN199807-199812

main64617-12160iAE111,112,EE111..VEN199805-200208

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-12070iAE110..4FC..GEN; AE111,EE111..SED;AE112..SED..XLI..(BZ,GCC,IDN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL); EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN)199812

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12040iAE110..4FC; AE111,112,EE11#..BZ,GENKD,IDN,MA,PHL,TH,TUR,VEN; AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..SED..(ARL,GCC,GEN,VEN)199910

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-24050iAE110..4FC; AE111,112,EE11#..BZ,GENKD,IDN,MA,PHL,TH,TUR,VEN; AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..SED..(ARL,GCC,GEN,VEN)199910

75129BCUSHION, REAR LICENCE PLATE

main75129-12010×2iAE112..ARL199901-200109

main75129-13020×2iAE110..4FC; AE112..GCC,IDN,VEN;AE110,111,CE110,EE11#..GCC,GEN,GENKD,MA,VEN; AE112..GCC,VEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN,VEN199901-199910

9010506051

main90105-06051

9011906457

main90119-06457

9046901003

main90469-01003

9090467010

main90904-67010

9095001920

main90950-01920

9163560618

main91635-60618

9165140616

main91651-40616

27 parts on this diagram · 1 diagram in section
