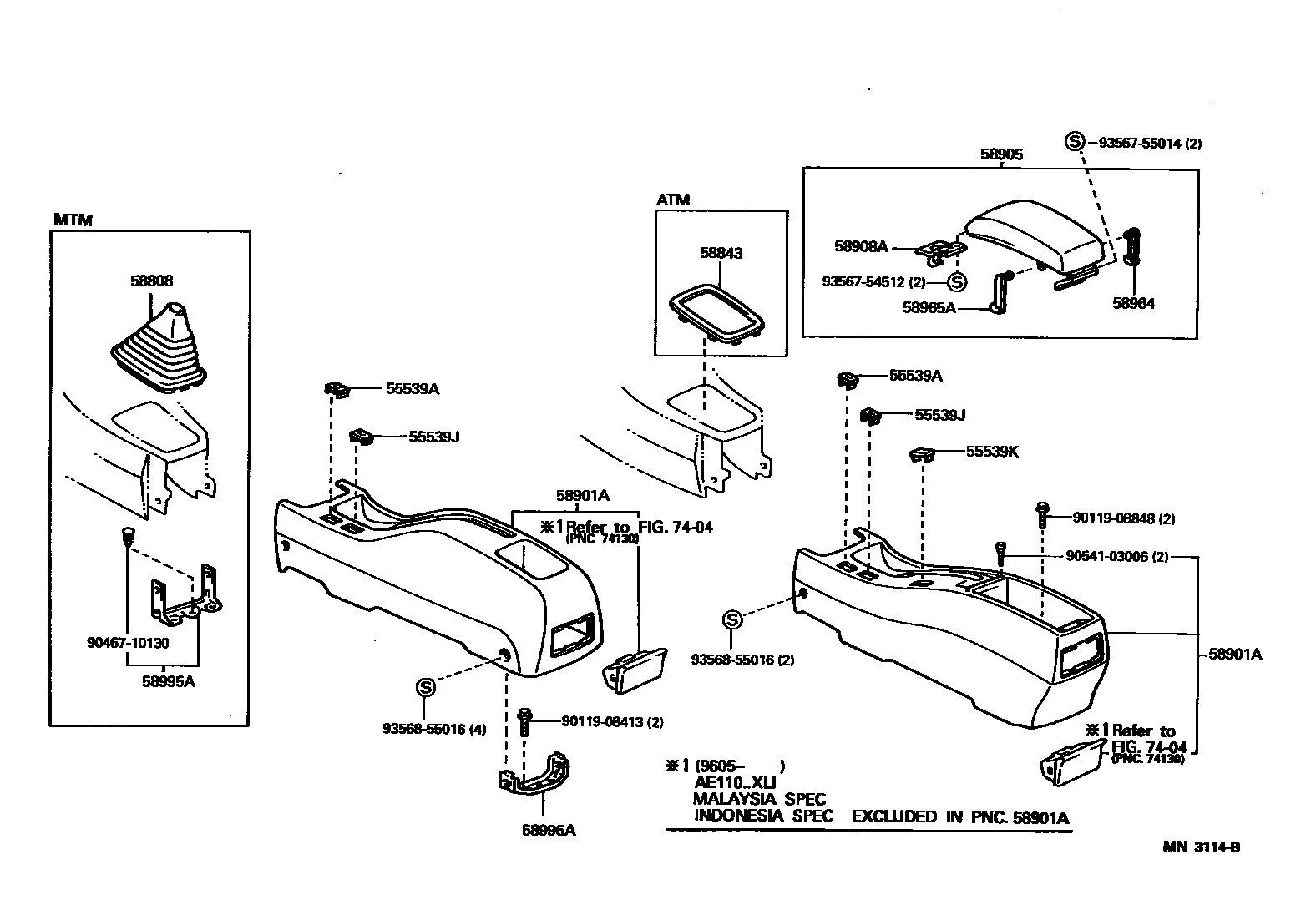

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
main55539-20020-B4iAE111..WG;EE110..(GL,STD)..GEN;AE110,111..RHD..(GL,GLI)..GEN;AE112,EE111..ARL,BZ,GCC,GEN,NZ,TUR,VEN;AE111,CE110,EE110..ARL,GCC,GENKD,NZ,PHL,TUR,VEN; CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN; EE110..GCC;AE111..RHD..WG;AE111..GCC,TUR,VEN;EE110..(GL,STD)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE110,111..RHD..(GL,GLI)..GEN; EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN199704-199910
MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM10,14
OAK,TRIM4#
SHADOW GRAY,TRIM1#
55539JCOVER, SPARE SWITCH HOLE
SHADOW GRAY,TRIM1#
main55539-12120-B2iAE111..WG;EE110..(GL,STD)..GEN;AE110,111..RHD..(GL,GLI)..GEN;AE112,EE111..ARL,BZ,GCC,GEN,NZ,TUR,VEN;AE111,CE110,EE110..ARL,GCC,GENKD,NZ,PHL,TUR,VEN; CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN; EE110..GCC;AE111..RHD..WG;AE111..GCC,TUR,VEN;EE110..(GL,STD)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE110,111..RHD..(GL,GLI)..GEN; EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN199704-199910
MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM10,14
OAK,TRIM4#
SHADOW GRAY,TRIM1#
55539KCOVER, SPARE SWITCH HOLE
SHADOW GRAY,TRIM1#
main55539-12120-B2iAE111..RHD..WG;AE111..GLI..TUR;AE111..RHD..(GL,GLI)..GEN;AE111,EE110..(XL,XLI)..(GCC,VEN);AE110,EE111..(GLI,STD)..(GEN,VEN);AE112,EE110..(GL,GLI,XLI)..(ARL,GCC,GEN,VEN); AE111..WG;AE111..GLI..TUR;AE111..RHD..(GL,GLI)..GEN;AE110,EE111..(GLI,STD)..(GEN,VEN);AE111,CE110,EE110..ARL,GCC,GENKD,NZ,PHL,VEN;AE112,EE110..(GL,GLI,XLI)..(ARL,BZ,GCC,GEN,NZ,VEN); CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN; EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN; EE111..GEN199704-199910
MALAYSIA SPEC-*104,MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM10,14
OAK,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-12112-B1iCE110,EE110..5F..XL..GEN;AE111..LHD..SED..5F..GEN;AE111..RHD..SED..5F..(XL,XLI)..GEN; EE111..VEN;EE110..GCC;AE111..RHD..WG;EE110..(GL,STD)..GEN;AE111..5F..(GCC,TUR,VEN);AE112..5F..(ARL,GCC,GEN,VEN);AE111..RHD..5F..(GL,GLI)..GEN199704-199910
DK.CHARCOAL,TRIM1#; DK.CHARCOAL,TRIM10
main58808-12112-B3iAE111,CE110,EE110..SED..MTM..(GL,GLI,STD,XL,XLI)..GEN; CE110,EE110..5F..XL..GEN;AE111..LHD..SED..5F..GEN;AE111..RHD..SED..5F..(XL,XLI)..GEN; EE11#..MTM..(GL,STD,XLI)..GEN;AE110,111..RHD..5F..(GL,GLI)..GEN; EE110..GENKD199704-199910
MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM14
OAK,TRIM4#
SHADOW GRAY,TRIM1#
58843BEZEL, SHIFTING HOLE
SHADOW GRAY,TRIM1#
OAK,TRIM4#
SHADOW GRAY,TRIM1#
MD.CHARCOAL,TRIM1#
main58843-12090-B3iAE111,EE110..SED..ATM..(GL,GLI,XL,XLI)..GEN; AE111..4FC..(GCC,TUR,VEN);AE112..4FC..(ARL,GCC,GEN,VEN); AE112..4FC..(ARL,GCC,GEN,NZ,VEN);AE111,EE111..ATM..(ARL,GCC,NZ,TUR,VEN); EE110..LHD..3FC;AE111..SED..ATM..(GL,GLI,XL,XLI)..GEN199704-199910
DK.CHARCOAL,TRIM1#; DK.CHARCOAL,TRIM10
58901ABOX SUB-ASSY, CONSOLE, REAR
W(CONSOLE BOX DOOR),SHADOW GRAY,TRIM1#
main58901-12220-B1iAE111..GLI..TUR;AE111,112,EE11#..BZ,GENKD,VEN; AE111..SED..GEN;CE110,EE110..(GL,XL)..GEN; AE111..WG;AE111,EE11#..GCC,VEN;AE111,ZZE112..GLI..TUR;AE112,CE110..(GLI,XLI)..(ARL,GCC,GEN,VEN)199910-200008
MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM1#,9#
W(CONSOLE BOX DOOR),OAK,TRIM4#
MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM1#,9#
SHADOW GRAY,TRIM12
THAILAND SPEC-*104,OAK,TRIM4#
SHADOW GRAY,TRIM1#
MALAYSIA SPEC-*104,SHADOW GRAY,TRIM1#; THAILAND SPEC-*104,SHADOW GRAY,TRIM1#
MD.CHARCOAL,TRIM1#
INDONESIA SPEC OR MALAYSIA SPEC,OAK,TRIM4#; W(REAR SPOILER & SPEAKER),OAK,TRIM4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
THAILAND SPEC,SHADOW GRAY,TRIM1#
THAILAND SPEC,OAK,TRIM4#
SHADOW GRAY,TRIM1#
MALAYSIA SPEC-*104,MD.CHARCOAL,TRIM9#; MD.CHARCOAL,TRIM1#,9#
OAK,TRIM4#
G PACKAGE-*104,SHADOW GRAY,TRIM1#
G PACKAGE-*104,OAK,TRIM4#
INDONESIA SPEC OR MALAYSIA SPEC,SHADOW GRAY,TRIM1#; INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,SHADOW GRAY,TRIM1#
INDONESIA SPEC OR MALAYSIA SPEC,OAK,TRIM4#; INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC,OAK,TRIM4#
main58905-12240-B1iAE111..GENKD,PHL;AE111..RHD..(GL,GLI);AE112,EE11#..(GL,GLI)..(GCC,GEN,MA,VEN); AE111..LHD..(GL,GLI)..GEN; AE111..RHD..(GL,GLI)..GEN;AE112,EE110..(GL,GLI)..(GCC,GEN,VEN)199704-199910
W(DOUBLE CONSOLE BOX),MD.CHARCOAL,TRIM1#; W(DOUBLE CONSOLE BOX),MD.CHARCOAL,TRIM10,14
ME. CHARCOAL,TRIM1#
MEDIUM CHARCOAL,TRIM1#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
THAILAND SPEC,SHADOW GRAY,TRIM1#,NO.2
THAILAND SPEC,OAK,TRIM4#,NO.2
main58908-32020iAE111..GL;AE111..GENKD,MA,PHL;AE111..LHD..GLI..GEN;AE112,EE11#..(GL,GLI,SEG)..(GCC,GEN,IDN,MA,PHL,TH,VEN)199704-200207
main58908-32040iAE112..ARL,GEN;AE112..XLI..GCC;EE110..LHD..3FC;AE111,ZZE112..GLI..TUR;EE110..5F..XL..(GCC,GEN);AE111,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN); EE110..GENKD;AE111..WG..5F;AE111..GLI..(TH,TUR);AE112,CE110..(GLI,XL)..(ARL,BZ,GEN);AE110,111,EE111..SED..(STD,XL,XLI)..(ARL,GCC,GEN,TH,VEN);AE112,EE110..(3FC,4FC,5F)..(STD,XL,XLI)..(BZ,GCC,GEN,IDN,PHL,VEN)199812-200103
MALAYSIA SPEC-*104
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
main58964-12040iAE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GCC,GEN,VEN);AE111,EE111,ZZE112..(GLI,STD)..(TUR,VEN);AE110,112,CE110,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN); AE111..WG..5F;AE111..LHD..WG..4FC;AE110,EE110..GENKD,TH;AE111..(GLI,SEG)..(MA,TUR);AE112..XLI..(BZ,GCC,GEN,IDN);AE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,MA,NZ,PHL,TH,VEN)199704-200103
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
MALAYSIA SPEC-*104
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-12080iAE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL)199704
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-12090iAE111,EE11#..(XL,XLI)..(PHL,TUR); EE110..STD..GEN;AE111,ZZE11#..XLI..TUR199910-200103
7404ASH RECEPTACLE
9011908413
main90119-08413
9011908848
main90119-08848
9046710130
main90467-10130
9054103006
main90541-03006
9356754512
main93567-54512
9356755014
main93567-55014
9356855016
main93568-55016
20 parts on this diagram · 2 diagrams in section
