INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1

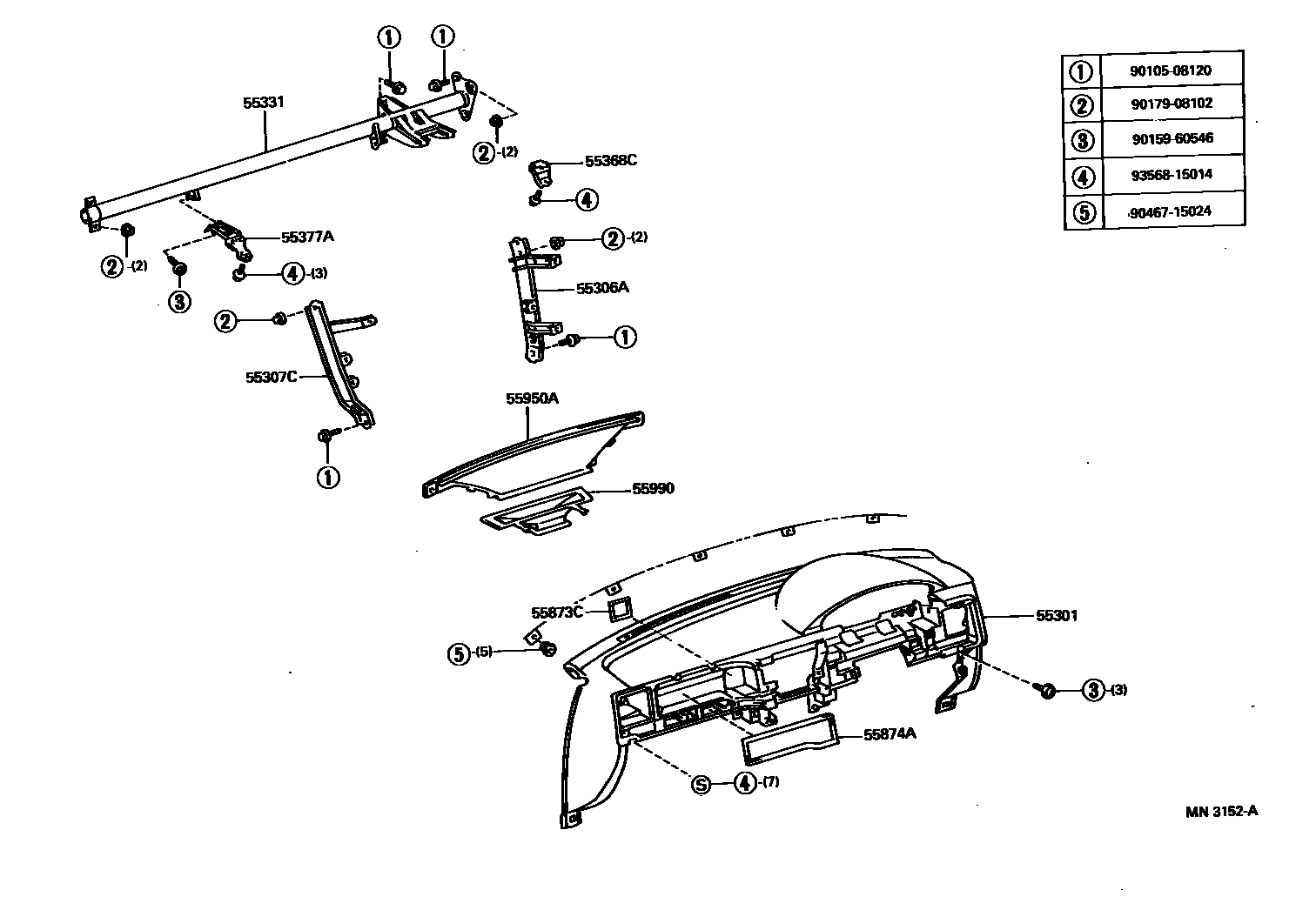

55301PANEL SUB-ASSY, INSTRUMENT

main55301-12130-B0iAE111..SEG;AE110..XLI..GEN199704-199712

SHADOW GRAY,TRIM1#

main55301-12130-E0iAE110..GLI;AE111..SEG199505-199704

OAK,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12230iAE11#,EE11#199505-199704

main55306-12260iAE110..4FC..GEN199807

main55306-12290iEE110..LHD..(GCC,GEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)199704-200208

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12240iAE11#,EE11#199505-199704

main55307-12270iEE110..LHD..(GCC,GEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)199704-200208

main55307-12280iAE111..RHD..(GL,GLI,XL,XLI)..GEN;AE112,CE110,EE111..RHD..(ARL,GEN);AE110,EE110..RHD..(4FC,5F)..(GL,GLI,XL)199704

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12280iAE11#,EE11#199505-199704

main55330-12340iAE111,112,CE110,EE11#..LHD; EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN)199704-199906

main55330-12341iAE111,112,CE110,EE11#..LHD; EE110..LHD..(GCC,GEN);AE111..LHD..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN)199906-199910

main55330-12370iAE11#,CE110,EE11#..RHD..(ARL,GEN); AE110..4FC199910

main55330-12371iAE111,112,EE111..IDN,MA,TH199910-200207

55368CBRACKET, METER MOUNTING

main55368-12050iAE111..SEG;AE110..XLI..GEN199704-199712

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-12120iAE111..SEG;AE110..XLI..GEN199704-199712

55873CSEAL, AIR DUCT, CENTER

main55873-12140iAE111..SEG;AE110..XLI..GEN199704-199712

55874ASEAL, AIR DUCT, NO.4

main55874-12100iAE111..SEG;AE110..XLI..GEN199704-199712

55950ANOZZLE ASSY, DEFROSTER

main55950-12190iAE11#,EE11#199505-199704

main55950-12220iAE111..MA;AE111..RHD..WG..5F;AE110,112..XLI..(IDN,TH);AE110,112,CE110..RHD..(GLI,SEG,XL);AE111,EE11#..RHD..SED..(GL,GLI,XL,XLI)199704-200207

main55950-12230iAE111,112,CE110,EE11#..LHD199704

55990NOZZLE ASSY, CENTER DEFROSTER

main55990-12030iAE111..SEG;AE110..XLI..GEN199704-199712

main55990-12040iEE110..LHD..(GCC,GEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)199704-200208

main55990-12050iAE111..MA;AE111..RHD..WG..5F;AE110,112..XLI..(IDN,TH);AE110,112,CE110..RHD..(GLI,SEG,XL);AE111,EE11#..RHD..SED..(GL,GLI,XL,XLI)199704-200207

9010508120

main90105-08120

9015960546

main90159-60546

9017908102

main90179-08102

9046715024

main90467-15024

9356815014

main93568-15014

15 parts on this diagram · 6 diagrams in section
