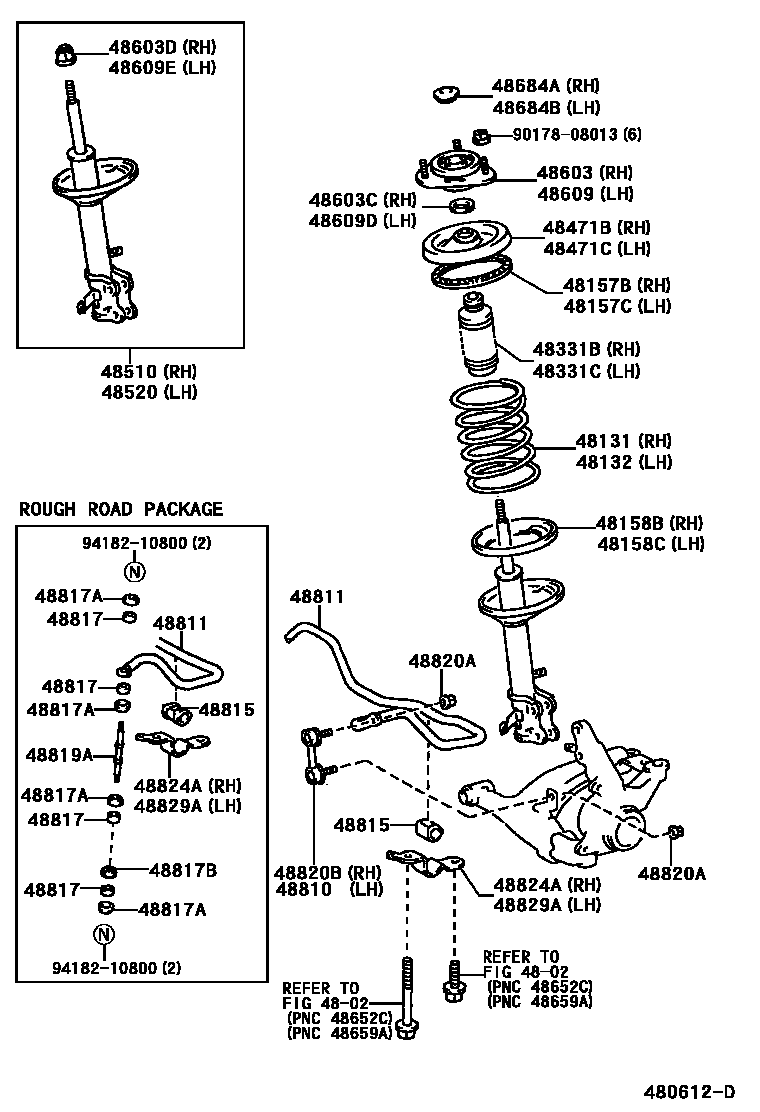

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-1L450iAE111..4FC..TUR;AE112..4FC..VEN199805-200208

L=364

main48131-1L610iEE110..5F199505-199704

main48131-1L630iEE111..5F..(GEN,VEN);EE110..MTM..(GCC,GEN)199704-200208

L=316

main48131-1L630iEE111..5F;EE110..3FC199505-199704

main48131-1L650iEE11#..3FC..(GEN,MA)199505-200207

main48131-1L670iAE111..RHD..WG..5F;AE112..5F..(GCC,GEN);AE110,111..SED..5F..(GCC,GEN,VEN)199505-200208

L=330

main48131-1L690iAE110..4FC..GLI;AE111..LHD..WG..4FC;AE112..5F..(BZ,PHL);AE112..4FC..(GCC,GEN,IDN,NZ,TH);AE110,111..4FC..(SEG,XLI)..(MA,TH);AE111..SED..ATM..(GL,GLI,XL,XLI)..(GCC,GE199505-200207

L=337.5

main48131-1L690iEE110..LHD..3FC;EE110..MTM..(GCC,GEN)199704-200109

L=337.5,ROUGH ROAD PACKAGE

main48131-1L710iAE111..RHD..WG..5F;AE112..5F..(GCC,GEN);AE111..SED..5F..(GL,GLI,XL,XLI)..(GCC,GEN)199704-200109

L=344.5,ROUGH ROAD PACKAGE

main48131-1L710iCE110..GEN199704-200207

L=344.5

main48131-1L890iAE111..RHD..WG..4FC;AE112..4FC..(GCC,GEN);AE111..SED..ATM..(GL,GLI,XL,XLI)..(GCC,GEN)199704-200207

ROUGH ROAD PACKAGE

main48131-1N080iEE111..5F..TUR199807-200005

main48131-1N100iEE111..3FC..TUR199807-200005

main48131-1N140iCE110..XL..GEN199704-200109

L=359,ROUGH ROAD PACKAGE

main48131-1N160iAE111..5F..TUR199805-200005

main48131-1N380iZZE11#..5F200005-200201

L=367.5

main48131-1N390iAE111..5F..ARL199808-200201

L=376.5

main48131-1N400iAE112..5F..ARL199808-200109

L=385

main48131-1N410iAE112..4FC..ARL199808-200109

48132SPRING, FRONT COIL, LH

main48131-1L450iAE111..4FC..TUR;AE112..4FC..VEN199805-200208

L=364

main48131-1L610iEE110..5F199505-199704

main48131-1L630iEE111..5F..(GEN,MA,VEN);EE110..MTM..(GCC,GEN,TUR,VEN)199704-200208

L=316

main48131-1L630iEE111..5F;EE110..3FC199505-199704

main48131-1L650iEE111..3FC199505-200207

main48131-1L670iAE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112..5F..(GCC,GEN,IDN,NZ,TH);AE111..5F..(GL,GLI,XL,XLI)..(GCC,GEN,NZ,TH,VEN)199505-200208

L=330

main48131-1L690iEE110..LHD..3FC;EE110..MTM..(GCC,GEN)199704-200109

L=337.5,ROUGH ROAD PACKAGE

main48131-1L690iAE111..RHD..WG..4FC;AE112..4FC..(GCC,GEN);AE110,111..SED..ATM..(GCC,GEN,VEN)199505-200207

L=337.5

main48131-1L710iAE111..RHD..WG..5F;AE112..5F..(GCC,GEN);AE111..SED..5F..(GL,GLI,XL,XLI)..(GCC,GEN)199704-200109

L=344.5,ROUGH ROAD PACKAGE

main48131-1L710iAE111..RHD..WG..5F;AE112..5F..(GCC,GEN);AE111..SED..5F..(GL,GLI,XL,XLI)..(GCC,GEN)199704-200207

L=344.5

main48131-1L890iAE111..LHD..WG..4FC;AE112..4FC..(BZ,GCC,GEN,PHL);AE111..SED..ATM..(GL,GLI,XL,XLI)..(GCC,GEN,PHL)199704-200207

ROUGH ROAD PACKAGE

main48131-1N080iEE111..5F..TUR199807-200005

main48131-1N100iEE111..3FC..TUR199807-200005

main48131-1N140iCE110..XL..GEN199704-200109

L=359,ROUGH ROAD PACKAGE

main48131-1N160iAE111..5F..TUR;AE112..5F..VEN199805-200005

main48131-1N380iZZE11#..5F200005-200201

L=367.5

main48131-1N390iZZE112..4FC199808-200201

L=376.5

main48131-1N400iAE112..5F..ARL199808-200109

L=385

main48131-1N410iAE112..4FC..ARL199808-200109

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-12070iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-12070iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-12030iAE110..4FC..GEN199505

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-12030iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

48331BBUMPER, FRONT SPRING, RH

main48304-12030iAE111,112..ARL199808-200201

main48331-12140iEE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE11#,EE111..GCC,GEN,VEN199505-200207

main48331-12150iEE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,112,CE110..GCC,GEN199704-200109

ROUGH ROAD PACKAGE

main48331-12150iAE112..VEN199708-199808

48331CBUMPER, FRONT SPRING, LH

main48304-12030iAE112..GLI..ARL;AE111,EE111..ARL,TUR199808-200201

main48331-12140iAE110..4FC..GEN199505-200207

main48331-12150iEE110..LHD..3FC;AE112..GCC,GEN,VEN;AE111,CE110..GCC,GEN;EE110..MTM..(GCC,GEN)199704-200109

ROUGH ROAD PACKAGE

main48331-12150iAE112..VEN199708-199808

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-01020iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

(L)

main48044-12090iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

(J)

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-01020iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

(L)

main48044-12090iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

(J)

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-19425iAE110..4FC..GEN199505-200207

MARK=48510-1A100

main48510-19435iCE110..GEN199704-199805

sub48510-80232

main48510-19475iAE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(GCC,GEN)199704-199805

MARK=48510-12790,ROUGH ROAD PACKAGE

sub48510-80222

main48510-19475iAE111,EE110..GENKD,PHL199708-199805

MARK=48510-12790

sub48510-80222

main48510-80003iAE111..TUR199807-199808

sub48510-80008

main48510-80006iAE111,112..ARL199808-200109

sub48510-80008

main48510-80008iAE111,ZZE11#..TUR199808-200201

main48510-87686iAE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GCC,GEN);AE112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN)199805-199812

MARK 48510-12791,ROUGH ROAD PACKAGE

sub48510-87693

main48510-87690iAE112,CE110..SED..(GEN,VEN)199805-199812

MARK 48510-1A092

sub48510-87700

main48510-87693iEE110..LHD..3FC;AE111,112..GCC,GEN;CE110,EE110..MTM..(GL,STD,XL)..(GCC,GEN)199812-200109

MARK 48510-12792,ROUGH ROAD PACKAGE

sub48510-80222

main48510-87700iAE112,CE110..SED..(GEN,VEN)199812-200109

MARK 48510-1A092

sub48510-80232

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-19145iAE110..4FC199505-200207

MARK 48520-12860

main48520-19155iCE110..GEN199704-199805

sub48520-80055

main48520-19195iAE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN)199704-199805

ROUGH ROAD PACKAGE

sub48520-80048

main48520-19195iAE111,EE110..GENKD,PHL199708-199805

sub48520-80048

main48520-19595iAE111..TUR199807-199808

sub48520-19625

main48520-19605iAE112..ARL199808-200109

sub48520-19625

main48520-19625iAE111,ZZE11#..TUR199808-200201

main48520-49215iAE111,112,CE110,EE110..BZ,GCC,GEN,GENKD,PHL199805-199812

ROUGH ROAD PACKAGE

sub48520-49216

main48520-49216iEE110..LHD..3FC;AE111,112..GCC,GEN;CE110,EE110..MTM..(GL,STD,XL)..(GCC,GEN)199812-200109

ROUGH ROAD PACKAGE

sub48520-80048

main48520-49255iAE112,CE110..SED..(GEN,VEN)199805-199812

MARK 48520-12851

sub48520-49256

main48520-49256iAE112,CE110..SED..(GEN,VEN)199812-200109

sub48520-80055

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-12330iAE110..4FC..GEN199505-200207

MARUYASU

main48609-12340iAE112..ARL199808-200008

sub48609-12341

main48609-12341iAE112..ARL200008-200109

main48609-12350iAE111..RHD..WG;CE110..XL..GEN;EE110..LHD..3FC;AE112,EE110..(4F,4FC,5F)..(GCC,GEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN)199704-200109

ROUGH ROAD PACKAGE

main48609-12370iAE110..TH;AE111..MA;AE111..WG..5F;AE110,CE110..GLI,XL;AE111..LHD..WG..4FC;AE112,EE11#..GCC,GEN,IDN,MA,NZ,TH,TUR,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,NZ,TH,TUR,199704-200207

*B/S

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAE110..4FC..GEN199505

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-12330iAE110..TH;AE111..MA;AE111..WG..5F;AE110,CE110..GLI,XL;AE111..LHD..WG..4FC;AE112,EE11#..GCC,GEN,IDN,MA,NZ,TH,TUR,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,NZ,TH,TUR,199505-200207

MARUYASU

main48609-12340iAE112..ARL199808-200008

sub48609-12341

main48609-12341iAE112..ARL200008-200109

main48609-12350iAE112..GCC;EE110..LHD..3FC;AE111..RHD..WG..5F;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);CE110,EE110..MTM..(GL,STD,XL)..(GCC,GEN)199704-200109

ROUGH ROAD PACKAGE

main48609-12350iAE112..GEN;AE111..WG..4FC199708-200109

main48609-12370iAE110..4FC..GEN199704-200207

*B/S

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAE111..TUR,VEN;AE111..SEG..GEN;AE110,112,EE111..SED..(ARL,GEN,VEN)199505-199910

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-12070iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199602

main48684-32010iAE11#,EE11#199505-199602

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-12070iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199602

main48684-32010iAE11#,EE11#199505-199602

48810LINK ASSY, FRONT STABILIZER, LH

main48820-33010iAE110..XLI..GEN;AE111,ZZE11#..TUR;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,CE110,EE111..SED..(GLI,XL,XLI)..(ARL,GEN,VEN)199505-200208

48811BAR, STABILIZER, FRONT

main48811-12720iAE112..NZ,VEN;AE111,CE110..NZ199710-200208

main48811-12770iAE111..MA;CE110..XL..GEN;AE110,112..IDN,TH;AE111..RHD..WG..5F;AE111,EE111..RHD..SED..(GLI,XLI)..(GEN,MA,TH)199505-200207

main48811-12890iAE111..RHD..WG;CE110..XL..GEN;EE110..LHD..3FC;AE112,EE110..(4F,4FC,5F)..GEN;AE111..SED..(GL,GLI,XL,XLI)..GEN199704-200109

ROUGH ROAD PACKAGE

main48811-1A100iAE112..ARL;AE111,ZZE11#..TUR199807-200201

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12220iAE112..VEN199710-200208

main48815-12230iAE111..RHD..WG;AE111..SED..GEN;AE110,112,CE110,EE11#..(GL,STD,XL,XLI)..GEN199505-200109

main48815-12280iAE112..GLI..ARL;AE111,EE111..ARL,TUR199807-200201

48817CUSHION, FRONT STABILIZER

main48817-30020iAE111..WG..5F;CE110..XL..GEN;AE111..LHD..WG..4FC;AE112,EE110..BZ,GEN,PHL;AE111..SED..(GL,GLI,XL,XLI)..(GEN,PHL)199704-200109

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iAE111..WG..5F;CE110..XL..GEN;AE111..LHD..WG..4FC;AE112,EE110..BZ,GEN,PHL;AE111..SED..(GL,GLI,XL,XLI)..(GEN,PHL)199704-200109

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iAE111..RHD..WG;CE110..XL..GEN;EE110..LHD..3FC;AE112,EE110..(4F,4FC,5F)..GEN;AE111..SED..(GL,GLI,XL,XLI)..GEN199704-200109

48819ABOLT, FRONT STABILIZER

main48819-20030iAE111..RHD..WG;CE110..XL..GEN;EE110..LHD..3FC;AE112,EE110..(4F,4FC,5F)..GEN;AE111..SED..(GL,GLI,XL,XLI)..GEN199704-200109

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10183iAE111;AE110,EE11#..XL,XLI199505-200208

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-33010iAE111;AE110,EE11#..XL,XLI199505-200208

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-12130iAE11#,EE11#199508-200208

main48824-12140iAE112..ARL;AE111,ZZE11#..TUR199807-200201

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-12060iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;CE110,EE110..(GL,STD,XL)..(GEN,NZ,PHL);AE111..SED..(GL,GLI,XL,XLI)..(GEN,NZ,PHL,TH);AE112,EE111..(GLI,SEG,XLI)199508-200208

main48829-12070iAE112..ARL;AE111,ZZE11#..TUR199807-200201

9017808013

main90178-08013

9418210800

main94182-10800

34 parts on this diagram · 1 diagram in section
