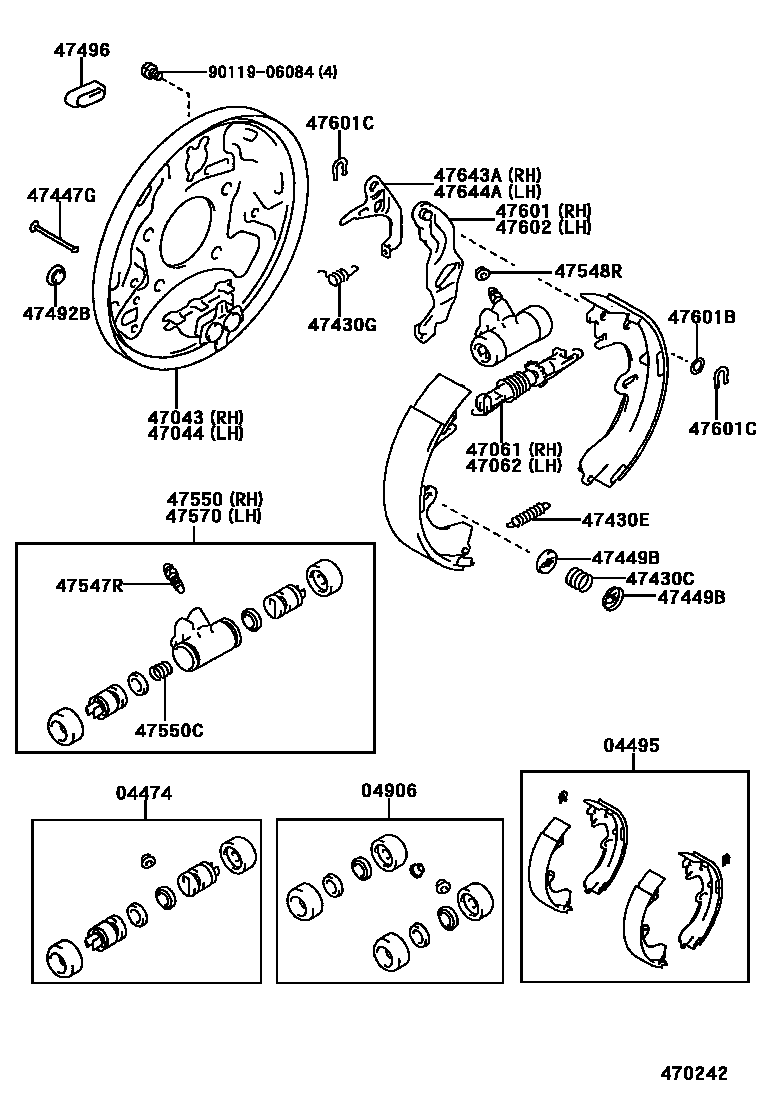

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-10032iAE112..GEN;AE111..LHD..SED..(GLI,XLI)..GEN199704-200103

BRAZIL SPEC

sub04474-63020

main04474-10032iAE112..XLI..BZ;AE112..GLI..(ARL,BZ);AE111,EE111..ARL,TUR199807-200103

sub04474-63020

main04474-16020iAE110..TH;AE111..MA;AE111..WG..5F;AE110,CE110..GLI,XL;AE111..LHD..WG..4FC;AE112,EE110..GCC,GEN,GENKD,IDN,NZ,PHL,TH,TUR,VEN;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(G199505-200002

main04474-63020iAE112..BZ200103-200202

main04474-63020iAE111,112..LHD..(GLI,XLI)..GEN200103-200109

BRAZIL SPEC

04495SHOE KIT, REAR BRAKE

main04495-12210iAE111..LHD..SED..(GLI,XLI)..GEN199710-199808

BRAZIL SPEC

main04495-12210iAE111..TUR199505-199808

main04495-12220iAE111,112..LHD..(GLI,XLI)..GEN199808-200109

MARK NBK LN512,BRAZIL SPEC

sub04495-12250

main04495-12220iAE112..ARL;AE111,ZZE11#..TUR199808-200202

MARK NBK LN512

sub04495-12250

main04495-12240iAE110..4FC..GEN199710-200002

main04495-12240iAE112..GCC,GEN;AE110,111,CE110,EE11#..GCC,GEN,VEN200002

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iAE112..GEN;AE111..LHD..SED..(GLI,XLI)..GEN199704-200109

BRAZIL SPEC

main04906-10021iAE112..ARL;AE111,ZZE11#..TUR199807-200202

main04906-16020iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN199505-200002

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12070iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505-200002

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12070iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200002

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-20020iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200002

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-20020iAE110..4FC199505-200002

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017iEE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN199505-200002

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18034iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200002

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12036iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200002

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30010iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200002

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200002

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iAE110..4FC199505-200002

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200002

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200002

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200002

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-16060iAE110..4FC199505-200002

main47550-20150iAE111,112,EE111..ARL,BZ,TUR199807-200202

main47550-20150iAE111,112..LHD..(GLI,XLI)..GEN199704-199910

BRAZIL SPEC

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60014iAE112..ARL,GEN;AE110,111,CE110,EE11#,ZZE11#..GEN,TUR,VEN200103

main90501-07006iAE111,112,EE11#..BZ,GENKD,IDN,MA,PHL,TH,TUR199505-200103

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-16040iEE110..GENKD,PHL,TUR;AE111,112,EE111..GENKD,IDN,MA,PHL,TH199505-200002

main47570-20060iAE112..GEN;AE111..LHD..SED..(GLI,XLI)..GEN199704-199910

BRAZIL SPEC

main47570-20060iAE111..TUR;AE112..ARL199807-200202

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-32010iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200002

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iAE110..4FC..GEN199505-200002

T=0.3

main90564-08151iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199505-200002

T=0.6

main90564-08152iAE110..4FC199505-200002

T=0.9

main90564-08172iAE111,112,EE11#..BZ,GENKD,IDN,MA,PHL,TH,TUR199505-200002

T=0.2

main90564-08173iAE111,112,EE11#..BZ,GENKD,IDN,MA,PHL,TH,TUR199505-200002

T=0.4

main90564-08174iEE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN199505-200002

T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iAE111,112,EE11#..BZ,GENKD,IDN,MA,PHL,TH,TUR199505-200002

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-32010iEE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN199505-200002

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-32010iAE111,112,EE11#..BZ,GENKD,IDN,MA,PHL,TH,TUR199505-200002

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-32010iEE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN199505-200002

9011906084

main90119-06084

26 parts on this diagram · 1 diagram in section
