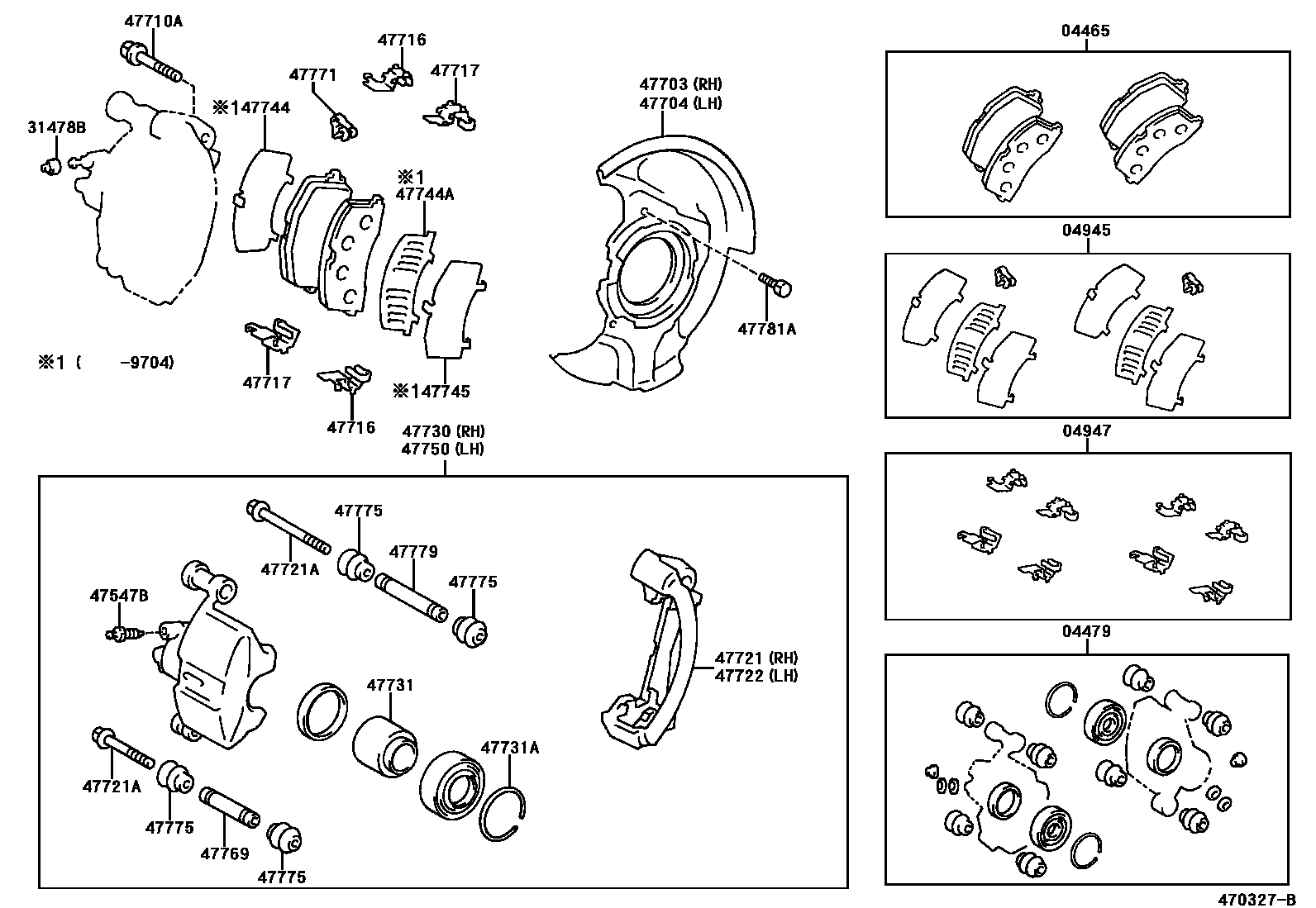

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1BRAZIL SPEC 0004 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-12240iAE110..4FC; CE110..XL;AE112..GCC,GEN;AE110,111,EE11#..GCC,GEN,VEN; EE110..GENKD,PHL200005

MARK SUMITOMO PS522H

main04465-12510iAE110..4FC; AE111..WG;AE110,112,EE111..SED..(GLI,XLI)..(GEN,VEN)199908

MARK AISIN PC543,W(ABS)

main04465-12540iAE112..ARL;AE111,ZZE11#..TUR199807-200201

MARK NBK PN540H

main04465-12550iAE110,EE111..4FC,5F199611-199704

MARK AK PA533,SHIGAPOLE SPEC

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN199505

main04479-12180iAE112..ARL;AE111,ZZE11#..TUR199807-200201

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12060iAE110..4FC; CE110..XL;AE111..LHD..(GCC,GEN,VEN);AE111..RHD..(GLI,XLI)..GEN;AE110,112,EE11#..GCC,GEN,VEN; EE110..GENKD,PHL,TUR;AE111,112,EE111..GENKD,IDN,MA,PHL,TH,VEN199910

main04945-13020iAE110..4FC; AE111..WG;AE110,112,EE111..SED..(GLI,XLI)..(GEN,VEN)199908

W(ABS)

main04945-20090iAE112..XLI..BZ;AE112..GLI..(ARL,BZ);AE111,EE111..ARL,TUR199807-200202

main04945-32060iAE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..GCC,GEN199505-199709

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20060iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN199610

main04947-32010iAE11#,EE11#199505-199610

main04947-33130iAE111,112..LHD..(GLI,XLI)..GEN199704-199910

BRAZIL SPEC

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199704

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAE110..4FC..GEN199807

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-12160iAE110..4FC..GEN199807

main47781-12170iAE111..WG..5F;AE111..LHD..4FC..GEN;AE112..XLI..(BZ,GEN,IDN);AE111,CE110,EE111..ARL,NZ,TUR;AE111..LHD..SED..5F..(GLI,XLI)..GEN;AE112..(GLI,SEG)..(ARL,BZ,IDN,NZ,PHL,TH,VEN)199704-200207

BRAZIL SPEC OR NEW ZEALAND SPEC

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-12160iAE111..RHD..WG;AE110,112,CE110,EE110..GCC,GEN;AE111,EE111..SED..(GCC,GEN,VEN)199505

main47782-12170iZZE11#200005-200201

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

*12-1.25PX25.8-19.5

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140×4iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN199610

main47716-32031×4iAE11#,EE11#199505-199610

main47716-33050×2iAE111,112..LHD..(GLI,XLI)..GEN199704-199910

BRAZIL SPEC

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33060×2iAE112..GEN;AE111..LHD..SED..(GLI,XLI)..GEN199704-200109

BRAZIL SPEC

main47717-20140×4iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN199610

main47717-32031×4iAE11#,EE11#199505-199610

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12120iAE110..4FC..GEN199807

main47721-12160iAE111..MA;AE111..WG..5F;AE112..GCC,GEN;CE110..XL..GEN;AE111..LHD..WG..4FC;AE111..SED..(GLI,XLI)..(GCC,GEN,GENKD,PHL,TH,VEN)199704-200207

main47721-12170iAE112..VEN;AE111..RHD..WG199704-200208

NEW ZEALAND SPEC

main47721-12211iAE111,112..LHD..(GLI,XLI)..GEN199704-199910

BRAZIL SPEC

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003×2iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN199505

*9-1.25PX71-25,SUB

main90119-09004×2iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN199505

*9-1.25PX91-25,MAIN

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12120iAE110..TH;AE110..GLI;EE111..GEN,MA,VEN;AE111,EE110..GL,STD,XL199704-200411

main47721-12160iAE112,CE110..GCC,GEN;AE111..RHD..(GLI,SEG,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN)199505-200208

main47721-12170iAE112..VEN;AE111..RHD..WG199704-200208

NEW ZEALAND SPEC

main47722-12031iAE111,112..LHD..(GLI,XLI)..GEN199704-199910

BRAZIL SPEC

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12310iAE111..GL,XL;EE111..GEN,VEN;AE110,EE110..GCC,GEN199505

main47730-12400iAE111..MA;AE111..WG..5F;AE112..GCC,GEN;CE110..XL..GEN;AE111..LHD..WG..4FC;AE111..SED..(GLI,XLI)..(GCC,GEN,GENKD,PHL,TH,VEN)199704-200207

main47730-12410iAE111..NZ;AE111..RHD..WG..5F;AE112,CE110..IDN,NZ,PHL,TH,VEN199704-200207

NEW ZEALAND SPEC

main47730-12451iAE111,112..LHD..(GLI,XLI)..GEN199704-199910

BRAZIL SPEC

47731PISTON, FRONT DISC BRAKE

main47731-12150×2iAE110..TH;AE111..MA;AE111..WG..5F;AE110,CE110..GLI,XL;AE111..LHD..WG..4FC;AE112,EE110..GCC,GEN,GENKD,IDN,NZ,PHL,TH,TUR,VEN;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN)199704

main47731-12180×2iAE112..ARL;AE111,ZZE11#..TUR199807-200201

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iAE110..4FC..GEN199807

main90522-64003×2iAE112..XLI..BZ;AE112..GLI..(ARL,BZ);AE111,EE111..ARL,TUR199807-200202

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32010×2iAE11#,EE11#199505-199704

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32040×2iAE11#,EE11#199505-199704

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-32040×2iAE11#,EE11#199505-199704

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12310iAE110..4FC..GEN199807

main47750-12400iAE112,CE110..GCC,GEN;AE111..RHD..(GLI,SEG,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN)199505-200208

main47750-12410iAE112..VEN;AE111..RHD..WG199704-200208

NEW ZEALAND SPEC

main47750-12451iAE111,112..LHD..(GLI,XLI)..GEN199704-199910

BRAZIL SPEC

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN199505

main47769-50010×2iAE111,112..LHD..(GLI,XLI)..GEN199704-199910

BRAZIL SPEC

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050×2iAE111..NZ;AE111..RHD..WG;AE112,CE110..IDN,NZ,TH,VEN; AE112..VEN;AE111..RHD..WG199804-199908

W(ABS)

main47771-32010×2iAE111..RHD..WG;EE110..LHD..3FC;AE111,EE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN); AE111..WG..5F;AE111..LHD..WG..4FC;AE110,112..(GLI,XLI)..(GCC,GEN,TH);AE111,EE111..SED..(GCC,GEN,GENKD,MA,PHL,TH,VEN);CE110,EE110..(GL,STD,XL)..(GCC,GEN,GENKD,PHL,TUR,VEN)199804

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-20080×4iAE112..GEN;AE111..LHD..SED..(GLI,XLI)..GEN199704-200109

BRAZIL SPEC

main47775-32010×8iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN199505

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iAE110..TH;AE111..MA;AE111..WG..5F;AE110,CE110..GLI,XL;AE111..LHD..WG..4FC;AE112,EE110..GCC,GEN,GENKD,IDN,NZ,PHL,TH,TUR,VEN;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN)199704

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iAE110..4FC..GEN199807

26 parts on this diagram · 3 diagrams in section
