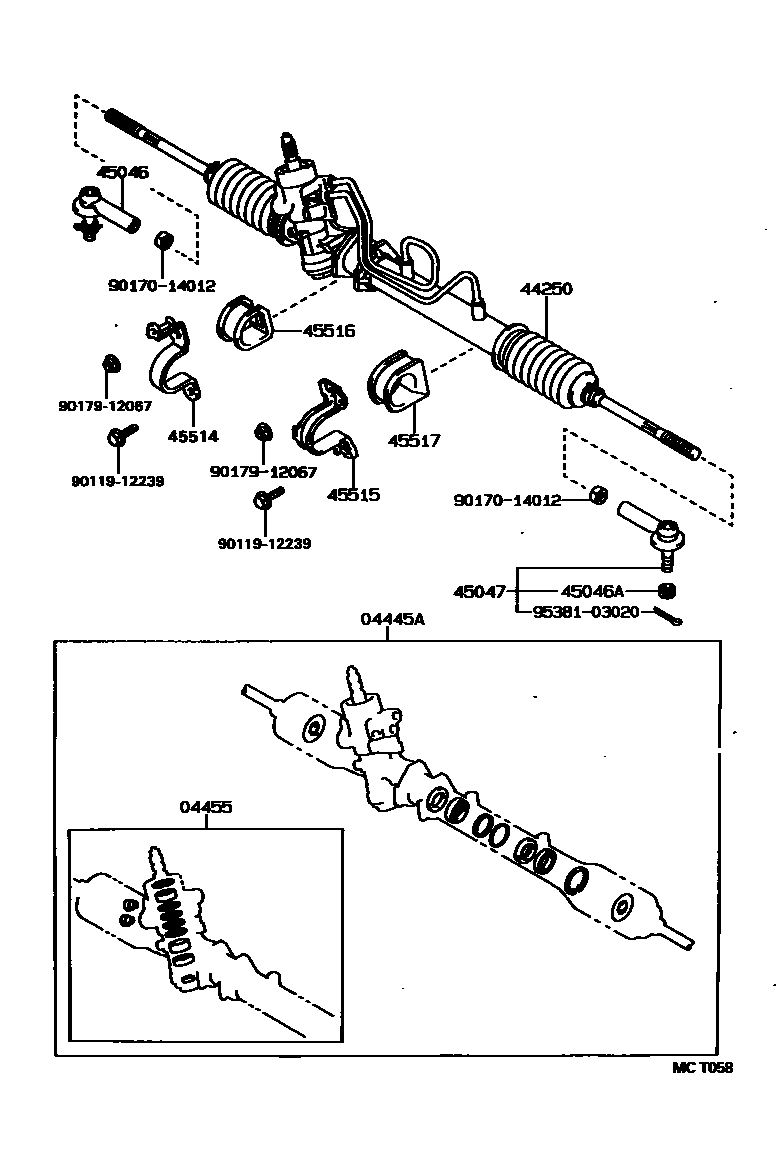

FRONT STEERING GEAR & LINK

0001 1POWER STEERING,TOYOTA 0002 1POWER STEERING,TOYOTA 0003 1POWER STEERING,KOYO 0004 1POWER STEERING,KOYO 0005 1POWER STEERING 0006 1POWER STEERING 0007 1 0008 1 0009 1MANUAL STEERING

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12150iAE110..4FC; EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN); EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)199907-199910

TOYOTA GEAR BOX

main04445-12160iAE111..MA;AE110..GLI;AE110,112..IDN,TH;AE111..RHD..WG..5F;AE111..RHD..SED..(GL,GLI,XL,XLI)..(GEN,TH)199704-200207

KOYO GEAR BOX

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12090iAE110..4FC; EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN); EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)199907-199910

TOYOTA GEAR BOX

main04455-12210iAE110,111..RHD..GEN199505

KOYO GEAR BOX

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-02061iAE111,EE111..TUR; AE111..TUR199907-200001

main44250-02062iAE111,EE111..TUR; AE111..TUR200001-200003

main44250-02111iAE111,EE111..TUR; AE111..TUR200003-200005

main44250-12530iAE110..4FC..GEN199807

KOYO GEAR BOX

main44250-12540iAE112..ARL;AE111..RHD..WG199704-200007

main44250-12541iAE111..WG;AE112..ARL200007-200109

main44250-12560iAE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN); EE110..GCC,GENKD,PHL;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110..LHD..(BZ,GCC,GEN,GENKD,PHL)199704-200007

main44250-12561iAE111,112,EE110..BZ,GENKD,PHL200007

main44250-12580iAE111,112,EE11#..(GLI,STD,XLI)..(TUR,VEN); AE111,112..TUR,VEN199805-199907

TOYOTA GEAR BOX

main44250-12581iAE111,112,EE111,ZZE11#..TUR,VEN200007-200208

main44250-12620iAE111,EE111..RHD..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..RHD..(GL,GLI,XL)..GEN199704-199910

TOYOTA GEAR BOX

45046END SUB-ASSY, TIE ROD, RH

main45046-09130iAE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN)199910-200109

T & K

main45046-29305iAE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN; AE110..4FC; EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN199907-199910

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAE110..4FC..GEN199807

45047END SUB-ASSY, TIE ROD, LH

main45046-09130iAE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN)199910-200109

T & K

main45046-29305iAE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN; AE110..4FC; EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN199907-199910

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12090iAE111..MA;CE110..LHD;AE111..WG..5F;AE111..LHD..WG..4FC;AE110,EE110..GENKD,TH;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH,VEN); CE110..LHD;AE111..RHD..WG;EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,EE111..ARL,GCC,GEN,VEN199704

W(POWER STEERING)

main45514-12110iAE110..TH;AE111..WG..5F;AE112,EE111..GEN;AE111..LHD..WG..4FC;AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,NZ,PHL,TUR)199704

main45514-12120iZZE11#200005-200201

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12170iAE110..4FC..GEN199807

main45515-12180iEE110..LHD..(GL,XL)..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN)199704-200208

W(POWER STEERING)

main45515-12200iZZE11#200005-200201

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12060iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12111iEE111..VEN;AE111..TUR,VEN;AE111..RHD..WG..4FC;AE112,CE110,ZZE11#..(GLI,XLI)..(ARL,GEN,TUR,VEN)199805-200208

main45517-12130iAE111..RHD..SED..5F..XLI..GEN; EE111..GEN199704-199910

INDONESIA OR THAILAND SPEC; MALAYSIA SPEC

9011912239

main90119-12239

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

14 parts on this diagram · 9 diagrams in section
