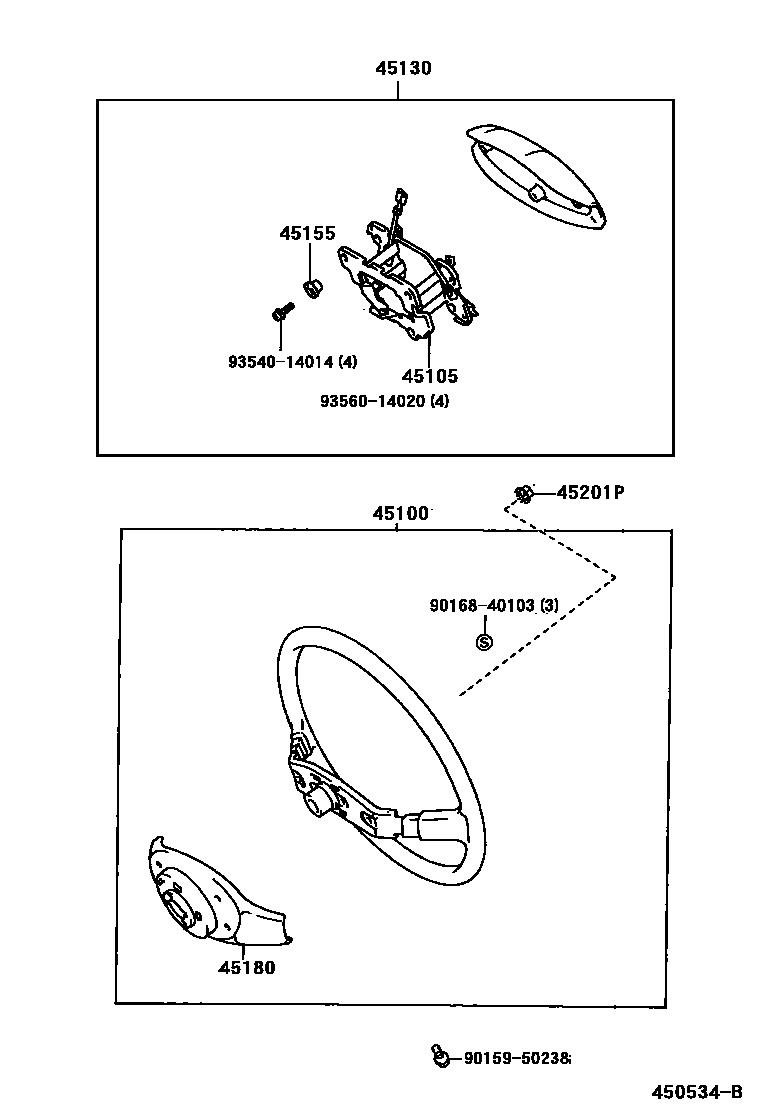

STEERING WHEEL
45100WHEEL ASSY, STEERING
2SPOKE,POLYPROPYLENE,SHADOW GRAY,TRIM1#
main45100-12720-B2iAE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN; CE110..XLI;EE111..VEN;AE111,112..WG..GEN; EE11#..(STD,XL)..(GENKD,PHL,TUR,VEN); EE111..GEN199910-200008
2SPOKE,POLYPROPYLENE,DK.CHARCOAL,TRIM1#; 2SPOKE,POLYPROPYLENE,DK.CHARCOAL,TRIM1#,9#; 2SPOKE,POLYPROPYLENE,DK.CHARCOAL,TRIM9#
4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
4-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#
4-SPOKE,URETHANE,OAK,TRIM4#
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),OAK,TRIM4#
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),DK.CHARCOAL,TRIM1#
4-SPOKE,URETHANE,W(MECHANICAL TYPE *80),OAK,TRIM4#
3-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
main45100-12760-B2iAE111..VEN;AE111..RHD..WG;AE111..RHD..(GL,GLI)..GEN;AE112,EE11#..(GL,XLI)..GEN; AE111..WG;AE111..GENKD,VEN;EE110..GENKD,PHL;AE111..RHD..(GL,GLI)..GEN;AE112,EE11#..(GL,XLI)..GEN; CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN; EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN199704-199910
3-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#; 3-SPOKE,URETHANE,DK.CHARCOAL,TRIM10,14
4-SPOKE,URETHANE,TYPE B:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80),SHADOW GRAY,TRIM1#
4-SPOKE,URETHANE,TYPE B:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80),DK.CHARCOAL,TRIM1#
3-SPOKE,LEATHER,BLACK,TRIM1#
main45100-13010-B0iAE110..GLI;EE110..GCC;AE111..RHD..WG;AE111..GCC,TUR;AE112,EE111..ARL,GCC,GEN; AE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN; AE111..WG;AE110..GLI;CE110,EE110..GCC,NZ,PHL;AE111..ARL,GCC,NZ,PHL,TUR;AE112,EE111..ARL,BZ,GCC,GEN,NZ,TUR; EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN199704-199910
4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80),DK.CHARCOAL,TRIM1#; 4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80),DK.CHARCOAL,TRIM10,14
4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80),SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-12200iAE111..RHD..WG;AE111,EE110..SED..(STD,XL,XLI)..GEN;AE110,112,CE110,EE111..(STD,XL,XLI)..(GEN,VEN)199505-200208
W(2-SPOKE STEERING WHEEL)
main45105-12230iAE111..RHD..WG;AE111..SED..(GL,GLI,XL,XLI)..(GEN,VEN);AE110,112,CE110,EE11#..(GL,XL,XLI)..GEN199505-200208
W(3-SPOKE STEERING WHEEL)
W(4-SPOKE STEERING WHEEL)
45130BUTTON ASSY, HORN
W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
main45130-12730-B2iAE111,CE110,EE110..SED..(XL,XLI)..GEN; AE111..RHD..WG;EE110..STD..GEN;AE112,EE111..(STD,XLI)..(GEN,VEN); EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN; EE111..GEN,VEN;EE110..STD..GEN;AE111,112..WG..GEN;EE110..GENKD,PHL,TUR,VEN199704-199910
W(2-SPOKE STEERING WHEEL),DK.CHARCOAL,TRIM1#; W(2-SPOKE STEERING WHEEL),DK.CHARCOAL,TRIM10,14
W(3-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
main45130-12810-B2iAE111..VEN;AE111..RHD..WG;AE111..RHD..(GL,GLI)..GEN;AE112,EE11#..(GL,XLI)..GEN; AE111..WG;AE111..GENKD,VEN;EE110..GENKD,PHL;AE111..RHD..(GL,GLI)..GEN;AE112,EE11#..(GL,XLI)..GEN; CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN; EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN199704-199910
W(3-SPOKE STEERING WHEEL),DK.CHARCOAL,TRIM1#; W(3-SPOKE STEERING WHEEL),DK.CHARCOAL,TRIM10,14
W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
W(4-SPOKE STEERING WHEEL),DK.CHARCOAL,TRIM1#
W(4-SPOKE STEERING WHEEL),OAK,TRIM4#
W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#
W(MECHANICAL TYPE *80),OAK,TRIM4#
BLACK,TRIM1#
main45130-1A130-B0iAE110..4FC; AE110..4FC;AE111,112..TUR,VEN; EE110..PHL;AE111,112,EE111..(GLI,XLI)..(BZ,PHL,TUR,VEN)199910-200002
TYPE A:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80),DK.CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80),SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
main45130-1A140-B1iAE110..GLI;EE111..GEN;AE111..RHD..WG;AE111,112,EE110..(GLI,XL,XLI)..(GCC,VEN); AE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN; AE111..WG;EE111..GEN;AE110..GLI;AE111,112,CE110,EE110..(GLI,XL,XLI)..(GCC,NZ,PHL,VEN); EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN199704-199807
TYPE B:REFER TO ILLUSTRATION, W(ELECTRIC TYPE *80),DK.CHARCOAL,TRIM10,14; TYPE B:REFER TO ILLUSTRATION,DK.CHARCOAL,TRIM1#; W(ELECTRICAL TYPE *80),DK.CHARCOAL,TRIM10,14
main45130-1A160-B0iAE111..WG;AE111..GCC,GENKD,VEN;EE110..(GL,STD)..GEN;EE110..GCC,GENKD,PHL,VEN;AE112,EE111..GCC,GEN,VEN;AE111..RHD..(GL,GLI)..GEN; AE111..WG;EE110..(GL,STD)..GEN;AE112,EE111..GCC,GEN,VEN;AE111..RHD..(GL,GLI)..GEN;AE111,EE110..(XL,XLI)..(GCC,VEN)199901-199910
W(MECHANICAL TYPE *80),DK.CHARCOAL,TRIM1#
W(ELECTRICAL TYPE *80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#
W(MECHANICAL TYPE *80),DK.CHARCOAL,TRIM1#
W(*80,DRIVER SIDE ONLY),SHADOW GRAY,TRIM1#; W(ELECTRICAL TYPE *80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#
main45130-1A170-B1iAE111,112..TUR,VEN; EE110..PHL;AE111,112,EE111..(GLI,SEG,XLI)..(BZ,PHL,TUR,VEN)199910-200002
DK.CHARCOAL,TRIM1#
W(4-SPOKE STEERING WHEEL),DK.CHARCOAL,TRIM1#
45155SPACER, HORN BUTTON CONTACT PLATE
45180COVER SUB-ASSY, STEERING WHEEL
W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
main45180-12160-B2iAE111,CE110,EE110..SED..(XL,XLI)..GEN; AE111..RHD..WG;EE110..STD..GEN;AE112,EE111..(STD,XLI)..(GEN,VEN); EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN; EE111..GEN,VEN;EE110..STD..GEN;AE111,112..WG..GEN;EE110..GENKD,PHL,TUR,VEN199704-199910
W(2-SPOKE STEERING WHEEL),DK.CHARCOAL,TRIM1#; W(2-SPOKE STEERING WHEEL),DK.CHARCOAL,TRIM10,14
W(3-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
main45180-12170-B2iAE111..VEN;AE111..RHD..WG;AE111..RHD..(GL,GLI)..GEN;AE112,EE11#..(GL,XLI)..GEN; AE111..WG;AE111..GENKD,VEN;EE110..GENKD,PHL;AE111..RHD..(GL,GLI)..GEN;AE112,EE11#..(GL,XLI)..GEN; CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN; EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN199704-199910
W(3-SPOKE STEERING WHEEL),DK.CHARCOAL,TRIM1#; W(3-SPOKE STEERING WHEEL),DK.CHARCOAL,TRIM10,14
SHADOW GRAY,TRIM1#
DK.CHARCOAL,TRIM1#
OAK,TRIM4#
45201PNUT, STEERING WHEEL SET
main90179-12071iAE110..4FC; AE111..WG..5F;AE111..GLI..TH;AE112..LHD..XLI;AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL;AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TUR,VEN); EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN199901
9015950238
main90159-50238
9016840103
main90168-40103
9354014014
main93540-14014
9356014020
main93560-14020
10 parts on this diagram · 5 diagrams in section
