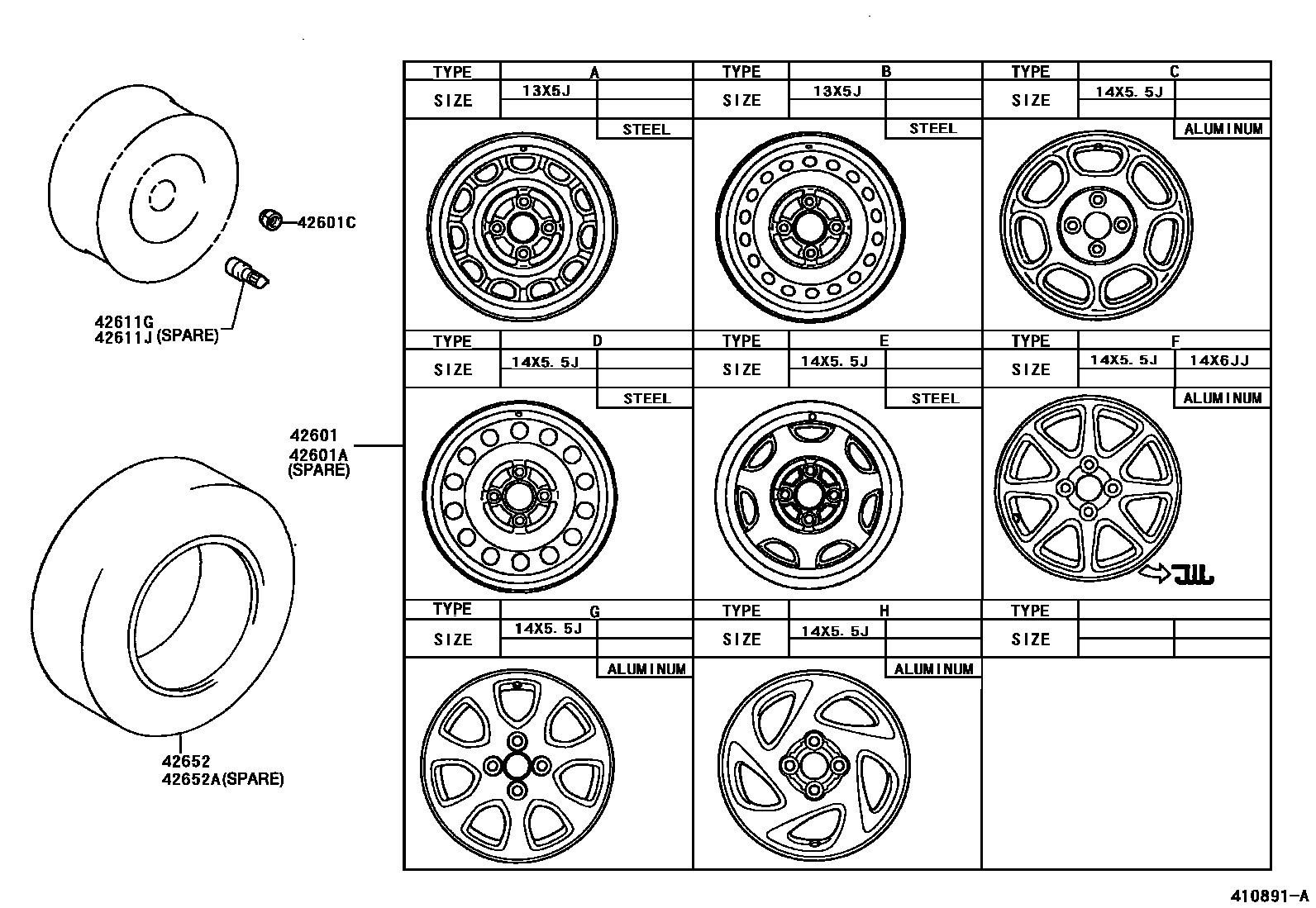

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1 0005 1

42601WHEEL, DISC

main42611-02140×4iAE112..IDN199901-200207

14X5.5JJ,TYPE H:REFER TO ILLUSTRATION

main42611-1A140-01×4iAE111..WG..5F;CE110,EE111..NZ,TUR;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GEN);AE111..(SEG,XLI)..(MA,TH);AE110,112..GLI..(ARL,BZ,GEN,NZ,VEN);AE111..SED..(GL,GLI,XL,XLI)199704-200207

14X5.5J,TYPE D:REFER TO ILLUSTRATION,BLACK

sub42611-1A141

main42611-1A150-01×4iAE110..4FC..GEN199807

13X5J,TYPE B:REFER TO ILLUSTRATION,BLACK

sub42611-1A151

main42611-1A160-03×4iAE111..WG..5F;EE111..GEN,VEN;CE110..XL..GEN;AE111..LHD..WG..4FC;AE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,PHL,TUR,VEN)199704

13X5J,TYPE A:REFER TO ILLUSTRATION,SILVER M.

sub42611-1A161

main42611-1A250-03×4iAE111..WG..5F;AE111..GLI..TH;AE111..SED..XLI..(GEN,TH);AE112,EE111..LHD..(4FC,5F)..(GEN,TUR)199809-200207

14X5.5J,OFFSET 45,TYPE E:REFER TO ILLUSTRATION,SILVER M

sub42611-1A251

main42611-1A270×4iCE110..LHD;AE110,112..(GLI,SEG)..(GEN,TH);AE111..RHD..SED..5F..(GLI,XLI)..GEN199810-199910

14X5.5JJ,TYPE C:REFER TO ILLUSTRATION

main42611-1A370×4iAE112..GLI..ARL199910-200109

14X5.5JJ,TYPE G:REFER TO ILLUSTRATION

sub42611-1A371

main42611-1A380×4iAE111..(GL,GLI)..(GEN,PHL,TH);AE112,EE110..(GLI,XL)..(ARL,PHL,VEN)199704-199910

14X5.5J,TYPE F:REFER TO ILLUSTRATION

main42611-1A430×4iZZE11#200005-200201

14X6JJ,OFFSET 45,TYPE F:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-02140iAE112..IDN199901-200207

14X5.5JJ,TYPE H:REFER TO ILLUSTRATION

main42611-1A140-01iAE111199505-199704

14X5.5J,TYPE D:REFER TO ILLUSTRATION,BLACK

sub42611-1A141

main42611-1A150-01iAE110,EE11#199505-199704

13X5J,TYPE B:REFER TO ILLUSTRATION,BLACK

sub42611-1A151

main42611-1A160-03iAE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN);AE110,112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN)199704-200208

13X5J,TYPE A:REFER TO ILLUSTRATION,SILVER M.

sub42611-1A161

main42611-1A250-03iAE111,112..XLI..GEN199809-200109

14X5.5J,OFFSET 45,TYPE E:REFER TO ILLUSTRATION,SILVER M

sub42611-1A251

main42611-1A270iCE110..LHD;AE110,112..(GLI,SEG)..(GEN,TH);AE111..RHD..SED..5F..(GLI,XLI)..GEN199810-199910

14X5.5JJ,TYPE C:REFER TO ILLUSTRATION

main42611-1A370iAE112..BZ,IDN,TH199809-199810

14X5.5JJ,TYPE G:REFER TO ILLUSTRATION

sub42611-1A371

main42611-1A380iAE112,EE110..PHL,VEN;AE111..GLI..(PHL,TH)199910

14X5.5J,TYPE F:REFER TO ILLUSTRATION

main42611-1A430iZZE11#200005-200201

14X6JJ,OFFSET 45,TYPE F:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iCE110..XL;AE110,EE11#;AE111..WG..5F;AE112..XLI..(GCC,GEN);AE112..GLI..(ARL,GCC,VEN);AE111..SED..(ARL,GCC,GEN,GENKD,MA,NZ,TH,TUR,VEN)199809-200008

TYPE A:REFER TO ILLUSTRATION

main90942-01021×16iAE110..4FC..GEN199807-199909

TYPE B:REFER TO ILLUSTRATION

main90942-01033×16iAE111..(GL,GLI)..(GEN,PHL,TH);AE112,EE110..(GLI,XL)..(ARL,PHL,VEN)199704-199810

TYPE D:REFER TO ILLUSTRATION

main90942-01058×16iAE112..BZ,IDN,TH199809-199810

TYPE E:REFER TO ILLUSTRATION

main90942-01062×16iAE110..4FC..GEN199807-199910

TYPE C:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)

main90942-01082×16iAE112..ARL;AE111..(GL,GLI)..GEN200010-200109

TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-199901

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-199901

42652TIRE

main42652-05140×4iAE111..(GL,GLI)..GEN;AE112,ZZE112..TUR,VEN199704-200208

185/65R14

main42652-10360×4iAE110,EE11#..RHD..(XL,XLI)199512-199705

155SR13

main42652-12680×4iEE111..GEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN)199704-199810

155SR13,*B/S,*D/L,*T/Y,*Y/H

main42652-12880×4iAE111..RHD..(GL,XL);AE110,CE110,EE11#..RHD..GEN199910

175/70R13 82S

main42652-12890×4iAE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

175/65R14 82H

main42652-14140×4iAE110..TH;CE110,EE110..LHD..(GEN,GENKD,PHL)199810

165SR13,*B/S,*D/L,*T/Y,*Y/H

main42652-14290×4iEE110..MTM..GEN;EE110..LHD..3FC;CE110,EE111..GEN199704-199810

165SR13,*Y/H

main42652-16320×4iAE110,EE11#..XL,XLI199505-199512

155SR13

main42652-16530×4iEE11#..RHD..GEN199810-199910

155/80R13

main42652-1A070×4iAE110,EE11#..XL,XLI199505-199704

165SR13

main42652-1A140×4iCE110..LHD;EE110..GCC199704-199910

175/70SR13

main42652-1A150×4iAE112..VEN199805-200208

185/60R14 82H

main42652-1A210×4iAE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

185/65R14 85H,TOYO

main42652-1A230×4iAE112..GCC,GEN;AE111..RHD..(GLI,XLI)..GEN;AE111,EE111..LHD..SED..(GLI,STD,XLI)..(GCC,GEN,VEN)199704-200208

175/70HR13,*Y/H

main42652-1A260×4iAE110..GLI;CE110..LHD199708

175/65R14 82S

main42652-1A360×4iAE111,EE111..TH,TUR199910-200207

175/65R14

main42652-1A420×4iAE110..4FC..GEN199807

175/65R14

main42652-20260×4iAE112..GCC,GEN;AE111..RHD..(GLI,XLI)..GEN;AE111,EE111..LHD..SED..(GLI,STD,XLI)..(GCC,GEN,VEN)199704-200208

175/70HR13,*B/S,*D/L,*Y/H

main42652-2B060×4iAE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

185/65R14 85H,DUNLOP

42652ATIRE (FOR SPARE)

main42652-05140iAE111..MA;AE111..(GL,GLI)..(GEN,PHL,TH);AE112,EE110..(GLI,SEG,XL,XLI)..(BZ,IDN,PHL,TH,VEN)199704-200411

185/65R14

main42652-10360iAE110,EE11#..XL,XLI199512-199704

155SR13

main42652-12680iEE111..GEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN)199704-199810

155SR13,*B/S,*D/L,*T/Y,*Y/H

main42652-12880iEE110..GENKD,TUR;AE111,EE111..GENKD,MA199910-200207

175/70R13 82S

main42652-12890iAE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

175/65R14 82H

main42652-14140iEE110..MTM..GEN;EE110..LHD..3FC;CE110,EE111..GEN199704-199810

165SR13,*B/S,*D/L,*T/Y,*Y/H

main42652-14290iEE110..MTM..GEN;EE110..LHD..3FC;CE110,EE111..GEN199704-199810

165SR13,*Y/H

main42652-16320iAE110,EE11#..XL,XLI199505-199512

155SR13

main42652-16530iEE111..GEN;EE110..RHD..5F199810-200109

155/80R13

main42652-1A070iEE111..GEN199704-199810

165SR13

main42652-1A140iAE111,CE110,EE110..LHD..(GL,XL)..(GCC,GEN)199910-200109

175/70SR13

main42652-1A150iAE112..NZ,VEN199710-200002

185/60R14 82H

main42652-1A210iAE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

185/65R14 85H,TOYO

main42652-1A230iAE112..GCC,GEN;AE111..RHD..(GLI,XLI)..GEN;AE111,EE111..LHD..SED..(GLI,STD,XLI)..(GCC,GEN,VEN)199704-200208

175/70HR13,*Y/H

main42652-1A260iAE110..GLI;CE110..LHD199708

175/65R14 82S

main42652-1A360iAE112..ARL,GEN;AE111..XLI..TH;CE110,EE111..NZ,TUR;AE111..(GL,GLI,XL,XLI)..(ARL,GEN,NZ,TUR)199704-199809

175/65R14

main42652-1A420iAE110..GEN;CE110..LHD199803

175/65R14

main42652-20260iAE112..GCC,GEN;AE111..RHD..(GLI,XLI)..GEN;AE111,EE111..LHD..SED..(GLI,STD,XLI)..(GCC,GEN,VEN)199704-200208

175/70HR13,*B/S,*D/L,*Y/H

main42652-2B060iAE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

185/65R14 85H,DUNLOP

7 parts on this diagram · 5 diagrams in section
