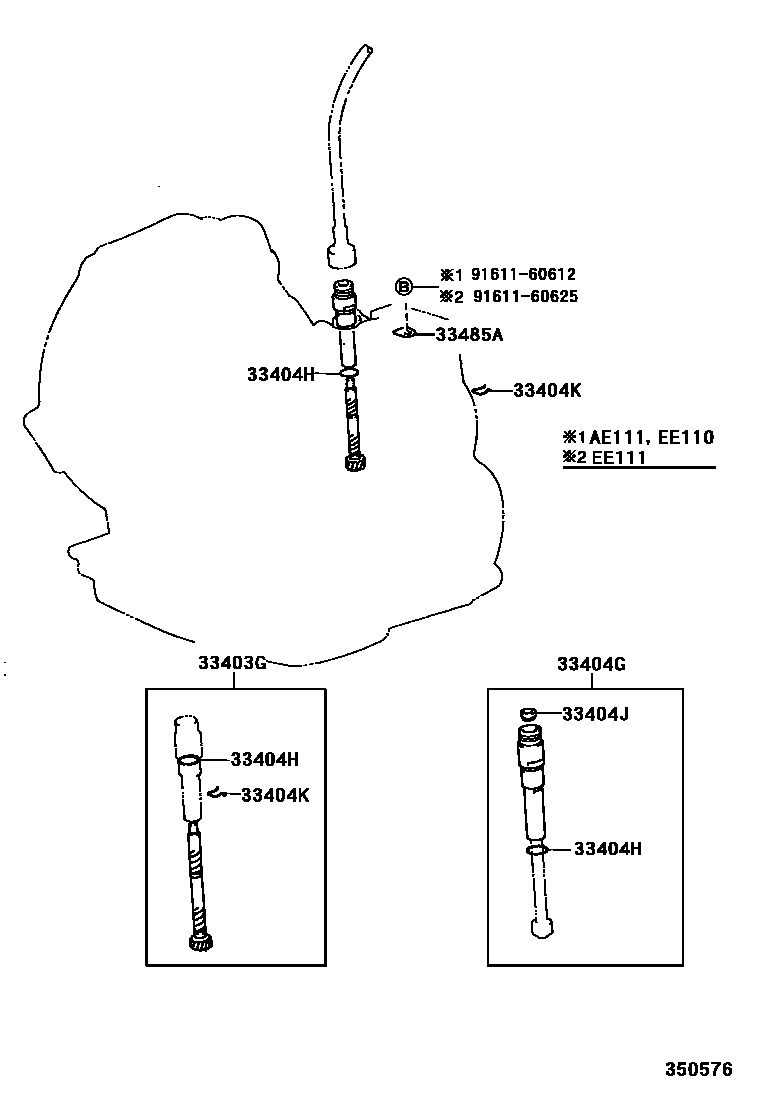

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A131L,A132L 0002 1A240L 0004 1A245E

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19285iAE110..4FC..GEN; AE112..4FC..ARL;AE110,111..RHD..4FC..GEN199809

N=31,MARK 31:35

main33403-19295iAE111..4FC..PHL;AE112..4FC..IDN;AE111..RHD..4FC..(GL,GLI,SEG)199809-200207

N=30,MARK 30:35

main33403-19305iAE111,EE11#..3FC..(GEN,MA)199704-200207

N=22,MARK 22:25

main33403-19455iAE111,112..LHD..4FC..GLI..(GEN,VEN); AE112..4FC..(BZ,VEN);AE111..LHD..4FC..GLI..GEN199808-199809

N=30,MARK 30:35

main33403-19465iAE111,112..LHD..4FC..(GCC,GEN,TUR,VEN); AE112..4FC..(GCC,GEN,VEN);AE111..LHD..SED..4FC..(GCC,GEN,TUR,VEN)199704-199812

N=31,MARK 31:35

main33403-19515iEE111..3FC..TUR199807-200005

N=22,MARK 22:25

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-12030iAE112..4FC..ARL;AE110,111..RHD..4FC..GEN199505-199809

main33404-32010iAE111,EE11#..3FC..GEN199505-200109

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iAE111,EE11#..3FC..(GEN,MA)199704-200207

main96711-24030iAE110..4FC..TH;AE111..4FC..(MA,PHL);AE110,112..RHD..4FC..(GLI,SEG);AE111..RHD..4FC..(GL,GLI,XL,XLI)199704-199809

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAE111..ATM..(GL,SEG,XL)..GEN;AE111..RHD..4FC..(GLI,XLI)..GEN;AE110,112,EE11#..SED..ATM..(ARL,GEN)199505-199809

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAE110..4FC..GEN; AE110..4FC..GEN;AE111,112,EE11#..ATM; EE110..LHD..3FC;AE110,111..ATM..(GCC,GEN,TUR,VEN);AE112,EE111..ATM..(ARL,GCC,GEN,VEN)199809-199812

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010iAE111,EE11#..3FC..(GEN,MA)199704-200207

main33485-30020iAE110..4FC..GEN; AE112..4FC..ARL;AE110,111..RHD..4FC..GEN199809

9161160612

main91611-60612

9161160625

main91611-60625

8 parts on this diagram · 3 diagrams in section
