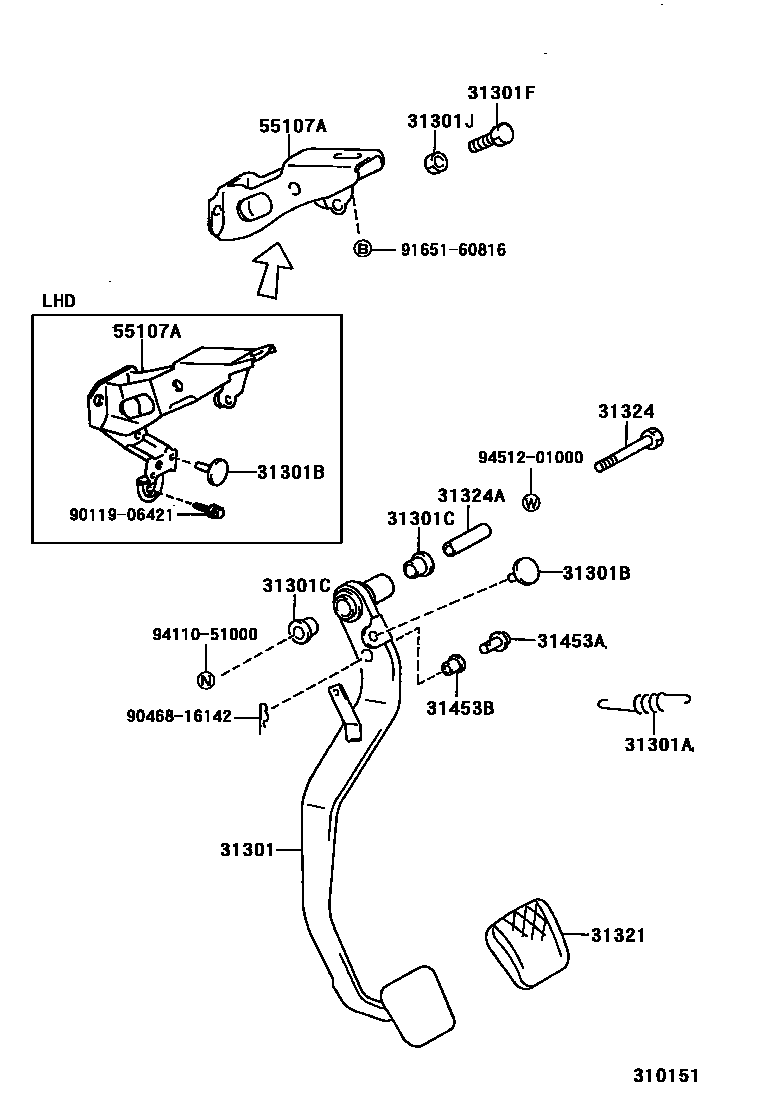

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12420iAE111..5F..MA;AE110,112..5F..XLI..(IDN,TH);AE111,EE111..RHD..5F..(GL,GLI,XL,XLI);AE110,112,CE110,EE110..RHD..5F..(GL,GLI,SEG,XL)199505-200207

main31301-12430iEE110..LHD..MTM..(GCC,GEN);AE112,CE110,EE111..LHD..5F..(GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..5F..(GCC,GEN,TUR,VEN)199704-200208

31301ASPRING(FOR CLUTCH PEDAL)

main90506-14063iAE112..5F..ARL;AE110,111,CE110,EE11#..RHD..5F..GEN199505-200207

main90905-06029iAE111,112,CE110,EE11#..LHD..MTM199704-200208

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iAE111,112,CE110,EE11#..LHD..MTM199505-200208

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-41000iAE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

31321PAD, CLUTCH PEDAL

main31321-12040iAE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

31324SHAFT, CLUTCH PEDAL

main90101-10015iAE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iAE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-12010iAE111,112,CE110,EE11#..LHD..MTM199704-200208

L=23.5

main47148-12030iAE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

L=30.0

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12160iEE110..LHD..MTM..(GCC,GEN);AE112,CE110,EE111..LHD..5F..(GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..5F..(GCC,GEN,TUR,VEN)199704-200411

main55107-12170iAE112..5F..ARL;AE110,111,CE110,EE11#..RHD..5F..GEN199505-200207

9011906421

main90119-06421

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

17 parts on this diagram · 6 diagrams in section
