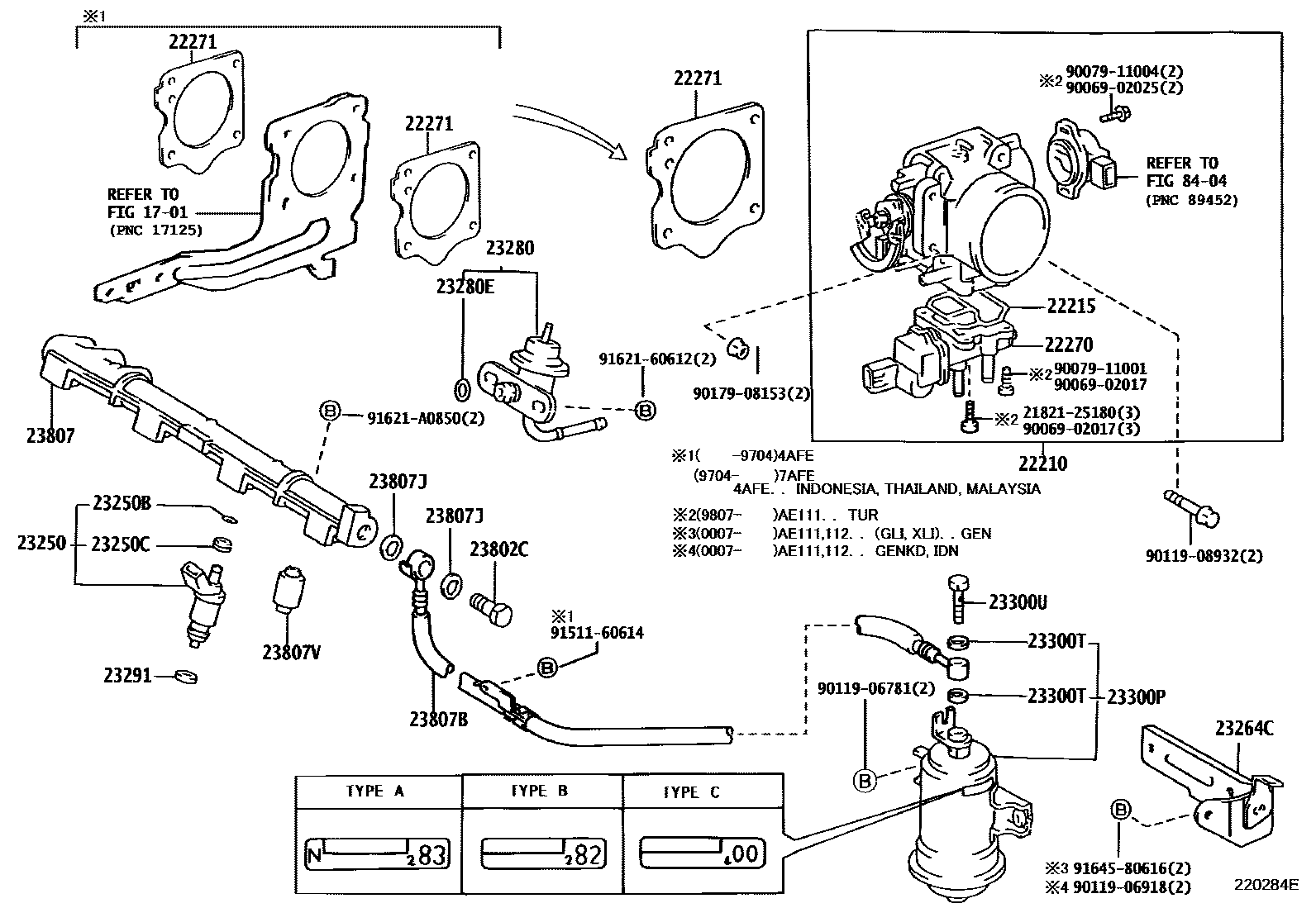

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1701MANIFOLD

→ Go to FIG 17-01

22210BODY ASSY, THROTTLE

main22210-02200i4AFE..AE111..4FC..TUR199807-200005

main22210-02210i4AFE..AE111..5F..TUR199807-200005

main22210-0D020i4ZZFE..ZZE111200005-200201

(L)

main22210-0D030i3ZZFE..ZZE112200005-200201

(L)

main22210-11440i4EFE..EE111..5F199505-199601

main22210-11450i4EFE..EE111..3FC199505-199601

main22210-11480i4EFE..EE111..5F199601-199704

main22210-11490i4EFE..EE111..3FC..GEN199704-199910

MALAYSIA SPEC

main22210-11610i4EFE..EE111..5F..(MA,TUR)200002-200207

main22210-11620i4EFE..EE111..3FC..GEN199704-200008

main22210-15090i5AFE..AE110; 5AFE..AE110..4FC199910

MARK 15090

main22210-15120i5AFE..AE110..4FC199906

MARK 15120

main22210-16630i4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN; 4AFE..AE111..SEG..GEN;4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

MARK 16630

main22210-16700i7AFE..AE112..GEN,VEN199805-199909

main22210-16710i4AFE..AE111..RHD..(GLI,SEG)..GEN;4AFE..AE111..RHD..SED..5F..XLI..GEN199605-199910

MARK 16710

main22210-16800i7AFE..AE112..5F..GEN;7AFE..AE112..4FC..VEN; 7AFE..AE112..5F..PHL;7AFE..AE112..4FC..(BZ,PHL,VEN)199910-200002

MARK 16800

main22210-16860i7AFE..AE112..5F..(BZ,VEN); 7AFE..AE112..5F..VEN199909-200002

main22210-16890i7AFE..AE112..ARL199808-200109

main22210-1A020i4AFE..AE111..RHD..(GLI,XLI)..GEN199704-200109

MARK 1A020

main22210-1A040i4AFE..AE111..LHD..5F..(GEN,VEN); 4AFE..AE111..LHD..SED..5F..(GEN,VEN)199704-199910

MARK 1A040

main22210-1A050i4AFE..AE111..LHD..4FC..(GEN,VEN); 4AFE..AE111..LHD..SED..4FC..(GEN,VEN)199704-199910

MARK 1A050

main22210-1A060i4AFE..AE111..MA,TH; 4AFE..AE111..RHD..GEN199910-200008

MARK 1A060

main22210-1A070i4AFE..AE111..LHD..(GEN,GENKD,VEN); 4AFE..AE111..LHD..SED..(GEN,VEN)199704-199909

MARK 1A070

main22210-1A080i4AFE..AE111..LHD..SED..(GCC,GEN); 4AFE..AE111..PHL199711-199910

MARK 1A080

main22210-1A090i7AFE..AE112..GCC199704-199910

main22210-22050i4ZZFE..ZZE111200005-200201

(J)

main22210-22060i3ZZFE..ZZE112200005-200201

(J)

22215GASKET, THROTTLE BODY COVER

main22215-74400i4AFE,5AFE,7AFE..AE11#..ARL,GCC,GEN,TUR,VEN; 5AFE..AE110..4FC200002

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-11010i4EFE..EE111..GEN199704-199910

MALAYSIA SPEC

main22270-11020i4EFE..EE111; 4EFE..EE111..GEN,VEN199704-200002

main22270-15010i7AFE..AE112..GCC,GEN,IDN,VEN; 7AFE..AE112..GCC,GEN,VEN199704-199909

main22270-15040i5AFE..AE110..4FC199906-199910

MARK 15120

main22270-16060i5AFE..AE110..5F;7AFE..AE112..ARL; 5AFE..AE110..5F;7AFE..AE112..ARL,BZ,TH199906-199909

main22270-16090i4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI)199704-200207

main22270-22050i4ZZFE..ZZE111200005-200201

22271GASKET, THROTTLE BODY

main22271-02020i4AFE..AE111..TUR199807-199808

main22271-11030i4EFE..EE111..GEN200002-200008

main22271-15020×2i4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AFE,5AFE..AE110,111..RHD..(GLI,XLI)..GEN; 5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN); 7AFE..AE112; 7AFE..AE112..LHD199704-199808

main22271-22030i3ZZFE,4ZZFE..ZZE11#200005-200111

main22271-22070i3ZZFE,4ZZFE..ZZE11#200111-200201

23250INJECTOR ASSY, FUEL

main23209-0D020×4i3ZZFE,4ZZFE..ZZE11#200005-200201

main23209-11110×4i4EFE..EE111199505-199704

main23209-11130×4i4EFE..EE111; 4EFE..EE111..GEN,VEN199704-200002

main23209-15040×4i4AFE..AE111..RHD..(GLI,XLI)..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)199704-200208

main23209-16150×4i4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN; 4AFE..AE111..SEG;4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199712

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main23209-16160×4i7AFE..AE112; 7AFE..AE112..ARL,GCC,GEN,VEN199704-199901

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i4EFE..EE111; 7AFE..AE112;5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI199704-199812

main90301-07024×4i4AFE,5AFE,7AFE..AE11#; 5AFE..AE110..4FC..GEN; 7AFE..AE112..ARL,GCC,GEN,VEN;4AFE,5AFE..AE110,111..GCC,GEN,TUR,VEN199812-199901

main90301-07030×4i3ZZFE,4ZZFE..ZZE11#200005-200201

23250CGROMMET(FOR FUEL INJECTOR)

main90080-48058×4i3ZZFE,4ZZFE..ZZE11#200005-200201

main90480-13005×4i5AFE..AE110..4FC; 7AFE..AE112..ARL,GCC,GEN,VEN;4AFE,5AFE..AE110,111..GCC,GEN,TUR,VEN199901

23264CBRACKET, FUEL FILTER

main23264-16060i7AFE..AE112..IDN;4AFE..AE111..RHD..WG..5F;4AFE..AE111..RHD..SED..(GLI,XLI)..GEN199704-200207

main23264-16080i4AFE,7AFE..AE111,112..LHD..(GEN,GENKD)199909-200207

23280REGULATOR ASSY, FUEL PRESSURE

main23280-11070i4EFE..EE111199704-200002

main23280-15020i7AFE..AE112;5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..GLI,XLI199704-199811

main23280-15030i5AFE..AE110..4FC..GEN199807

main23280-50030i3ZZFE,4ZZFE..ZZE11#200005-200201

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN); 4EFE..EE111..GEN199505-199812

main90301-07024i3ZZFE,4ZZFE..ZZE11#200005-200201

23291INSULATOR, INJECTOR VIBRATION

main23291-0D010×4i3ZZFE,4ZZFE..ZZE11#200005-200201

(L)

main23291-22010×4i3ZZFE,4ZZFE..ZZE11#200005-200201

(J)

main23291-41010×4i4AFE..AE111..WG..5F;7AFE..AE112..LHD..XLI;7AFE..AE112..(GLI,SEG)..(ARL,BZ,GCC,PHL,VEN);4AFE,5AFE..AE110,111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TUR,VEN)199901-200207

23300PFILTER, FUEL(FOR EFI)

main23300-19285i4EFE..EE111..MA,TUR,VEN; 4EFE..EE111..VEN199910-200002

MARK 83

main23300-19295i4AFE..AE111..PHL;4AFE,7AFE..AE111,112..RHD..(GLI,XLI)..(ARL,GEN,NZ); 4EFE..EE111..GEN; 7AFE..AE112..ARL;4AFE..AE111..RHD..(GLI,XLI)..GEN199704-199910

MARK 82; TYPE B:REFER TO ILLUSTRATION

main23300-19515i7AFE..AE112..ARL;4AFE..AE111..RHD..GEN; 7AFE..AE112..RHD;4AFE..AE111..MA,PHL;4AFE..AE111..RHD..(GLI,XLI)199710-199910

TYPE C:REFER TO ILLUSTRATION

main23300-22030i3ZZFE,4ZZFE..ZZE11#200005-200201

23300TGASKET(FOR FUEL FILTER)

main90430-12026×2i4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)199505

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i4EFE..EE111..GEN,VEN199505-200208

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08004i4EFE..EE111..MA,TUR200002-200207

main90401-12097i5AFE..AE110..4FC; 7AFE..AE112..ARL,GCC,GEN,VEN;4AFE,5AFE..AE110,111..GCC,GEN,TUR,VEN199901

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-22030i3ZZFE,4ZZFE..ZZE11#200005-200201

main23814-11060i4EFE..EE111..MA,TUR200002-200207

main23814-15040i5AFE..AE110..GLI199505

main23814-15050i5AFE..AE110..4FC..GEN; 5AFE..AE110..GEN199807-199910

ENGINE NO.=D002XXX(TENSIN)

23807BHOSE, FUEL DELIVERY PIPE

main23271-15240i5AFE..AE110199505-199704

main23271-16200i7AFE..AE112; 7AFE..AE112..ARL,GCC,GEN,VEN199704-199901

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-12026×2i4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)199505-199901

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23890-11010×2i4EFE..EE111199505-199604

main23891-11020×2i4EFE..EE111..MA,TUR200002-200207

main90080-56052×2i3ZZFE,4ZZFE..ZZE11#200005-200201

(L)

main90561-08020×2i5AFE..AE110..4FC; 7AFE..AE112..ARL,GCC,GEN,VEN;4AFE,5AFE..AE110,111..GCC,GEN,TUR,VEN199901

main90561-08055×2i3ZZFE,4ZZFE..ZZE11#200005-200201

(J)

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9006902017

main90069-02017

9006902025

main90069-02025

9007911001

main90079-11001

9007911004

main90079-11004

9011906781

main90119-06781

9011906918

main90119-06918

9011908932

main90119-08932

9017908153

main90179-08153

9151160614

main91511-60614

9162160612

main91621-60612

91621A0850

main91621-A0850

9164580616

main91645-80616

34 parts on this diagram · 7 diagrams in section
