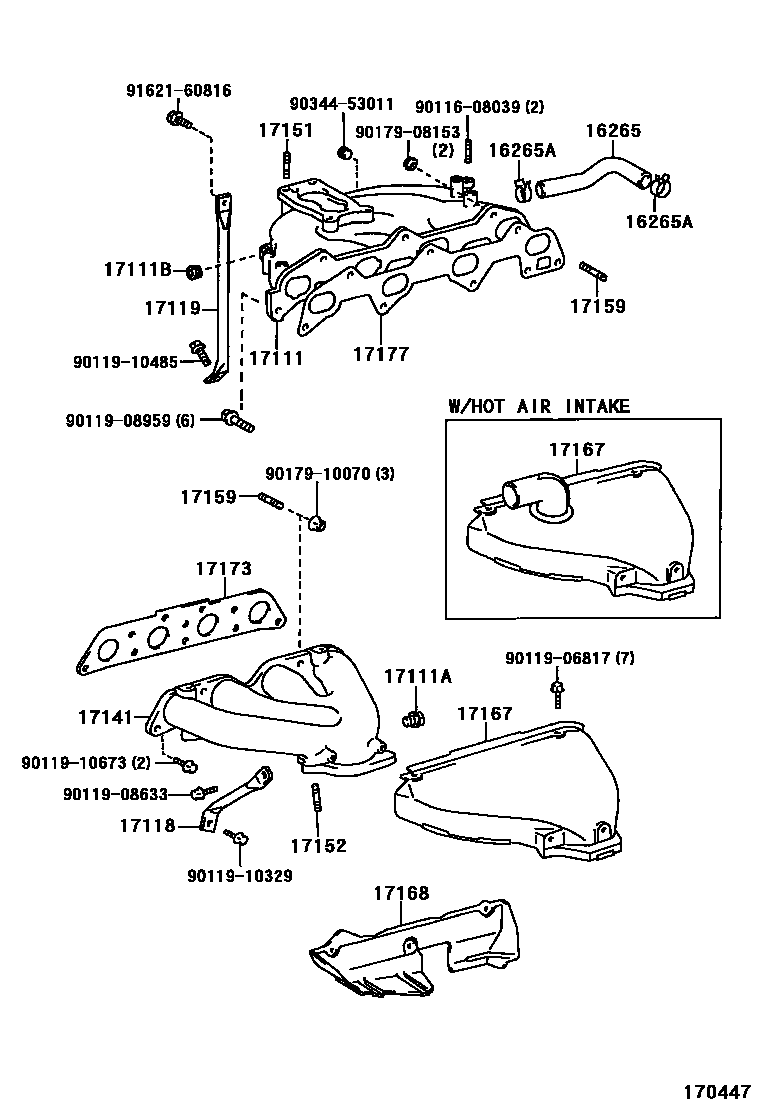

MANIFOLD

0001 1 0002 1 0005 1 0006 1INDONESIA,THAILAND,MALAYSIA 0007 1 0009 1 0011 1 0013 1SINGAPORE SPEC 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1MALAYSIA 0020 1

16265HOSE, INTAKE MANIFOLD WATER

main16265-11010i2E..EE110..GCC,GEN199505-200109

main16265-15020i4AF..AE111199704-200109

16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)

main90467-21001i2E..EE110199505-200204

sub90467-21006

main90467-21006i4AF..AE111199704-200109

17111MANIFOLD, INTAKE

main17101-02120i4AFE..AE111..TUR199807-200005

(L)

sub17101-16300

main17101-11210i2E..EE110199505-200109

main17101-11330i4EFE..EE111199505-199704

main17101-11330i4EFE..EE111..GEN199704-199910

MALAYSIA SPEC

main17101-11370i4EFE..EE111..GEN,VEN199704-200207

main17101-15070i5AFE..AE110..4FC..GEN199505-199910

main17101-16080i4AF..AE111199704-200109

main17101-16190i4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199712

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main17101-16190i4AFE..AE111199505-200208

main17101-16280i4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN)199704-200208

main17101-16300i4AFE..AE111..TUR199807-200005

(J)

main17111-64150i2C..CE110199704-200109

main17111-64270i2CE..CE110199710-200010

main17120-0D010i3ZZFE,4ZZFE..ZZE11#200007-200111

(L)

sub17120-0D060

main17120-0D060i3ZZFE,4ZZFE..ZZE11#200111-200201

(L)

main17120-22020i3ZZFE,4ZZFE..ZZE11#200005-200007

main17120-22020i3ZZFE,4ZZFE..ZZE11#200007-200201

(J)

17111APLUG, NO.1

main90341-18047i4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)199505-200207

main90344-53015i2E..EE110..GCC,GEN199505-200109

17111BPLUG, NO.2

main90344-54003i4AF..AE111199704-200109

17118STAY, MANIFOLD

main17118-02030i4AFE..AE111..TUR199807-200005

main17118-02050i7AFE..AE112..4FC..(PHL,TH)199808-200207

main17118-02080i5AFE..AE110..5F..GEN199807-199808

EXHAUST PIPE=W(CONVERTER)

main17118-02080i4AFE..AE111..4FC..(PHL,TH)199505-200207

main17118-02080i5AFE..AE110..GEN;4AFE..AE111..4FC..TH199808-200010

SINGAPORE SPEC

main17118-0D020i3ZZFE,4ZZFE..ZZE11#200005-200201

(L)

main17118-11130i2E..EE110..GCC,GEN199505-200109

main17118-11280i4EFE..EE111..GEN199704-199910

MALAYSIA SPEC

main17118-11280i4EFE..EE111199505-199704

main17118-11340i4EFE..EE111199704-200207

main17118-15080i5AFE..AE110..XLI199505-199607

main17118-15081i5AFE..AE110..TH199607-199901

main17118-16050i4AF#..AE111..GCC,GEN,GENKD,PHL199505-200207

main17118-16100i7AFE..AE112..ARL,GEN199710-200208

EXHAUST PIPE=W(CONVERTER)

main17118-16140i4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GEN,VEN)199505-200208

EXHAUST PIPE=W(CONVERTER)

main17118-16150i7AFE..AE112..GCC,GEN,VEN199704-200207

main17118-22030i3ZZFE,4ZZFE..ZZE11#200005-200201

(J)

17119STAY, MANIFOLD, NO.2

main17012-15010i4AFE..AE111..SEG;4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199712

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main17012-15010i4AFE..AE111199505-199704

main17012-16020i7AFE..AE112..GLI,SEG;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN)199704-200208

main17139-02080i4AFE..AE111..TUR199807-200005

main17139-02090i5AFE..AE110200110

(L)

main17139-15020i4AF..AE111199704-200109

main17139-15050i4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AFE,5AFE..AE110,111..RHD..(GLI,XLI)..GEN199505-200208

main17139-15050i5AFE..AE110200110

(J)

17141MANIFOLD, EXHAUST

main17104-0D010i3ZZFE,4ZZFE..ZZE11#200005-200201

(L)

main17104-22040i3ZZFE,4ZZFE..ZZE11#200005-200201

(J)

main17141-02040i4AFE..AE111..TUR199807-200005

main17141-11041i2E..EE110..GCC,GEN199505-200109

main17141-11320i4EFE..EE111..GEN,VEN199505-200207

main17141-15150i5AFE..AE110199505-199607

sub17141-15151

sub17118-15081

sub17168-15031

main17141-15151i5AFE..AE110..TH199607-199901

main17141-16300i4AF#,7AFE..AE111,112..GCC,GEN199505-200207

main17141-16320i4AFE..AE111..GLI,SEG199505-200208

EXHAUST PIPE=W(CONVERTER)

main17141-16350i4AF#,7AFE..AE111,112..GCC,GEN,GENKD,PHL,VEN199505-200207

W/O PNC 17111A

main17141-16390i5AFE..AE110..4FC..GEN199807-199808

EXHAUST PIPE=W(CONVERTER)

main17141-16390i5AFE..AE110..GEN;4AFE,7AFE..AE111,112..4FC..TH199808-200010

SINGAPORE SPEC

main17141-16390i5AFE..AE110199701-200207

main17141-64151i2C..CE110199704-200109

main17141-64181i2CE..CE110199710-200010

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main92112-60832i4AF..AE111199704-200109

main92122-40828i2E..EE110199505-200109

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017i5AFE..AE110199505-200207

main90116-10017i5AFE..AE110..GEN199808-200010

SINGAPORE SPEC

main90116-10146i4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)199505-200208

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10131i2E..EE110..GCC,GEN199505-200109

EXHAUST SIDE

main90116-10131i2E..EE110..GENKD,PHL,TUR,VEN199708

EXHAUST MANIFOLD

main90116-10196i4EFE..EE111..GEN199505-200207

EXHAUST MANIFOLD

main90126-08026i3ZZFE,4ZZFE..ZZE11#200005-200201

NO.1

main90126-08037i3ZZFE,4ZZFE..ZZE11#200005-200111

NO.2

main90126-08043i3ZZFE,4ZZFE..ZZE11#200111-200201

NO.2

main90126-10017i2C#..CE110199704-200109

EXHAUST SIDE

main92112-60825i5AFE..AE110..4FC199505-200207

INTAKE MANIFOLD

main92112-61028i4AF..AE111199505-200207

EXHAUST MANIFOLD

main92122-60820i2C#..CE110199704-200109

INTAKE SIDE

main92132-60825i2E..EE110..GCC,GEN199505-200109

INTAKE SIDE

main92132-60825i4EFE..EE111199505-200208

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17107-11030i2E..EE110..TUR199807-200005

main17107-11090i2E..EE110..GEN199704-200109

W(HOT AIR INTAKE)

main17107-16071i4AF..AE111199704-200109

W(HOT AIR INTAKE)

main17167-02030i4AFE..AE111..TUR199807-200005

main17167-02050i5AFE..AE110..GEN199808-200010

SINGAPORE SPEC

main17167-02050i5AFE..AE110..4FC..GEN199807-199808

EXHAUST PIPE=W(CONVERTER)

main17167-02050i4AFE,7AFE..AE111,112..4FC..PHL199701-200207

main17167-0D010i3ZZFE,4ZZFE..ZZE11#200005-200201

(L)

main17167-11040i2E..EE110..GCC,GEN199505-200109

main17167-11310i4EFE..EE111199505-200207

main17167-15090i5AFE..AE110199505-199901

main17167-16150i4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)199505-200207

main17167-16170i4AFE..AE111..GLI,SEG199505-199601

EXHAUST PIPE=W(CONVERTER)

sub17167-16171

main17167-16171i7AFE..AE112..5F..TH;7AFE..AE112..ARL,BZ,GEN,NZ;4AFE..AE111..LHD..4FC..GEN;4AFE..AE111..4FC..(ARL,MA,NZ,VEN);4AFE..AE111..5F..(ARL,GEN,MA,NZ,TH,VEN)199601-200208

EXHAUST PIPE=W(CONVERTER)

main17167-16171i7AFE..AE112..VEN199909-199910

main17167-22030i3ZZFE,4ZZFE..ZZE11#200005-200201

(J)

main17167-64090i2C..CE110199704-199804

sub17167-64120

main17167-64120i2C#..CE110..GEN199804-200109

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0D010i3ZZFE,4ZZFE..ZZE11#200005-200201

(L)

main17168-10011i2E..EE110199505-200109

main17168-15030i5AFE..AE110199505-199607

main17168-15031i5AFE..AE110..XLI199607-199901

main17168-16100i4AF#,7AFE..AE111,112..GCC,GEN199505-200207

main17168-22030i3ZZFE,4ZZFE..ZZE11#200005-200201

(J)

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-02030i4AFE..AE111..TUR199807-200005

main17173-02060i5AFE..AE110200110

(L)

main17173-0D010i3ZZFE,4ZZFE..ZZE11#200005-200201

(L)

sub17173-22010

main17173-10021i2E..EE110199505-200109

main17173-11040i4EFE..EE111..MA199505-200207

main17173-15011i4AF..AE111199704-200109

W(HOT AIR INTAKE)

main17173-15040i5AFE..AE110200110

(J)

main17173-15040i4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN199505-200208

main17173-22010i3ZZFE,4ZZFE..ZZE11#200005-200201

(J)

main17173-64060i2C#..CE110..GEN199704-200109

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-02050i5AFE..AE110200110

(L)

main17171-15030i4AFE,7AFE..AE111,112..BZ,GENKD,IDN,MA,PHL,TH199505-200208

main17171-15030i5AFE..AE110200110

(J)

main17171-16031i4AF..AE111199704-200109

main17171-22030i3ZZFE,4ZZFE..ZZE11#200005-200201

main17177-10020i2E..EE110199505-200109

main17177-11070i4EFE..EE111199505-200207

main17177-64020i2C#..CE110..GEN199704-200109

9011608039

main90116-08039

9011906817

main90119-06817

9011908633

main90119-08633

9011908959

main90119-08959

9011910329

main90119-10329

9011910485

main90119-10485

9011910673

main90119-10673

9017908153

main90179-08153

9017910070

main90179-10070

9034453011

main90344-53011

9162160816

main91621-60816

26 parts on this diagram · 15 diagrams in section
