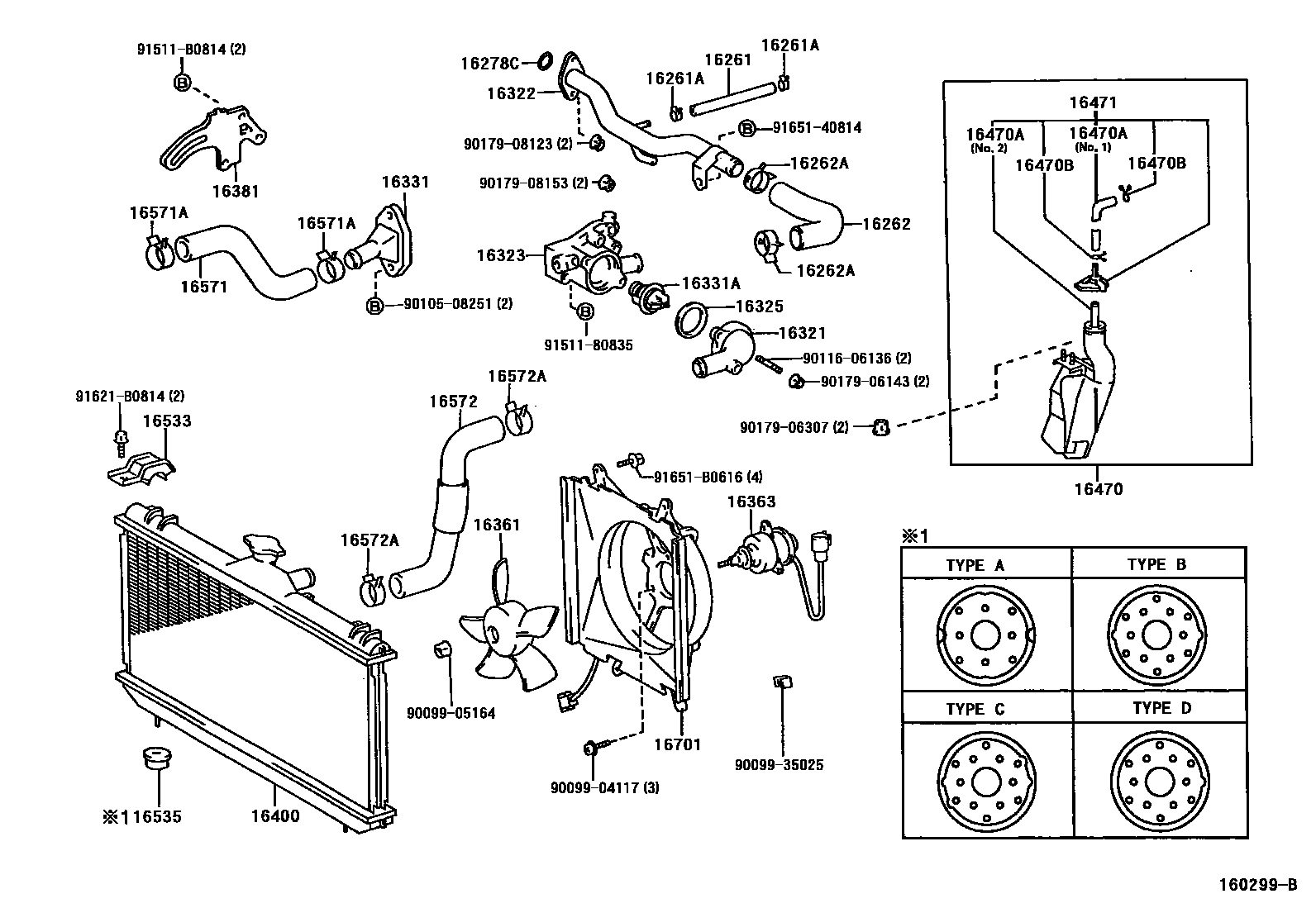

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

16261HOSE, WATER BY-PASS

main16261-22080i3ZZFE,4ZZFE..ZZE11#200005-200201

main16261-64060i2C..CE110199704-200109

main16261-64120i2CE..CE110199710-200010

main99555-00200i4EFE..EE111..GEN199505-200207

*H,L=190

main99555-10300i4AF..AE111199704-200109

*H,L=220

sub99555-10500

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-11009i4EFE..EE111..MA,TUR199505-200204

sub96135-51100

main90467-15022i2CE..CE110199704-200109

main96135-41300i3ZZFE,4ZZFE..ZZE11#199704-200201

sub96135-51300

main96135-51100i4EFE..EE111..VEN200204-200208

16262HOSE, WATER INLET

main16262-02030i4AFE..AE111..TUR199807-199812

main16262-10011i2E,4EFE..EE11#..MTM..(GCC,GEN)199505-200109

main16262-10022i2E,4EFE..EE11#..3FC..GEN199505-200207

main16262-15030i4AF..AE111199704-200109

main16262-15040i5AFE..AE110..GLI;7AFE..AE112..GCC;4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN)199505-199802

sub16262-16030

main16262-16030i4AFE..AE111..RHD..5F..GLI..GEN199505-199712

INDONESIA OR MALAYSIA OR THAILAND SPEC

main16262-16030i4AFE..AE111..RHD..5F..GLI..GEN199505-199712

THAILAND SPEC

main16262-16030i4AFE..AE111..5F..SEG199505-199712

INDONESIA OR MALAYSIA SPEC

main16262-16030i5AFE..AE110..XLI199505-200207

main16262-16030i4AFE..AE111..XLI199505-199605

INDONESIA SPEC

main16262-16030i4AFE..AE111..RHD..SED..5F..XLI..GEN199605-199712

INDONESIA OR THAILAND SPEC

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i2E,4EFE..EE11#..GENKD,MA,PHL,TUR199505-200109

sub90467-34004

main90467-36001i4AF..AE111199704-200109

main90467-37002i4AFE,7AFE..AE111,112..GENKD,IDN,MA,PHL,TH199505-200207

sub90467-37005

main90467-37005i5AFE..AE110200204

16278CRING, O(FOR WATER BY-PASS PIPE NO.2)

main96761-24035i4AF..AE111199704-200109

16321INLET, WATER

main16321-02030i4AFE..AE111..TUR199807-200005

main16321-0D030i3ZZFE,4ZZFE..ZZE11#200005-200201

sub16321-22050

main16321-11011i2E..EE110..GCC,GEN;4EFE..EE111..GEN,VEN199505-200109

main16321-15020i4AF..AE111199704-200109

main16321-15040i5AFE..AE110..4FC199505-200207

main16321-64020i2C#..CE110..GEN199704-200109

16322PIPE, WATER INLET

main16322-02021i4AFE..AE111..TUR199807-199809

sub16322-16070

main16322-11081i2E..EE110..GCC,GEN199505-200006

sub16322-11091

main16322-11091i2E..EE110..GCC,GEN200006-200109

main16322-11162i4EFE..EE111199505-200207

main16322-15041i4AF..AE111199704-200109

main16322-15050i5AFE..AE110..4FC..GEN199505-200207

main16322-16060i7AFE..AE112..ARL,BZ,GCC,GEN,IDN,NZ,VEN199704-200208

16323HOUSING, WATER INLET

main16323-02030i4AFE..AE111..TUR199807-200005

sub16323-16410

main16323-15060i4AF..AE111199704-200109

main16323-15180i5AFE..AE110..4FC..GEN199505-200207

main16323-16410i4AFE,7AFE..AE111,112..BZ,MA,PHL,TH200011-200208

W(BIMETAL VACUUM SWITCHING VALVE)

main16323-16420i4AFE..AE111..GLI,SEG199505-200011

W(BIMETAL VACUUM SWITCHING VALVE)

sub16323-16410

main16323-16420i7AFE..AE112..VEN199909-199910

sub16323-16410

16325GASKET, WATER INLET HOUSING, NO.1

main16325-0D010i3ZZFE,4ZZFE..ZZE11#200005-200201

(L)

main16325-15020i4AFE..AE111..TUR199807-200005

NO.2

main16325-62010i3ZZFE,4ZZFE..ZZE11#200005-200201

(J)

main16325-63011i7AFE..AE112..BZ,PHL199807-200207

NO.1

main16325-63011i4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)199505-200109

16331OUTLET, WATER

main16331-02050i4AFE..AE111..TUR199807-200005

main16331-15070i4AF..AE111..ATM199704-200109

main16331-15080i4AF..AE111..5F;4AFE..AE111..WG..5F;5AFE,7AFE..AE110,112..GLI,SEG;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE..AE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN)199505-200207

main16331-64120i2C#..CE110199704-199804

main16331-64150i2C#..CE110199804-200109

16331ATHERMOSTAT

main90080-23003i4AFE..AE111..TUR199807-200005

*WAX 82-95

main90916-03046i2E,4EFE..EE11#..GENKD,MA,PHL,TUR199505-200109

*WAX 82-95

main90916-03084i3ZZFE,4ZZFE..ZZE11#200005-200007

*WAX 82-95

sub90916-03129

main90916-03109i5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AF,7AFE..AE111,112;4AFE..AE111..GLI,XLI199608-199803

*WAX 82-95

sub90916-03115

main90916-03115i4AFE..AE111..WG..5F;7AFE..AE112..GLI,SEG;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF#,5AFE..AE110,111..SED..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN199803-200207

*WAX 82-95

main90916-03125i3ZZFE,4ZZFE..ZZE11#200007-200201

*WAX 82-95

16361FAN

main16361-02050i5AFE..AE110..4FC..GLI;4AF#,7AFE..AE111,112..5F..(GL,GLI,XL,XLI)199704-199707

(L)

main16361-02110i2E..EE110..LHD..3FC;4EFE..EE111..3FC..GEN;2E..EE110..MTM..(GCC,GEN)199811-199910

(L)

main16361-02110i4AFE,7AFE..AE111,112..5F..(BZ,TUR)199811-200202

BLACK

main16361-02110i2E,4EFE..EE11#..TUR199910-200005

main16361-0D040i3ZZFE,4ZZFE..ZZE11#200005-200201

(L)

main16361-11010i5AFE..AE110..4FC..XLI..GEN;4AF#,5AFE..AE110,111..SED..5F..GEN199505-200207

MARK 170

main16361-11010i2E,4EFE..EE11#..MTM..(GENKD,MA,PHL)199505-199910

main16361-11020i5AFE..AE110..4FC..GEN199810-200202

WHITE

main16361-11020i2E,4EFE..EE11#..3FC199505-200208

main16361-11020i4AF,7AFE..AE111,112..5F;4AFE..AE111..LHD..SED..5F;4AFE..AE111..RHD..5F..(GLI,XLI)199704-199707

(J),MARK 171

main16361-11020i4AF,7AFE..AE111,112..5F;4AFE..AE111..LHD..SED..5F;4AFE..AE111..RHD..5F..(GLI,XLI)199704-200005

(J)

main16361-11020i7AFE..AE112..ARL;5AFE..AE110..4FC..GEN;4AF#,7AFE..AE111,112..5F..(GCC,GEN,TUR,VEN)199704-199811

MARK 171

main16361-22070i3ZZFE,4ZZFE..ZZE11#200005-200201

(J)

main16361-63020i7AFE..AE112..LHD..4FC..XLI;7AFE..AE112..4FC..(GLI,SEG);4AF#..AE111..SED..ATM..(ARL,GCC,GEN,MA,PHL,TH,TUR,VEN)199808-200207

MARK 42

sub16361-74070

main16361-63020i4AFE,7AFE..AE111,112..4FC..VEN199505-200208

sub16361-74070

16363MOTOR, COOLING FAN

main16363-02040i4AF,7AFE..AE111,112..5F;4AFE..AE111..LHD..SED..5F;4AFE..AE111..RHD..5F..(GLI,XLI)199704-199707

MARK 16363-02040

main16363-02040i4AF,7AFE..AE111,112..5F;4AFE..AE111..LHD..SED..5F;4AFE..AE111..RHD..5F..(GLI,XLI)199704-199707

(L)

main16363-15120i4AF#,5AFE..AE110,111..SED..5F..GEN199505-200207

MARK 16363-15120

main16363-15120i2E,4EFE..EE11#..MTM..(GENKD,MA,PHL)199505-199910

main16363-23010i3ZZFE,4ZZFE..ZZE11#200005-200201

main16363-74020i5AFE..AE110..4FC..GLI199704-200202

MARK 16363-74020

main16363-74020i4AF#,7AFE..AE111,112..5F..(GL,GLI,XL,XLI)199704-199707

(J)

main16363-74020i5AFE..AE110..4FC..GLI;4AFE..AE111..RHD..5F..(GLI,XLI)..GEN;4AF,7AFE..AE111,112..5F..(GCC,GEN,VEN);4AFE..AE111..LHD..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

main16363-74030i7AFE..AE112..LHD..4FC..XLI;7AFE..AE112..4FC..(GLI,SEG);4AF#..AE111..SED..ATM..(ARL,GCC,GEN,MA,PHL,TH,TUR,VEN)199808-200208

MARK 16363-74030

main16363-74030i7AFE..AE112..LHD..4FC;4AF#..AE111..SED..ATM..(GCC,GEN,TUR,VEN)199505-199808

16381BAR, FAN BELT ADJUSTING

main16381-02030i4AFE..AE111..TUR199807-200005

main16381-11021i2E..EE110..GCC,GEN,GENKD,PHL,VEN199505-200109

main16381-11030i4EFE..EE111..GEN,VEN199505-200207

main16381-15060i4AF..AE111199704-200109

main16381-15080i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;5AFE,7AFE..AE110,112..GLI,SEG;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE..AE111..SED..(GL199505-200207

main16381-64080i2C#..CE110199704-200109

16400RADIATOR ASSY

main16400-02370i4AF#,7AFE..AE111,112..5F..(ARL,BZ,GEN,TUR,VEN)199811-200202

(L)

main16400-02370i4EFE..EE111..VEN;2E..EE110..MTM..GEN199811-200005

MARK 0237

main16400-02380i4AF#,5AFE,7AFE..AE11#..ATM..(ARL,BZ,GEN,TUR,VEN)199811-200202

(L)

main16400-02380i2E..EE110..LHD..3FC199811-200005

MARK 0238

main16400-0D050i3ZZFE..ZZE112..5F200005-200201

(L)

main16400-0D060i4ZZFE..ZZE111200005-200201

(L)

main16400-0D070i3ZZFE..ZZE112..4FC200005-200201

(L)

main16400-15501i5AFE..AE110..4FC..XLI199601-199801

sub16400-16690

main16400-15680i2E,4EFE..EE11#..5F..(MA,PHL)199505-199801

sub16400-16640

main16400-15680i4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199910

MARK 1568

sub16400-16640

main16400-15700i4AFE..AE111..4FC..SEG199505-199712

sub16400-16670

main16400-15700i4EFE..EE111..3FC..GEN199705-199910

MARK 1570

sub16400-16670

main16400-16640i4AFE,7AFE..AE111,112..5F..(GENKD,IDN,MA,PHL,TH)199704-200207

MARK 1664

sub16400-16680

main16400-16640i2E..EE110..GENKD199708-199910

sub16400-16680

main16400-16660i4EFE..EE111..VEN;2E..EE110..MTM..GEN199704-200202

(J)

sub16400-16680

main16400-16660i4EFE..EE111..VEN;2E..EE110..MTM..GEN199704-200005

MARK 1666

sub16400-16680

main16400-16660i4AFE..AE111..5F..(ARL,NZ,TUR,VEN);7AFE..AE112..5F..(ARL,BZ,GEN,NZ,VEN)199710-200208

sub16400-16680

main16400-16670i4AF#..AE111..SED..ATM..(GL,GLI,XL,XLI)..GEN199704-200008

MARK 1667

sub16400-16690

main16400-16680i4AF..AE111..LHD..5F;4AFE,7AFE..AE111,112..5F..GCC199704-200109

MARK 1668

main16400-16690i2E..EE110..3FC;4EFE..EE111..3FC..TUR199807-200202

(J)

main16400-16690i2E..EE110..3FC;4EFE..EE111..3FC..TUR199704-200005

MARK 1669

main16400-16690i4AF#,5AFE,7AFE..AE11#..ATM..(ARL,GEN,VEN)199710-200207

main16400-16720i4AF..AE111..3FC;4AFE,7AFE..AE111,112..4FC..GCC199704-200109

MARK 1672

main16400-22080i3ZZFE..ZZE112..5F200005-200201

(J)

main16400-22090i4ZZFE..ZZE111200005-200201

(J)

main16400-22100i3ZZFE..ZZE112..4FC200005-200201

(J)

main16400-6A160i2C#..CE110199704-200109

main16410-16690i4EFE..EE111..3FC..TUR199910-200005

16470TANK ASSY, RADIATOR RESERVE

main16470-15090i4AFE,5AFE..AE11#199505-199704

main16470-15090i4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN199704-199711

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main16470-15090i4EFE..EE111..GEN199704-199910

MALAYSIA SPEC

main16470-15100i5AFE..AE110..4FC..GEN199704-200208

main16470-22040i3ZZFE,4ZZFE..ZZE11#200005-200201

main16470-64130i2C#..CE110199704-200109

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16471-64130i2C#..CE110199704-200109

NO.2

main16478-15090i4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)199505-200208

NO.1

main16478-64130i2C#..CE110199704-200109

NO.1

main90445-12078i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI);7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF,5AFE,7AFE..AE11#..G199505-200208

NO.2

main90445-12078i3ZZFE,4ZZFE..ZZE11#200005-200201

L=600(*H,L=250)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2C#..CE110199505-200208

16471CAP SUB-ASSY, RESERVE TANK

main16405-15100i4EFE..EE111..VEN199505-200208

main16405-22020i3ZZFE,4ZZFE..ZZE11#200005-200201

main16405-64080i2C#..CE110..GEN199704-200109

16533SUPPORT, RADIATOR, UPPER

main16533-02020i4EFE..EE111..VEN199505-200109

(L)

main16533-15120i5AFE..AE110..4FC..GEN199505-200109

(J)

main16533-15120i3ZZFE,4ZZFE..ZZE11#200109-200208

main16533-64120i2C#..CE110..GEN199704-200109

16535SUPPORT, RADIATOR, LOWER

main90916-04002i4AF..AE111..3FC,5F;4AFE..AE111..SEG..GEN;4AFE..AE111..5F..(TUR,VEN);7AFE..AE112..4FC..(ARL,GEN,VEN);4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN199505-200208

TYPE A:REFER TO ILLUSTRATION

main90916-04003i4AFE..AE111..MA,PHL,TH;4AFE..AE111..5F..(TUR,VEN);7AFE..AE112..4FC..(BZ,IDN,PHL,TH,VEN)199505-200208

TYPE B:REFER TO ILLUSTRATION

main90916-04005i7AFE..AE112..4FC..GCC;7AFE..AE112..5F..XLI..(BZ,GCC,GEN,IDN);4AF,7AFE..AE111,112..5F..(GL,GLI,SEG,XL)199704-200208

TYPE C:REFER TO ILLUSTRATION

main90916-04005i2E..EE110..PHL,TUR,VEN199711

main90916-04006i5AFE..AE110..4FC..GEN199505-200207

TYPE D:REFER TO ILLUSTRATION

main90916-04006i3ZZFE,4ZZFE..ZZE11#199807-200201

main90916-04009i2C#..CE110199704-200109

16571HOSE, RADIATOR, INLET

main16571-02030i4AFE..AE111..RHD;4AF,5AFE..AE110,111;4AFE..AE111..LHD..SED199505-199707

(L)

main16571-02040i4AFE..AE111..GLI,XLI;4AF,5AFE..AE110,111..GL,GLI,XL199505-199707

main16571-02050i7AFE..AE112199704-199707

(L)

main16571-02060i7AFE..AE112199704-199707

main16571-11130i2E,4EFE..EE11#..GENKD,MA,PHL,TUR,VEN199505-200208

main16571-11140i2E..EE110..3FC199505-199910

main16571-15160i4AFE..AE111..RHD..GEN;4AF,5AFE..AE110,111..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)199707-200207

main16571-15160i4AFE..AE111..GLI,XLI;4AF,5AFE..AE110,111..GL,GLI,XL199505-199707

(J)

main16571-16180i7AFE..AE112..GLI,SEG;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN)199707-200208

main16571-16180i7AFE..AE112199704-199707

(J)

main16571-22030i3ZZFE,4ZZFE..ZZE11#200005-200201

main16571-64250i2C..CE110199704-199804

main16571-64320i2C#..CE110..GEN199804-200109

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31003i2E,4EFE..EE11#199505-200208

ENGINE SIDE

main90467-34003i4EFE..EE111..VEN199505-200208

RADIATOR SIDE

sub90467-34004

main90467-34003i3ZZFE,4ZZFE..ZZE11#199505-200207

sub90467-34004

main90467-37005i2C#..CE110..GEN199704-200109

ENGINE SIDE

16572HOSE, RADIATOR, OUTLET

main16572-02030i4AFE..AE111..LHD..SED;4AFE,5AFE..AE110,111..RHD199505-199707

(L)

main16572-02050i7AFE..AE112199704-199707

(L)

main16572-11220i2E,4EFE..EE11#..MTM..(GENKD,MA,PHL,TUR,VEN)199505-200208

main16572-11230i2E,4EFE..EE11#..3FC199505-199612

sub16572-11231

main16572-11231i4EFE..EE111..3FC..(MA,TUR)199612-200207

main16572-15210i4AFE..AE111..LHD..SED;4AFE,5AFE..AE110,111..RHD199505-199707

(J)

main16572-15210i5AFE..AE110..4FC..GEN199707-200207

main16572-16150i7AFE..AE112199704-199707

(J)

main16572-16150i7AFE..AE112..ARL,GCC,GEN,VEN199707-200208

main16572-16160i4AF..AE111199704-200109

main16572-22030i3ZZFE,4ZZFE..ZZE11#200005-200201

main16572-64200i2C#..CE110..GEN199704-200109

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-37002i3ZZFE,4ZZFE..ZZE11#200005-200201

NO.1

main90467-31003i2E..EE110..GCC,GEN;4EFE..EE111..GEN,VEN199505-200208

ENGINE SIDE

main90467-34003i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI);7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF,5AFE,7AFE..AE11#..G199505-200207

sub90467-34004

main90467-34003i2E,4EFE..EE11#..GENKD,MA,PHL,TUR,VEN199505-200208

RADIATOR SIDE

sub90467-34004

main90467-34003i3ZZFE,4ZZFE..ZZE11#200005-200201

NO.2

sub90467-34004

main90467-37002i2C#..CE110..GEN199704-200109

INLET SIDE

sub90467-37005

16701SHROUD SUB-ASSY, FAN

main16711-02051i5AFE..AE110..4FC..GLI199704-199707

(L),MARK 2

main16711-02051i5AFE..AE110..4FC..GLI199704-199707

(L)

main16711-02130i4EFE..EE111..3FC;4EFE..EE111..LHD..5F;2E..EE110..GCC,GEN,TUR,VEN199811-200005

(L)

main16711-02140i5AFE..AE110..4FC;7AFE..AE112..ARL;7AFE..AE112..LHD..5F;4AFE..AE111..4FC..ARL;4AF#..AE111..5F..(ARL,GCC,GEN,TUR,VEN)199811-200202

(L)

main16711-15261i4AFE,7AFE..AE111,112..5F..(GENKD,IDN,MA,PHL,TH)199704-200207

MARK 1

main16711-15261i5AFE..AE110;4AFE..AE111..5F199505-199910

main16711-15271i7AFE..AE112..ARL;5AFE..AE110..4FC..GEN;4AF#,7AFE..AE111,112..5F..(GCC,GEN,TUR,VEN)199704-200202

(J)

main16711-15271i4AF,7AFE..AE111,112..5F;4AFE..AE111..LHD..SED..5F;4AFE..AE111..RHD..5F..(GLI,XLI)199704-199707

(J),MARK 2

main16711-15271i5AFE..AE110..4FC..GEN199808-199810

MARK 2

main16711-15271i5AFE..AE110..4FC..GEN199707-200208

main16711-15281i7AFE..AE112..LHD..4FC..XLI;7AFE..AE112..4FC..(GLI,SEG);4AF#..AE111..SED..ATM..(ARL,GCC,GEN,MA,PHL,TH,TUR,VEN)199808-200207

MARK 3

main16711-15281i4AFE,7AFE..AE111,112..4FC..VEN199505-200208

main16711-16221i2E,4EFE..EE11#..MTM..(GENKD,MA,PHL)199505-199910

FAN MOTOR MARK(PNC 16363)=16363-15120,(J)

main16711-16231i2E,4EFE..EE11#..3FC199505-200207

FAN MOTOR MARK(PNC 16363)=16363-74020

main16711-16231i2E,4EFE..EE11#..TUR,VEN199805-200208

main16711-16231i2E..EE110..LHD..3FC;4EFE..EE111..3FC..GEN;2E..EE110..MTM..(GCC,GEN)199811-200005

FAN MOTOR MARK(PNC 16363)=16363-74020,(J)

main16711-16231i4EFE..EE111..VEN199909-199910

(J)

main16711-64301i2C#..CE110199704-200109

9009904117

main90099-04117

9009905164

main90099-05164

9009935025

main90099-35025

9010508251

main90105-08251

9011606136

main90116-06136

9017906143

main90179-06143

9017906307

main90179-06307

9017908123

main90179-08123

9017908153

main90179-08153

9151180835

main91511-80835

91511B0814

main91511-B0814

91621B0814

main91621-B0814

9165140814

main91651-40814

91651B0616

main91651-B0616

40 parts on this diagram · 10 diagrams in section
