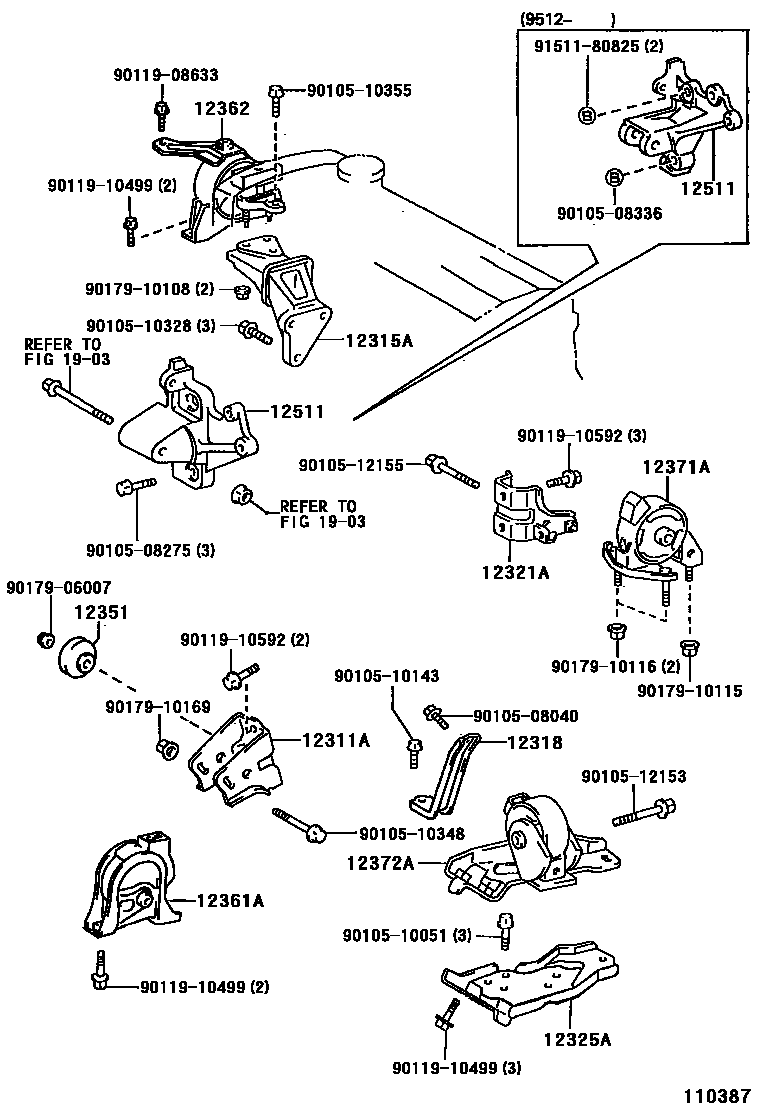

MOUNTING

0001 1 0002 1 0003 1INDONESIA,THAILAND,MALAYSIA 0004 1INDONESIA,THAILAND,MALAYSIA 0005 1 0006 1 0007 1 0008 1 0009 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-64020i2C#..CE110..GEN199704-200109

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-11090i2E,4EFE..EE11#199704

main12311-15130i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI);7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF,5AFE,7AFE..AE11#..GL,GLI,SEG,XL199704-200207

main12311-22050i3ZZFE,4ZZFE..ZZE11#200005-200201

main12311-64120i2C#..CE110199704-199910

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-02040i4AFE..AE111..TUR199807-200005

main12315-0D020i3ZZFE,4ZZFE..ZZE11#200005-200201

(L)

main12315-11050i2E,4EFE..EE11#199505-199702

main12315-11051i2E,4EFE..EE11#..GENKD,MA,PHL,TUR200002

main12315-15070i4AF..AE111199704-200109

main12315-15081i5AFE..AE110..4FC..GEN199807

main12315-22010i3ZZFE,4ZZFE..ZZE11#200005-200201

(J)

main12315-64050i2C#..CE110; 2C..CE110199704-199803

main12315-64160i2C#..CE110199803-199910

12318STAY, ENGINE MOUNTING, LH

main12318-11010i4EFE..EE111..5F..GEN199704-199910

TYPE A:REFER TO ILLUSTRATION

main12318-11020i4EFE..EE111..3FC..GEN199704-199910

TYPE A:REFER TO ILLUSTRATION

main12318-11050i4EFE..EE111..VEN199909-200208

main12318-15050i4AFE..AE111..4FC..SEG;5AFE..AE110..4FC..XLI..GEN199704-199712

main12318-15080i3ZZFE..ZZE112..5F200005-200201

main12318-16110i4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN; 5AFE..AE110..5F..XLI..GEN;4AFE..AE111..RHD..SED..5F..GEN199704-199712

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-11191i2E..EE110..MTM..(GCC,GEN);4EFE..EE111..5F..(GEN,VEN)199505-200208

main12321-11200i2E,4EFE..EE11#..3FC..GEN199505-199910

main12321-15120i5AFE..AE110..5F..TH;4AFE..AE111..5F..MA;4AFE..AE111..5F..(GLI,XLI);7AFE..AE112..5F..XLI..(BZ,GCC,GEN,IDN);4AF,5AFE,7AFE..AE11#..5F..(GL,GLI,SEG,XL)199704-200207

main12321-15130i4AF..AE111..3FC199704-199910

main12321-15140i5AFE..AE110..4FC..GEN199807

main12321-22020i3ZZFE..ZZE112..4FC200005-200201

main12321-22050i3ZZFE,4ZZFE..ZZE11#..5F200005-200201

main12321-64190i2C#..CE110; 2C..CE110199704-199803

main12321-64191i2C#..CE110199803-199910

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-11120i4EFE..EE111..5F..GEN199704-199910

TYPE A:REFER TO ILLUSTRATION

main12325-11130i4EFE..EE111..3FC199704-199706

TYPE A:REFER TO ILLUSTRATION

main12325-11160i4EFE..EE111..RHD..5F;2E..EE110..MTM..(GCC,GEN,GENKD,PHL,VEN)199704-200411

TYPE B:REFER TO ILLUSTRATION

main12325-11180i2E,4EFE..EE11#..3FC..GEN; 2E..EE110..LHD..3FC;4EFE..EE111..3FC..GEN199704-199910

TYPE B:REFER TO ILLUSTRATION

main12325-15080i7AFE..AE112..5F..(ARL,GCC,GEN,VEN);4AFE..AE111..RHD..5F..(GLI,XLI)..GEN;4AF,5AFE..AE110,111..5F..(GL,GLI,XL);4AFE..AE111..LHD..SED..5F..(GCC,GEN,TUR,VEN)199704-200208

main12325-15090i4AF..AE111..3FC199704-200109

main12325-15100i7AFE..AE112..4FC..(PHL,TH)199809-200207

main12325-15110i5AFE..AE110..4FC..GEN; 7AFE..AE112..4FC..(ARL,GCC,GEN,VEN);4AF#,5AFE..AE110,111..4FC..(GCC,GEN,TUR,VEN)199809

main12325-15131i4ZZFE..ZZE111200005-200201

main12325-16120i4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN; 5AFE..AE110..5F..XLI..GEN;4AFE..AE111..RHD..SED..5F..GEN199704-199712

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

main12325-16130i4AFE,5AFE..AE11#..4FC199505-199704

main12325-64130i2C#..CE110199704-199910

12351DAMPER, ENGINE MOUNTING

main12351-15060i4AFE..AE111..TUR,VEN;4AFE..AE111..SEG..GEN;5AFE..AE110..XLI..GEN;7AFE..AE112..ARL,GEN,VEN; 7AFE..AE112..GCC;4AF,5AFE..AE110,111..GL,GLI,XL;4AFE..AE111..(GLI,XLI)..(GCC,GEN); 7AFE..AE112..GCC;4AF,5AFE..AE110,111..GL,GLI,XL;4AFE..AE111..RHD..(GLI,XLI)..GEN;4AFE..AE111..LHD..SED..(GCC,GEN)199704-199910

NO.1

main12351-15070i2C#..CE110..GEN; 2E..EE110..LHD..3FC;4EFE..EE111..3FC..GEN199704-200109

PNC 12325A

main12351-15080i4AF..AE111..3FC199704-199706

NO.2

main12351-15110i4AF..AE111..3FC199706-199910

NO.2

main12351-64050i2C#..CE110199704-199910

PNC 12311A

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-11180i2E,4EFE..EE11#..5F199505-199612

main12361-11181i2E..EE110..MTM..(GCC,GEN);4EFE..EE111..5F..(GEN,VEN)199612-200208

main12361-15170i5AFE..AE110..5F..TH;4AFE..AE111..5F..MA;5AFE..AE110..5F..GLI;4AF,7AFE..AE111,112..5F;4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,TH)199704-199801

main12361-15171i7AFE..AE112..5F..(ARL,GCC,GEN);4AF#,5AFE..AE110,111..5F..(GCC,GEN,TUR); 7AFE..AE112..5F..XLI..(GCC,GEN,IDN);7AFE..AE112..5F..(GLI,SEG)..(ARL,GCC,IDN,TH);4AF#,5AFE..AE110,111..5F..(ARL,GCC,GEN,GENKD,MA,TH,TUR)199909-200002

main12361-15180i5AFE..AE110..4FC..GLI;4AF,7AFE..AE111,112..ATM;4AFE..AE111..4FC..(GLI,XLI)..(GCC,GEN,NZ,TH);4AFE,5AFE..AE110,111..4FC..(SEG,XLI)..(MA,TH)199704-199801

main12361-15181i4AF#,5AFE,7AFE..AE11#..ATM..(ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,TUR); 7AFE..AE112..4FC..(ARL,GCC,GEN);4AF#,5AFE..AE110,111..SED..ATM..(GCC,GEN,TUR)199801-199809

main12361-15190i4AFE..AE111..5F..PHL199711-199909

main12361-15200i4AFE..AE111..4FC..PHL199711-199909

main12361-22010i3ZZFE,4ZZFE..ZZE11#..5F200005-200201

main12361-22020i3ZZFE..ZZE112..4FC200005-200201

main12361-64241i2C#..CE110..GEN199704-200109

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12305-11050i2E,4EFE..EE11#..MTM..(GENKD,MA,PHL,VEN); 2E..EE110..GCC,GEN;4EFE..EE111..5F..(GEN,VEN)199910-200002

MARK NE

main12305-11060i2E..EE110..3FC;2E..EE110..GCC;4EFE..EE111..GEN; 2E..EE110..GCC;4EFE..EE111..GEN;2E..EE110..LHD..3FC199704-199910

MARK NF

main12305-15040i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(GCC,GEN,IDN);4AFE..AE111..SED..(GLI,XLI)..(ARL,GCC,GEN,NZ,TH,TUR,VEN);5AFE,7AFE..AE110,112..(GLI,SEG)..(ARL,GCC,GEN,IDN,NZ,TH,VEN)199704-200207

TYPE A:REFER TO ILLUSTRATION

main12305-16062i4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AF,7AFE..AE111,112..BZ,GCC,GEN,PHL;4AFE..AE111..SED..(GLI,XLI)..(GCC,GEN,GENKD,PHL)199704-200207

TYPE B:REFER TO ILLUSTRATION

main12362-22020i3ZZFE,4ZZFE..ZZE11#200005-200201

main12362-64220i2C#..CE110199704-199910

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11600i2E..EE110..MTM..(GCC,GEN);4EFE..EE111..5F..(GEN,VEN)199704-200208

main12371-15240i2E,4EFE..EE11#..5F; 4AFE,5AFE..AE11#..5F199505-199612

main12371-15241i4AFE..AE111..RHD..5F..GEN;4AF,5AFE,7AFE..AE11#..5F..(ARL,GCC,GEN,VEN);4AFE..AE111..LHD..SED..5F..(GCC,GEN,TUR,VEN)199612-200208

main12371-22040i3ZZFE,4ZZFE..ZZE11#..5F200005-200201

main12371-22050i3ZZFE..ZZE112..4FC200005-200201

main12371-64210i2E,4EFE..EE11#..3FC..GEN199505-200109

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-11240i4EFE..EE111..5F..GEN199704-199910

TYPE A:REFER TO ILLUSTRATION

main12372-11250i2E,4EFE..EE11#..RHD..3FC199505-199705

main12372-15171i4AFE,5AFE..AE11#..5F199505-199704

main12372-15181i4AFE..AE111..4FC..SEG;5AFE..AE110..4FC..XLI..GEN199704-199712

main12372-15200i7AFE..AE112..5F..(ARL,GCC,GEN,VEN);4AFE..AE111..RHD..5F..(GLI,XLI)..GEN;4AF,5AFE..AE110,111..5F..(GL,GLI,XL);4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN)199704-200208

main12372-15210i2E,4EFE..EE11#..3FC..GEN; 2E..EE110..LHD..3FC;4EFE..EE111..3FC..GEN; 4AF..AE111..3FC199704-199910

TYPE B:REFER TO ILLUSTRATION

main12372-15220i5AFE..AE110..4FC..GEN199807

main12372-16380i2E,4EFE..EE11#..5F..TUR; 4AFE..AE111..5F..TUR199807-200005

main12372-16390i4EFE..EE111..3FC..TUR199807-200005

main12372-16400i3ZZFE..ZZE112..4FC200005-200201

main12372-64250i2C#..CE110; 2C..CE110199704-199902

main12372-64251i2C#..CE110199902-200109

12511BRACKET, ALTERNATOR, NO.1

main12511-11020i2E..EE110..GCC,GEN;4EFE..EE111..GEN,VEN199505-200002

main12511-15040i4AF..AE111199704-200109

main12511-15050i4AFE..AE111..TUR199807-200005

main12511-15060i5AFE..AE110..4FC..GEN199807

main12511-16110i7AFE..AE112..GLI,SEG;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN)199704-200207

main12511-64060i2C#..CE110..GEN199704-200109

1903ALTERNATOR

→ Go to FIG 19-03

9010508040

main90105-08040

9010508275

main90105-08275

9010508336

main90105-08336

9010510051

main90105-10051

9010510143

main90105-10143

9010510328

main90105-10328

9010510348

main90105-10348

9010510355

main90105-10355

9010512153

main90105-12153

9010512155

main90105-12155

9011908633

main90119-08633

9011910499

main90119-10499

9011910592

main90119-10592

9017906007

main90179-06007

9017910108

main90179-10108

9017910115

main90179-10115

9017910116

main90179-10116

9017910169

main90179-10169

9151180825

main91511-80825

32 parts on this diagram · 9 diagrams in section
