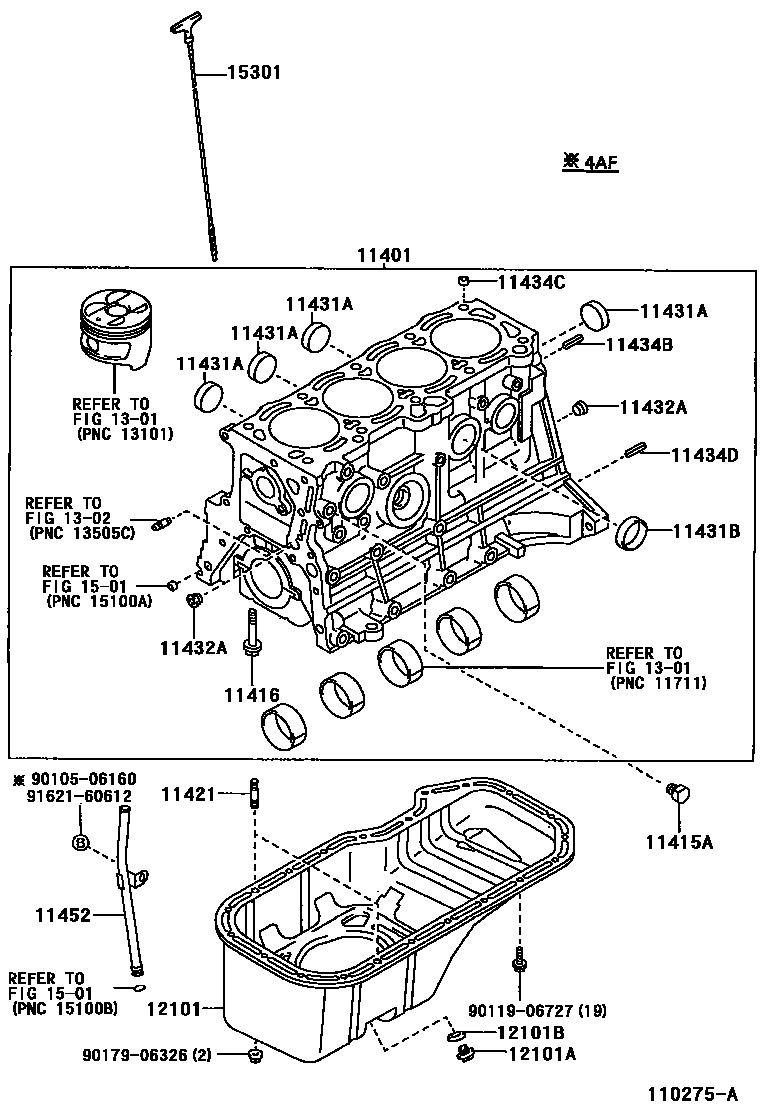

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-09120i4AFE..AE111..TUR199807-200005

main11401-09180i5AFE..AE110..TH;5AFE..AE110..5F..GEN199811-200008

(L)

main11401-09180i5AFE..AE110..4FC..GEN199807-199811

ENGINE NO.=D002XXX(TENSIN)

main11401-09180i5AFE..AE110..4FC..GEN199811-199910

ENGINE NO.=D002XXX(TENSIN),(L)

main11401-19506i4AF..AE111199704-200109

main11401-19558i2E..EE110199505-199601

sub11401-19577

main11401-19559i2E..EE110199601-199605

sub11401-80005

main11401-19568i4EFE..EE111199505-199601

sub11401-19576

main11401-19569i4EFE..EE111199601-199605

sub11401-80003

main11401-19685i5AFE..AE110..TH;5AFE..AE110..GLI199505-199811

main11401-19685i5AFE..AE110..4FC..GEN199811-199910

(J)

main11401-19706i4AFE..AE111199505-199704

sub11401-19755

main11401-19735i7AFE..AE112..SEG,XLI199704-200208

main11401-19755i4AFE..AE111199505-199704

EXHAUST PIPE=W(CONVERTER)

main11401-19755i4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)199704-200208

main11401-69695i2C..CE110199704-199705

sub11401-69696

main11401-69696i2C..CE110199705-199812

sub11401-69697

sub11381-64020

sub11701-27011

sub15703-27010

main11401-69697i2C..CE110199812-199908

sub11401-69698

main11401-69698i2C..CE110199908-200110

main11401-69725i2CE..CE110199710-199810

sub11401-69726

sub11381-64020

sub11701-27011

sub15703-27010

main11401-69727i2CE..CE110199910-200010

main11401-80003i4EFE..EE111..GEN199704-199910

MALAYSIA SPEC

main11401-80003i4EFE..EE111199605-199704

main11401-80005i2E..EE110199605-199704

sub11401-80009

main11401-80006i4EFE..EE111199704-199707

sub11401-80695

sub13011-11180

main11401-80009i2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN)199704-200109

main11401-80693i2E..EE110..TUR199807-200005

main11401-80695i4EFE..EE111199707-200208

main11410-09020i4ZZFE..ZZE111200005-200201

(L)

sub11410-29146

sub16258-28030

sub16268-22101

main11410-09030i3ZZFE..ZZE112200005-200201

(L)

sub11410-29156

sub16258-28030

sub16268-22101

sub16268-22161

main11410-29046i4ZZFE..ZZE111200005-200101

(J)

sub11410-29047

main11410-29047i4ZZFE..ZZE111200101-200201

(J)

sub11410-29145

main11410-29056i3ZZFE..ZZE112200005-200101

(J)

sub11410-29057

main11410-29057i3ZZFE..ZZE112200101-200201

(J)

sub11410-29155

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i3ZZFE,4ZZFE..ZZE11#200005-200201

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i2E,4EFE..EE11#199505-200109

main90345-52003i4AFE..AE111..WG..5F;7AFE..AE112..GLI,SEG;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF#,5AFE..AE110,111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TUR,VEN)199505-200207

main90910-09087i3ZZFE,4ZZFE..ZZE11#200005-200201

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-08363i3ZZFE,4ZZFE..ZZE11#200005-200201

sub91511-K0840

main90105-10007i5AFE..AE110..4FC..GEN199505-200207

main90910-02019i2E,4EFE..EE11#..GENKD,MA,PHL,TUR199505-200109

main90910-02061i2C..CE110199704-199812

main90910-02135i2C#..CE110199812-200109

11421BOLT, STUD(FOR OIL PAN)

main90116-06022i7AFE..AE112..ARL,GCC,GEN,VEN199505-200208

main90126-06010i3ZZFE,4ZZFE..ZZE11#200005-200201

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500i2E,4EFE..EE11#..GENKD,MA,PHL,TUR199505-200302

main96411-43500i5AFE..AE110..TH;5AFE..AE110..GLI199505-200208

main96411-62500i2E..EE110200302-200411

main96411-63500i2C#..CE110199704-200109

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i2E,4EFE..EE11#..GCC,GEN199505-200302

main96411-44000i4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)199505-200207

main96411-63000i2C#..CE110199704-200411

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53006i5AFE..AE110..4FC..GEN199608-200207

main90344-53008i4AFE,5AFE..AE11#199505-199608

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10017i2E,4EFE..EE11#..GCC,GEN199505-200109

L=20,OD=10

main90250-10113i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI);7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF,5AFE,7AFE..AE11#..G199505-200207

L=22,OD=10

main90253-15003i2E,4EFE..EE11#199505-200109

L=17,OD=15

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017i4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)199505-200207

L=12,OD=13

main90253-14002i2C..CE110199704-199708

L=16,OD=14

main90253-14004i2C#..CE110199708-200109

L=20,OD=14

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)199505-200207

L=14,OD=6

main90250-06068i2C#..CE110199505-200109

L=11,OD=6

11452GUIDE, OIL LEVEL GAGE

main11452-11040i2E,4EFE..EE11#199505-199512

main11452-11041i2E..EE110..GCC,GEN;4EFE..EE111..GEN,VEN199512-200109

main11452-15020i4AF..AE111199704-200109

main11452-15030i5AFE..AE110..4FC..GEN199505-200207

main11452-22030i3ZZFE,4ZZFE..ZZE11#200005-200201

sub11452-22031

sub11459-22010

main11452-64030i2C#..CE110199704-200109

12101PAN SUB-ASSY, OIL

main12101-02040i4AFE..AE111..TUR199807-200005

main12101-0D020i3ZZFE,4ZZFE..ZZE11#200005-200201

(L)

sub12101-22024

main12101-11060i2E,4EFE..EE11#199505-200109

main12101-15070i4AF..AE111;4AFE..AE111..NZ199704-200109

main12101-16060i4AF..AE111..LHD199704-200109

W(OIL COOLER)

main12101-16100i4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GEN,VEN)199505-200207

main12101-16110i4AFE..AE111..GCC;4AFE..AE111..5F..ARL199704-200008

main12101-22024i3ZZFE,4ZZFE..ZZE11#200005-200201

(J)

main12101-64140i2C..CE110199704-199801

sub12101-64141

main12101-64141i2C#..CE110..GEN199801-200109

main12111-16120i7AFE..AE112..5F..(GEN,VEN);7AFE..AE112..4FC..(ARL,GEN,VEN)199710-200208

main12111-16130i7AFE..AE112..4FC..GCC;7AFE..AE112..5F..(ARL,GCC)199704-200109

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i5AFE..AE110200210

main90341-12026i5AFE..AE110..4FC199505-200210

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)199505-200207

1301

1302

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-02060i4AFE..AE111..TUR199807-200005

main15301-0D010i3ZZFE,4ZZFE..ZZE11#200005-200201

(L)

sub15301-0D011

main15301-11050i2E..EE110..GCC,GEN;4EFE..EE111..GEN,VEN199505-200109

main15301-15041i4AF..AE111199704-200109

main15301-15051i5AFE..AE110..4FC..GEN199505-200207

main15301-16091i7AFE..AE112..GLI,SEG;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN)199704-200208

main15301-22030i3ZZFE,4ZZFE..ZZE11#200005-200201

(J)

sub15301-22050

main15301-64090i2C#..CE110..GEN199704-200109

9010506160

main90105-06160

9011906727

main90119-06727

9017906326

main90179-06326

9162160612

main91621-60612

23 parts on this diagram · 6 diagrams in section
