ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1 0022 1 0023 1 0024 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-02080i4AFE..AE111..TUR199807-200005

main04111-02100i5AFE..AE110..4FC..GEN199807-199910

ENGINE NO.=D002XXX(TENSIN)

sub04111-16221

main04111-0D060i3ZZFE,4ZZFE..ZZE11#200005-200111

sub04111-0D061

main04111-0D110i3ZZFE,4ZZFE..ZZE11#200111-200201

sub04111-0D111

main04111-11025i2E..EE110..GCC,GEN199505-199808

sub04111-11026

main04111-11026i2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN)199808-199910

main04111-11092i4EFE..EE111199505-199508

sub04111-11140

main04111-11141i4EFE..EE111..MA,TUR,VEN199508-200207

main04111-11200i4EFE..EE111..GEN,VEN199910-200208

main04111-11210i2E..EE110..GCC,GEN199910-200109

main04111-16124i4AF..AE111199704-200109

W(HOT AIR INTAKE)

main04111-16221i5AFE..AE110..GEN199505-199910

main04111-16231i4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)199505-200208

main04111-16241i4AF..AE111199704-200109

main04111-16320i7AFE..AE112..SEG,XLI199704-200208

main04111-64292i2C..CE110199704-199708

sub04111-64293

sub11115-64140

main04111-64293i2C#..CE110199708-199805

sub04111-64294

main04111-64294i2C#..CE110199805-199811

sub04111-64295

main04111-64295i2C..CE110199811-199906

sub04111-64296

main04111-64296i2C..CE110..LHD199906-200109

04112GASKET KIT, ENGINE VALVE GRIND

main04112-02080i4AFE..AE111..TUR199807-200005

main04112-02100i5AFE..AE110..4FC..GEN199807-199910

ENGINE NO.=D002XXX(TENSIN)

sub04112-16220

main04112-0D060i3ZZFE,4ZZFE..ZZE11#200005-200111

sub04112-0D061

main04112-0D110i3ZZFE,4ZZFE..ZZE11#200111-200201

sub04112-0D111

main04112-11012i2E..EE110199505-199910

main04112-11081i4EFE..EE111199505-199508

sub04112-11120

main04112-11121i4EFE..EE111..MA,TUR,VEN199508-200207

main04112-11170i4EFE..EE111..GEN,VEN199910-200208

main04112-11180i2E..EE110..GCC,GEN199910-200109

main04112-16123i4AF..AE111199704-200109

W(HOT AIR INTAKE)

main04112-16220i5AFE..AE110..4FC..GEN199505-199910

main04112-16230i4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)199505-200208

main04112-16240i4AF..AE111199704-200109

main04112-16320i7AFE..AE112..ARL,GCC,GEN,VEN199704-200208

main04112-64222i2C..CE110199704-199708

sub04112-64223

sub11115-64140

main04112-64223i2C..CE110199708-199906

sub04112-64224

main04112-64224i2C..CE110199906-200109

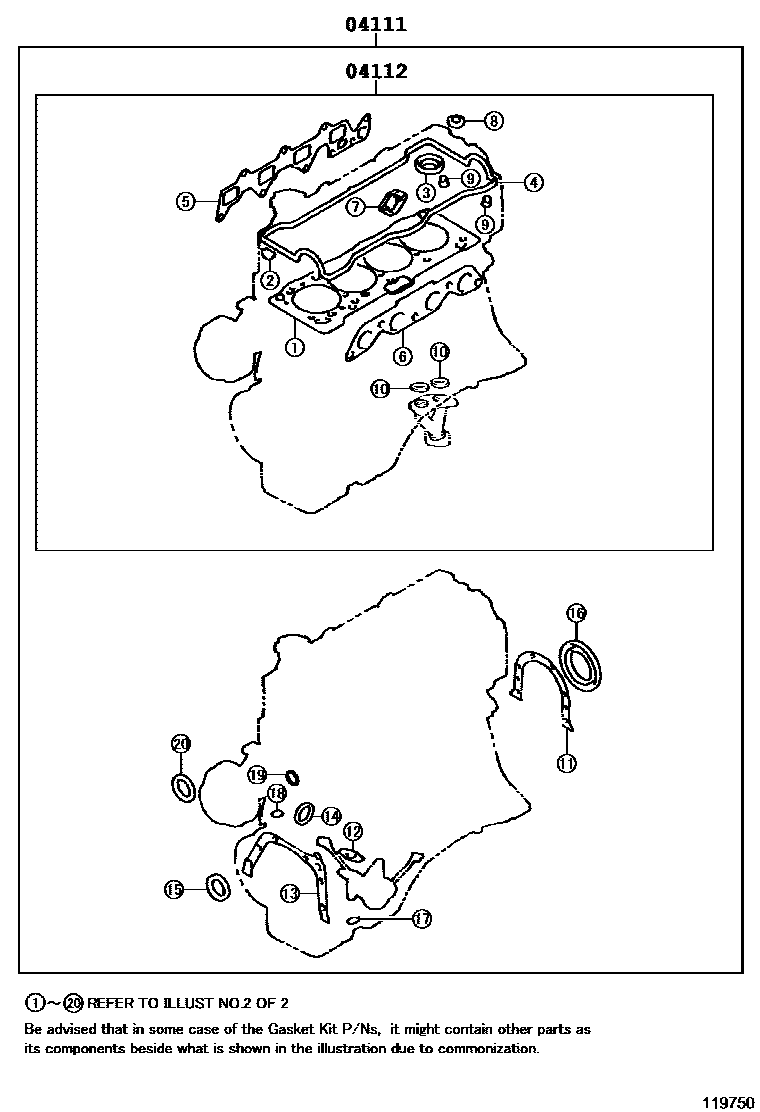

2 parts on this diagram · 24 diagrams in section
