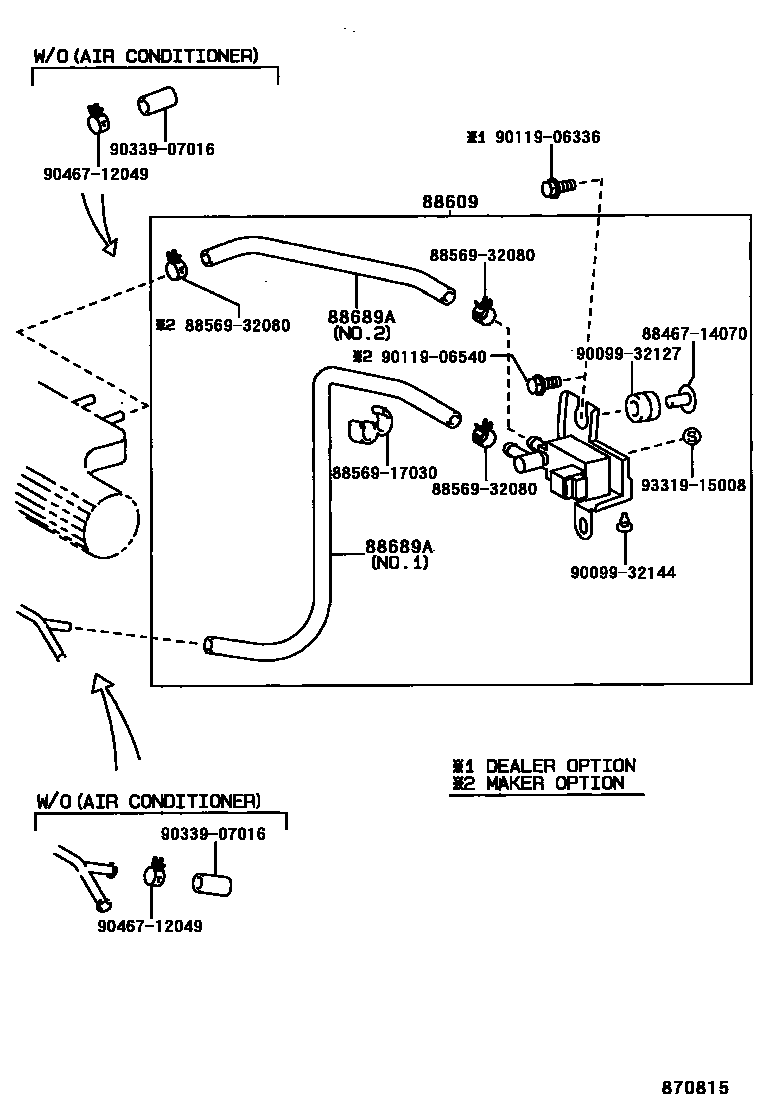

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

88609DEVICE SUB-ASSY, IDLE UP

main88609-12670iEE100,105..RHD..MTM199108

MAKER OPTION

main88609-12730iEE108199109-199401

main88609-12740iAE101..RHD..(GL,XL)199205-199704

MAKER OPTION

main88609-12750iEE100,105..LHD..MTM..(GEN,TUR)199205-199910

MAKER OPTION

main88609-12760iEE100..LHD..3FC..GEN199205-199704

MAKER OPTION

main88609-12770iEE100..RHD..3FC199108-199704

MAKER OPTION

main88609-12780iAE101..LHD..(GL,XL)199505-199805

MAKER OPTION

main88609-12790iCE100199205-199805

MAKER OPTION

main88609-12800iEE100..5F..GCC199207-199704

main88609-12810iEE100..3FC..GCC199207-199704

main88609-12830iEE100,105..RHD..MTM..(STD,XL)199511-199705

DEALER OPTION

main88609-12840iEE100..RHD..3FC199108-199704

DEALER OPTION

main88609-12850iEE100,105..LHD..MTM..(GEN,TUR)199205-199705

DEALER OPTION

main88609-12860iEE100..LHD..3FC..GEN199205-199704

DEALER OPTION

main88609-12870iAE101..RHD..(GL,XL)199205-199704

DEALER OPTION

main88609-12880iAE101..LHD..(GL,XL)199505-199805

DEALER OPTION

main88609-12890iCE100199205

DEALER OPTION

main88609-1A010iCE100199205

W(POWER STEERING),DEALER OPTION

main88690-12811iAE100,101..RHD..(GLI,LX,SEG,XLI)199205-199511

DEALER OPTION

main88690-12820iAE101..GTAPX199108-199505

main88690-12870iEE104199508-199704

DEALER OPTION

main88690-12890iAE101..RHD..4FC..GLI;AE101..RHD..SED..5F..(GLI,XLI)199511

main88690-1A020iAE101,102..LHD..(GLI,XLI)..(GEN,TUR)199409-199509

MAKER OPTION

main88690-1A040iEE101199205-199511

MAKER OPTION

main88690-1A050iEE101199205-199511

DEALER OPTION

main88690-1A070iAE101,102..LHD..(GLI,XLI)..GEN199205-199409

DEALER OPTION

main88690-1A140iEE104199508-199704

MAKER OPTION

88689AHOSE, COOLER VACUUM NO.1

main88689-12430iAE100,101..RHD..(GLI,LX,SEG,SJ,XLI)199108

NO.2(OUT)

main88689-12440iAE100,101..RHD..(GLI,LX,SEG,SJ,XLI)199108

NO.1(IN)

main88689-12450iAE101..GTAPX199108-199505

NO.2(OUT)

main88689-12460iAE101..GTAPX199108-199505

NO.1(IN)

main88689-12490iEE104199401-199705

NO.1(IN)

main88689-12500iEE104199401-199705

NO.2(OUT)

main88689-12510×2iEE104199401-199705

NO.3

main88689-12540iAE101,102..LHD..(GLI,XLI)199409-199509

NO.1(IN)

main88689-12550iAE101,102..LHD..(GLI,XLI)199409-199509

NO.2(OUT)

main88689-12580iEE101199205-199511

NO.1(IN)

main88689-12590iEE101199205-199511

NO.2(OUT)

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8856917030CLAMP (FOR COOLER RELAY)

main88569-17030

8856932080CLAMP (FOR COOLER RELAY)

main88569-32080

9009932127

main90099-32127

9009932144

main90099-32144

9011906336

main90119-06336

9011906540

main90119-06540

9033907016

main90339-07016

9046712049

main90467-12049

9331915008

main93319-15008

12 parts on this diagram · 14 diagrams in section
