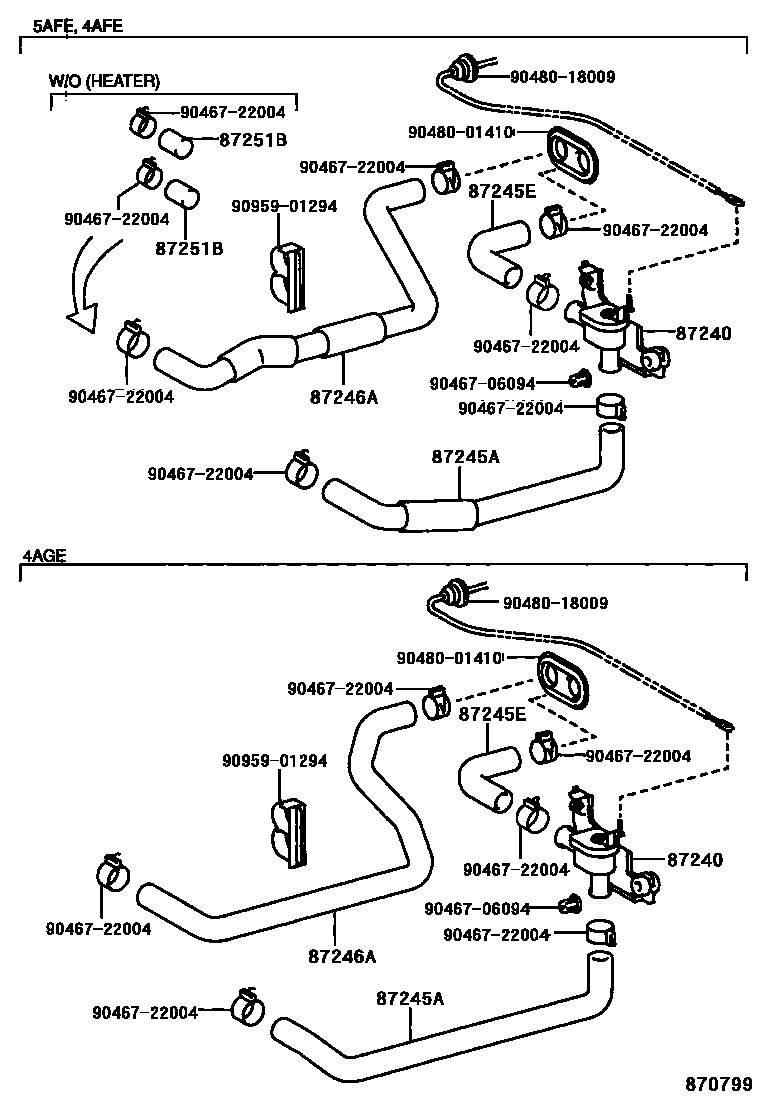

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

87240VALVE ASSY, HEATER WATER

main87240-12250iAE100,101,CE100,EE10#..RHD199108

main87240-12260iAE101,102,CE100,EE100,105..LHD199409-199509

87245AHOSE, HEATER WATER, INLET A

main87245-1A450iEE10#..RHD;AE101..RHD..(GL,XL)199108-199503

main87245-1A470iAE100,101..RHD..(GLI,LX,SEG,SJ,XLI)199108-199503

main87245-1A490iAE101..GTAPX199108-199503

main87245-1A540iAE101,EE100,105..LHD..(GL,STD,XL)199205-199704

main87245-1A541iAE101,EE100..LHD..(GL,XL)199705-199707

main87245-1A542iEE10#..LHD199707-199910

main87245-1A570iAE10#..LHD..(GLI,XLI)199509-199905

main87245-1A590iCE100199205-199505

main87245-1A640iAE100,101..RHD..(GLI,LX,SEG,SJ,XLI)199503

main87245-1A680iEE10#..RHD;AE101..RHD..(GL,XL)199503

main87245-1A690iCE100..RHD199603

main87245-1A710iCE100..LHD199505-199704

main87245-1A760iAE101..XL199707-199805

87245EHOSE, HEATER WATER, INLET E

main87245-1A440iAE100,101,CE100,EE10#..RHD199108

main87245-1A530iAE101,102,CE100,EE100,105..LHD199409-199509

87246AHOSE, HEATER WATER, OUTLET A

main87245-1A211iEE10#..RHD199108-199503

main87245-1A272iEE100,105..LHD199205-199503

main87245-1A273iEE100,105..LHD199503-199910

main87245-1A331iAE101..LHD..(GL,STD,XL)199205-199503

main87245-1A332iAE101..LHD..(GL,XL)199505-199805

main87245-1A460iAE100,101..RHD..(GLI,LX,SEG,SJ,XLI)199108-199503

main87245-1A480iAE101..GTAPX199108-199503

main87245-1A580iAE101,102..LHD..(GLI,XLI)199409-199503

main87245-1A581iAE101,102..LHD..(GLI,XLI)199503-199509

main87245-1A600iCE100199205-199503

main87245-1A601iCE100..LHD199503-199704

main87245-1A610iAE101..RHD..(GL,XL)199205-199503

main87245-1A611iAE101..RHD..(GL,XL)199503-199704

main87245-1A630iAE100,101..RHD..(GLI,LX,SEG,SJ,XLI)199503

main87245-1A670iEE10#..RHD199503

main87245-1A700iCE100..RHD199603

main87245-1A750iAE101..GTAPX199503-199505

87251BPLUG, HEATER WATER

main90339-16001×2iAE10#,CE100,EE10#..(SED,WG)..(GCC,GEN)199108

9046706094

main90467-06094

9046722004

main90467-22004

9048001410

main90480-01410

9048018009

main90480-18009

9095901294

main90959-01294

10 parts on this diagram · 6 diagrams in section
