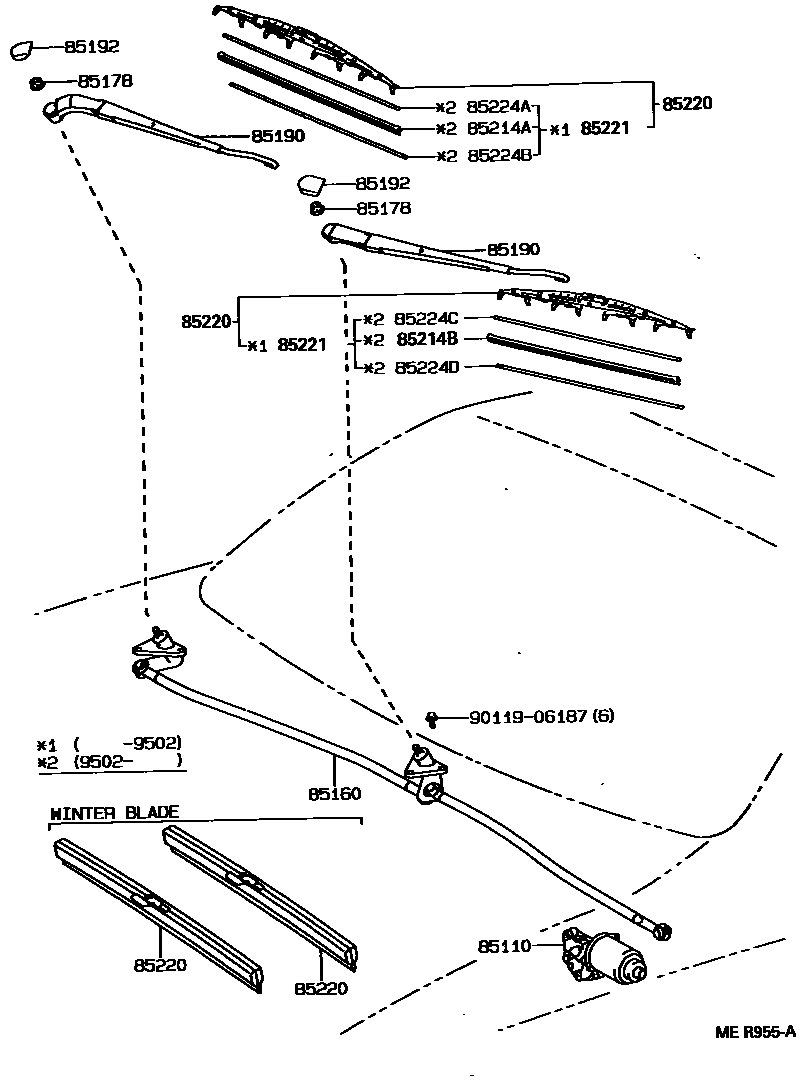

Toyota COROLLA SED/CP/WG151 — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85190ARM ASSY, WINDSHIELD WIPER
85192COVER, WINDSHIELD WIPER ARM
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85220BLADE ASSY, WINDSHIELD WIPER
85221BLADE, WINDSHIELD WIPER
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
9011906187
14 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota COROLLA SED/CP/WG151
This section contains 14 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA SED/CP/WG151. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM.
