SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1INSTRUMENT PANEL SWITCH 0008 1INSTRUMENT PANEL SWITCH 0009 1INSTRUMENT PANEL SWITCH 0010 1COWL RH 0011 1COWL LH 0012 1COWL RH 0013 1COWL LH 0014 1COWL RH 0015 1COWL LH 0016 1COMBINATION SWITCH 0017 1COMBINATION SWITCH 0018 1COMBINATION SWITCH 0019 1ROOF,FRONT DOOR & SEAT 0020 1ROOF,FRONT DOOR & SEAT 0021 1FLOOR,REAR DOOR & LUGGAGE 0022 1FLOOR,REAR DOOR & LUGGAGE

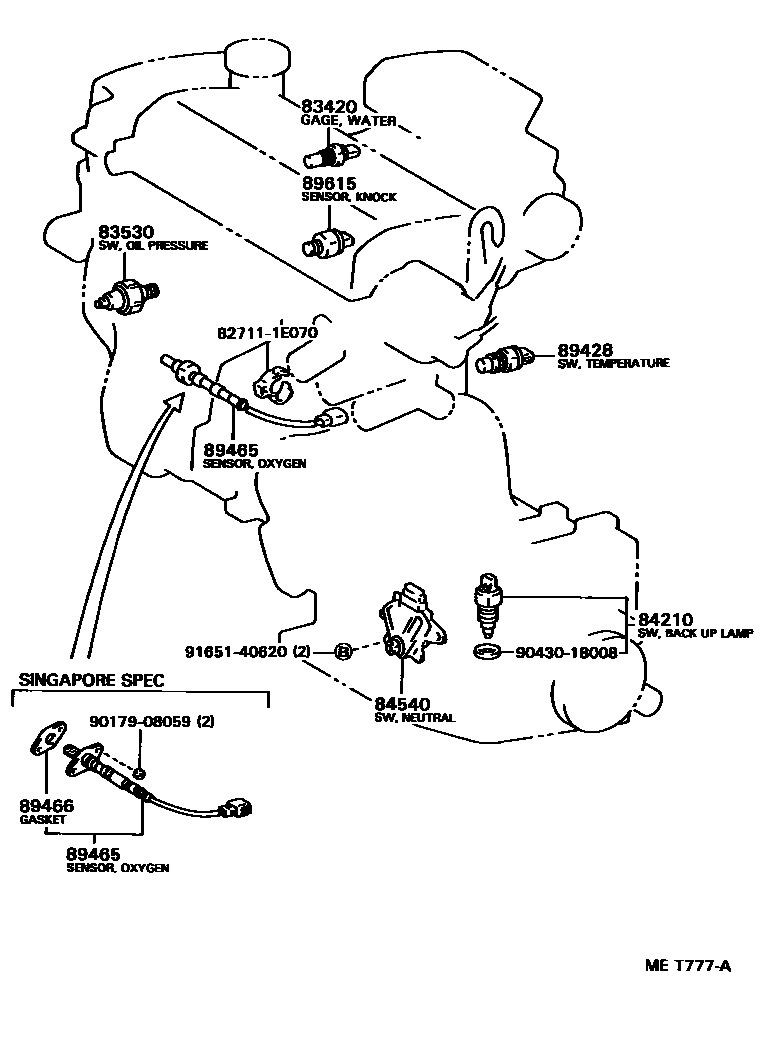

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-05010iAE101..TUR199807-199905

(L)

main83420-16020iEE10#199907

main83420-16050iAE10#..GLI,LX,SEG,SJ,XLI199205-199212

main83420-20020iCE100199205

main83420-20040iAE101..TUR199509-199905

(J)

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iAE101..TUR199807-199905

(L)

main83530-14060iEE10#199205-199411

NIPPONDENSO

main83530-28020iEE10#199907

DENSO

main83530-30051iAE101..GL,STD,XL199208-199803

main83530-30080iAE101..GTAPX199205-199505

main83530-30090iAE10#..GLI,LX,SEG,SJ,XLI199208-199409

main83530-30100iCE100199205-199803

main83530-60010iCE100199803

main83530-60020iEE10#199907

YAZAKI

main83530-60050iAE101..XL199803-199805

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE100,101,CE100,EE10#..MTM199108-199409

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAE101..4FC..SJ199305-199505

TOKAIRIKA

main84540-12210iAE101..4FC..SJ199305-199505

MATSUSHITA

main84540-16040iAE10#,EE100,101..ATM199108-199305

main84540-16050iAE10#..ATM199704

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAE10#,EE10#199108-199409

main89428-33010iCE100199205

89465SENSOR, OXYGEN

main89465-10020iEE108199109-199401

main89465-12270iAE100199108-199505

main89465-12280iAE101..SJ199108-199505

main89465-12360iEE104199401-199705

main89465-19495iAE101..GTAPX199108-199505

main89465-19575iAE101..LHD..XLI..GEN; AE101..RHD..GLI199307-199505

FINLAND SPEC OR DENMARK SPEC; SINGAPOLE SPEC OR THAILAND SPEC

89466GASKET, OXYGEN SENSOR

main89466-12020iAE101..GTAPX199108-199205

89615SENSOR, KNOCK CONTROL

main89615-12030iAE100;AE101..SJ199108-199201

TOYOTA

main89615-12040iAE101..GTAPX199108-199505

MATSUSHITA

main89615-12050iAE101..GTAPX199108-199505

NIPPONDENSO

main89615-22030iAE100,102;AE101..RHD..(GLI,SJ);AE101..LHD..XLI..GEN199310-199505

MATSUSHITA

main89615-22050iAE101..TUR199809-199905

TOYOTA

827111E070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E070

9017908059

main90179-08059

9043018008

main90430-18008

9165140620

main91651-40620

12 parts on this diagram · 22 diagrams in section
