METER

0001 1ANALOG W/O(TACHOMETER) 0002 1ANALOG W/O(TACHOMETER) 0003 1ANALOG W(TACHOMETER) 0004 1ANALOG W(TACHOMETER) 0005 1ANALOG METER 0006 1DIGITAL METER

83100BBULB, COMBINATION METER, NO.1

main83109-12030iAE101,EE100..LHD..XL..GEN;AE101,EE100..RHD..(GL,GLI)199705

12V 3.4W,BLUE CAP

main83109-30070iAE101..RHD..XLI;EE100..RHD..5F..XL;AE101..RHD..4FC..GLI199505-199605

14V 2.0W,W/O SOCKET

main83109-95J00×4iAE100,EE108..5F..(L,LX); AE100..3FC;AE101,EE100,101,105..RHD..(STD,XL,XLI)199108-199301

14V 3.78W; 14V 3.78W,YAZAKI,*89

main83119-1A020×4iAE101,CE100,EE100,101,105..RHD..(STD,XL,XLI)199505-199907

12V 3.4W,W(BLUE CAP)

main83119-24130×10iAE101..4FC..SJ; AE101..CP..5F199108-199305

12V1.4W WHITE W(SKT)

main83119-24250×4iAE100..GLI199108-199204

14V3.78W,W(BLUE CAP)

main83119-24270iAE100..GLI199108-199204

14V 2.0W,W(BLUE CAP)

main83119-24370×2iAE101..CP199108-199305

14V 3.0W,LONG LIFE

main83119-24390iAE101..CP199108-199305

14V 1.4W,W(SOCKET),L

main83119-24410×3iAE101..4FC..SJ; AE101..CP..5F199108-199305

14V 2.0W,W(SOCKET)

main83119-24430iAE100,101,EE100,101,105..RHD..(GL,GLI,SEG,XL,XLI)199204-199907

12V 1.4W BLUE CAP

main83119-2A100×4iAE100,EE104,108..5F..(L,LX); AE100..3FC;AE101,EE100,101,105..RHD..(STD,XL,XLI)199301-199505

14V 3.8W,W(BLUE CAP); 14V 3.8W,W(BLUE CAP),YAZAKI,*89

main83119-32010iAE101..CP;AE101..GLI..GCC;AE101,CE100,EE100,105..LHD..(STD,XL,XLI)199108-199305

14V 3.0W

main83120-04040×2iAE100,EE104,108..5F..(L,LX)199205-199704

12V 3.4W,W(SOCKET),AMERICA-YAZAKI,*89

main83120-04050×7iAE100,EE104,108..5F..(L,LX)199205-199606

12V 1.4W,W(SOCKET),AMERICA-YAZAKI,*89

main83120-0W010×4iAE100,EE104,108..5F..(L,LX)199205-199704

14V 3.8W,AMERICA-YAZAKI,*89

main83120-0W020×3iAE100,EE104,108..5F..(L,LX)199205-199704

14V 2.0W,W(SOCKET),AMERICA-YAZAKI,*89

main83120-60010×3iAE101,CE100,EE100,101,105..RHD..(STD,XL,XLI); AE101..RHD..XLI;EE100,105..RHD..5F..XL199108-200111

14V 2.0W; 14V 2.0W,NEW ZEALAND SPEC

main90072-02003×4iAE101..CP199108-199312

12V 3.8W

main90072-02004×13iAE101..4FC..SJ; AE101..CP..5F199108-199505

14V 1.1W

main90072-02008iAE101..CP199305-199505

14V 3.0W

main90072-02013×4iAE101..CP199312-199505

14V 3.4W

main90981-11018×11iAE101..GCC; EE100,105..GEN,TUR;AE101..LHD..(GL,XL); EE100..GCC;AE101..TUR;AE101..RHD..GLI199605-199704

12V 1.2W W/O SOCKET

main99132-12034×3iAE101..SED..GCC;AE10#,EE100,101,105..(GL,GLI,SEG,XL,XLI)..GEN; EE100,105..RHD..STD199108-199312

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iCE100..LHD;EE100,105..LHD..STD;AE10#,EE100,101,105..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL,XLI)199312-199907

12V 3.4W

main83101-14040iAE101,EE100..GCC; AE102,CE100..LHD;AE101..LHD..(GLI,XLI)..(GEN,TUR);AE101,EE10#..RHD..(GL,GLI,L,STD,XL)199605-199704

12V 1.4W; 12V 1.4W,14V 2.0W

main83101-20040iEE105..RHD199704-199910

12V 3W,3.4W

main83101-32020iAE101..CP199108-199305

14V 3.0W LONG LIFE

main84999-50262iAE101..CP199108-199505

12V 3.8W

main90072-01003iAE101..CP199108-199505

main90072-01004iAE101..CP..5F; AE101..GTAPX;AE101..4FC..SJ199108-199305

14V 3W; 14W 3W

83110SPEEDOMETER ASSY

main83110-1E660iAE100,EE104,108..5F..(L,LX); AE100..3FC199205-199505

main83110-1E670iAE101,EE100,105..RHD..(STD,XL)199108-199310

main83110-1E671iAE101,CE100,EE100,105..RHD..(STD,XL)199310-199907

main83110-1E680iAE101,EE100,105..RHD..(STD,XL)199108-199405

MILE/KM

main83110-1E681iAE101,CE100,EE100,105..RHD..(STD,XL)199405-199907

MILE/KM

main83110-1E690iAE100..GLI199108-199505

main83110-1E700iAE101,EE100,105..RHD..XL; AE101,EE100..RHD..GL199108-199310

W(TACHOMETER)

main83110-1E710iAE101,EE100,105..RHD..XL; AE101,EE100..RHD..GL199108-199405

MILE/KM; W(TACHOMETER),MILE/KM

main83110-1E711iAE101,EE100,105..RHD..XL199405-199907

W(TACHOMETER),MILE/KM

main83110-1E720iAE101..RHD..(GLI,SEG)199108-199310

main83110-1E730iAE101..RHD..XLI199205-199405

W(TACHOMETER),MILE/KM

main83110-1E731iAE101..RHD..(GLI,SEG)199405

MILE/KM

main83110-1E740iAE101,EE100,105..RHD..XL; AE101,EE100..RHD..GL199310-199311

W(TACHOMETER)

main83110-1E741iAE101,EE100..RHD..GL199311

main83110-1E750iAE101..RHD..(GLI,SEG); AE101..RHD..XLI199310-199311

W(TACHOMETER)

main83110-1E751iAE101..RHD..(GLI,SEG)199311

main83110-1E760iAE101..5F..SJ199108-199305

main83110-1E761iAE101..5F..SJ199305-199505

main83110-1E770iAE101..4FC..SJ199108-199305

main83110-1E771iAE101..4FC..SJ199305-199505

main83110-1E780iAE101..GTAPX199108-199305

main83110-1E781iAE101..GTAPX199305-199505

main83110-1E790iAE101..GTAPX199108-199305

W(TEMS)

main83110-1E830iAE101..RHD..XLI199205-199310

main83110-1E831iAE101..RHD..XLI199310-199710

main83110-1E840iAE101..RHD..XLI199205-199405

MILE/KM

main83110-1E841iAE101..RHD..XLI199405-199710

MILE/KM

main83110-1E850iEE101199205-199405

MILE/KM

main83110-1E851iEE101199405-199511

MILE/KM

main83110-1E860iEE101199205-199405

W(TACHOMETER),MILE/KM

main83110-1E861iEE101199405-199511

W(TACHOMETER) & MILE/KM

main83110-1H040iAE101..GCC;AE101..LHD..XLI..GEN199205-199310

main83110-1H050iEE100..GCC199310-199704

main83110-1H070iAE101,EE100,105..LHD..(STD,XL)..GEN199205-199405

MILE/KM

main83110-1H071iAE101,EE100,105..LHD..(STD,XL)..GEN199405-199910

MILE/KM

main83110-1H080iAE101..LHD..XLI..GEN199205-199405

MILE/KM

main83110-1H081iAE101..LHD..XLI..GEN199405-199704

MILE/KM

main83110-1H120iAE101,EE100,105..LHD..XL..GEN; AE101,EE100..LHD..GL199205-199310

W(TACHOMETER)

main83110-1H130iAE101,102..LHD..GLI..GEN; AE101..SED..GCC;AE101..LHD..XLI..GEN199205-199310

W(TACHOMETER)

main83110-1H140iAE101,EE100,105..LHD..XL..GEN; AE101,EE100..LHD..GL199205-199405

MILE/KM; W(TACHOMETER),MILE/KM

main83110-1H141iAE101,EE100..LHD..GL199405-199707

MILE/KM

main83110-1H150iAE101..LHD..GLI..GEN; AE101..LHD..XLI..GEN199205-199405

MILE/KM; W(TACHOMETER),MILE/KM

main83110-1H151iAE101..LHD..GLI..GEN199405-199711

MILE/KM

main83110-1H160iEE101199205-199310

W(TACHOMETER)

main83110-1H161iEE101199310-199511

W(TACHOMETER)

main83110-1H170iEE101199205-199310

main83110-1H171iEE101199310-199511

main83110-1H190iAE101,CE100,EE100,105..LHD..(STD,XL)..GEN199310-199910

main83110-1H200iAE101..LHD..XLI..GEN199310-199704

main83110-1H210iAE101,EE100..LHD..GL199310-199707

main83110-1H220iAE101..LHD..XLI..GEN199310-199704

W(TACHOMETER)

83132CASE, COMBINATION METER

main83132-0W010iAE100,EE104,108..5F..(L,LX)199205-199704

VDO-YAZAKI,*89

main83132-1A490iAE101..CP..5F199108-199305

W(*DS)

main83132-1A510iAE101..4FC..SJ199108-199305

W(*DS)

main83132-1A530iEE10#..RHD..XL199907

W(TACHOMETER)

main83132-1A610iAE101..GLI..GCC;AE101,CE100,EE100,105..LHD..(STD,XL,XLI)..(GCC,GEN)199205-199910

main83132-1A630iAE101,EE100..(XL,XLI)..TUR;AE101,102,EE100..LHD..(GL,GLI)..(GEN,TUR)199409-199509

main83132-1E020iAE100,EE108..L,LX199108-199205

main83132-1E040iCE100,EE10#..RHD..XL199907

main83132-1E520iAE101..CP..5F199108-199505

main83132-1E540iAE101..4FC..SJ199108-199505

83134COVER, COMBINATION METER, NO.1

main83134-0W010iAE100,EE104,108..5F..(L,LX)199205-199704

VDO-YAZAKI,*89

main83134-1E040iAE100,EE10#..L,LX,STD,XL199108-199205

main83134-1E520iAE101..CP199108-199505

83145LENS, METER, NO.1

main83145-0W010iAE100,EE104,108..5F..(L,LX)199205-199704

VDO-YAZAKI,*89

main83145-1E520iAE101..CP199108-199505

main83145-89320×2iAE100..3FC;AE101,CE100,EE100,101,105..RHD..(STD,XL,XLI)199205-199907

83180DETECTOR ASSY, REVOLUTION

main83180-32020iCE100199205

83181ASENSOR, SPEEDOMETER

main83181-12020iAE10#,EE10#..4F,4FC,5F199108-199409

main83181-12030iCE100199205

main83181-12040iAE100,101,EE100,101..3FC199108-199907

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-0W010iAE100,EE104,108..5F..(L,LX)199205-199704

VDO-YAZAKI,*89

main83243-1E020iAE100,EE108..L,LX199108-199205

main83243-1E060iAE100..3FC199305-199505

main83243-1E100iAE101,EE100,101,105..RHD..(STD,XL,XLI)199108-199305

main83243-1E140iCE100,EE10#..RHD..XL199907

main83243-1E520iAE101..CP..5F199108-199405

main83243-1E521iAE101..CP..5F199405-199505

main83243-1E540iAE101..4FC..SJ199108-199405

main83243-1E541iAE101..4FC..SJ199405-199505

main83243-1E810iAE101..GTAPX199108-199305

W(*DS & TEMS)

main83243-1E830iAE101..GTAPX199108-199305

W(*DS)

main83243-1E850iAE101..4FC..SJ199108-199305

W(*DS)

main83243-1E870iAE101..5F..SJ199108-199305

W(*DS)

main83243-1E890iAE100..GLI199108-199202

main83243-1E891iAE100..GLI199202-199305

main83243-1H070iAE100..GLI199305-199505

main83243-1H110iAE101,EE100,101,105..RHD..(XL,XLI); AE101,EE100..RHD..(GL,GLI,SEG)199108-199305

W(TACHOMETER)

main83243-1H111iAE101,EE100..RHD..(GL,GLI,SEG)199305

main83243-1H191iAE101..TUR199509-199905

main83243-1H210iAE101,EE100..LHD..(GL,GLI)..GEN; AE101..GLI..GCC;EE100,105..LHD..XL..GEN;AE101..LHD..SED..(XL,XLI)199205-199305

W(TACHOMETER)

main83243-1H211iAE101,102,EE100..LHD..(GL,GLI)..GEN199305-199805

main83243-1H231iEE100..TUR199409-199905

main83243-1H430iAE101..GLI..GCC;AE101,CE100,EE100,105..LHD..(STD,XL,XLI)199205-199305

main83243-1H431iAE101..GLI..GCC;AE101,CE100,EE100,105..LHD..(STD,XL,XLI)..(GCC,GEN)199305-199910

main83243-1H530iAE100..5F..GLI199201-199205

*DS,W(ABS) OR W(*CRS) OR W(*WDL)

main83243-1H710iAE101..RHD..4FC..GLI; AE101..RHD..XLI;EE100..RHD..5F..XL199505-199711

NEW ZEALAND SPEC; NEW ZEALAND SPEC & W(TACHOMETER)

main83882-0W010iEE104199612-199704

W(*80;DRIVER SIDE,PASSENGER SIDE),VDO-YAZAKI,*89

main83882-1A420iEE104199612-199704

W(*80;DRIVER SIDE,PASSENGER SIDE),YAZAKI,*89

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-0W010iAE100,EE104,108..5F..(L,LX)199205-199704

VDO-YAZAKI,*89

main83244-1A830iAE100..GLI199108-199505

main83244-1A870iEE100,105..RHD..XL199108-199907

W(TACHOMETER)

main83244-1A890iAE101..RHD..(GL,GLI,SEG)199108

main83244-1E020iAE100,EE108..L,LX199108-199205

main83244-1E030iAE101,102..LHD..GLI..GEN199205-199409

main83244-1E050iAE101,EE100,105..LHD..XL..GEN199205-199910

W(TACHOMETER)

main83244-1E060iEE100,105..RHD..(STD,XL)199108-199907

main83244-1E080iAE101,EE101..RHD..(XL,XLI)199205-199710

main83244-1E090iAE101,EE100..LHD..GL199205-199707

MIDDLE EAST SPEC

main83244-1E100iCE100..RHD199603

main83244-1E110iAE101..SED..GCC199207-199605

W(TACHOMETER)

main83244-1E190iAE101,EE100,105..LHD..(STD,XL)..GEN199205-199910

main83244-1E210iCE100..LHD199205-199704

main83244-1E230iAE101..LHD..XLI..GEN199205-199704

main83244-1E250iEE105..LHD..XL;AE101,EE100..LHD..(STD,XL)..GEN199205-199505

MIDDLE EAST SPEC

main83244-1E270iAE101..GCC199207-199605

main83244-1E290iAE101..RHD..XLI;EE100..RHD..5F..XL199505-199711

NEW ZEALAND SPEC

main83244-1E350iAE101..RHD..4FC..GLI; AE101..RHD..XLI;EE100..RHD..5F..XL199505-199711

NEW ZEALAND SPEC; NEW ZEALAND SPEC & W(TACHOMETER)

main83244-1E520iAE101..CP199108-199305

main83244-1E521iAE101..CP199305-199405

main83244-1E522iAE101..CP199405-199505

main83883-12380iEE100..GCC199605-199704

main83883-12390iAE101..GCC199605-199704

main83883-12400iAE101..SED..GCC199605-199704

W(TACHOMETER)

83247PLATE, METER CIRCUIT

main83149-12090iEE105..LHD199704-199910

MIDDLE EAST SPEC & MILE/KM

main83149-12110iAE101,EE100..GCC199207-199605

main83149-12130iAE101..LHD..XLI..GEN199205-199704

main83149-12190iAE101..4FC..XL; AE101..RHD..GL199205-199704

W(TACHOMETER)

main83149-12210iEE101199205-199511

W(TACHOMETER)

main83149-12220iCE100..RHD199603

main83149-1E020iAE100,EE108..L,LX199108-199205

main83149-1E040iEE10#..RHD..XL199907

main83149-1E520iAE101..5F..SJ199108-199305

main83149-1E540iAE101..CP..5F199305-199505

main83149-1E600iAE101..4FC..SJ199108-199505

main83149-1E620iAE101..GTAPX199108-199305

W(TEMS)

main83247-0W010iAE100,EE104,108..5F..(L,LX)199205-199704

VDO-YAZAKI,*89

main83247-1H170iAE101..4FC..SJ199108-199305

*DS

main83247-1H190iAE101..GTAPX199108-199305

W(TEMS & *DS)

main83247-1H210iAE101..CP..5F199108-199305

*DS

main83247-1H330iAE100..5F..GLI199205-199505

W(*66)

main83247-1H410iAE100..5F..GLI199108-199505

main83247-1H430iEE100,105..RHD..XL199108-199907

W(TACHOMETER)

main83247-1H450iAE101..RHD..SED..5F..XLI; AE101..WG..GEN;AE101..RHD..4FC..XLI199312-199505

W(TACHOMETER); W(TACHOMETER) OR INDONESIA SPEC

main83247-1H730iAE101,EE100,105..LHD..(GLI,XL,XLI)..GEN199605-199703

W(TACHOMETER)

main83247-1H750iAE101,EE100..TUR199409-199509

main83247-1H870iAE102199309-199805

main83247-1K250iAE101..RHD..4FC..GLI; AE101..RHD..XLI;EE100..RHD..5F..XL199505-199711

NEW ZEALAND SPEC; NEW ZEALAND SPEC & W(TACHOMETER)

main83861-0W010iEE104199612-199704

W(*80;DRIVER SIDE,PASSENGER SIDE),VDO-YAZAKI,*89

main83861-12390iAE101,EE100..GCC199605-199704

main83861-12400iAE101..SED..GCC199605-199704

W(TACHOMETER)

main83861-1A420iEE104199612-199704

W(*80;DRIVER SIDE,PASSENGER SIDE),YAZAKI,*89

main83861-1E142iAE101..LHD..(GLI,XLI)..GEN199703-199711

W(TACHOMETER)

83248CHIME, SPEED WARNING

main83248-20010iCE100199205

83910CLOCK ASSY

main83910-12460iAE100,101,CE100,EE10#..RHD..(SED,WG)199108

JECO

main83910-12470iAE101,102,CE100,EE100,105..LHD199409-199509

main83910-12480iAE100,101,CE100,EE10#..RHD..(SED,WG)199108

RHYTHM

main83910-12500iAE101..CP199108-199505

83970BUZZER ASSY, REVERSE WARNING

main83970-12020iAE100..4FC;AE101..4FC..SJ199108-199505

main83970-12030iAE100..3FC199108-199505

main83970-20010iAE101..4FC..SJ199108-199305

W(*DS)

831611E020CASE, COMBINATION METER MIRROR, NO.1

main83161-1E020

8316120280CASE, COMBINATION METER MIRROR, NO.1

main83161-20280

9356855014

main93568-55014

9671124018

main96711-24018

9671124030

main96711-24030

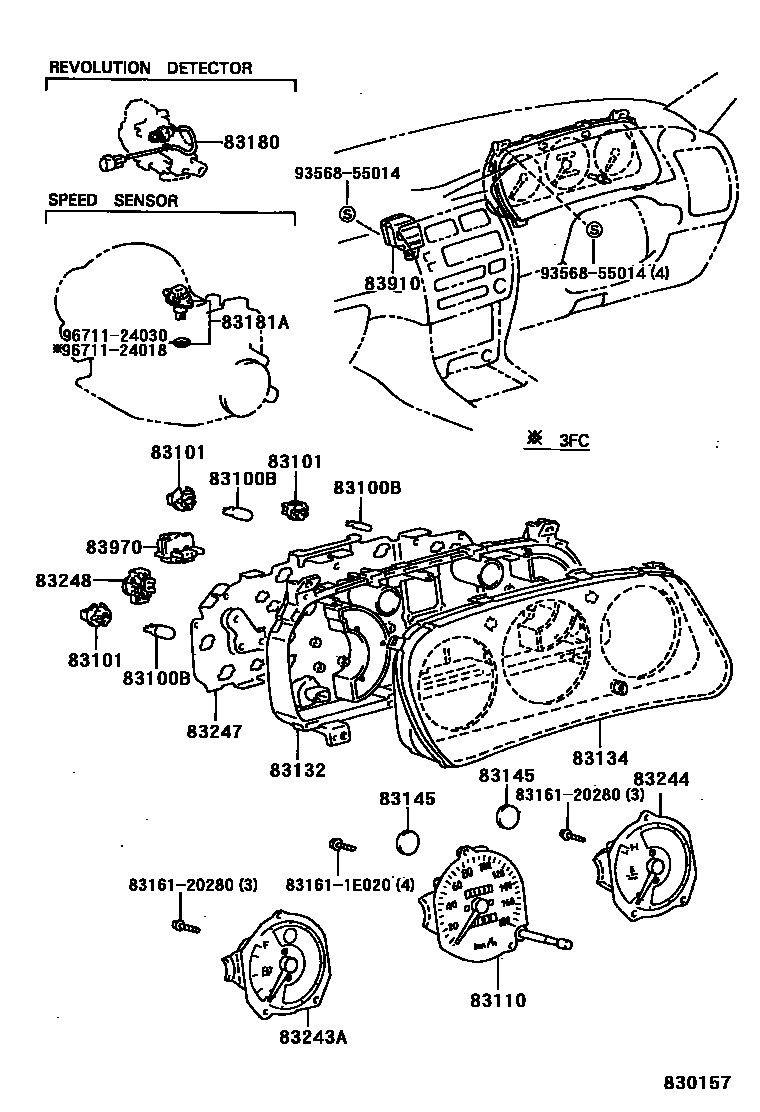

19 parts on this diagram · 6 diagrams in section
