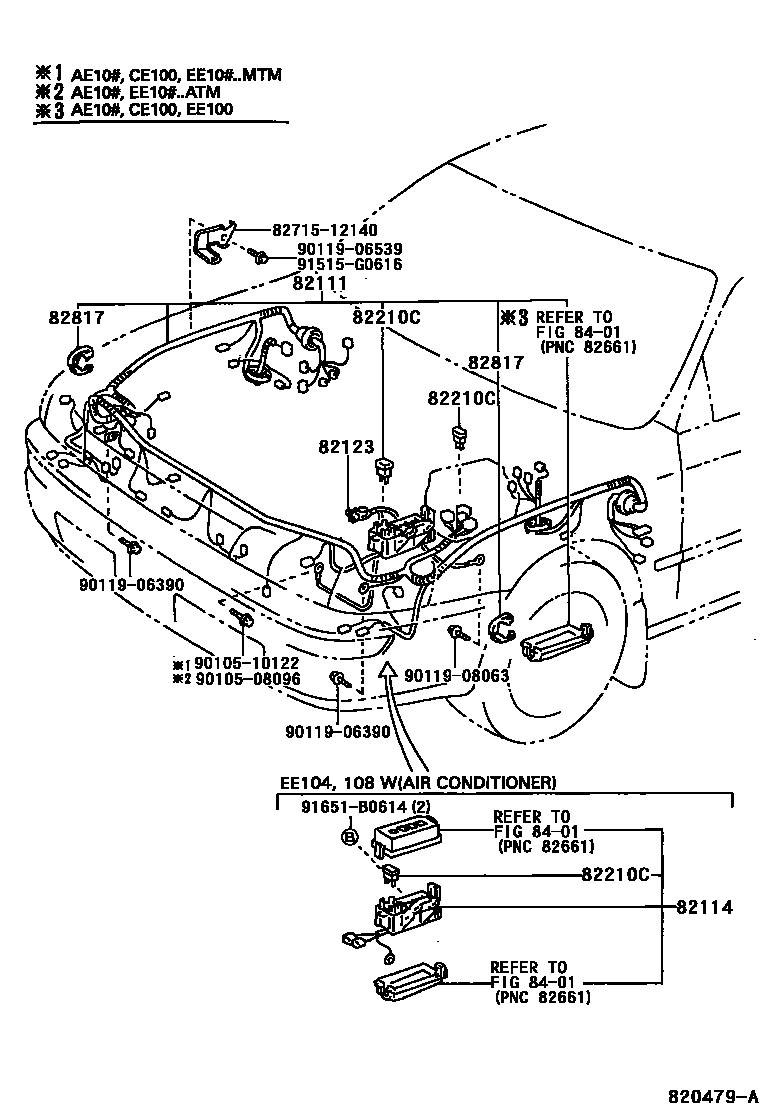

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1ENGINE 0005 1ENGINE 0006 1ENGINE 0007 1ENGINE 0008 1ENGINE WIRE CLAMP 0009 1ENGINE WIRE CLAMP 0010 1INSTRUMENT PANEL 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1DOOR 0014 1FLOOR & ROOF 0015 1FLOOR & ROOF 0016 1FLOOR,ROOF & BACK DOOR 0017 1DOOR,FLOOR,ROOF & LUGGAGE 0018 1CABLE BOND 0019 1REPAIR 0020 1REPAIR 0021 1DIODE

82111WIRE, ENGINE ROOM MAIN

main82111-13280iEE108199109-199401

main82111-13290iEE108199109-199401

W(REAR WIPER)

main82111-13370iEE104199401-199411

main82111-13371iEE104199411-199704

main82111-13380iEE104199401-199411

W(REAR WIPER)

main82111-13381iEE104199411-199704

W(REAR WIPER)

main82111-13510iEE105..RHD199704-199910

main82111-13520iEE105..LHD199704-199910

main82111-1E210iAE100,101..RHD..SED..(GLI,LX,SEG,XLI)199108-199411

main82111-1E211iAE100,101..RHD..SED..(GLI,LX,SEG,XLI)199411-199711

main82111-1E220iAE101..WG..GEN;EE100,101,105..RHD;AE101..RHD..(GL,XL)199108-199411

main82111-1E221iAE101..RHD..WG;EE100,101,105..RHD;AE101..RHD..(GL,XL)199411-199704

main82111-1E270iAE100..GLI199108-199205

W(CLEARANCE WARNING)

main82111-1E280iAE100..GLI199108-199205

W(*66 & CLEARANCE WARNING)

main82111-1E330iAE101..CP199108-199411

main82111-1E331iAE101..CP199411-199505

main82111-1E350iAE101..GTAPX199108-199305

W(TEMS)

main82111-1E370iAE101..CP199108-199305

W(*66)

main82111-1E390iAE101..GTAPX199108-199305

W(*66 & TEMS)

main82111-1E410iAE100199108-199305

W(*66)

main82111-1E690iAE101,EE100,105..LHD..(GCC,GEN)199205-199411

main82111-1E691iAE101,EE100..LHD..GEN199704-199805

main82111-1E700iCE100199205-199411

main82111-1E701iCE100199411-199505

main82111-1E710iAE101..LHD..GLI..GEN;EE100..LHD..5F..XL..GEN199205-199411

CKD SPEC

main82111-1E760iAE102199309-199411

main82111-1E761iAE102199411-199805

main82111-1E770iAE100199305-199309

W(*66)

main82111-1E771iAE100199309-199411

W(*66)

main82111-1E772iAE100199411-199505

W(*66)

main82111-1E860iAE101..CP199305-199308

W(*66)

main82111-1E861iAE101..CP199308-199411

W(*66)

main82111-1E862iAE101..CP199411-199505

W(*66)

main82111-1H010iAE101..GTAPX199305-199308

W(*66 & *SSS)

main82111-1H011iAE101..GTAPX199308-199411

W(*66 & *SSS)

main82111-1H012iAE101..GTAPX199411-199505

W(*66 & *SSS)

main82111-1H120iAE101,EE100..TUR199409-199411

main82111-1H121iAE101,EE100..TUR199411-199507

main82111-1H520iCE100..LHD199505-199704

main82111-1H550iCE100..RHD199603-199711

82114WIRE, ENGINE ROOM, NO.4

main82114-13010iEE108199109-199401

main82114-13020iEE104199401-199508

main82114-13021iEE104199508-199705

main82114-13030iEE104199605-199705

HONG KONG SPEC

82123WIRE, ENGINE, NO.3

main82123-12180iAE100,101,EE10#..(4F,4FC,5F)..(GCC,GEN)199108-199505

main82123-12190iAE100,101,EE100,101..3FC199108-199505

main82123-12200iAE101,EE100..RHD199711

main82123-12210iAE101,EE100,101..3FC199505-199704

main82123-12220iAE101,EE100..(4FC,5F)..GCC199508-199704

BATTERY=34B19L

main82123-12230iAE102199309-199409

main82123-12240iAE101,EE100,101..3FC199108-199505

BATTERY=34B19L OR 32C24L

main82123-12250iAE101..3FC..GL;EE100..LHD..3FC..GEN; AE101..3FC..XL;EE100..RHD..3FC199505-199704

BATTERY=34B19L OR 32B24L; BATTERY=34B19L OR 32C24L OR 32B24L

main82123-12260iCE100199205-199505

main82123-12290iEE105199704-199910

main82123-12310iEE105199704-199910

BATTERY=34B19L

main82123-12340iCE100199505

82210CFUSIBLE LINK

main90982-08188×2iAE10#,CE100,EE10#199704

30A,TERM.:FEMALE,PNK

main90982-08202iEE108199109-199401

60A,TERM.:MALE,YEL

main90982-08203×2iCE100..RHD199603

80A,TERM.:MALE,BLK,TAIHEIYO KOGYO

main90982-08206iCE100..LHD199205-199704

GLOW RESISTER

main90982-08228iAE100;AE101..CP199108-199505

50A,TERM.:MALE,RED

main90982-08246iAE10#,EE101..GCC,GEN199205-199505

100A,TERM.:MALE,BLUE

main90982-08257iEE100;AE10#,EE105..GEN199704

40A,TERM.:MALE,GRN

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-1A090×2iAE10#,CE100,EE10#199108-199409

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8271512140BRACKET,WIRING HARNESS CLAMP

main82715-12140

9010508096

main90105-08096

9010510122

main90105-10122

9011906390

main90119-06390

9011906539

main90119-06539

9011908063

main90119-08063

91515G0616

main91515-G0616

91651B0614

main91651-B0614

14 parts on this diagram · 21 diagrams in section
