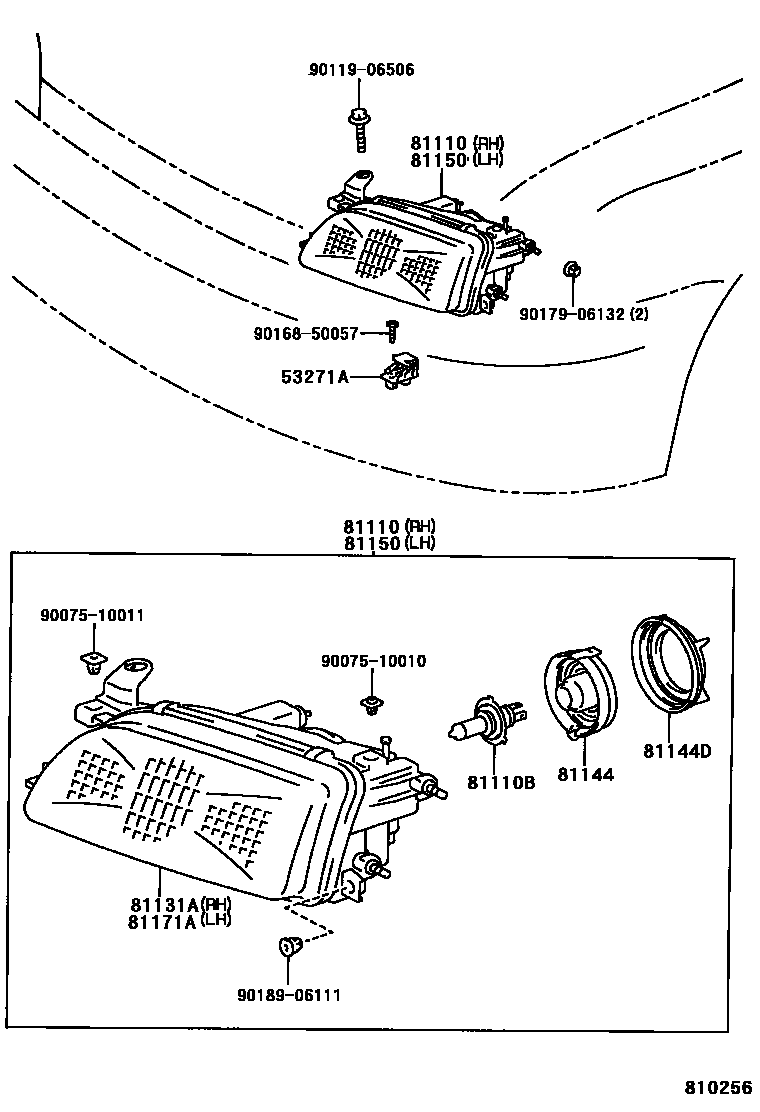

HEADLAMP

0001 1 0002 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-12040×2iAE101..CP199309-199310

main53271-12060×2iAE10#,CE100,EE10#199310-199409

81110HEADLAMP ASSY, RH

main81110-1E180iAE10#,EE10#..RHD..(SED,WG)199108-199305

main81110-1E181iAE100,101,CE100,EE10#..RHD..(SED,WG); AE101,102,CE100,EE100,105..LHD..GEN199305-199704

LEFT AIMING

main81110-1E182iAE10#,CE100,EE10#..GEN199704-199711

LEFT AIMING

main81110-1E280iAE101,CE100,EE100,105..LHD199205-199305

main81110-1E281iAE101,102,CE100,EE100,105..LHD199409-199503

main81110-1E282iAE101,102,CE100,EE100,105..LHD199503-199509

main81110-1E300iAE101,CE100,EE100,105..LHD..GEN199205-199305

HALOGEN YELLOW

main81110-1E301iAE101,CE100,EE100,105..LHD..GEN199305-199503

HALOGEN YELLOW

main81110-1E302iAE101..XL199804-199805

HALOGEN YELLOW

main81120-1A570iAE101..CP199108-199307

main81120-1A571iAE101..CP199307-199505

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iAE10#,CE100,EE10#199108-199401

12V 60/55W,*HAL *WH

main90981-13016×2iAE101,CE100,EE100,105..LHD..GEN199205-199804

12V 60/55W,*HAL *YE

main90981-22004×2iAE10#,CE100,EE10#199409-199509

12V 60/55W,*HAL *WH

81131AUNIT, HEADLAMP, RH

main81130-1A570iAE101..CP199108-199307

main81130-1A571iAE101..CP199307-199505

main81130-1E180iAE10#,EE10#..RHD..(SED,WG)199108-199305

main81130-1E181iAE100,101,CE100,EE10#..RHD..(SED,WG); AE101,102,CE100,EE100,105..LHD..GEN199305-199704

LEFT AIMING

main81130-1E182iEE105199711-199910

main81130-1E280iAE101,CE100,EE100,105..LHD199205-199305

main81130-1E281iAE101,102,CE100,EE100,105..LHD199409-199503

main81130-1E282iAE10#,CE100,EE100,105..LHD199509-199910

HALOGEN,YELLOW

81144COVER, HEADLAMP, NO.1

main90075-99058×2iAE10#,CE100,EE10#199108-199409

81144DCAP, HEADLAMP LOCKING

main90075-99057×2iAE10#,CE100,EE10#199108-199409

81150HEADLAMP ASSY, LH

main81150-1A440iAE10#,EE10#..RHD..(SED,WG)199108-199305

main81150-1A441iAE100,101,CE100,EE10#..RHD..(SED,WG); AE101,102,CE100,EE100,105..LHD..GEN199305-199704

LEFT AIMING

main81150-1A442iEE105199711-199910

LEFT AIMING

main81150-1A550iAE101,CE100,EE100,105..LHD199205-199305

main81150-1A551iAE101,102,CE100,EE100,105..LHD199305-199409

main81150-1A552iAE10#,CE100,EE100,105..LHD199509-199910

main81150-1E180iAE101,CE100,EE100,105..LHD..GEN199205-199305

HALOGEN YELLOW

main81150-1E181iAE101,CE100,EE100,105..LHD..GEN199305-199503

HALOGEN YELLOW

main81150-1E182iAE101,CE100,EE100,105..LHD..GEN199503-199804

HALOGEN YELLOW

main81160-1A570iAE101..CP199108-199307

main81160-1A571iAE101..CP199307-199505

81171AUNIT, HEADLAMP, LH

main81170-1A440iAE10#,EE10#..RHD..(SED,WG)199108-199305

main81170-1A441iAE100,101,CE100,EE10#..RHD..(SED,WG); AE101,102,CE100,EE100,105..LHD..GEN199305-199704

LEFT AIMING

main81170-1A442iAE10#,CE100,EE10#..GEN199704-199711

main81170-1A550iAE101,CE100,EE100,105..LHD199205-199305

main81170-1A551iAE101,102,CE100,EE100,105..LHD199305-199409

main81170-1A552iAE10#,CE100,EE100,105..LHD199509-199910

HALOGEN,YELLOW

main81170-1A570iAE101..CP199108-199307

main81170-1A571iAE101..CP199307-199505

9007510010

main90075-10010

9007510011

main90075-10011

9011906506

main90119-06506

9016850057

main90168-50057

9017906132

main90179-06132

9018906111

main90189-06111

14 parts on this diagram · 2 diagrams in section
