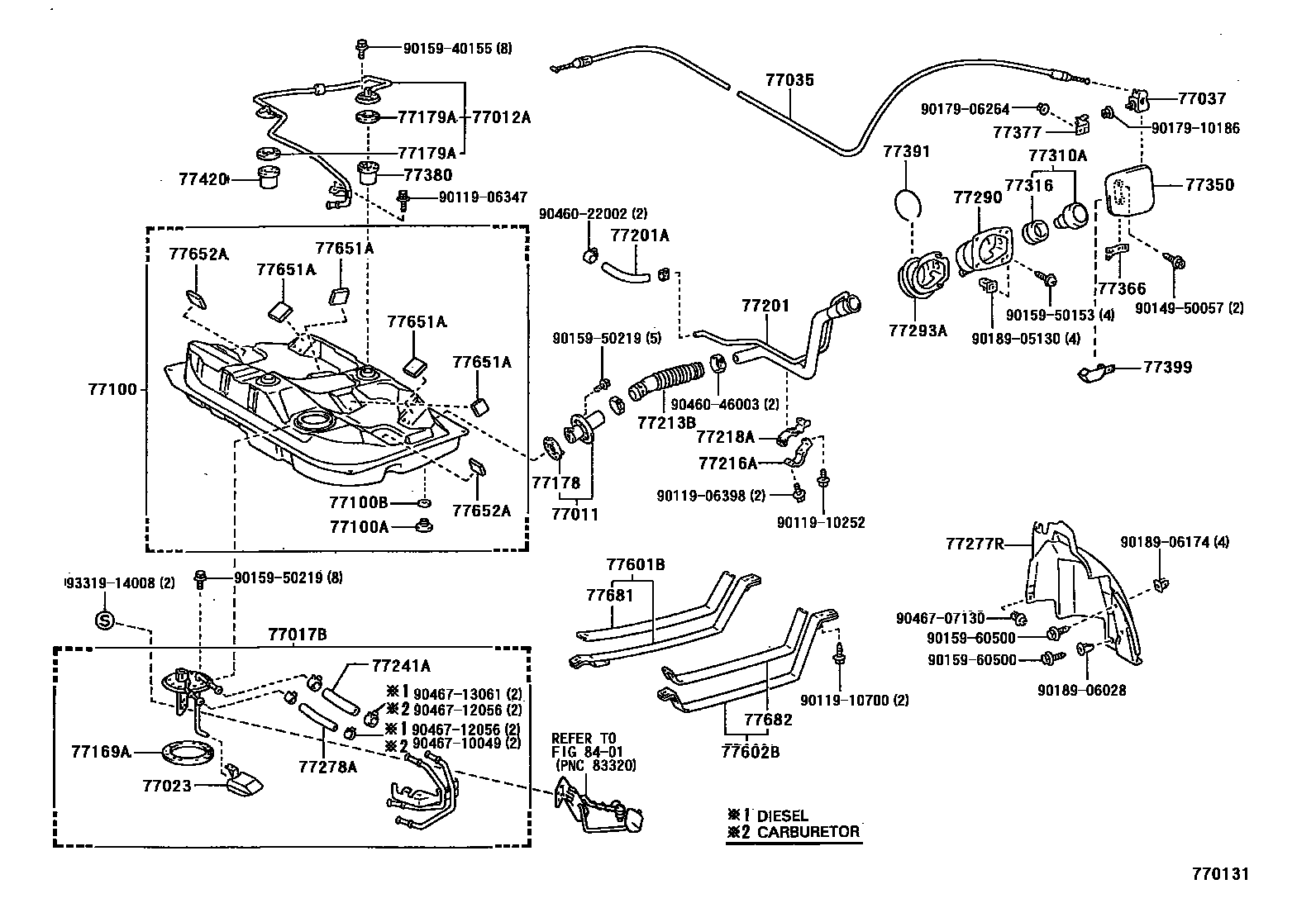

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0012 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12090iAE10#,CE100,EE10#199108-200111

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-12070iEE101,104;AE101..SEG;AE101,EE100..GCC199108-199508

sub77012-12080

main77012-12080iAE100,EE104,108199108-199505

COLD SPEC OR SNOW VERSION

main77012-12140iAE10#,CE100,EE100,105..GEN,TUR199505-199508

COLD SPEC OR SNOW VERSION

main77012-12140iAE10#,CE100,EE100,104,105199508-200111

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-12450iAE101,EE100,105,108..GL,L,STD,XL199108-199508

main77017-12470iCE100199205-199505

main77017-12600iCE100199505

main77017-12620iAE101,EE100,105..(GL,STD,XL)..(GEN,TUR)199505-199704

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-10010iAE101,EE100,105,108..GL,L,STD,XL199108-199704

main77023-32040iCE100199205

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12190iAE100,101,EE100,101..RHD..SED..(3FC,4FC,5F)199108-199505

sub77035-12191

main77035-12191iAE101,CE100,EE100..RHD199505-199704

main77035-12210iAE101,102,CE100,EE100..LHD..SED..(GL,GLI,XL,XLI)199205-199505

sub77035-12211

main77035-12211iAE10#,CE100,EE100..LHD..SED..(3FC,4FC,5F)199505-199807

main77035-12320iAE101..CP199108-199505

main77035-13020iAE101,EE104,105,108..RHD..WG..5F199109-199505

main77035-13040iAE101,EE100,105..LHD..WG..(XL,XLI)199205-199505

main77035-13050iAE101,EE104,105..RHD..WG199505-199910

main77035-13070iAE101,EE100,105..LHD..WG..(XL,XLI)199505-199910

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iAE10#,CE100,EE10#..GL,GLI,GTAPX,L,LX,SEG,SJ,XL,XLI199108-199704

77100TANK ASSY, FUEL

main77001-12928iAE101..CP199108-199308

sub77001-12932

main77001-12931iAE100199108-199402

COLD SPEC OR SNOW VERSION

main77001-12931iAE10#,CE100,EE10#..SED,WG199108-200111

main77001-12932iAE101..CP199308-199505

77100APLUG(FOR FUEL TANK)

main90341-20004iAE101..CP;AE100,EE108199108-199401

COLD SPEC OR SNOW VERSION

main90341-20004iAE101,102,CE100,EE100,101,105..SED,WG199108-199807

77100BGASKET(FOR FUEL TANK)

main90430-20007iEE10#;AE101,CE100..SED199108-199807

main90430-20007iAE101..CP;AE100,EE108199108-199401

COLD SPEC OR SNOW VERSION

77169AGASKET, FUEL SUCTION TUBE SET

main77169-12030iAE101,CE100,EE100,105,108..GL,L,STD,XL199108-199807

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iAE10#,CE100,EE10#199108-200111

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iAE10#,CE100,EE10#..SED,WG199108-200111

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12430iAE10#,CE100,EE100199108-199706

main77201-12500iAE101..RHD..GLI;AE101..LHD..XLI..GEN199108-199905

ECE SPEC

main77201-12500iAE100;AE101..CP199108-199505

HONG KONG SPEC

main77201-12500iEE101199205-199905

main77201-13160iEE104,105,108199109-199910

main77201-13170iEE104,108199109-199704

HONG KONG SPEC

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-13022iAE10#,CE100,EE100,101199108-199905

L=220

main95311-13028iEE104,105,108199109-199910

L=280

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-12160iEE101;AE101..SEG;AE101,EE100..GCC199108-199905

main77213-12160iAE101..WG..GEN;AE101..RHD..GLI;AE101..LHD..SED..XLI..GEN199505-199905

W(CANISTER-847CC)

main77213-12170iAE10#,CE100,EE100199505-199706

sub77213-12220

main77213-13070iEE104,105,108199109-199910

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12070iAE10#,CE100,EE100199108-199905

main77216-13030iEE104,105,108199109-199910

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-12030iAE10#,CE100,EE100199108-199905

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95333-06020iAE101,EE100,105,108..GL,L,STD,XL199108-199705

L=200(*H,L=110)

sub95337-06020

main95333-08020iCE100199205

L=200(*H,L=120)

sub95337-08020

main95333-08020iCE100..LHD199307-199705

L=200(*H,L=110)

sub95337-08020

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12130iAE10#,CE100,EE100,101..SED199108-199704

main77277-12150iAE101..CP199108-199505

main77277-13040iEE108199109-199111

sub77277-13041

main77277-13041iEE104,105,108199111-199910

main77277-13050iAE101,EE100..WG199205-199905

77278AHOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)

main95333-04011iAE101,EE100,105,108..GL,L,STD,XL199108-199308

L=200(*H,L=110)

sub95333-04020

main95333-04020iAE101,EE100,105,108..GL,L,STD,XL199308-199704

L=200(*H,L=110)

main95333-06020iCE100199205

L=200(*H,L=110)

sub95337-06020

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-12040iAE101,EE100,105..STD199108-199704

main77291-12090iAE10#,CE100,EE10#..GL,GLI,L,LX,SEG,XL,XLI199108-199704

main77291-12140iAE101..CP199108-199505

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-12050iAE101,EE100,105..STD199108-199704

main77293-12060iAE10#,CE100,EE10#..GL,GLI,L,LX,SEG,XL,XLI199108-199704

main77293-12090iAE101..CP199108-199505

77310ACAP ASSY, FUEL TANK

main77310-12150iCE100199803

main77310-16011iAE10#,EE10#199108-199803

sub77310-12140

main77310-32011iCE100199205-199803

main77310-48010iAE10#,EE10#199803

77316GASKET, FUEL TANK CAP

main77316-16010iAE10#,CE100,EE10#199108-199704

77350LID ASSY, FUEL FILLER OPENING

main77350-12280iAE10#,CE100,EE100,101..SED..(GL,GLI,LX,SEG,XL,XLI)199108-199704

main77350-12290iAE101,EE100..STD199108-199704

main77350-12320iAE101..CP199108-199505

main77350-13040iAE101,EE100,104,105,108..WG..(4FC,5F)199109-199910

main77350-13050iEE105..STD199205-199704

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12040iAE10#,CE100,EE10#..SED,WG199108-199704

main77360-12060iAE101..CP199108-199505

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20050iAE10#,CE100,EE10#199108-199704

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iAE101,CE100,EE10#..GL,XL,XLI199108-200111

77391RING, FUEL INLET BOX

main77391-14020iAE10#,CE100,EE10#199108-199704

77399HANGER, FUEL TANK CAP

main77399-12010iAE101,102,CE100,EE100,101,105..SED,WG199205-199704

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iAE10#,CE100,EE10#..SED,WG199108-200111

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-12180iAE10#,CE100,EE100,101199108-199704

main77601-13040iEE104,105,108199109-199910

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-12130iAE10#,CE100,EE100,101..SED,WG199108-199704

main77602-12150iAE101..CP199108-199505

main77602-13020iEE104,105,108199109-199910

77651ACUSHION, FUEL TANK, NO.1

main77651-20050iAE101..CP199108-199505

main77651-20090iAE10#..(GLI,XLI)..(GEN,TUR)199505-199905

60 X 60

main77651-20090iAE10#,CE100,EE10#..SED,WG199108-200111

60X60

main77651-20090iEE105199704-199910

main77652-12100iAE101..GCC;CE100,EE10#;AE101..GL,SEG,XL199108-200111

100X60

main77652-12100iAE101..GCC;CE100,EE10#;AE101..GL,SEG,XL199505-199905

60 X 100

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iEE100;AE101,CE100..SED199108-200111

main77652-12110iAE101..CP199108-199505

77681SEAT, FUEL TANK BAND, RH

main77681-12030iAE10#,CE100,EE10#199108-199305

sub77681-32060

main77681-32060iAE10#,CE100,EE10#199305-199704

main77682-12030iAE10#,CE100,EE10#..SED,WG199304-199409

sub77681-32060

77682SEAT, FUEL TANK BAND, LH

main77681-12030iAE10#,CE100,EE10#..SED,WG199203-199305

sub77681-32060

main77681-32060iAE10#,CE100,EE10#199305-199704

main77681-32070iAE101..CP199304-199409

sub77681-32060

main77682-12020iAE10#,EE10#199108-199203

sub77681-32060

8401

9011906347

main90119-06347

9011906398

main90119-06398

9011910252

main90119-10252

9011910700

main90119-10700

9014950057

main90149-50057

9015940155

main90159-40155

9015950153

main90159-50153

9015950219

main90159-50219

9015960500

main90159-60500

9017906264

main90179-06264

9017910186

main90179-10186

9018905130

main90189-05130

9018906028

main90189-06028

9018906174

main90189-06174

9046022002

main90460-22002

9046046003

main90460-46003

9046707130

main90467-07130

9046710049

main90467-10049

9046712056

main90467-12056

9046713061

main90467-13061

9331914008

main93319-14008

59 parts on this diagram · 11 diagrams in section
