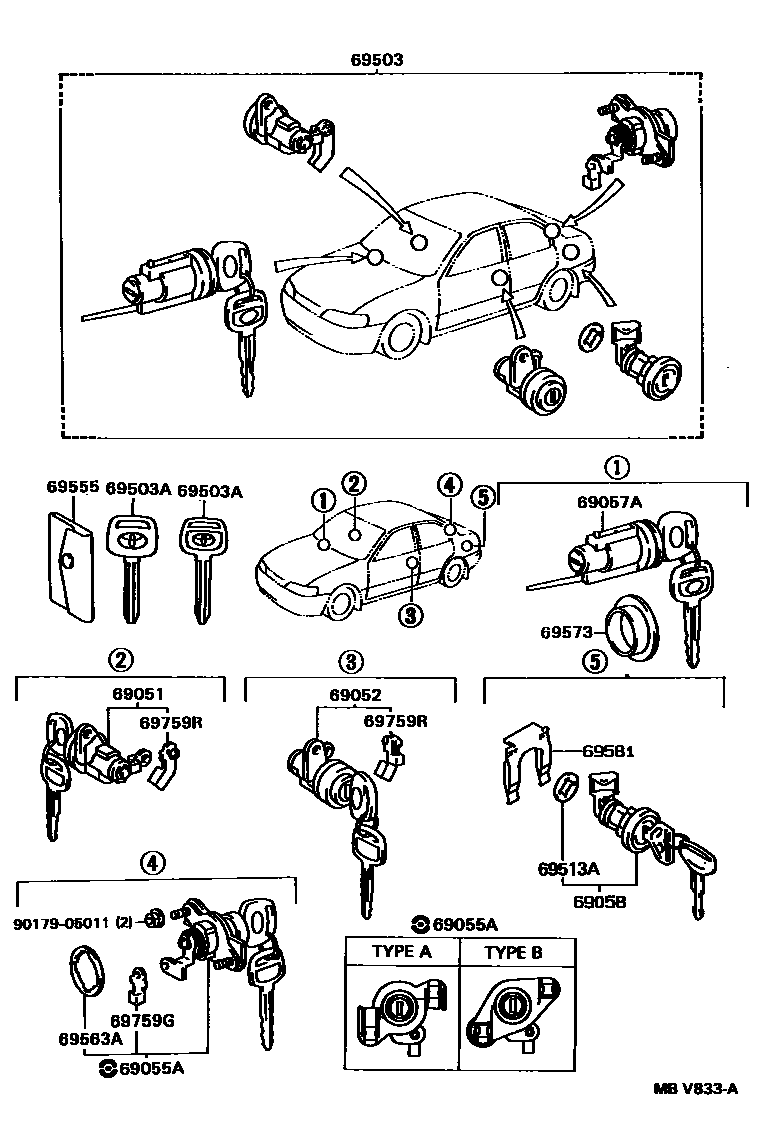

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
TYPE A
W(REAR LICENSE PLATE ON LUGGAGE DOOR PANEL)
W(REAR LICENSE PLATE ON LUGGAGE DOOR PANEL)
main69055-12890iAE101..RHD..SED..XLI;AE101..RHD..4FC..GLI; EE100..LHD..5F..XL..GEN; EE100..RHD..5F..XL; EE100..RHD..GL;AE101..RHD..5F..GLI199505-199511
NEW ZEALAND SPEC OR PAKISTAN SPEC,TYPE B; NEW ZEALAND SPEC,TYPE B; PAKISTAN SPEC,TYPE B; PHILIPPINES SPEC,TYPE B
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69058CYLINDER & KEY SET, FUEL FILLER LID
69503CYLINDER SET, LOCK
PNC 69055A = TYPE A:REFER TO ILLUSTRATION
PNC 69055A = TYPE A:REFER TO ILLUSTRATION
PNC 69055A = TYPE A:REFER TO ILLUSTRATION
PNC 69055A = TYPE B:REFER TO ILLUSTRATION;W(REAR LICENSE PLATE ON LUGGAGE DOOR PANEL)
PNC 69055A = TYPE B:REFER TO ILLUSTRATION;W(REAR LICENSE PLATE ON LUGGAGE DOOR PANEL)
PNC 69055A = TYPE A:REFER TO ILLUSTRATION
PNC 69055A = TYPE B:REFER TO ILLUSTRATION
PNC 69055A = TYPE B:REFER TO ILLUSTRATION
PNC 69055A = TYPE B:REFER TO ILLUSTRATION
PNC 69055A = TYPE B:REFER TO ILLUSTRATION
69503AKEY, BLANK
MASTER KEY,W(*68)
MASTER KEY
SUB KEY
MASTER KEY
MASTER KEY,W(*68)
69513APAD, DOOR CYLINDER
69555COVER, KEY
69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69573PAD, IGNITION SWITCH LOCK CYLINDER
69581RETAINER, FUEL FILLER LID CYLINDER
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
RH
LH
RH
LH
9017905011
main90179-05011
15 parts on this diagram · 4 diagrams in section
