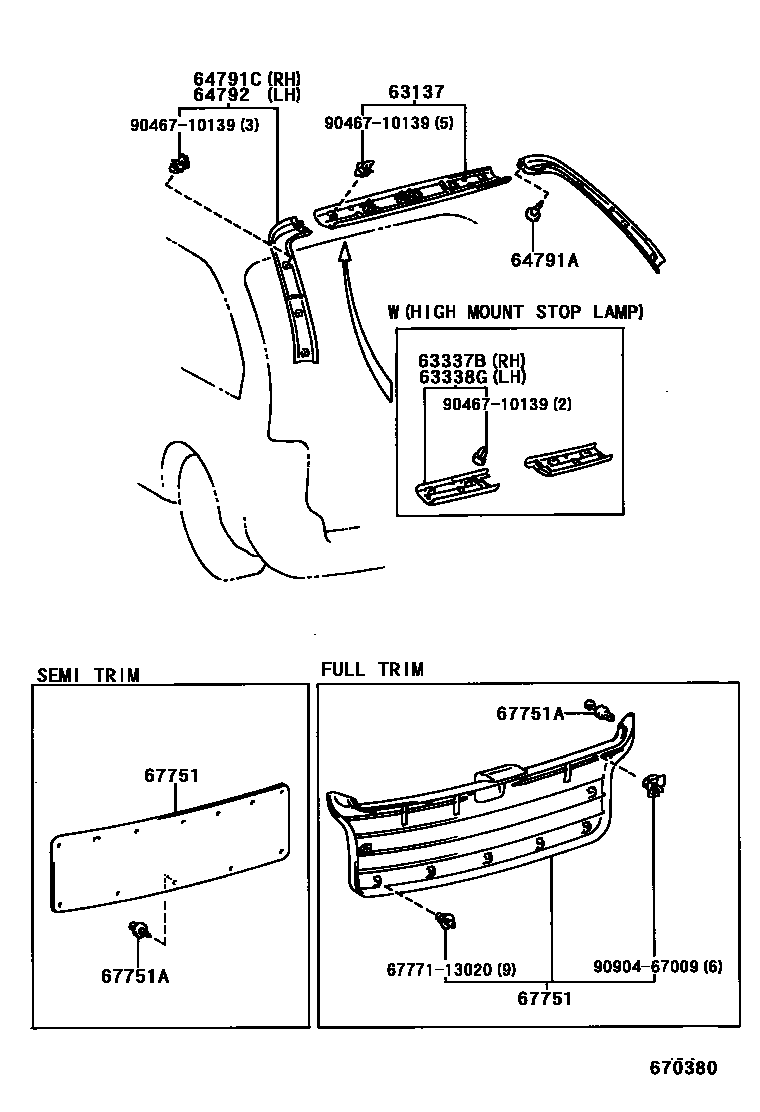

Toyota COROLLA SED/CP/WG151 — BACK DOOR PANEL & GLASS
63137COVER, BACK DOOR OPENING UPPER, INNER
63337BCOVER, BACK DOOR OPENING FRAME, UPPER RH
63338GCOVER, BACK DOOR OPENING FRAME, UPPER LH
64791ACLIP(FOR BACK DOOR TRIM)
64791CCOVER, BACK DOOR TRIM, RH
67751ACLIP(FOR BACK DOOR TRIM BOARD)
6777113020WEATHERSTRIP, BACK DOOR TRIM, RH
9046710139
9090467009
11 parts on this diagram · 2 diagrams in section
BACK DOOR PANEL & GLASS for Toyota COROLLA SED/CP/WG151
This section contains 26 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota COROLLA SED/CP/WG151. Key components include: DAM KIT, BACK WINDOW GLASS ADHESIVE, COVER, BACK DOOR OPENING UPPER, INNER, COVER, BACK DOOR OPENING FRAME, UPPER RH, COVER, BACK DOOR OPENING FRAME, UPPER LH, CLIP(FOR BACK DOOR TRIM).
