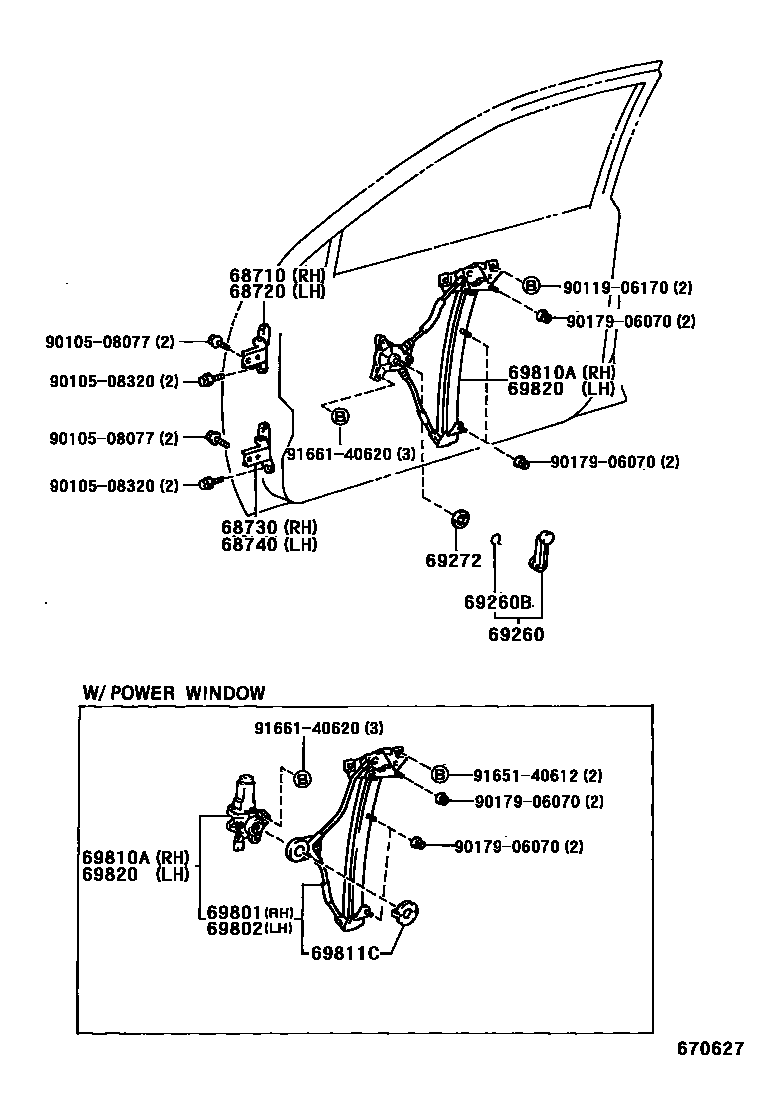

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12130iAE10#,CE100,EE10#199409-199509

main68710-12150iAE10#,CE100,EE10#199704

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12130iAE10#,CE100,EE10#199509-199510

main68720-12150iAE10#,CE100,EE10#199510-199704

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12090iAE10#,CE100,EE10#199108-199409

main68730-12110iAE10#,CE100,EE10#199510-199704

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12090iAE10#,CE100,EE10#199108-199409

main68740-12110iAE10#,CE100,EE10#199704

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-07×2iAE10#,CE100,EE100,101,105..LX,STD,XL,XLI199108-199305

DARK BLUE,TRIM8#

main69260-10040-42×2iEE101199508-199511

TAUPE,TRIM9#

main69260-10040-43×2iAE101,CE100,EE10#..(L,STD,XL,XLI)..(GCC,GEN); EE104199601-199704

GRAY,TRIM1#; W(POWER WINDOW),GRAY,TRIM1#

main69260-10040-P0×2iEE105199704-199705

SHADOW GRAY,TRIM1#

main69260-12080-03×2iAE101,EE100..(GL,GLI)..(GCC,GEN)199108-199704

SHADOW GRAY,TRIM1#

main69260-12080-12×2iAE101..GLI..GCC199505-199508

TAUPE,TRIM9#

main69260-12080-14×2iAE101..LHD..4FC..GEN;AE101..5F..(GL,GLI)..GEN199704-200111

DARK BLUE,TRIM8#

main69260-14030×2iAE101,EE100..WG199712-199905

main69260-14030-53×2iAE101,EE100..(XL,XLI)..TUR199601-199712

SHADOW GRAY,TRIM1#

main69260-14030-J0×2iAE101,EE100..SED..(XL,XLI)..TUR199601-199807

DARK BLUE,TRIM8#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01005×2iAE101,EE100..(GL,GLI)..(GCC,GEN)199108-199704

main90520-01274×2iAE101,CE100,EE10#..L,STD,XL,XLI199509-199704

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iAE100,101,CE100,EE10#..L,LX,STD,XL,XLI199108-199409

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12130iAE101..CP199108-199505

main69801-12140iEE100,104..RHD..(GL,L); EE100..XL;EE100..LHD..GL;AE10#,CE100,EE101..GL,GLI,LX,SEG,XL,XLI199305-199406

W(*PW)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12130iAE101..CP199108-199505

main69802-12140iAE10#,CE100,EE100,101..GL,GLI,LX,SEG,XL,XLI199205-199305

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-02030iAE101..GL,GLI,STD,XL,XLI;AE100,CE100,EE10#..GL,L,LX,STD,XL,XLI199306-199312

(L)

main69810-02031iAE101..GL,GLI,STD,XL,XLI;AE100,CE100,EE10#..GL,L,LX,STD,XL,XLI199312-199402

(L)

main69810-12380iAE101..GL,GLI,STD,XL,XLI;AE100,CE100,EE10#..GL,L,LX,STD,XL,XLI199108-199310

(J)

main69810-12381iAE101..GL,GLI,STD,XL,XLI;AE100,CE100,EE10#..GL,L,LX,STD,XL,XLI199310-199409

(J)

main69810-12382iCE100,EE10#;AE101..GCC,GEN;AE101..XLI..TUR199607-199704

main69810-12390iAE101,CE100,EE100..GEN199704

W(POWER WINDOW)

main69810-12410iAE101..CP199108-199505

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-32040×2iAE10#,EE100..GL,GLI,SEG,XL199108-199205

main69813-32010×2iAE101..CP199108-199505

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-02032iAE101..GL,GLI,STD,XL,XLI;AE100,CE100,EE10#..GL,L,LX,STD,XL,XLI199402-199409

(L)

main69820-12380iAE101..GL,GLI,STD,XL,XLI;AE100,CE100,EE10#..GL,L,LX,STD,XL,XLI199108-199310

(J)

main69820-12381iAE101..XLI..TUR;AE101..(GL,GLI,STD,XL,XLI)..(GCC,GEN);AE100,CE100,EE10#..GL,L,LX,STD,XL,XLI199409-199509

(J)

main69820-12382iCE100,EE10#..XL;AE101..XLI..TUR;AE101..4FC..XLI;AE101..(3FC,5F)..GEN;AE101..LHD..4FC..GEN199704

main69820-12390iAE101..SEG;AE100,102..GLI199108-199409

main69820-12410iAE101..CP199108-199505

9010508077

main90105-08077

9010508320

main90105-08320

9011906170

main90119-06170

9017906070

main90179-06070

9165140612

main91651-40612

9166140620

main91661-40620

18 parts on this diagram · 2 diagrams in section
