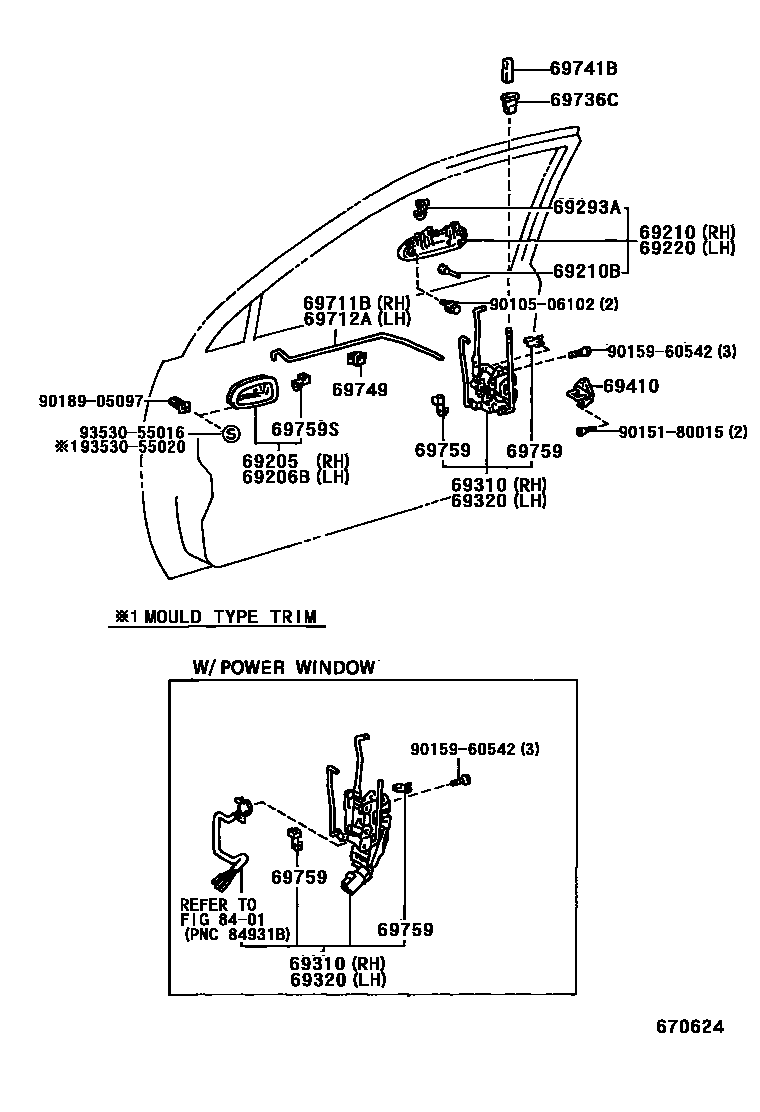

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12130-02iEE100..RHD..GL;AE101..RHD..5F..GLI199305-199505

PAKISTAN SPEC & W(*PW),TAUPE,TRIM9#

sub69205-12130

sub69205-28060

main69205-12130-02iEE101;AE101,EE100..SED..(XL,XLI)..GCC199108-199511

TAUPE,TRIM9#

sub69205-12130

sub69205-28060

main69205-12130-03iAE101..RHD..4FC..GLI199505-200111

NEW ZEALAND SPEC & W(*PW),SHADOW GRAY,TRIM1#

sub69205-12130

sub69205-28060

main69205-12130-03iAE101..GLI..TUR;AE101,CE100,EE100..XL,XLI199108-200111

SHADOW GRAY,TRIM1#

sub69205-12130

sub69205-28060

main69205-12130-03iAE101..RHD..5F..GLI199410-200111

PAKISTAN SPEC,SHADOW GRAY,TRIM1#

sub69205-12130

sub69205-28060

main69205-12130-03iEE100..RHD..GL199305-200111

PAKISTAN SPEC & W(*PW),SHADOW GRAY,TRIM1#

sub69205-12130

sub69205-28060

main69205-12130-04iAE101..RHD..5F..GLI199410-200111

PAKISTAN SPEC,DARK BLUE,TRIM8#

sub69205-12130

sub69205-28060

main69205-12130-04iCE100..LHD;AE101,EE100..SED..TUR;AE101,EE100,101..(STD,XL,XLI)..(GCC,GEN)199108-200111

DARK BLUE,TRIM8#

sub69205-12130

sub69205-28060

main69205-12130-04iEE100..RHD..GL199305-200111

PAKISTAN SPEC & W(*PW),DARK BLUE,TRIM8#

sub69205-12130

sub69205-28060

main69205-12130-04iAE101..RHD..4FC..GLI199505-200111

NEW ZEALAND SPEC & W(*PW),DARK BLUE,TRIM8#

sub69205-12130

sub69205-28060

main69205-12130-P0iEE105199704-199910

SHADOW GRAY,TRIM1#

sub69205-12130

sub69205-28060

main69205-12140iEE100..LHD..GEN;AE101..(XL,XLI)..GEN199709-199805

W(POWER WINDOW)

main69205-12140-02iAE101..SEG;AE101..GLI..GCC199108-199511

W(POWER WINDOW),TAUPE,TRIM9#

sub69205-12140

main69205-12140-02iAE101..SEG;AE101..GLI..GCC199505-199510

TAUPE,TRIM9#

sub69205-12140

main69205-12140-03iAE10#,CE100,EE100,101..(GL,GLI,SEG,XL,XLI)..(GCC,GEN)199108-199608

W(POWER WINDOW),SHADOW GRAY,TRIM1#

sub69205-12140

main69205-12140-04iAE102,CE100..LHD;AE101,EE100,101..(GL,GLI,XL,XLI)..(GCC,GEN)199108-199608

W(POWER WINDOW),DARK BLUE,TRIM8#

sub69205-12140

main69205-12140-P0iAE10#,CE100,EE100..(3FC,4FC,5F)..(GCC,GEN)199608-200111

W(POWER WINDOW),SHADOW GRAY,TRIM1#

sub69205-12140

main69205-12140-W3iCE100..LHD;AE10#,EE100..(3FC,4FC,5F)..(GCC,GEN)199608-199805

W(POWER WINDOW),DARK BLUE,TRIM8#

sub69205-12140

main69205-12150-01iAE101..SJ199108-199305

BLACK,TRIM20,21,22

sub69205-12150

main69205-12150-01iAE101..CP199305-199505

BLACK,TRIM2#

sub69205-12150

main69205-12150-01iAE101..SJ199108-199305

BLACK,TRIM2#,20,21,22

sub69205-12150

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12130-02iAE101..GLI..TUR;AE100,101,CE100,EE100,101..SED..(LX,STD,XL,XLI)199108-199511

TAUPE,TRIM9#

sub69206-12130

sub69206-28070

main69206-12130-02iEE100..RHD..GL199305-199505

PAKISTAN SPEC & W(*PW),TAUPE,TRIM9#

sub69206-12130

sub69206-28070

main69206-12130-03iAE101..GLI..TUR;AE100,101,CE100,EE10#..L,LX,STD,XL,XLI199108-200111

SHADOW GRAY,TRIM1#

sub69206-12130

sub69206-28070

main69206-12130-03iAE101..RHD..5F..GLI199410-200111

PAKISTAN SPEC,SHADOW GRAY,TRIM1#

sub69206-12130

sub69206-28070

main69206-12130-03iAE101..RHD..4FC..GLI199505-200111

NEW ZEALAND SPEC & W(*PW),SHADOW GRAY,TRIM1#

sub69206-12130

sub69206-28070

main69206-12130-03iEE100..RHD..GL199305-200111

PAKISTAN SPEC & W(*PW),SHADOW GRAY,TRIM1#

sub69206-12130

sub69206-28070

main69206-12130-04iAE101,CE100,EE100,101,105..STD,XL,XLI199108-200111

DARK BLUE,TRIM8#

sub69206-12130

sub69206-28070

main69206-12130-04iAE101..RHD..4FC..GLI199505-200111

NEW ZEALAND SPEC & W(*PW),DARK BLUE,TRIM8#

sub69206-12130

sub69206-28070

main69206-12130-04iEE100..RHD..GL199305-200111

PAKISTAN SPEC & W(*PW),DARK BLUE,TRIM8#

sub69206-12130

sub69206-28070

main69206-12130-04iAE101..RHD..5F..GLI199410-200111

PAKISTAN SPEC,DARK BLUE,TRIM8#

sub69206-12130

sub69206-28070

main69206-12130-P0iEE105199704-199910

SHADOW GRAY,TRIM1#

sub69206-12130

sub69206-28070

main69206-12140iEE100..LHD..GEN;AE101..(XL,XLI)..GEN199709-199805

W(POWER WINDOW)

main69206-12140-02iEE101199108-199511

W(POWER WINDOW),TAUPE,TRIM9#

sub69206-12140

main69206-12140-02iAE101..SEG;AE101..GLI..GCC199505-199510

TAUPE,TRIM9#

sub69206-12140

main69206-12140-03iAE10#,CE100,EE100,101..GL,GLI,LX,SEG,XL,XLI199108-199608

W(POWER WINDOW),SHADOW GRAY,TRIM1#

sub69206-12140

main69206-12140-04iAE102,CE100..LHD;AE101,EE100,101..(GL,GLI,XL,XLI)..(GCC,GEN)199108-199608

W(POWER WINDOW),DARK BLUE,TRIM8#

sub69206-12140

main69206-12140-P0iAE101..4FC..XLI;AE101..(3FC,5F)..GEN;AE101..LHD..4FC..GEN;AE102,CE100,EE100..(GLI,XL)..GEN199608-200111

W(POWER WINDOW),SHADOW GRAY,TRIM1#

sub69206-12140

main69206-12140-W3iCE100..LHD;AE10#,EE100..(3FC,4FC,5F)..(GCC,GEN)199608-199805

W(POWER WINDOW),DARK BLUE,TRIM8#

sub69206-12140

main69206-12150-01iAE101..SJ199108-199305

BLACK,TRIM2#,20,21,22

sub69206-12150

main69206-12150-01iAE101..SJ199108-199305

BLACK,TRIM20,21,22

sub69206-12150

main69206-12150-01iAE101..CP199305-199505

BLACK,TRIM2#

sub69206-12150

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-02010iEE105199704-199910

(L)

main69210-12160iAE10#,CE100,EE100199305-200111

main69210-12160iEE105199704-199910

(J)

main69210-12160iAE101..SEG199108-199510

BLACK TYPE

main69210-12170-01iAE101..CP199108-199210

BLACK M,205

sub69210-12170

main69210-12170-03iAE100..LX199110-199505

LX LIMITED,DARK BLUEISH GRAY M,183

sub69210-12170

main69210-12170-03iAE101..SEG199108-199510

DARK BLUEISH GRAY M,183

sub69210-12170

main69210-12170-03iAE101,102,EE100..(GL,GLI)..GEN199108-199505

COLORED TYPE,DARK BLUEISH GRAY M,183

sub69210-12170

main69210-12170-04iAE101,EE100..(GL,GLI)..GEN199108-199210

COLORED TYPE,DARK BLUE MICA M,8J7

sub69210-12170

main69210-12170-04iAE100..GLI;AE101..SEG;AE101..GLI..GCC199108-199210

DARK BLUE MICA M,8J7

sub69210-12170

main69210-12170-04iAE100..LX199110-199210

LX LIMITED,DARK BLUE MICA M,8J7

sub69210-12170

main69210-12170-05iAE101,EE100..(GL,GLI)..GEN199108-199210

COLORED TYPE,LIGHT BEIGE M,3K9

sub69210-12170

main69210-12170-05iAE100..GLI;AE101..SEG;AE101..GLI..GCC199108-199210

LIGHT BEIGE M,3K9

sub69210-12170

main69210-12170-05iAE100..LX199110-199210

LX LIMITED,LIGHT BEIGE M,3K9

sub69210-12170

main69210-12170-07iAE100..GLI;AE101..SEG;AE101..GLI..GCC199205-199305

GRAYISH GREEN M,28V ,6M3

sub69210-12170

main69210-12170-07iAE100..GLI;AE101..GTAPX,SEG,SJ199108-199510

GRAYISH GREEN M,6M3

sub69210-12170

main69210-12170-07iAE101,102,EE100..(GL,GLI)..GEN199108-199505

COLORED TYPE,GRAYISH GREEN M,6M3

sub69210-12170

main69210-12170-07iAE100..LX199110-199505

LX LIMITED,GRAYISH GREEN M,6M3

sub69210-12170

main69210-12170-08iAE100..LX199110-199210

LX LIMITED,SUPER WHITE 2,040

sub69210-12170

main69210-12170-08iAE101,EE100..(GL,GLI)..GEN199108-199210

COLORED TYPE,SUPER WHITE 2,040

sub69210-12170

main69210-12170-08iAE100..GLI;AE101..GLI..GCC;AE101..GTAPX,SEG,SJ199108-199210

SUPER WHITE 2,040

sub69210-12170

main69210-12170-13iAE100..GLI;AE101..GLI..GCC;AE101..GTAPX,SEG,SJ199205-199210

LX LIMITED,SILVER MICA M,192

sub69210-12170

main69210-12170-13iAE100..GLI;AE101..GLI..GCC;AE101..GTAPX,SEG,SJ199108-199210

SILVER MICA M,192

sub69210-12170

main69210-12170-13iAE101,EE100..(GL,GLI)..GEN199108-199210

COLORED TYPE,SILVER MICA M,192

sub69210-12170

main69210-12170-17iAE101..CP199108-199205

LIGHT AQUA M.OPAL,748

sub69210-12170

main69210-12170-22iAE101..SEG;AE101..GLI..GCC199108-199210

ROSE MICA M.GRAPHITE,3K5

sub69210-12170

main69210-12170-22iAE101,EE100..(GL,GLI)..GEN199108-199210

COLORED TYPE,ROSE MICA M.GRAPHITE,3K5

sub69210-12170

main69210-12170-22iAE100..LX199110-199205

LX LIMITED,ROSE MICA M.GRAPHITE,3K5

sub69210-12170

main69210-12170-32iAE101..CP199108-199305

LAVENDER MICA M,925

sub69210-12170

main69210-12170-34iAE101,EE100..(GL,GLI)..GEN199108-199209

COLORED TYPE,RED MICA M,3K4

sub69210-12170

main69210-12170-34iAE100..GLI;AE101..GLI..GCC;AE101..GTAPX,SEG,SJ199108-199209

RED MICA M,3K4

sub69210-12170

main69210-12170-34iAE100..LX199110-199209

LX LIMITED,RED MICA M,3K4

sub69210-12170

main69210-12170-A0iAE100..GLI;AE101..GLI..GCC;AE101..GTAPX,SEG,SJ199210-199612

COLORED TYPE,SUPER WHITE 2,040

sub69210-12170

main69210-12170-A0iAE101,102,EE100..(GL,GLI)..GEN199210-199612

SUPER WHITE 2,040

sub69210-12170

main69210-12170-A0iAE100..LX199210-199505

LX LIMITED,SUPER WHITE 2,040

sub69210-12170

main69210-12170-B0iAE100..LX199210-199505

LX LIMITED,SILVER MICA M,192

sub69210-12170

main69210-12170-B0iAE101,102,EE100..(GL,GLI)..GEN199210-199505

COLORED TYPE,SILVER MICA M,192

sub69210-12170

main69210-12170-B0iAE101..SEG199210-199510

SILVER MICA M,192

sub69210-12170

main69210-12170-B4iAE10#,EE100..(GL,GLI)..GEN199505-199612

COLORED TYPE,BLUEISH GRAY ME.,182

sub69210-12170

main69210-12170-B4iAE101..GLI..GCC199508-199612

BLUEISH GRAY ME.,182

sub69210-12170

main69210-12170-B5iAE10#,EE100..(GL,GLI)..GEN199605-199612

COLORED TYPE,SILVER ME,199

sub69210-12170

main69210-12170-B5iAE101..GLI..GCC199608-199612

SILVER ME,199

sub69210-12170

main69210-12170-C0iAE101..RHD..GLI199303-199304

THAILAND,BLACK METALLIC,205

sub69210-12170

main69210-12170-C0iAE101..CP199210-199505

BLACK METALLIC,205

sub69210-12170

main69210-12170-D0iAE101..GL;EE100..LHD..GL;AE101..LHD..GLI..GEN199205-199612

COLORED TYPE,SUPER RED 2,3E5

sub69210-12170

main69210-12170-D0iAE101..GLI..GCC199207-199612

SUPER RED 2,3E5

sub69210-12170

main69210-12170-D2iAE100..GLI;AE101..GLI..GCC;AE101..GTAPX,SEG,SJ199209-199612

RED MICA ME,3K4

sub69210-12170

main69210-12170-D2iAE100..GLI;AE101..GLI..GCC;AE101..GTAPX,SEG,SJ199209-199305

LX LIMITED,RED MICA ME,3K4

sub69210-12170

main69210-12170-D2iAE101,102,EE100..(GL,GLI)..GEN199209-199612

COLORED TYPE,RED MICA ME,3K4

sub69210-12170

main69210-12170-D3iAE101..SEG;AE101..GLI..GCC199210-199308

ROSE GRAPHITE MI ME,3K5

sub69210-12170

main69210-12170-D3iAE101..SEG;AE101..GLI..GCC199210-199305

COLORED TYPE,ROSE GRAPHITE MI ME,3K5

sub69210-12170

main69210-12170-D4iAE101,102,EE100..(GL,GLI)..GEN199210-199505

LX LIMITED,LT BEIGE ME,3K9

sub69210-12170

main69210-12170-D4iAE101,102,EE100..(GL,GLI)..GEN199210-199505

COLORED TYPE,LT BEIGE ME,3K9

sub69210-12170

main69210-12170-D4iAE100..GLI;AE101..SEG;AE101..GLI..GCC199210-199508

LT BEIGE ME,3K9

sub69210-12170

main69210-12170-G1iAE101..CP199305-199505

DARK GREEN MICA,20W

sub69210-12170

main69210-12170-G2iAE100;AE101..SEG199305-199510

MD GRAISHGREEN MC.GR,6N1

sub69210-12170

main69210-12170-G2iAE101,102,EE100..(GL,GLI)..GEN199305-199505

COLORED TYPE,MD GRAISHGREEN MC.GR,6N1

sub69210-12170

main69210-12170-G9iAE10#,EE100..(GL,GLI)..GEN199505-199611

COLORED TYPE,MD. GREEN M.M.,6P0

sub69210-12170

main69210-12170-G9iAE101..GLI..GCC199508-199611

MD. GREEN M.M.,6P0

sub69210-12170

main69210-12170-H2iAE10#,EE100..(GL,GLI)..GEN199505-199612

COLORED TYPE,TURQUOISE M.M.,746

sub69210-12170

main69210-12170-H2iAE101..GLI..GCC199508-199612

TURQUOISE M.M.,746

sub69210-12170

main69210-12170-J0iAE101..SEG;AE101..GLI..GCC199305-199405

LIGHT BLUE M M,8J6

sub69210-12170

main69210-12170-J0iAE101,102,EE100..(GL,GLI)..GEN199305-199405

COLORED TYPE,LIGHT BLUE M M,8J6

sub69210-12170

main69210-12170-J1iAE100..GLI;AE101..SEG;AE101..GLI..GCC199210-199405

DARK BLUE MICA M,8J7

sub69210-12170

main69210-12170-J1iAE101,102,EE100..(GL,GLI)..GEN199210-199405

COLORED TYPE,DARK BLUE MICA M,8J7

sub69210-12170

main69210-12170-J1iAE100..LX199210-199305

LX LIMITED,DARK BLUE MICA M,8J7

sub69210-12170

main69210-12170-J4iAE101,102,EE100..(GL,GLI)..GEN199405-199505

COLORED TYPE,DARK BLUE MICA M,8G5

sub69210-12170

main69210-12170-J4iAE100;AE101..SEG;AE101..GLI..GCC199305-199510

DARK BLUE MICA M,8G5

sub69210-12170

main69210-12170-J4iAE101..CP199305-199505

DARK BLUE MICA M,23V

sub69210-12170

main69210-12170-J5iAE101..GLI..GCC199508-199608

LT PURPLISH BLUE M.M,8K1

sub69210-12170

main69210-12170-J5iAE10#,EE100..(GL,GLI)..GEN199505-199605

COLORED TYPE,LT PURPLISH BLUE M.M,8K1

sub69210-12170

main69210-12170-J7iAE10#,EE100..(GL,GLI)..GEN199505-199612

COLORED TYPE,DARK BLUE MC.,8K8

sub69210-12170

main69210-12170-J7iAE101..GLI..GCC199508-199612

DARK BLUE MC.,8K8

sub69210-12170

main69210-12170-J9iAE101..GLI..GCC199608-199612

STRONG BLUE M,8B6

sub69210-12170

main69210-12170-J9iAE10#,EE100..(GL,GLI)..GEN199605-199612

COLORED TYPE,STRONG BLUE M,8B6

sub69210-12170

main69210-12170-Q3iAE10#,EE100..(4FC,5F)..(GL,GLI)..GEN199611-199612

GREEN MC.,6P6

sub69210-12170

main69210-12170-Q3iAE101..GLI..GCC199611-199612

COLORED TYPE,GREEN MC.,6P6

sub69210-12170

main69210-12270-A0iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

SUPER WHITE 2,040

sub69210-12270

main69210-12270-B0iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

SILVER ME,199

sub69210-12270

main69210-12270-B1iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

BLUISH GRAY ME,182

sub69210-12270

main69210-12270-D0iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

RED MM,3K4

sub69210-12270

main69210-12270-D2iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

SUPER RED 2,3E5

sub69210-12270

main69210-12270-G3iAE10#,EE100..(4FC,5F)..(GL,GLI)..(GCC,GEN)199612-200111

GREEN MC.,6P6

sub69210-12270

main69210-12270-H0iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

TURQUOISE M.M.,746

sub69210-12270

main69210-12270-J2iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

DK.BLUE MC.,8K8

sub69210-12270

main69210-12270-J3iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

STRONG BLUE M.,8B6

sub69210-12270

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90080-54005iEE105199704-199910

(L)

main90541-04014iAE10#,CE100,EE10#199108-199704

main90541-04014iEE105199704-199910

(J)

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-02010iEE105199704-199910

(L)

main69220-12160iAE100,101..LX,SEG199108-199510

BLACK TYPE

main69220-12160iAE10#,CE100,EE100199305-200111

main69220-12160iEE105199704-199910

(J)

main69220-12170-01iAE101..CP199109-199210

BLACK M,205

sub69220-12170

main69220-12170-03iAE100..LX199110-199505

LX LIMITED,DARK BLUEISH GRAY M,183

sub69220-12170

main69220-12170-03iAE100..GLI;AE101..SEG;AE101..GLI..GCC199108-199510

DARK BLUEISH GRAY M,183

sub69220-12170

main69220-12170-03iAE101,102,EE100..(GL,GLI)..GEN199108-199505

COLORED TYPE,DARK BLUEISH GRAY M,183

sub69220-12170

main69220-12170-04iAE101,EE100..(GL,GLI)..GEN199108-199210

COLORED TYPE,DARK BLUE MICA M,8J7

sub69220-12170

main69220-12170-04iAE100..GLI;AE101..SEG;AE101..GLI..GCC199108-199210

DARK BLUE MICA M,8J7

sub69220-12170

main69220-12170-04iAE100..LX199110-199210

LX LIMITED,DARK BLUE MICA M,8J7

sub69220-12170

main69220-12170-05iAE101,EE100..(GL,GLI)..GEN199108-199210

LIGHT BEIGE M,3K9

sub69220-12170

main69220-12170-05iAE101,EE100..(GL,GLI)..GEN199108-199210

COLORED TYPE,LIGHT BEIGE M,3K9

sub69220-12170

main69220-12170-05iAE100..LX199110-199210

LX LIMITED,LIGHT BEIGE M,3K9

sub69220-12170

main69220-12170-07iAE101..SEG199108-199510

GRAYISH GREEN M,6M3

sub69220-12170

main69220-12170-07iAE101..CP199205-199305

GRAYISH GREEN M,28V ,6M3

sub69220-12170

main69220-12170-07iAE101,102,EE100..(GL,GLI)..GEN199108-199505

COLORED TYPE,GRAYISH GREEN M,6M3

sub69220-12170

main69220-12170-07iAE100..LX199110-199505

LX LIMITED,GRAYISH GREEN M,6M3

sub69220-12170

main69220-12170-08iAE100..LX199110-199210

LX LIMITED,SUPER WHITE 2,040

sub69220-12170

main69220-12170-08iAE100..GLI;AE101..SEG199108-199210

SUPER WHITE 2,040

sub69220-12170

main69220-12170-08iAE101,EE100..(GL,GLI)..GEN199108-199210

COLORED TYPE,SUPER WHITE 2,040

sub69220-12170

main69220-12170-13iAE100..LX199205-199210

LX LIMITED,SILVER MICA M,192

sub69220-12170

main69220-12170-13iAE101..SEG199108-199210

SILVER MICA M,192

sub69220-12170

main69220-12170-13iAE101,EE100..(GL,GLI)..GEN199108-199210

COLORED TYPE,SILVER MICA M,192

sub69220-12170

main69220-12170-17iAE101..CP199109-199205

LIGHT AQUA M.OPAL,748

sub69220-12170

main69220-12170-22iAE100..LX199110-199205

LX LIMITED,ROSE MICA M.GRAPHITE,3K5

sub69220-12170

main69220-12170-22iAE101..SEG;AE101..GLI..GCC199108-199210

ROSE MICA M.GRAPHITE,3K5

sub69220-12170

main69220-12170-22iAE101,EE100..(GL,GLI)..GEN199108-199210

COLORED TYPE,ROSE MICA M.GRAPHITE,3K5

sub69220-12170

main69220-12170-32iAE101..CP199109-199305

LAVENDER MICA M,925

sub69220-12170

main69220-12170-34iAE100..LX199110-199209

LX LIMITED,RED MICA M,3K4

sub69220-12170

main69220-12170-34iAE100..GLI;AE101..SEG199108-199209

RED MICA M,3K4

sub69220-12170

main69220-12170-34iAE101,EE100..(GL,GLI)..GEN199108-199209

COLORED TYPE,RED MICA M,3K4

sub69220-12170

main69220-12170-A0iAE101,102,EE100..(GL,GLI)..GEN199210-199612

SUPER WHITE 2,040

sub69220-12170

main69220-12170-A0iAE100..GLI;AE101..GLI..GCC;AE101..GTAPX,SEG,SJ199210-199612

COLORED TYPE,SUPER WHITE 2,040

sub69220-12170

main69220-12170-A0iAE100..LX199210-199505

LX LIMITED,SUPER WHITE 2,040

sub69220-12170

main69220-12170-B0iAE101,102,EE100..(GL,GLI)..GEN199210-199505

COLORED TYPE,SILVER MICA M,192

sub69220-12170

main69220-12170-B0iAE100..LX199210-199505

LX LIMITED,SILVER MICA M,192

sub69220-12170

main69220-12170-B0iAE100..GLI;AE101..GLI..GCC;AE101..GTAPX,SEG,SJ199210-199510

SILVER MICA M,192

sub69220-12170

main69220-12170-B4iAE101..GLI..GCC199508-199612

BLUEISH GRAY ME.,182

sub69220-12170

main69220-12170-B4iAE10#,EE100..(GL,GLI)..GEN199505-199612

COLORED TYPE,BLUEISH GRAY ME.,182

sub69220-12170

main69220-12170-B6iAE10#,EE100..(GL,GLI)..GEN199605-199612

COLORED TYPE,SILVER ME,199

sub69220-12170

main69220-12170-B6iAE101..GLI..GCC199608-199612

SILVER ME,199

sub69220-12170

main69220-12170-C0iAE101..CP199210-199505

BLACK METALLIC,205

sub69220-12170

main69220-12170-C0iAE101..RHD..GLI199303-199304

THAILAND,BLACK METALLIC,205

sub69220-12170

main69220-12170-D0iAE101,102,EE100..(GL,GLI)..GEN199207-199612

SUPER RED 2,3E5

sub69220-12170

main69220-12170-D0iAE101..SEG;AE101..GLI..GCC199205-199612

COLORED TYPE,SUPER RED 2,3E5

sub69220-12170

main69220-12170-D2iAE100..GLI;AE101..GLI..GCC;AE101..GTAPX,SEG,SJ199209-199612

RED MICA ME,3K4

sub69220-12170

main69220-12170-D2iAE100..LX199209-199305

LX LIMITED,RED MICA ME,3K4

sub69220-12170

main69220-12170-D2iAE101,102,EE100..(GL,GLI)..GEN199209-199612

COLORED TYPE,RED MICA ME,3K4

sub69220-12170

main69220-12170-D3iAE101,EE100..(GL,GLI)..GEN199210-199308

ROSE GRAPHITE MI ME,3K5

sub69220-12170

main69220-12170-D3iAE101,EE100..(GL,GLI)..GEN199210-199305

COLORED TYPE,ROSE GRAPHITE MI ME,3K5

sub69220-12170

main69220-12170-D4iAE101,102,EE100..(GL,GLI)..GEN199210-199505

LX LIMITED,LT BEIGE ME,3K9

sub69220-12170

main69220-12170-D4iAE100..LX199210-199505

COLORED TYPE,LT BEIGE ME,3K9

sub69220-12170

main69220-12170-D4iAE100..GLI;AE101..SEG;AE101..GLI..GCC199210-199508

LT BEIGE ME,3K9

sub69220-12170

main69220-12170-G1iAE101..CP199305-199505

DARK GREEN MICA,20W

sub69220-12170

main69220-12170-G2iAE101..SEG199305-199510

MD GRAISHGREEN MC.GR,6N1

sub69220-12170

main69220-12170-G2iAE101,102,EE100..(GL,GLI)..GEN199305-199505

COLORED TYPE,MD GRAISHGREEN MC.GR,6N1

sub69220-12170

main69220-12170-G9iAE10#,EE100..(GL,GLI)..GEN199505-199611

COLORED TYPE,MD. GREEN M.M.,6P0

sub69220-12170

main69220-12170-G9iAE101..GLI..GCC199508-199611

MD. GREEN M.M.,6P0

sub69220-12170

main69220-12170-H2iAE10#,EE100..(GL,GLI)..GEN199505-199612

COLORED TYPE,TURQUOISE M.M.,746

sub69220-12170

main69220-12170-H2iAE101..GLI..GCC199508-199612

TURQUOISE M.M.,746

sub69220-12170

main69220-12170-J0iAE101,102,EE100..(GL,GLI)..GEN199305-199405

COLORED TYPE,LIGHT BLUE M M,8J6

sub69220-12170

main69220-12170-J0iAE101..SEG199305-199405

LIGHT BLUE M M,8J6

sub69220-12170

main69220-12170-J1iAE101,102,EE100..(GL,GLI)..GEN199210-199405

COLORED TYPE,DARK BLUE MICA M,8J7

sub69220-12170

main69220-12170-J1iAE100..GLI;AE101..SEG;AE101..GLI..GCC199210-199405

DARK BLUE MICA M,8J7

sub69220-12170

main69220-12170-J1iAE100..GLI;AE101..SEG;AE101..GLI..GCC199210-199305

LX LIMITED,DARK BLUE MICA M,8J7

sub69220-12170

main69220-12170-J4iAE100199305-199510

DARK BLUE MICA M.,8G5

sub69220-12170

main69220-12170-J4iAE101..CP199305-199505

DARK BLUE MICA M.,23V

sub69220-12170

main69220-12170-J4iAE101,102,EE100..(GL,GLI)..GEN199405-199505

COLORED TYPE,DARK BLUE MICA M.,8G5

sub69220-12170

main69220-12170-J5iAE10#,EE100..(GL,GLI)..GEN199505-199605

COLORED TYPE,LT PURPLISH BLUE M.M,8K1

sub69220-12170

main69220-12170-J5iAE101..GLI..GCC199508-199608

LT PURPLISH BLUE M.M,8K1

sub69220-12170

main69220-12170-J7iAE101..GLI..GCC199508-199612

DARK BLUE MC.,8K8

sub69220-12170

main69220-12170-J7iAE10#,EE100..(GL,GLI)..GEN199505-199612

COLORED TYPE,DARK BLUE MC.,8K8

sub69220-12170

main69220-12170-J9iAE101..GLI..GCC199608-199612

STRONG BLUE M,8B6

sub69220-12170

main69220-12170-J9iAE10#,EE100..(GL,GLI)..GEN199605-199612

COLORED TYPE,STRONG BLUE M,8B6

sub69220-12170

main69220-12170-Q3iAE101..GLI..GCC199611-199612

GREEN MC.,6P6

sub69220-12170

main69220-12170-Q3iAE10#,EE100..(4FC,5F)..(GL,GLI)..GEN199611-199612

COLORED TYPE,GREEN MC.,6P6

sub69220-12170

main69220-12270-A0iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

SUPER WHITE 2,040

sub69220-12270

main69220-12270-B0iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

SILVER ME,199

sub69220-12270

main69220-12270-B1iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

BLUISH GRAY ME,182

sub69220-12270

main69220-12270-D0iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

RED MM,3K4

sub69220-12270

main69220-12270-D2iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

SUPER RED 2,3E5

sub69220-12270

main69220-12270-G3iAE10#,EE100..(4FC,5F)..(GL,GLI)..(GCC,GEN)199612-200111

GREEN MC.,6P6

sub69220-12270

main69220-12270-H0iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

TURQUOISE M.M.,746

sub69220-12270

main69220-12270-J2iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

DK.BLUE MC.,8K8

sub69220-12270

main69220-12270-J3iAE10#,EE100..(GL,GLI)..(GCC,GEN)199612-200111

STRONG BLUE M.,8B6

sub69220-12270

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-01050iEE105199704-199910

(L),RH

main69293-01060iEE105199704-199910

(L),LH

main69293-12030iAE10#,CE100,EE10#199509-199704

(J),RH

main69293-12030iAE10#,CE100,EE10#199108-199509

RH

main69293-12040iAE10#,CE100,EE10#199509-199704

(J),LH

main69293-12040iAE10#,CE100,EE10#199108-199509

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-12190iAE100..LX199205-199307

W(*PW)

sub69030-12191

main69030-12190iAE100..GLI199108-199307

sub69030-12191

main69030-12191iAE100..GLI199307-199309

W(*PW)

main69030-12192iAE100..LX199309-199402

W(*PW)

main69030-12193iAE100..LX199402-199505

W(*PW)

sub69030-12195

main69030-12200iAE101,EE100,101..RHD..(GL,GLI,XL,XLI)199108-199307

W(*EL)

sub69030-12201

main69030-12201iAE101,EE100,101..RHD..(GL,GLI,XL,XLI)199307-199309

W(*EL)

main69030-12202iAE101,EE100,101..RHD..(GL,GLI,XL,XLI)199309-199402

W(*EL)

main69030-12203iAE101..SEG199402-199509

W(*EL)

sub69030-12205

main69030-12205iAE101,CE100,EE100,101..RHD..(GL,GLI,XL,XLI)199509-199704

W(*EL)

main69030-12205iAE101..SEG199509-199510

main69030-12210iAE101..CP199108-199505

main69030-12260iAE101,CE100,EE100..LHD..(GL,GLI,XL,XLI)199205-199307

W(*EL)

sub69030-12261

main69030-12261iAE101,CE100,EE100..LHD..(GL,GLI,XL,XLI)199307-199309

W(*EL)

main69030-12262iAE101,CE100,EE100..LHD..(GL,GLI,XL,XLI)199309-199402

W(*EL)

main69030-12263iAE101,EE100..TUR199409-199905

main69030-12263iAE101,CE100,EE100..LHD..(GL,GLI,XL,XLI)..(GCC,GEN)199402-199805

W(*EL)

main69030-12302iAE102199309-199402

main69030-12303iAE102199402-199805

main69310-12440iAE100,EE104,108..L,LX199108-199704

main69310-12450iAE101,CE100,EE100,101,105..(GL,GLI,STD,XL,XLI)..(GCC,GEN)199108-199704

69320LOCK ASSY, FRONT DOOR, LH

main69040-12190iAE100..LX199205-199307

W(*PW)

sub69040-12191

main69040-12191iAE100..LX199307-199309

W(*PW)

main69040-12192iAE100..LX199309-199402

W(*PW)

main69040-12193iAE100..LX199402-199505

W(*PW)

main69040-12200iAE100..GLI199108-199307

sub69040-12201

main69040-12201iAE100..GLI199307-199309

main69040-12202iAE100..GLI199309-199402

main69040-12203iAE100..GLI199402-199505

main69040-12210iAE101,EE100,101..RHD..(GL,GLI,XL,XLI)199108-199307

W(*EL)

sub69040-12211

main69040-12211iAE101,EE100,101..RHD..(GL,GLI,XL,XLI)199307-199309

W(*EL)

main69040-12212iAE101,EE100,101..RHD..(GL,GLI,XL,XLI)199309-199402

W(*EL)

main69040-12213iAE101..SEG199402-199510

main69040-12213iAE101,CE100,EE100,101..RHD..(GL,GLI,XL,XLI)199402-199704

W(*EL)

main69040-12220iAE101..CP199108-199505

main69040-12260iAE101,CE100,EE100..LHD..(GL,GLI,XL,XLI)199205-199307

W(*EL)

sub69040-12261

main69040-12261iAE101,CE100,EE100..LHD..(GL,GLI,XL,XLI)199307-199309

W(*EL)

main69040-12262iAE101,CE100,EE100..LHD..(GL,GLI,XL,XLI)199309-199402

W(*EL)

main69040-12263iAE101,EE100..TUR199409-199905

main69040-12263iAE101,CE100,EE100..LHD..(GL,GLI,XL,XLI)..(GCC,GEN)199402-199805

W(*EL)

main69040-12312iAE102199309-199402

main69040-12313iAE102199402-199805

main69320-12450iAE100,EE104,108..L,LX199108-199704

main69320-12460iAE101,CE100,EE100,101,105..(GL,GLI,STD,XL,XLI)..(GCC,GEN)199108-199704

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-16010iAE101..CP199305-199505

main69410-20070iAE10#,CE100,EE10#..SED,WG199108-199305

main69410-20080iAE101..CP199108-199305

main69410-87001iAE10#,CE100,EE10#..SED,WG199305-199704

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-12130iAE10#,CE100,EE10#..SED,WG199108-199704

main69711-12140iAE101..CP199108-199505

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-12140iAE10#,CE100,EE10#199108-199704

main69712-12150iAE101..CP199108-199505

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12100iEE105..XL;AE10#,CE100,EE100,101199108-199704

main69736-12100iEE108199109-199401

L EXTRA

main69736-12100iEE104199401-199704

W(POWER WINDOW)

main69751-12020-03iEE105,108..L,STD199109-199206

SHADOW GRAY,TRIM1#

sub69751-20031

sub69751-12020

main69751-12020-14iEE105..STD199205-199206

DARK BLUE,TRIM8#

sub69751-20031

sub69751-12020

main69751-12060-B0iEE104,105,108..L,STD199206-199704

SHADOW GRAY,TRIM1#

sub69751-12060

main69751-12060-J0iEE105..STD199206-199408

DARK BLUE,TRIM8#

sub69751-12060

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-87003-02iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub69741-87003

main69741-87003-13iAE10#,CE100,EE100199108-200111

SHADOW GRAY,TRIM1#

sub69741-87003

main69741-87003-13iEE104199401-199704

W(POWER WINDOW),SHADOW GRAY,TRIM1#

sub69741-87003

main69741-87003-13iEE108199109-199401

L EXTRA,SHADOW GRAY,TRIM1#

sub69741-87003

main69741-87003-14iAE102,CE100..LHD;AE101,EE100..SED..TUR;AE101,EE100,101..(GL,GLI,STD,XL,XLI)..(GCC,GEN)199108-200111

DARK BLUE,TRIM8#

sub69741-87003

main69741-87003-P0iEE105199704-199910

SHADOW GRAY,TRIM1#

sub69741-87003

main69741-90K00-43iEE104,105,108..L,STD199109-199605

GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-54iEE105..STD199205-199408

DARK BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-B2iEE104,105..L,STD199605-199704

SHADOW GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070iEE105199704-199910

main69749-12070iAE10#,CE100,EE10#199409-199704

BLUE

main69749-50020iAE101..CP199205-199705

YELLOW

main69749-50020iAE10#,EE10#199108-199409

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iAE101..CP199108-199505

YELLOW

main69759-20050iAE101..CP199108-199505

BROWN

main69759-20080iAE101..CP199108-199505

ORANGE

main69759-20090iAE101..CP199108-199505

PINK

main69759-24010iAE10#,CE100,EE10#199108-199704

NATURAL

main69759-24020iAE10#,CE100,EE10#199108-199704

BLUE

main69759-24050iAE10#,CE100,EE10#..SED,WG199108-199704

GREEN

main69759-24060iAE10#,CE100,EE10#..SED,WG199108-199704

GRAY

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iAE101..CP199108-199505

RH

main69759-20070iAE101..CP199108-199505

LH

main69759-22040iAE10#,CE100,EE10#..SED,WG199108-199704

LH

main69759-22050iAE10#,CE100,EE10#..SED,WG199108-199704

RH

8401

9010506102

main90105-06102

9015180015

main90151-80015

9015960542

main90159-60542

9018905097

main90189-05097

9353055016

main93530-55016

9353055020

main93530-55020

23 parts on this diagram · 2 diagrams in section
