FRONT DOOR PANEL & GLASS

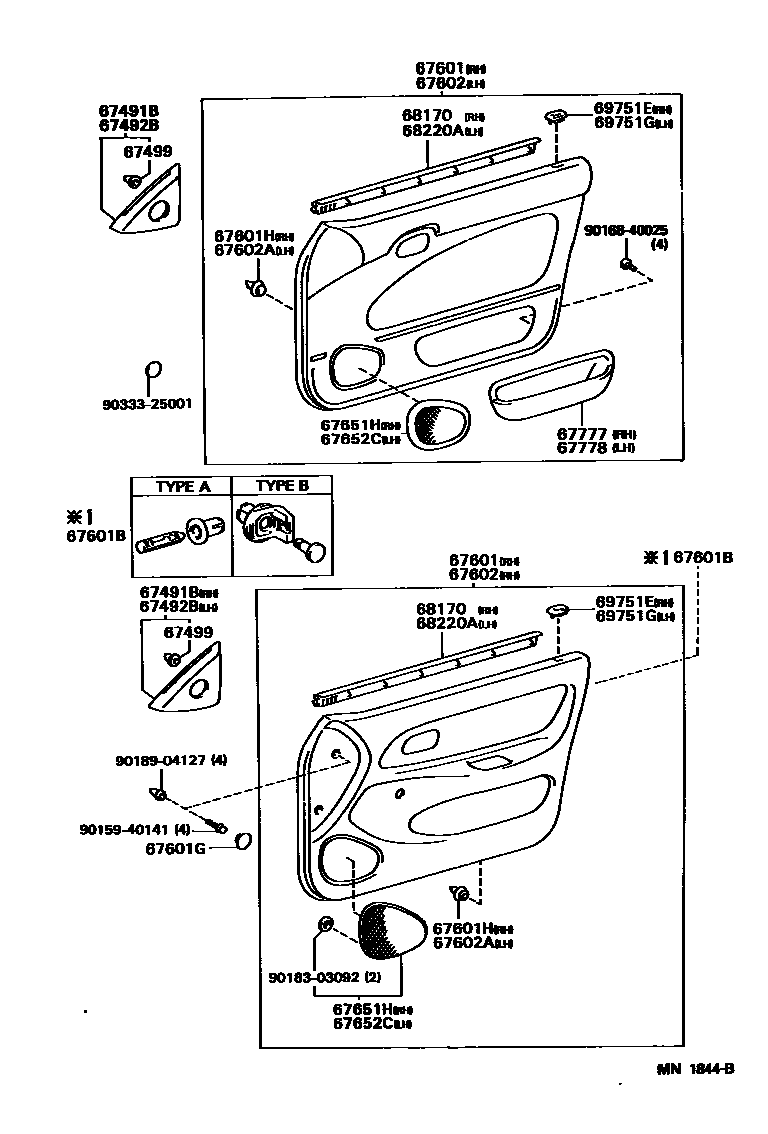

Parts diagram
67491BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH
main67491-12230i199108-199204
W(ELECTRICAL REMOTE CONTROL DOOR MIRROR)
main67491-12231i199204
W(ELECTRICAL REMOTE CONTROL DOOR MIRROR)
main67491-12240i199108-199204
W(MANUAL REMOTE CONTROL DOOR MIRROR)
main67491-12241i199704
W(MANUAL REMOTE CONTROL DOOR MIRROR)
main67491-12250i199108-199204
W(SPEAKER)
main67491-12251i199204-199505
W(SPEAKER)
main67491-12290-22i199305-199505
BLACK,TRIM2#; W/O(SPEAKER),BLACK,TRIM2#
main67491-12300-22i199305-199505
BLACK,TRIM2#; W(SPEAKER),BLACK,TRIM2#
main67491-13020i199109-199704
67492BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH
main67492-12230i199108-199204
W(ELECTRICAL REMOTE CONTROL DOOR MIRROR)
main67492-12231i199704-199808
main67492-12240i199108-199204
W(MANUAL REMOTE CONTROL DOOR MIRROR)
main67492-12241i199204-199409
main67492-12250i199108-199204
W(SPEAKER)
main67492-12251i199204-199505
W(SPEAKER)
main67492-12290-22i199305-199505
BLACK,TRIM2#; W/O(SPEAKER),BLACK,TRIM2#
main67492-12300-22i199305-199505
BLACK,TRIM2#; W(SPEAKER),BLACK,TRIM2#
main67492-13020i199109-199704
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67499-12030×6i199108-199704
main67771-30070×4i199509-199704
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-13230-B0i199109-199704
SHADOW GRAY,TRIM1#
main67610-13250-B0i199205-199405
SHADOW GRAY,TRIM1#
main67610-13250-J0i199405-199408
DARK BLUE,TRIM8#
main67610-13290-B0i199109-199401
W(SPEAKER),SHADOW GRAY,TRIM1#
main67610-13350-B0i199307-199505
W(SPEAKER),SHADOW GRAY,TRIM1#
main67610-13350-J0i199205-199307
W(SPEAKER),DARK BLUE,TRIM8#
main67610-13441-B0i199405-199704
SHADOW GRAY,TRIM1#
main67610-13441-J0i199405-199408
DARK BLUE,TRIM8#
main67610-13451-B0i199405-199704
W(SPEAKER),SHADOW GRAY,TRIM1#
main67610-13451-J0i199405-199408
W(SPEAKER),DARK BLUE,TRIM8#
main67610-13460-B0i199401-199508
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-13461-B0i199508-199704
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-13470-B0i199401-199508
L EXTRA(FQ16) & W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-13471-B0i199511-199704
L EXTRA(FQ16) & W(POWER WINDOW);HONG KONG SPEC & W(*PW),SHADOW GRAY,TRIM1#
main67610-13540-B0i199512-199704
L EXTRA(FQ16),SHADOW GRAY,TRIM1#
main67610-1H110-B0i199207-199505
SHADOW GRAY,TRIM1#
main67610-1H110-J0i199205-199408
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main67610-1H110-K0i199207-199505
TAUPE,TRIM9#
main67610-1H111-B1i199505-199704
SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67610-1H111-B2i199704-199910
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67610-1H111-J1i199505-199805
W(FULL FABRIC SEAT),BLUE/GRAY,TRIM8#
main67610-1H330-B0i199505-199508
W(SPEAKER),SHADOW GRAY,TRIM1#
main67610-1H330-J0i199205-199408
W(FULL FABRIC SEAT & SPEAKER),DARK BLUE,TRIM8#
main67610-1H330-K0i199409-199505
TAUPE,TRIM9#
main67610-1H331-B1i199704-199805
W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#
main67610-1H331-B2i199704-199910
W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#
main67610-1H331-J1i199505-199807
BLUE/GRAY,TRIM8#
main67610-1H630-B0i199305-199505
INDONESIA SPEC & CKD SPEC & SE PACKAGE & W(*PW & *EL),SHADOW GRAY,TRIM1#
main67610-1H630-K0i199305-199510
TAUPE,TRIM9#
main67610-1H670-B0i199305-199505
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1H670-K0i199305-199505
W(POWER WINDOW),TAUPE,TRIM9#
main67610-1H680-B0i199305-199505
W(*PW & *EL & SPEAKER),SHADOW GRAY,TRIM1#
main67610-1H680-K0i199305-199505
W(*PW & *EL & SPEAKER),TAUPE,TRIM9#
main67610-1H751-B0i199305-199406
PAKISTAN SPEC & CKD SPEC & W(*PW & *EL & SPEAKER),SHADOW GRAY,TRIM1#
main67610-1H751-J1i199406-199505
PAKISTAN SPEC & W(*PW & SPEAKER),DARK BLUE,TRIM8#
main67610-1H751-K0i199305-199406
PAKISTAN SPEC & CKD SPEC & W(*PW & *EL & SPEAKER),TAUPE,TRIM9#
main67610-1H752-B1i199505-200111
NEW ZEALAND SPEC & W(*PW & SPEAKER),SHADOW GRAY,TRIM1#; PAKISTAN SPEC & W(*PW & SPEAKER),SHADOW GRAY,TRIM1#
main67610-1H791-B1i199508-199704
SHADOW GRAY,TRIM1#
main67610-1H791-J1i199508-199704
BLUE/GRAY,TRIM8#
main67610-1H801-B2i199508-199704
W(SPEAKER),SHADOW GRAY,TRIM1#
main67610-1H801-J2i199508-199704
W(SPEAKER),BLUE/GRAY,TRIM8#
main67610-1H870-B0i199709-199711
W(SPEAKER),SHADOW GRAY,TRIM1#
main67650-12900i199505-199805
PHILIPPINE SPEC
main67650-1E110-B0i199205-199305
W(*PW & SPEAKER) OR W(*PW & *EL),SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#; W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67650-1E110-J0i199205-199305
W(*PW & SPEAKER) OR W(*PW & *EL),DARK BLUE,TRIM8#; W(FULL FABRIC SEAT & POWER WINDOW),DARK BLUE,TRIM8#; W(POWER WINDOW),DARK BLUE,TRIM8#
main67650-1E110-K0i199108-199305
W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),TAUPE,TRIM9#
main67650-1E111-B0i199305-199505
W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#; W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67650-1E111-J0i199305-199505
W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),DARK BLUE,TRIM8#; W(FULL FABRIC SEAT & POWER WINDOW),DARK BLUE,TRIM8#; W(POWER WINDOW),DARK BLUE,TRIM8#
main67650-1E111-K0i199305-199505
W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),TAUPE,TRIM9#; W(FULL FABRIC SEAT & POWER WINDOW),TAUPE,TRIM9#
main67650-1E112-B1i199505-200111
W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#
main67650-1E112-J1i199505-199704
W(POWER WINDOW),BLUE/GRAY,TRIM8#
main67650-1E130-B0i199108-199505
SHADOW GRAY,TRIM1#
main67650-1E130-J1i199108-199505
DARK BLUE,TRIM8#
main67650-1E130-K0i199108-199505
TAUPE,TRIM9#
main67650-1E131-B1i199505-199709
SHADOW GRAY,TRIM1#
main67650-1E131-J2i199505-199709
BLUE/GRAY,TRIM8#
main67650-1E140-B0i199205-199505
W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#
main67650-1E140-J0i199207-199505
W(POWER WINDOW),DARK BLUE,TRIM8#
main67650-1E140-K0i199207-199505
W(POWER WINDOW),TAUPE,TRIM9#
main67650-1E141-B1i199505-199704
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67650-1E141-J1i199505-199805
W(FULL FABRIC SEAT & POWER WINDOW),BLUE/GRAY,TRIM8#
main67650-1E190-B0i199309-199505
SHADOW GRAY,TRIM1#
main67650-1E190-J1i199309-199505
DARK BLUE,TRIM8#
main67650-1E190-K0i199309-199505
TAUPE,TRIM9#
main67650-1E191-B1i199505-199805
SHADOW GRAY,TRIM1#
main67650-1E191-J2i199505-199805
BLUE/GRAY,TRIM8#
main67650-1E200-B0i199108-199505
W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#; W(SPEAKER),SHADOW GRAY,TRIM1#
main67650-1E200-J0i199108-199408
W(FULL FABRIC SEAT & SPEAKER),DARK BLUE,TRIM8#
main67650-1E200-K0i199108-199508
W(SPEAKER),TAUPE,TRIM9#
main67650-1E201-B1i199505-199704
W(DOOR TRIM POCKET);W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#; W(SPEAKER),SHADOW GRAY,TRIM1#
main67650-1E201-B2i199704-199910
W(DOOR TRIM POCKET);W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#
main67650-1E201-J1i199505-199704
W(DOOR TRIM POCKET);W(FULL FABRIC SEAT & SPEAKER),BLUE/GRAY,TRIM8#; W(SPEAKER),BLUE/GRAY,TRIM8#
main67650-1E240-B0i199108-199305
INDONESIA SPEC & CKD SPEC & W(*PW & *EL) OR W(*PW & *EL),SHADOW GRAY,TRIM1#; W(POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#
main67650-1E240-J0i199108-199305
INDONESIA SPEC & CKD SPEC & W(*PW & *EL) OR W(*PW & *EL),DARK BLUE,TRIM8#; W(POWER WINDOW & POWER DOOR LOCK),DARK BLUE,TRIM8#
main67650-1E240-K0i199108-199305
INDONESIA SPEC & CKD SPEC & W(*PW & *EL) OR W(*PW & *EL),TAUPE,TRIM9#; W(POWER WINDOW & POWER DOOR LOCK),TAUPE,TRIM9#
main67650-1E241-B0i199305-199505
W(POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#; W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67650-1E241-J1i199305-199505
W(POWER WINDOW & POWER DOOR LOCK),DARK BLUE,TRIM8#; W(POWER WINDOW),DARK BLUE,TRIM8#
main67650-1E241-K0i199305-199505
W(POWER WINDOW & POWER DOOR LOCK),TAUPE,TRIM9#; W(POWER WINDOW),TAUPE,TRIM9#
main67650-1E242-B1i199505-199709
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67650-1E242-J2i199709-199805
W(POWER WINDOW),BLUE/GRAY,TRIM8#
main67650-1E250-B0i199805-200111
W(SPEAKER),SHADOW GRAY,TRIM1#
main67650-1E250-B1i199704-199910
W(SPEAKER),SHADOW GRAY,TRIM1#
main67650-1E250-J0i199405-199408
W(SPEAKER),DARK BLUE,TRIM8#
main67650-1E250-K0i199108-199405
W(SPEAKER),TAUPE,TRIM9#
main67650-1E260-B0i199205-199405
SHADOW GRAY,TRIM1#
main67650-1E260-J0i199205-199405
DARK BLUE,TRIM8#
main67650-1E260-K0i199405-199505
TAUPE,TRIM9#
main67650-1E270-B0i199205-199505
SHADOW GRAY,TRIM1#
main67650-1E270-J0i199408-199505
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main67650-1E270-K0i199108-199508
TAUPE,TRIM9#
main67650-1E271-B1i199505-199704
SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67650-1E271-B2i199704-199910
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67650-1E271-J1i199505-199704
BLUE/GRAY,TRIM8#
main67650-1E300-B1i199108-199305
INDONESIA SPEC & CKD SPEC & SE PACKAGE & W(*PW & *EL),SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
main67650-1E300-J1i199108-199305
DARK BLUE,TRIM8#; INDONESIA SPEC & CKD SPEC & SE PACKAGE & W(*PW & *EL),DARK BLUE,TRIM8#
main67650-1E300-K1i199108-199305
INDONESIA SPEC & CKD SPEC & SE PACKAGE & W(*PW & *EL),TAUPE,TRIM9#; TAUPE,TRIM9#
main67650-1E450-C0i199108-199305
BLACK GRAY,TRIM20
main67650-1E450-C1i199108-199305
BLACK AQUA,TRIM21
main67650-1E450-C2i199108-199305
BLACK LAVENDER,TRIM22
main67650-1E451-C3i199305-199505
BLACK/GRAY,TRIM2#
main67650-1E460-C0i199108-199305
BLACK GRAY,TRIM20
main67650-1E460-C1i199108-199305
BLACK AQUA,TRIM21
main67650-1E460-C2i199108-199305
BLACK LAVENDER,TRIM22
main67650-1E461-C3i199305-199505
BLACK/GRAY,TRIM2#
main67650-1E470-C0i199108-199305
W(LEATHER SEAT),BLACK,TRIM2#
main67650-1E471-C0i199305-199505
W(LEATHER SEAT),BLACK/GRAY,TRIM2#
main67650-1E481-C1i199305-199505
RECARO SEAT,BLACK,TRIM2#
main67650-1E510-B0i199108-199405
SHADOW GRAY,TRIM1#
main67650-1E510-B1i199704-199910
SHADOW GRAY,TRIM1#
main67650-1E510-J0i199405-199408
DARK BLUE,TRIM8#
main67650-1E510-K0i199505-199511
TAUPE,TRIM9#
main67650-1E530-B0i199108-199405
SHADOW GRAY,TRIM1#
main67650-1E530-J0i199108-199405
DARK BLUE,TRIM8#
main67650-1E530-K0i199108-199405
TAUPE,TRIM9#
main67650-1E550-B0i199205-199304
W(SPEAKER),SHADOW GRAY,TRIM1#
main67650-1E550-B1i199704-199910
W(SPEAKER),SHADOW GRAY,TRIM1#
main67650-1E550-J0i199205-199405
W(SPEAKER),DARK BLUE,TRIM8#
main67650-1E550-K0i199405-199505
W(SPEAKER),TAUPE,TRIM9#
main67650-1E570-B0i199108-199405
W(SPEAKER),SHADOW GRAY,TRIM1#
main67650-1E570-J0i199108-199405
W(SPEAKER),DARK BLUE,TRIM8#
main67650-1E570-K0i199108-199405
W(SPEAKER),TAUPE,TRIM9#
main67650-1E580-B0i199108-199311
INDONESIA SPEC & CKD SPEC & SE PACKAGE,SHADOW GRAY,TRIM1#
main67650-1E580-J0i199108-199311
INDONESIA SPEC & CKD SPEC & SE PACKAGE,DARK BLUE,TRIM8#
main67650-1E580-K0i199108-199311
INDONESIA SPEC & CKD SPEC & SE PACKAGE,TAUPE,TRIM9#
main67650-1H021-B1i199505-199704
SHADOW GRAY,TRIM1#
main67650-1H021-J1i199505-199704
BLUE/GRAY,TRIM8#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07066-01×4i199108-199305
BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22
main90467-07066-03×4i199205-199305
SHADOW GRAY,TRIM1#
main90467-07066-22×4i199309-199505
BLACK,TRIM2#
main90467-07066-J0×4i199704-199709
DARK BLUE,TRIM8#
main90467-07066-K0×4i199108-199205
TAUPE,TRIM9#
main90467-07066-P0×8i199505-199508
SHADOW GRAY,TYPE A
main90467-09122×4i199108-199505
TYPE B
main90467-09141×4i199709-199805
TYPE B:REFER TO ILLUSTRATION
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
main90950-01800-B0×4i199305-199704
SHADOW GRAY,TRIM1#
main90950-01800-C0×4i199108-199305
BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22
main90950-01800-J0×4i199805
DARK BLUE,TRIM8#
main90950-01800-K0×4i199305-199505
TAUPE,TRIM9#
67601HRETAINER, DOOR TRIM, RH
main67771-12030×6i199310-199406
YELLOW GREEN
main67771-12050×6i199805
RED
main67771-12070×5i199409-199807
NATURAL
main67771-13030×12i199505-199508
PLANT NO. K21
main67771-16080×14i199109-199205
main67771-16160×5i199409-199705
ORANGE
main67771-16170×12i199406-199505
SABLE
main67771-28020×4i199108-199305
RED
main67771-28030i199207-199401
YELLOW
main67771-30090i199401-199709
YELLOW
main67771-32140i199108-199412
YELLOW
main67771-89109×2i199402-199704
BLUE
main90467-08179i199505-199608
YELLOW
main90467-10161×5i199412-199505
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-12900i199505-199711
W(*PW),PHILIPPINE SPEC
main67620-13180-B0i199109-199704
SHADOW GRAY,TRIM1#
main67620-13200-B0i199205-199307
SHADOW GRAY,TRIM1#
main67620-13200-J0i199205-199307
DARK BLUE,TRIM8#
main67620-13230-B0i199401-199704
HONG KONG SPEC,SHADOW GRAY,TRIM1#
main67620-13280-B0i199306-199505
SHADOW GRAY,TRIM1#
main67620-13280-J1i199306-199505
DARK BLUE,TRIM8#
main67620-13280-K0i199306-199505
TAUPE,TRIM9#
main67620-13300-B0i199205-199307
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-13300-J0i199205-199307
W(SPEAKER),DARK BLUE,TRIM8#
main67620-13400-B0i199307-199405
SHADOW GRAY,TRIM1#
main67620-13400-J0i199307-199405
DARK BLUE,TRIM8#
main67620-13401-B0i199405-199704
SHADOW GRAY,TRIM1#
main67620-13401-J0i199405-199408
DARK BLUE,TRIM8#
main67620-13410-B0i199307-199405
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-13410-J0i199307-199405
W(SPEAKER),DARK BLUE,TRIM8#
main67620-13411-B0i199405-199704
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-13411-J0i199405-199408
W(SPEAKER),DARK BLUE,TRIM8#
main67620-13420-B0i199401-199704
W(*PW),SHADOW GRAY,TRIM1#
main67620-13430-B0i199511-199704
L EXTRA(FQ16) & W(*80);HONG KONG SPEC & W(*80),SHADOW GRAY,TRIM1#
main67620-1K190-B0i199205-199305
W(*PW & SPEAKER),SHADOW GRAY,TRIM1#
main67620-1K190-J0i199205-199505
W(*PW),DARK BLUE,TRIM8#
main67620-1K190-K0i199205-199505
W(*PW & FULL FABRIC SEAT),TAUPE,TRIM9#
main67620-1K191-B1i199505-199704
W(*PW),SHADOW GRAY,TRIM1#
main67620-1K191-J1i199505-199704
W(*PW),BLUE/GRAY,TRIM8#
main67620-1K210-B0i199306-199505
SHADOW GRAY,TRIM1#
main67620-1K210-J1i199108-199306
DARK BLUE,TRIM8#
main67620-1K210-K0i199306-199505
TAUPE,TRIM9#
main67620-1K211-B1i199505-199704
SHADOW GRAY,TRIM1#
main67620-1K211-J2i199505-199704
BLUE/GRAY,TRIM8#
main67620-1K240-B0i199108-199305
INDONESIA SPEC & CKD SPEC & W(*PW & *EL) OR W(*PW & *EL),SHADOW GRAY,TRIM1#; W(*PW & *EL),SHADOW GRAY,TRIM1#
main67620-1K240-J1i199205-199505
W(*PW),DARK BLUE,TRIM8#
main67620-1K240-K0i199108-199305
INDONESIA SPEC & CKD SPEC & W(*PW & *EL) OR W(*PW & *EL),TAUPE,TRIM9#; W(*PW & *EL),TAUPE,TRIM9#
main67620-1K290-B0i199108-199505
W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#; W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1K290-J0i199408-199505
W(FULL FABRIC SEAT & SPEAKER),DARK BLUE,TRIM8#
main67620-1K290-K0i199108-199505
W(FULL FABRIC SEAT & SPEAKER),TAUPE,TRIM9#; W(SPEAKER),TAUPE,TRIM9#
main67620-1K291-B1i199505-199704
W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#; W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1K291-B2i199704-199910
W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#
main67620-1K291-J1i199505-199704
W(SPEAKER),BLUE/GRAY,TRIM8#
main67620-1K330-B0i199108-199205
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1K330-J0i199108-199205
W(SPEAKER),DARK BLUE,TRIM8#
main67620-1K330-K0i199108-199205
W(SPEAKER),TAUPE,TRIM9#
main67620-1K340-B0i199108-199405
SHADOW GRAY,TRIM1#
main67620-1K340-B1i199704-199910
SHADOW GRAY,TRIM1#
main67620-1K340-J0i199408-200111
DARK BLUE,TRIM8#
main67620-1K340-K0i199108-199405
TAUPE,TRIM9#
main67620-1K350-B0i199108-199505
SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67620-1K350-J0i199108-199408
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main67620-1K350-K0i199108-199505
TAUPE,TRIM9#; W(FULL FABRIC SEAT),TAUPE,TRIM9#
main67620-1K351-B1i199505-199704
SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67620-1K351-B2i199704-199910
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67620-1K351-J1i199505-199805
W(FULL FABRIC SEAT),BLUE/GRAY,TRIM8#
main67620-1K380-B0i199108-199305
INDONESIA SPEC & CKD SPEC & SE PACKAGE & W(*PW & *EL),SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
main67620-1K380-J0i199108-199305
DARK BLUE,TRIM8#; INDONESIA SPEC & CKD SPEC & SE PACKAGE & W(*PW & *EL),DARK BLUE,TRIM8#
main67620-1K380-K0i199108-199305
INDONESIA SPEC & CKD SPEC & SE PACKAGE & W(*PW & *EL),TAUPE,TRIM9#; TAUPE,TRIM9#
main67620-1K530-C0i199108-199305
BLACK GRAY,TRIM20
main67620-1K530-C1i199108-199305
BLACK AQUA,TRIM21
main67620-1K530-C2i199108-199305
BLACK LAVENDER,TRIM22
main67620-1K530-C3i199305-199505
BLACK/GRAY,TRIM2#
main67620-1K540-C0i199108-199305
BLACK GRAY,TRIM20
main67620-1K540-C1i199108-199305
BLACK AQUA,TRIM21
main67620-1K540-C2i199108-199305
BLACK LAVENDER,TRIM22
main67620-1K541-C3i199305-199505
BLACK/GRAY,TRIM2#
main67620-1K550-C0i199108-199505
W(LEATHER SEAT),BLACK,TRIM2#
main67620-1K560-C0i199305-199505
RECARO SEAT,BLACK,TRIM2#
main67620-1K610-B0i199108-199304
SHADOW GRAY,TRIM1#
main67620-1K610-J0i199108-199304
DARK BLUE,TRIM8#
main67620-1K610-K0i199108-199304
TAUPE,TRIM9#
main67620-1K630-B0i199205-199304
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1K630-J0i199205-199304
W(SPEAKER),DARK BLUE,TRIM8#
main67620-1K630-K0i199205-199304
W(SPEAKER),TAUPE,TRIM9#
main67620-1K650-B0i199108-199304
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1K650-J0i199108-199304
W(SPEAKER),DARK BLUE,TRIM8#
main67620-1K650-K0i199108-199304
W(SPEAKER),TAUPE,TRIM9#
main67620-1K660-B0i199108-199311
INDONESIA SPEC & CKD SPEC & SE PACKAGE,SHADOW GRAY,TRIM1#
main67620-1K660-J0i199108-199311
INDONESIA SPEC & CKD SPEC & SE PACKAGE,DARK BLUE,TRIM8#
main67620-1K660-K0i199108-199311
INDONESIA SPEC & CKD SPEC & SE PACKAGE,TAUPE,TRIM9#
main67620-1L090-B0i199205-199709
NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main67620-1L090-B1i199704-199910
SHADOW GRAY,TRIM1#
main67620-1L090-J0i199408-199709
DARK BLUE,TRIM8#
main67620-1L090-K0i199405-199505
TAUPE,TRIM9#
main67620-1L290-B0i199405-199704
W(DOOR TRIM POCKET);W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L290-B1i199704-199910
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L290-J0i199205-199405
W(SPEAKER),DARK BLUE,TRIM8#
main67620-1L290-K0i199405-199505
W(SPEAKER),TAUPE,TRIM9#
main67620-1L330-B0i199205-199305
W(*PW),SHADOW GRAY,TRIM1#
main67620-1L330-J0i199205-199305
W(*PW),DARK BLUE,TRIM8#
main67620-1L330-K0i199205-199305
W(*PW),TAUPE,TRIM9#
main67620-1L331-B0i199305-199505
W(*PW),SHADOW GRAY,TRIM1#
main67620-1L331-J1i199305-199505
W(*PW),DARK BLUE,TRIM8#
main67620-1L331-K0i199309-199505
TAUPE,TRIM9#
main67620-1L332-B1i199505-199805
SHADOW GRAY,TRIM1#
main67620-1L332-J2i199505-199805
BLUE/GRAY,TRIM8#
main67620-1L360-B0i199207-199505
NEW ZEALAND SPEC & W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#; W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L360-J0i199207-199505
NEW ZEALAND SPEC & W(FULL FABRIC SEAT & SPEAKER),DARK BLUE,TRIM8#; W(SPEAKER),DARK BLUE,TRIM8#
main67620-1L360-K0i199207-199505
NEW ZEALAND SPEC & W(FULL FABRIC SEAT & SPEAKER),TAUPE,TRIM9#; W(FULL FABRIC SEAT & SPEAKER),TAUPE,TRIM9#; W(SPEAKER),TAUPE,TRIM9#
main67620-1L361-B1i199705-199805
W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L361-B2i199704-199910
W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L361-J1i199508-199704
W(SPEAKER),BLUE/GRAY,TRIM8#
main67620-1L620-B0i199205-199305
W(*PW & FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67620-1L620-J0i199205-199305
W(*PW & FULL FABRIC SEAT),DARK BLUE,TRIM8#
main67620-1L620-K0i199205-199305
W(*PW & FULL FABRIC SEAT),TAUPE,TRIM9#
main67620-1L621-B0i199305-199505
W(*PW & FULL FABRIC SEAT),SHADOW GRAY,TRIM1#; W(*PW),SHADOW GRAY,TRIM1#
main67620-1L621-J0i199305-199505
W(*PW & FULL FABRIC SEAT),DARK BLUE,TRIM8#; W(*PW),DARK BLUE,TRIM8#
main67620-1L621-K0i199305-199505
W(*PW & FULL FABRIC SEAT),TAUPE,TRIM9#; W(*PW),TAUPE,TRIM9#
main67620-1L622-B1i199505-199704
W(*PW),SHADOW GRAY,TRIM1#
main67620-1L622-J1i199505-199805
W(*PW & FULL FABRIC SEAT),BLUE/GRAY,TRIM8#
main67620-1L650-B0i199305-199505
INDONESIA SPEC & CKD SPEC & SE PACKAGE & W(*PW & *EL),SHADOW GRAY,TRIM1#
main67620-1L650-K0i199305-199510
TAUPE,TRIM9#
main67620-1L690-B0i199305-199505
W(*PW),SHADOW GRAY,TRIM1#
main67620-1L690-K0i199305-199505
W(*PW),TAUPE,TRIM9#
main67620-1L700-B0i199305-199505
W(*PW & *EL & SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L700-K0i199305-199505
W(*PW & *EL & SPEAKER),TAUPE,TRIM9#
main67620-1L770-B0i199406-199505
PAKISTAN SPEC & W(*PW & SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L770-J1i199305-199406
PAKISTAN SPEC & CKD SPEC & W(*PW & *EL & SPEAKER),DARK BLUE,TRIM8#
main67620-1L770-K0i199406-199505
PAKISTAN SPEC & W(*PW & SPEAKER),TAUPE,TRIM9#
main67620-1L771-B1i199505-200111
NEW ZEALAND SPEC & W(*PW & SPEAKER),SHADOW GRAY,TRIM1#; PAKISTAN SPEC & W(*PW & SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L790-B0i199304-199405
SHADOW GRAY,TRIM1#
main67620-1L790-J0i199304-199405
DARK BLUE,TRIM8#
main67620-1L790-K0i199304-199405
TAUPE,TRIM9#
main67620-1L800-B0i199304-199405
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L800-J0i199304-199405
W(SPEAKER),DARK BLUE,TRIM8#
main67620-1L800-K0i199304-199405
W(SPEAKER),TAUPE,TRIM9#
main67620-1L810-B0i199405-199805
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L810-J0i199405-199408
W(SPEAKER),DARK BLUE,TRIM8#
main67620-1L810-K0i199405-199505
W(SPEAKER),TAUPE,TRIM9#
main67620-1L881-B1i199709-199710
NEW ZEALAND SPEC & W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67620-1L881-J1i199709-199710
NEW ZEALAND SPEC & W(FULL FABRIC SEAT),BLUE/GRAY,TRIM8#
main67620-1L891-B1i199709-199710
NEW ZEALAND SPEC & W(FULL FABRIC SEAT & SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L891-J1i199709-199710
NEW ZEALAND SPEC & W(FULL FABRIC SEAT & SPEAKER),BLUE/GRAY,TRIM8#
main67620-1N450-B0i199709-199805
W(*PW),SHADOW GRAY,TRIM1#
main67620-1N450-J0i199709-199805
W(*PW),DARK BLUE,TRIM8#
main67620-1N480-B0i199505-199709
SHADOW GRAY,TRIM1#
main67620-1N480-J0i199505-199709
BLUE/GRAY,TRIM8#
main67660-12010-B0i199207-199505
NEW ZEALAND SPEC & W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
main67660-12010-J0i199207-199505
DARK BLUE,TRIM8#; NEW ZEALAND SPEC & W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main67660-12010-K0i199205-199505
W(FULL FABRIC SEAT),TAUPE,TRIM9#
main67660-12011-B1i199505-199704
W(DOOR TRIM POCKET);W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67660-12011-B2i199704-199910
FABRIC,SHADOW GRAY,TRIM1#
main67660-12011-J1i199505-199508
BLUE/GRAY,TRIM8#
67602ARETAINER, DOOR TRIM, LH
main67771-12030×3i199704-199910
YELLOWISH GREEN
main67771-12050×6i199704-199709
RED
main67771-12070×5i199409-199807
NATURAL
main67771-13030×6i199704-199910
BROWN
main67771-16080×14i199109-199205
main67771-16160×5i199108-199205
ORANGE
main67771-16170×12i199409-199505
SABLE; SABLE,PLANT A31,A32
main67771-28020×6i199207-199305
RED
main67771-28030i199207-199401
YELLOW
main67771-30090i199401-199709
YELLOW
main67771-32140i199108-199412
YELLOW
main67771-89109×2i199402-199704
BLUE
main90467-08179i199709-199805
W(POWER WINDOW),YELLOW
main90467-10161×5i199412-199505
67651HGRILLE, SPEAKER DOOR, RH
main67651-12020-B0i199305-199406
W(*PW),SHADOW GRAY,TRIM1#
main67651-12020-J0i199505-200111
DARK BLUE,TRIM8#
main67651-12020-K1i199406-199505
W(*PW),TAUPE,TRIM9#
main67651-19015-B0i199205-199305
FOR MOLD TYPE TRIM & W(*PW & *EL),SHADOW GRAY,TRIM1#
main67651-19015-J0i199309-199805
FOR MOLD TYPE TRIM,DARK BLUE,TRIM8#
main67651-19015-K0i199505-199508
FOR MOLD TYPE TRIM & W(*PW & *EL),TAUPE,TRIM9#; TAUPE,TRIM9#
67652CGRILLE, SPEAKER DOOR, LH
main67652-12030-B0i199505-200111
W(*PW),SHADOW GRAY,TRIM1#
main67652-12030-J0i199406-199505
W(*PW),DARK BLUE,TRIM8#
main67652-12030-K1i199406-199505
W(*PW),TAUPE,TRIM9#
main67652-19015-B0i199205-199305
FOR MOLD TYPE TRIM & W(*PW & *EL),SHADOW GRAY,TRIM1#
main67652-19015-J0i199108-199205
FOR MOLD TYPE TRIM & W(*PW & *EL),DARK BLUE,TRIM8#
main67652-19015-K0i199205-199305
FOR MOLD TYPE TRIM & W(*PW & *EL),TAUPE,TRIM9#
67777POCKET, FRONT DOOR TRIM, RH
main67777-12140-B0i199108-199305
SHADOW GRAY,TRIM1#
main67777-12140-J0i199408-199505
DARK BLUE,TRIM8#
main67777-12140-K0i199305-199405
TAUPE,TRIM9#
67778POCKET, FRONT DOOR TRIM, LH
main67777-12140-B0i199205-199305
SHADOW GRAY,TRIM1#
main67777-12140-J0i199205-199305
DARK BLUE,TRIM8#
main67777-12140-K0i199205-199305
TAUPE,TRIM9#
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68170-12300i199108-199505
main68171-12160i199509-199704
main68171-13010i199109-199704
68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
main68172-12050i199108-199409
main68172-13010i199109-199704
main68220-12210i199108-199505
69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB
main69751-12050-B0i199505-200111
SHADOW GRAY,TRIM1#
main69751-12050-J0i199408-199704
DARK BLUE,TRIM8#
main69751-12050-K0i199505-199508
TAUPE,TRIM9#
69751GHOLDER, FRONT DOOR LOCK CONTROL KNOB
main69751-12050-B0i199108-200111
SHADOW GRAY,TRIM1#
main69751-12050-J0i199408-200111
DARK BLUE,TRIM8#
main69751-12050-K0i199108-199505
TAUPE,TRIM9#
9015940141
main90159-40141
9016840025
main90168-40025
9018303092
main90183-03092
9018904127
main90189-04127
9033325001
main90333-25001

22 parts on this diagram · 7 diagrams in section

FRONT DOOR PANEL & GLASS — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
