DECK BOARD & DECK TRIM COVER

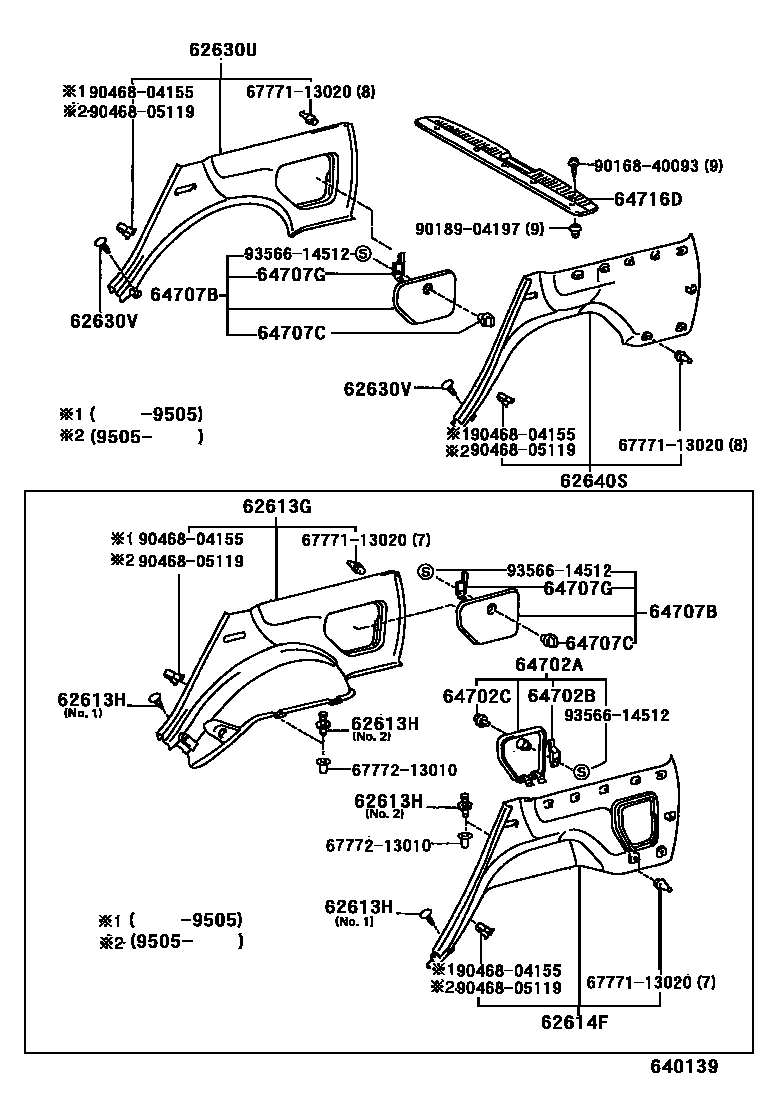

Parts diagram
62613GCOVER ASSY, QUARTER WHEEL HOUSE, RH
main62610-13060-B0i199205-199910
W(3-POINT REAR SEAT BELT),SHADOW GRAY,TRIM1#
main62610-13060-B0i199109-199704
SHADOW GRAY,TRIM1#
main62610-13060-J0i199205-199408
DARK BLUE,TRIM8#
main62610-13060-J0i199205-199408
W(3-POINT REAR SEAT BELT),DARK BLUE,TRIM8#
main62610-13080-B0i199205-199910
SHADOW GRAY,TRIM1#
main62610-13080-J0i199205-199408
DARK BLUE,TRIM8#
62613HCLIP (FOR QUARTER WHEEL HOUSE COVER)
main90467-06049-B0i199109-199910
SHADOW GRAY,TRIM1#,NO.1
sub90467-06049
main90467-06049-J3i199205-199408
DARK BLUE,TRIM8#,NO.1
sub90467-06049
main90467-07041-P0i199210-199704
SHADOW GRAY,TRIM1#,NO.2
sub90467-07041
main90467-07076-03i199109-199210
SHADOW GRAY,TRIM1#
sub90467-07041
sub90467-07076
sub90467-A0016
main90467-07076-P0i199704-199910
SHADOW GRAY,TRIM1#
sub90467-07041
sub90467-07076
sub90467-A0016
main90467-07076-W3i199205-199408
DARK BLUE,TRIM8#
sub90467-07041
sub90467-07076
sub90467-A0016
62614FCOVER ASSY, QUARTER WHEEL HOUSE, LH
main62620-13060-B0i199205-199910
W(3-POINT REAR SEAT BELT),SHADOW GRAEY,TRIM1#
main62620-13060-B0i199109-199704
SHADOW GRAEY,TRIM1#
main62620-13060-J0i199205-199408
W(3-POINT REAR SEAT BELT),DARK BLUE,TRIM8#
main62620-13060-J0i199205-199408
DARK BLUE,TRIM8#
main62620-13080-B0i199205-199910
SHADOW GRAY,TRIM1#
main62620-13080-J0i199205-199408
DARK BLUE,TRIM8#
62630UPANEL ASSY, QUARTER TRIM, REAR RH
main62630-13190-B0i199205-199705
SHADOW GRAY,TRIM1#
main62630-13190-J0i199205-199408
DARK BLUE,TRIM8#
62630VCLIP (FOR QUARTER REAR TRIM)
main90467-06049-B0i199109-199705
SHADOW GRAY,TRIM1#
sub90467-06049
main90467-06049-J3i199205-199408
DARK BLUE,TRIM8#
sub90467-06049
62640SPANEL ASSY, QUARTER TRIM, REAR LH
main62640-13220-B0i199205-199705
SHADOW GRAY,TRIM1#
main62640-13220-J0i199205-199408
DARK BLUE,TRIM8#
64702ACOVER SUB-ASSY, DECK TRIM SIDE SERVICE HOLE
main64702-13030-P0i199109-199910
SHADOW GRAY,TRIM1#
sub64702-13030
main64702-13030-W3i199205-199408
DARK BLUE,TRIM8#
sub64702-13030
main64702-13040-P0i199205-199905
SHADOW GRAY,TRIM1#
sub64702-13040
main64702-13040-W3i199205-199704
DARK BLUE,TRIM8#
sub64702-13040
64702BSTOPPER, WASHER TANK COVER
main64981-13010i199109-199910
64702CKNOB, WASHER TANK COVER
main64982-13010-B0i199109-199910
SHADOW GRAY,TRIM1#
sub64982-13010
main64982-13010-J0i199205-199704
DARK BLUE,TRIM8#
sub64982-13010
64707BCOVER SUB-ASSY, QUARTER TRIM JACK
main64707-13070-P0i199109-199401
SHADOW GRAY,TRIM1#
sub64707-13080
main64707-13070-W3i199205-199401
DARK BLUE,TRIM8#
sub64707-13080
main64707-13080-B1i199401-199910
SHADOW GRAY,TRIM1#
sub64707-13080
main64707-13080-J0i199401-199704
DARK BLUE,TRIM8#
sub64707-13080
64707CKNOB, JACK COVER
main64982-13010-B0i199109-199910
SHADOW GRAY,TRIM1#
sub64982-13010
main64982-13010-J0i199205-199704
DARK BLUE,TRIM8#
sub64982-13010
64707GSTOPPER, JACK COVER
main64981-13010i199109-199910
64716DCOVER, DECK TRIM, REAR
main64716-13050-P0i199109-199910
SHADOW GRAY,TRIM1#
main64716-13050-W3i199205-199408
DARK BLUE,TRIM8#
main64716-13060-P0i199205-199308
SHADOW GRAY,TRIM1#
sub64716-13061
main64716-13060-W3i199205-199308
DARK BLUE,TRIM8#
sub64716-13061
main64716-13061-P0i199308-199905
SHADOW GRAY,TRIM1#
sub64716-13061
main64716-13061-W3i199308-199704
DARK BLUE,TRIM8#
sub64716-13061
6777113020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-13020
6777213010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-13010
9016840093
main90168-40093
9018904197
main90189-04197
9046804155
main90468-04155
9046805119
main90468-05119
9356614512
main93566-14512

20 parts on this diagram · 2 diagrams in section
