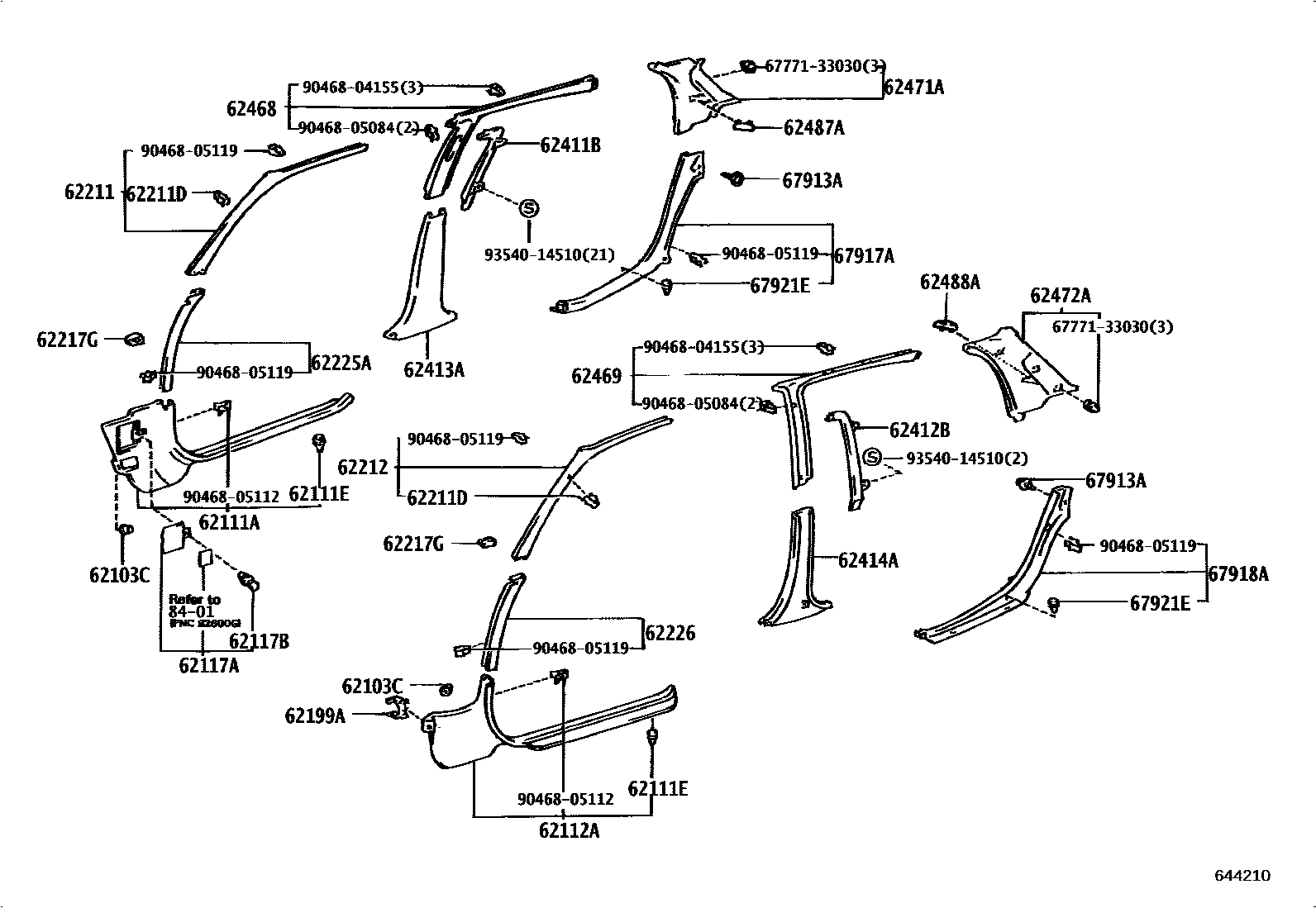

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05050-01iAE101,EE100,105..WG199206-199211

BLACK,TRIM1#,8#

sub90467-05050

main90467-05050-01iAE101..GTAPX199206-199211

BLACK,TRIM2#,20,21,22

sub90467-05050

main90467-05050-01iAE101..GTAPX199206-199211

BLACK,TRIM20,21,22

sub90467-05050

main90467-05050-01iAE101..GTAPX199206-199211

BLACK,TRIM1#

sub90467-05050

main90467-05050-01iAE101..GTAPX199206-199211

BLACK,TRIM1#,8#,9#

sub90467-05050

main90467-05050-22iEE104,108199211-200111

BLACK,TRIM1#

sub90467-05050

main90467-05050-22iAE101..GTAPX199211-199305

BLACK,TRIM2#,20,21,22

sub90467-05050

main90467-05050-22iAE101..GTAPX199211-199305

BLACK,TRIM20,21,22

sub90467-05050

main90467-05050-22iAE101..GTAPX199211-199511

BLACK,TRIM1#,8#,9#

sub90467-05050

main90467-05050-22iEE104,108199211-200111

BLACK,TRIM1#,8#

sub90467-05050

main90467-05050-22iAE101..CP199305-199505

BLACK,TRIM2#

sub90467-05050

main90467-05050-22iAE100;AE101..SEG199305-199510

BLACK,TRIM1#,9#

sub90467-05050

main90467-08160iAE10#,CE100,EE10#199108-199206

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-12160-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub62101-12160

main62101-12160-P0iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-200111

SHADOW GRAY,TRIM1#

sub62101-12160

main62101-12160-W3iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199108-200111

DARK BLUE,TRIM8#

sub62101-12160

main62101-12190-B0iAE101,102,CE100,EE100,105..LHD199205-199910

SHADOW GRAY,TRIM1#

sub62101-12190

main62101-12190-J0iAE101,EE100..SED..TUR;AE101,102,CE100,EE100..LHD..(GCC,GEN)199205-199807

DARK BLUE,TRIM8#

sub62101-12190

main62101-12190-K0iAE101,102,CE100,EE100..LHD..SED199205-199508

TAUPE,TRIM9#

sub62101-12190

main62111-12200-22iAE101..GTAPX199108-199505

BLACK,TRIM2#

main62111-12200-22iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

62111ERETAINER, COWL SIDE TRIM

main67921-32010iAE10#,CE100,EE10#..SED,WG199108-199704

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-12160-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub62102-12160

main62102-12160-P0iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-200111

SHADOW GRAY,TRIM1#

sub62102-12160

main62102-12160-W3iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199108-200111

DARK BLUE,TRIM8#

sub62102-12160

main62102-12190-B0iAE101,102,CE100,EE100,105..LHD199205-199910

SHADOW GRAY,TRIM1#

sub62102-12190

main62102-12190-J0iAE101,EE100..SED..TUR;AE101,102,CE100,EE100..LHD..(GCC,GEN)199205-199807

DARK BLUE,TRIM8#

sub62102-12190

main62102-12190-K0iAE101,102,CE100,EE100..LHD..SED199205-199508

TAUPE,TRIM9#

sub62102-12190

main62112-12200-22iAE101..SJ199108-199505

BLACK,TRIM2#

main62112-12200-22iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-12140-22iAE101..CP199108-199505

BLACK,TRIM2#

sub62117-12141

main62117-12140-22iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

sub62117-12141

main62117-12140-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub62117-12141

main62117-12140-P0iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-199605

SHADOW GRAY,TRIM1#

sub62117-12141

main62117-12140-W3iAE10#,EE100,101,105..RHD..(SED,WG)199108-199605

DARK BLUE,TRIM8#

sub62117-12141

main62117-12141-P0iAE101,CE100,EE10#..RHD199605-200111

SHADOW GRAY,TRIM1#

sub62117-12141

main62117-12141-W3iAE101,EE100..RHD199605-200111

DARK BLUE,TRIM8#

sub62117-12141

main62117-12170-B0iAE101,102,CE100,EE100,105..LHD199205-199505

SHADOW GRAY,TRIM1#

sub62117-12170

main62117-12170-J0iAE101,102,CE100,EE100,105..LHD199205-199505

DARK BLUE,TRIM8#

sub62117-12170

main62117-12170-K0iAE101,102,CE100,EE100..LHD..SED199205-199505

TAUPE,TRIM9#

sub62117-12170

main62117-12171-B0iAE10#,CE100,EE100,105..LHD199505-199910

SHADOW GRAY,TRIM1#

sub62117-12171

main62117-12171-J0iAE101,EE100..SED..TUR;AE10#,CE100,EE100..LHD..(GCC,GEN)199505-199807

DARK BLUE,TRIM8#

sub62117-12171

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-08149iAE10#,CE100,EE10#199108-199704

62199AHOLDER, FUSEE

main90468-25003iAE101..CP;AE100,EE104,108199108-199704

62211GARNISH, FRONT PILLAR, RH

main62211-12200-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub62211-12200

main62211-12200-P0iAE10#,CE100,EE100,101..SED,WG199108-200111

SHADOW GRAY,TRIM1#

sub62211-12200

main62211-12200-W3iAE102,CE100..LHD;AE101,EE100..SED..TUR;AE101,EE100,101..(GL,GLI,STD,XL,XLI)..(GCC,GEN)199108-200111

DARK BLUE,TRIM8#

sub62211-12200

main62211-12250-22iAE101..SJ199108-199305

BLACK,TRIM20,21,22

main62211-12250-22iAE101..GTAPX199108-199505

BLACK,TRIM2#

main62211-13040-P0iEE104,105,108199109-199910

SHADOW GRAY,TRIM1#

main62211-13040-W3iEE105199205-199408

DARK BLUE,TRIM8#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90468-05084iAE10#,CE100,EE100,101..SED,WG199108-199704

62212GARNISH, FRONT PILLAR, LH

main62212-12200-K0iEE101;AE101..SEG;AE101,EE100..SED..GCC199108-199511

TAUPE,TRIM9#

sub62212-12200

main62212-12200-P0iAE10#,CE100,EE100,101..SED,WG199108-200111

SHADOW GRAY,TRIM1#

sub62212-12200

main62212-12200-W3iAE102,CE100..LHD;AE101,EE100..SED..TUR;AE101,EE100,101..(GL,GLI,STD,XL,XLI)..(GCC,GEN)199108-200111

DARK BLUE,TRIM8#

sub62212-12200

main62212-12250-22iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

main62212-12250-22iAE101..SJ199108-199505

BLACK,TRIM2#

main62212-13040-P0iEE104,105,108199109-199910

SHADOW GRAY,TRIM1#

main62212-13040-W3iEE105199205-199408

DARK BLUE,TRIM8#

62217GCLIP, FRONT PILLAR GARNISH

main62217-12020iAE10#,EE10#..SED,WG199108-199201

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-12010-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub62225-12010

main62225-12010-P0iAE10#,CE100,EE10#..SED,WG199108-200111

SHADOW GRAY,TRIM1#

sub62225-12010

main62225-12010-W3iAE101,102,CE100,EE100,101,105..GL,GLI,STD,XL,XLI199108-200111

DARK BLUE,TRIM8#

sub62225-12010

main62225-12030-22iAE101..SJ199108-199505

BLACK,TRIM2#

main62225-12030-22iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-12010-K0iEE101;AE101..SEG;AE101,EE100..SED..GCC199108-199511

TAUPE,TRIM9#

sub62226-12010

main62226-12010-P0iAE10#,CE100,EE10#..SED,WG199108-200111

SHADOW GRAY,TRIM1#

sub62226-12010

main62226-12010-W3iAE102,CE100..LHD;AE101,EE100..SED..TUR;AE101,EE100,101..(GL,GLI,STD,XL,XLI)..(GCC,GEN)199108-200111

DARK BLUE,TRIM8#

sub62226-12010

main62226-12030-22iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

main62226-12030-22iAE101..GTAPX199108-199505

BLACK,TRIM2#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-12440-K0iEE101;AE101..SEG;AE101,EE100..SED..GCC199108-199511

TAUPE,TRIM9#

sub62411-12440

main62411-12440-P0iAE10#,CE100,EE100,101..SED,WG199108-200111

SHADOW GRAY,TRIM1#

sub62411-12440

main62411-12440-W3iAE102,CE100..LHD;AE101,EE100..SED..TUR;AE101,EE100,101..(GL,GLI,STD,XL,XLI)..(GCC,GEN)199108-200111

DARK BLUE,TRIM8#

sub62411-12440

main62411-13030-P0iEE104,105,108199109-199910

SHADOW GRAY,TRIM1#

main62411-13030-W3iEE105199205-199408

DARK BLUE,TRIM8#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-12440-K0iEE101;AE101..SEG;AE101,EE100..SED..GCC199108-199511

TAUPE,TRIM9#

sub62412-12440

main62412-12440-P0iAE10#,CE100,EE100,101..SED,WG199108-200111

SHADOW GRAY,TRIM1#

sub62412-12440

main62412-12440-W3iAE10#,CE100,EE100,101..SED,WG199108-200111

DARK BLUE,TRIM8#

sub62412-12440

main62412-13030-P0iEE104,105,108199109-199910

SHADOW GRAY,TRIM1#

main62412-13030-W3iEE105199205-199408

DARK BLUE,TRIM8#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12180-K0iEE101;AE101..SEG;AE101,EE100..SED..GCC199108-199511

TAUPE,TRIM9#

sub62413-12180

main62413-12180-P0iAE10#,CE100,EE10#..SED,WG199108-200111

SHADOW GRAY,TRIM1#

sub62413-12180

main62413-12180-W3iAE10#,CE100,EE100,101,105..SED,WG199108-200111

DARK BLUE,TRIM8#

sub62413-12180

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12180-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub62414-12180

main62414-12180-P0iAE10#,CE100,EE10#..SED,WG199108-200111

SHADOW GRAY,TRIM1#

sub62414-12180

main62414-12180-W3iAE102,CE100..LHD;AE101,EE100..SED..TUR;AE101,EE100,101..(GL,GLI,STD,XL,XLI)..(GCC,GEN)199108-200111

DARK BLUE,TRIM8#

sub62414-12180

62468GARNISH, CENTER PILLAR, REAR RH

main62468-12030-K0iAE101,CE100,EE100,101..SED199108-199511

TAUPE,TRIM9#

main62468-12030-P0iAE101,CE100,EE100,101..SED199108-200111

SHADOW GRAY,TRIM1#

main62468-12030-W3iAE101,CE100,EE100,101..SED199108-200111

DARK BLUE,TRIM8#

main62468-12040-K0iAE101,CE100,EE100,101..SED..(GCC,GEN)199108-199505

TAUPE,TRIM9#

sub62468-12040

main62468-12040-K0iAE100,102199108-199511

W(ADUSTABLE SEAT BELT ANC),TAUPE,TRIM9#

sub62468-12040

main62468-12040-P0iAE101,CE100,EE100,101..SED..(GCC,GEN)199108-200111

W(ADUSTABLE SEAT BELT ANC),SHADOW GRAY,TRIM1#

sub62468-12040

main62468-12040-P0iAE100,102199108-199805

SHADOW GRAY,TRIM1#

sub62468-12040

main62468-12040-W3iAE100199108-199805

DARK BLUE,TRIM8#

sub62468-12040

main62468-12040-W3iAE101,CE100,EE100,101..SED199108-200111

W(ADUSTABLE SEAT BELT ANC),DARK BLUE,TRIM8#

sub62468-12040

main62468-13010-P0iEE104,105,108199109-199910

SHADOW GRAY,TRIM1#

main62468-13010-W3iEE105199205-199408

DARK BLUE,TRIM8#

main62468-13030-B0iAE101,EE100..WG199205-199905

SHADOW GRAY,TRIM1#

main62468-13030-J0iAE101,EE100..WG..(GCC,GEN)199205-199704

DARK BLUE,TRIM8#

62469GARNISH, CENTER PILLAR, REAR LH

main62469-12030-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

main62469-12030-P0iAE101,CE100,EE100,101..SED199108-200111

SHADOW GRAY,TRIM1#

main62469-12030-W3iCE100..LHD;AE101,EE100,101..SED..(GL,GLI,STD,XL,XLI)199108-200111

DARK BLUE,TRIM8#

main62469-12040-K0iAE101,CE100,EE100,101..SED..(GCC,GEN)199108-199511

W(ADUSTABLE SEAT BELT ANC),TAUPE,TRIM9#

sub62469-12040

main62469-12040-K0iAE100,102199108-199505

TAUPE,TRIM9#

sub62469-12040

main62469-12040-P0iAE101,CE100,EE100,101..SED..(GCC,GEN)199108-200111

W(ADUSTABLE SEAT BELT ANC),SHADOW GRAY,TRIM1#

sub62469-12040

main62469-12040-P0iAE100,102199108-199805

SHADOW GRAY,TRIM1#

sub62469-12040

main62469-12040-W3iAE100199108-199805

DARK BLUE,TRIM8#

sub62469-12040

main62469-12040-W3iAE101,CE100,EE100,101..SED199108-200111

W(ADUSTABLE SEAT BELT ANC),DARK BLUE,TRIM8#

sub62469-12040

main62469-13010-P0iEE104,105,108199109-199910

SHADOW GRAY,TRIM1#

main62469-13010-W3iEE105199205-199408

DARK BLUE,TRIM8#

main62469-13020-B0iAE101,EE100..WG199205-199905

SHADOW GRAY,TRIM1#

main62469-13020-J0iAE101,EE100..WG..(GCC,GEN)199205-199704

DARK BLUE,TRIM8#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-12650-K0iEE101;AE101..SEG;AE101,EE100..SED..GCC199108-199511

TAUPE,TRIM9#

sub62471-12650

main62471-12650-P0iAE10#,CE100,EE100,101..SED199108-199704

SHADOW GRAY,TRIM1#

sub62471-12650

main62471-12650-W3iAE10#,CE100,EE100,101..SED199108-199704

DARK BLUE,TRIM8#

sub62471-12650

main62471-12670-22iAE101..SJ199108-199305

BLACK,TRIM20,21,22

main62471-12670-22iAE101..SJ199108-199505

BLACK,TRIM2#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-12650-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub62472-12650

main62472-12650-P0iAE10#,CE100,EE100,101..SED199108-199704

SHADOW GRAY,TRIM1#

sub62472-12650

main62472-12650-W3iAE102,CE100..LHD;AE101,EE100,101..SED..(GL,GLI,STD,XL,XLI)199108-199704

DARK BLUE,TRIM8#

sub62472-12650

main62472-12670-22iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

main62472-12670-22iAE101..GTAPX199108-199505

BLACK,TRIM2#

62487ACOVER, ROOF SIDE INNER GARNISH, RH

main62487-12020-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub62487-12020

main62487-12020-P0iAE10#,CE100,EE100..GEN199108-199704

SHADOW GRAY,TRIM1#

sub62487-12020

main62487-12020-W3iAE10#,EE100..GEN199108-199704

DARK BLUE,TRIM8#

sub62487-12020

62488ACOVER, ROOF SIDE INNER GARNISH, LH

main62488-12010-K0iAE101,102,CE100,EE100,101..SED..(GCC,GEN)199108-199511

TAUPE,TRIM9#

sub62488-12010

main62488-12010-P0iAE10#,CE100,EE100..GEN199108-199704

SHADOW GRAY,TRIM1#

sub62488-12010

main62488-12010-W3iAE101,CE100,EE100,101..SED199108-199704

DARK BLUE,TRIM8#

sub62488-12010

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12210-22iAE101..GTAPX199108-199505

BLACK,TRIM2#

main67913-12210-22iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

67913ACLIP(FOR SCUFF PLATE)

main90467-06049-01iAE10#,EE100..SED199108-199209

BLACK,TRIM1#,8#,9#

sub90467-06049

main90467-06049-22iAE10#,CE100,EE100..SED..(GL,GLI,STD,XL,XLI)..(GEN,TUR)199505-199704

BLACK,TRIM1#,8#

sub90467-06049

main90467-06049-22iAE10#,CE100,EE100,101..SED199209-199511

BLACK,TRIM1#,8#,9#

sub90467-06049

main90467-06049-22iAE100;AE101..SEG199305-199510

BLACK,TRIM1#,9#

sub90467-06049

main90467-06049-B0iCE100..RHD;EE100..RHD..GL199305

SHADOW GRAY,TRIM1#

sub90467-06049

67917APLATE, REAR DOOR SCUFF, RH

main67917-12070-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub67917-12070

main67917-12070-P0iAE10#,CE100,EE100,101..SED199108-200111

SHADOW GRAY,TRIM1#

sub67917-12070

main67917-12070-W3iAE102,CE100..LHD;AE101,EE100,101..SED..(GL,GLI,STD,XL,XLI)199108-200111

DARK BLUE,TRIM8#

sub67917-12070

main67917-13030-B0iAE101,EE10#..WG199109-199910

SHADOW GRAY,TRIM1#

sub67917-13030

main67917-13030-J0iAE101,EE100,105..WG199205-199704

DARK BLUE,TRIM8#

sub67917-13030

67918APLATE, REAR DOOR SCUFF, LH

main67918-12060-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub67918-12060

main67918-12060-P0iAE10#,CE100,EE100,101..SED199108-200111

SHADOW GRAY,TRIM1#

sub67918-12060

main67918-12060-W3iAE102,CE100..LHD;AE101,EE100,101..SED..(GL,GLI,STD,XL,XLI)199108-200111

DARK BLUE,TRIM8#

sub67918-12060

main67918-13030-B0iAE101,EE10#..WG199109-199910

SHADOW GRAY,TRIM1#

sub67918-13030

main67918-13030-J0iAE101,EE100..WG199205-199704

DARK BLUE,TRIM8#

sub67918-13030

67921ERETAINER, REAR DOOR SCUFF PLATE

main67921-32010iAE10#,CE100,EE10#..SED,WG199108-199704

8401

6777133030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33030

9046804155

main90468-04155

9046805084

main90468-05084

9046805112

main90468-05112

9046805119

main90468-05119

9354014510

main93540-14510

35 parts on this diagram · 3 diagrams in section
