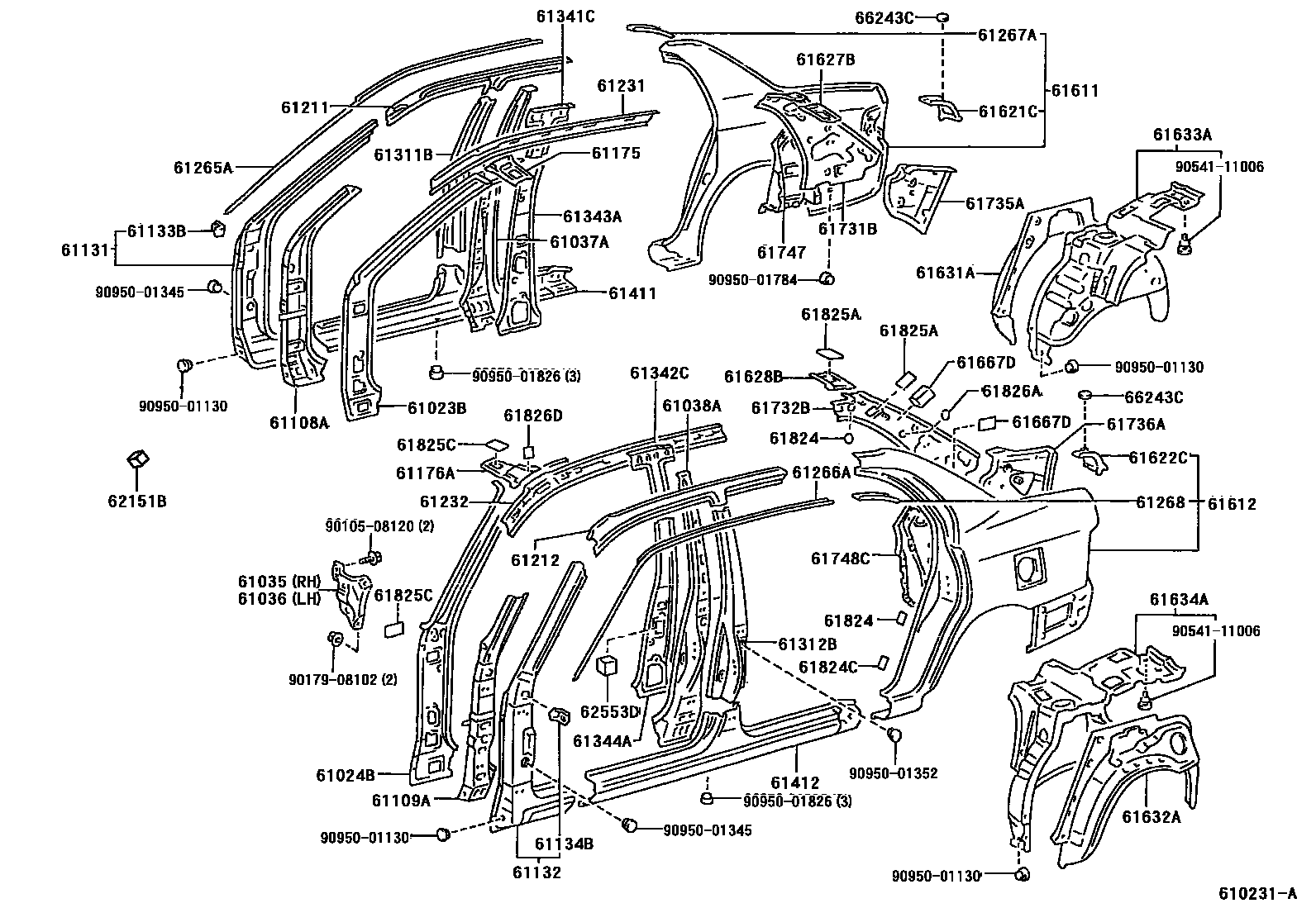

SIDE MEMBER

0001 1 0002 1 0003 1

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-12050iAE101,EE100..RHD199704

main61023-12060iAE102,EE100..LHD;AE101..LHD..(GL,GLI,XLI)199704-199905

main61023-12070iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

main61023-12130iAE101..CP199108-199505

main61023-12140iEE104,105..RHD199505-199910

main61023-12170iEE105..LHD199205-199910

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-12050iAE100,101,CE100,EE100,101..RHD..(SED,WG)199108-199704

main61024-12060iAE102,EE100..LHD;AE101..LHD..(GL,GLI,XLI)199704-199905

main61024-12070iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

main61024-12130iAE101..CP199108-199505

main61024-12140iEE104,105,108..RHD199109-199910

main61024-12160iEE105..LHD199205-199910

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-12050iAE10#,CE100,EE100,105..LHD199505-199509

main61035-12060iAE101,102,CE100,EE100,105..LHD199205-199409

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12050iAE100,101,EE10#..RHD..(SED,WG)199108-199505

main61036-12090iAE101,CE100,EE10#..RHD199704

main61166-12080iAE101..CP199108-199505

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-12050iAE10#,CE100,EE10#..SED,WG199108-199409

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-12050iAE10#,CE100,EE10#..SED,WG199108-199409

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-12110iAE10#,CE100,EE10#199704

main61108-12130iAE101..CP199108-199505

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-12100iAE10#,CE100,EE10#199509-199704

main61109-12120iAE101..CP199108-199505

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-12350iAE101..RHD..(SED,WG);AE100,CE100,EE10#..RHD..(GL,L,LX,STD,XL,XLI)199108-199704

main61131-12360iAE101,EE100,105..LHD;AE100,102,CE100..GLI,XL199108-199509

main61131-13020iEE105..RHD199704-199910

main61131-13030iEE105..LHD199704-199910

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-12360iAE101,CE100,EE100..RHD199704

main61132-12370iEE105..STD;AE10#,CE100,EE100..LHD199509-199905

main61132-13020iEE105..RHD199704-199910

main61132-13030iEE105..LHD199704-199910

61133BBRACKET, FRONT BODY PILLAR ,OUTER RH

main61133-12190iAE10#,CE100,EE10#199509-199704

main61133-12250iAE101..CP199108-199505

61134BBRACKET, FRONT BODY PILLAR OUTER, LH

main61133-12190iAE10#,CE100,EE10#199704

main61134-12240iAE101..CP199108-199505

61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH

main61175-12080iAE10#,CE100,EE10#..SED,WG199108-199409

61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH

main61176-12080iAE10#,CE100,EE10#..SED,WG199108-199409

61211RAIL, ROOF SIDE, OUTER RH

main61211-12280iAE101..CP199108-199505

main61211-12290iAE10#,CE100,EE100,101..SED199108-199409

main61211-13050iAE101,EE100,104,105,108..WG199109-199509

61212RAIL, ROOF SIDE, OUTER LH

main61212-12280iAE101..CP199108-199505

main61212-12290iAE10#,CE100,EE100,101..SED199108-199409

main61212-13050iAE101,EE100,104,105,108..WG199109-199509

61231RAIL, ROOF SIDE, INNER RH

main61231-12500iAE10#,CE100,EE100,101..SED199108-199409

main61231-12680iAE10#,CE100,EE100,101..SED199409

main61231-12740iAE101..CP199108-199403

main61231-12741iAE101..CP199403-199505

main61231-13130iEE104,105,108199109-199910

main61231-13150iAE101,EE100..WG199205-199905

main61231-13180iEE104199401-199704

W(ROOF RAIL)

61232RAIL, ROOF SIDE, INNER LH

main61232-12550iAE10#,CE100,EE100,101..SED199108-199409

main61232-12590iAE101..LHD..GLI..(GCC,GEN);EE100..LHD..SED..(GL,XL)..(GCC,GEN);AE101,CE100,EE101..SED..(GL,XL,XLI)..(GCC,GEN)199205-199704

W(*SNR)

main61232-12620iAE101..CP199108-199505

main61232-13110iEE104,105,108199109-199910

main61232-13140iAE101,EE100..WG199205-199905

main61232-13160iEE104199401-199704

W(ROOF RAIL)

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-12180iAE10#,CE100,EE100,101..SED199409-199704

main61265-13030iAE101,EE100,104,105,108..WG199109-199509

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-12180iAE10#,CE100,EE100..SED199704

main61266-13030iAE101,EE100,104,105,108..WG199109-199509

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-12130iAE10#,CE100,EE100,101..SED199409-199704

main61267-12150iAE101..CP199108-199505

main61267-13040iAE101,EE100,104,105..WG199509-199910

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-12130iAE10#,CE100,EE100,101..SED199409-199704

main61268-12150iAE101..CP199108-199505

main61268-13040iAE101,EE100,104,105..WG199509-199910

61311BPILLAR, CENTER BODY, OUTER RH

main61311-12180iAE101..CP199108-199505

main61311-12190iAE10#,CE100,EE10#..SED,WG199108-199409

61312BPILLAR, CENTER BODY, OUTER LH

main61312-12220iAE101..CP199108-199505

main61312-12230iAE10#,CE100,EE10#..SED,WG199409-199509

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61301-12250iAE101..CP199108-199505

main61341-12090iAE10#,CE100,EE10#..SED,WG199108-199409

61342CPILLAR, CENTER BODY, INNER UPPER LH

main61302-12330iAE101..CP199108-199505

main61342-12090iAE10#,CE100,EE10#199704

61343APILLAR, CENTER BODY, INNER RH

main61343-12090iAE10#,CE100,EE10#199509-199704

61344APILLAR, CENTER BODY, INNER LH

main61344-12090iAE10#,CE100,EE10#..SED,WG199108-199409

61411PANEL, ROCKER, OUTER RH

main61401-12260iAE101..SJ199108-199505

main61401-12270iAE101..GTAPX; AE101..SJ199108-199305

W(*RS)

main61401-12280iAE101..GTAPX; AE101..SJ199305-199505

W(SIDE MUDGUARD)

main61411-12530iAE10#,CE100,EE100199704

main61411-13020iEE105199704-199910

61412PANEL, ROCKER, OUTER LH

main61402-12260iAE101..SJ199108-199505

main61402-12270iAE101..GTAPX; AE101..SJ199108-199305

W(*RS)

main61402-12280iAE101..GTAPX; AE101..SJ199305-199505

W(SIDE MUDGUARD)

main61412-12520iAE10#,CE100,EE10#..SED,WG199108-199704

main61412-13020iEE105199704-199910

61611PANEL, QUARTER, RH

main61601-13381iAE101,EE100..WG199205-199509

main61601-13383iAE101,EE100..WG199705-199905

main61601-13400iEE104,105,108199109-199704

main61601-13401iEE105199704-199910

main61601-13410iEE105199205-199704

ROUGH ROAD PACKAGE

main61601-13411iEE105199704-199910

ROUGH ROAD PACKAGE

main61601-1E913iAE101..SJ199108-199505

main61601-1E914iAE101..GTAPX; AE101..SJ199108-199305

W(*RS)

main61601-1E915iAE101..XLI..GEN199704-199710

main61601-1E917iAE101..SJ199305-199505

W(*RS)

main61601-1E918iAE101,102,CE100,EE100..LHD..SED199205-199409

main61601-1E929iAE101..GTAPX; AE101..SJ199305-199505

W(SIDE MUDGUARD & *RS)

61612PANEL, QUARTER, LH

main61602-13471iAE101,EE100..WG199205-199509

main61602-13473iAE101,EE100..WG199705-199905

main61602-13480iEE104,105,108199109-199704

main61602-13481iEE105199704-199910

main61602-13491iEE105199704-199910

ROUGH ROAD PACKAGE

main61602-1E922iAE101..SJ199108-199505

main61602-1E923iAE101..GTAPX; AE101..SJ199108-199305

W(*RS)

main61602-1E924iAE101..XLI..GEN199704-199710

main61602-1E926iAE101..SJ199305-199505

W(*RS)

main61602-1E927iAE101,102,CE100,EE100..LHD..SED199205-199409

main61602-1E935iAE101..GTAPX; AE101..SJ199305-199505

W(SIDE MUDGUARD & *RS)

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-12360iAE10#,CE100,EE100,101..SED199108-199409

main61621-12380iAE101..CP199108-199505

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-12360iAE10#,CE100,EE100,101..SED199108-199409

main61622-12380iAE101..CP199108-199505

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-12070iAE10#,CE100,EE100,101..SED199108-199409

main61627-12090iAE101..CP199108-199505

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-12090iAE10#,CE100,EE100,101..SED199108-199409

main61628-12110iAE101..CP199108-199505

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12210iAE101..4FC..TUR;AE101,CE100,EE100..SED..5F..(GLI,XL,XLI)199805

main61631-12220iAE101..CP199108-199505

main61631-13070iEE104,105,108199109-199910

main61631-13080iAE101,EE100..WG199509-199905

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12210iEE100..SED..XL;AE10#,CE100..SED199704-199712

main61632-12220iAE101..CP199108-199505

main61632-13060iEE104,105,108199109-199910

main61632-13070iAE101,EE100..WG199509-199905

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12915iAE101..CP199108-199505

main61607-12916iAE101,CE100,EE100..SED..(XL,XLI); AE101..RHD..GLI199704

PAKISTAN SPEC & REAR SEAT(FIXED TYPE)

main61607-12917iAE101,CE100,EE100,101..SED..(XL,XLI)..(GCC,GEN)199205-199805

REAR SEAT(SPLIT FOLD DOWN TYPE)

main61607-13070iEE104,105,108199109-199910

main61607-13080iAE101,EE100..WG199509-199905

main61607-13130iAE101,EE100..WG..(GCC,GEN)199205-199704

ROUGH ROAD PACKAGE

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12913iAE101..CP199108-199505

main61608-12914iAE101,CE100,EE100..SED..(XL,XLI); AE101..RHD..GLI199704

PAKISTAN SPEC & REAR SEAT(FIXED TYPE)

main61608-12915iAE102;AE101..LHD..4FC;AE101..5F..(GL,GLI)199704-199805

main61608-13070iEE104,105,108199109-199910

main61608-13080iAE101,EE100..WG199509-199905

main61608-13130iAE101,EE100..WG..(GCC,GEN)199205-199704

ROUGH ROAD PACKAGE

61667DSEAL, QUARTER PANEL

main61667-12070×2iAE101..CP199108-199505

61731BPANEL, ROOF SIDE, INNER RH

main61731-12540iAE101..CP199108-199505

main61731-12910iAE10#,CE100,EE100,101..SED199108-199409

main61731-13280iAE101,EE100..WG199205-199509

main61731-13300iEE104,105,108199109-199910

main61731-13320iAE101,EE100..WG..(GEN,TUR)199509-199905

W(ROOF RAIL)

main61731-13330iEE104199401-199704

W(ROOF RAIL)

61732BPANEL, ROOF SIDE, INNER LH

main61732-12500iAE101..CP199108-199505

main61732-12910iAE101..4FC..TUR;AE101,CE100,EE100..SED..5F..(GLI,XL,XLI)199805

main61732-13280iAE101,EE100..WG199205-199509

main61732-13310iEE104,105,108199109-199910

main61732-13320iAE101,EE100..WG..(GEN,TUR)199509-199905

W(ROOF RAIL)

main61732-13340iEE104199401-199704

W(ROOF RAIL)

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12320iAE101..CP199108-199505

main61735-12904iAE10#,CE100,EE100,101..SED199108-199409

main61735-12906iEE100..SED..XL;AE10#,CE100..SED199704-199712

main61735-13060iEE104,105,108199109-199910

main61735-13070iAE101,EE100..WG199509-199905

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12310iAE101..CP199108-199505

main61736-12905iEE100..SED..XL;AE10#,CE100..SED199704-199712

main61736-13060iEE104,105,108199109-199910

main61736-13070iAE101,EE100..WG199509-199905

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61083-13010iAE101,EE100..WG199509-199905

main61701-12270iAE101..CP199108-199505

main61747-12180iEE100..SED..XL;AE10#,CE100..SED199704-199712

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61084-13010iAE101,EE100..WG199205-199509

main61702-12270iAE101..CP199108-199505

main61748-12180iAE10#,CE100,EE100,101..SED199409-199704

61824PLATE, NOISE CONTROL, NO.1

main61824-12040×4iAE10#,CE100,EE100,101..SED199108-199409

61824CPAD, NOISE SHUTTER, NO.1

main61815-32020×2iAE101,EE100..WG199206-199509

110X70

main61824-12040×2iAE101..WG199205-199206

main61826-12020×2iAE10#,CE100,EE100,101..SED199108-199401

main61827-12030×2iAE10#,CE100,EE100,101..SED199409-199704

61825APLATE, NOISE CONTROL, NO.2

main61815-32020×4iAE101,102..SED;AE100,CE100,EE100,101..SED..(GL,LX,STD,XL,XLI)199409-199704

main61825-12010×2iAE101..CP199108-199407

61825CPAD, NOISE SHUTTER, NO.2

main61815-32020×4iAE10#,CE100,EE10#..SED,WG199108-199401

main61825-12040×2iAE101..CP199108-199407

61826APLATE, NOISE CONTROL, NO.3

main61824-12040×2iAE10#,CE100,EE100,101..CP,SED199409-199704

main61826-12020×2iAE101,EE100..WG199509-199905

61826DPLATE, NOISE CONTROL, NO.3

main61824-12040iAE101..CP199407-199505

62151BPAD, COWL SIDE SILENCER

main62151-12130×2iAE10#,CE100,EE10#199704

main62553-12120×2iEE105199704-199910

70X70X70

62553DPAD, PILLAR, NO.3

main61667-12050×2iAE10#,CE100,EE10#199704

150X50X50

main62553-12120×2iAE10#,CE100,EE10#199509-199704

70X70X70

main67812-12050×2iAE10#,EE10#..SED,WG199108-199205

80X80X80

66243CPROTECTOR, REAR BODY, NO.1

main66243-13010×2iAE101,EE100,104,105,108..WG199109-199509

main66243-20010×2iAE10#,CE100,EE100,101..SED199409-199704

main90950-06051×2iAE101..CP199108-199505

main90950-06123×2iAE101,CE100,EE100..GEN199812

9010508120

main90105-08120

9017908102

main90179-08102

9054111006

main90541-11006

9095001130

main90950-01130

9095001345

main90950-01345

9095001352

main90950-01352

9095001784

main90950-01784

9095001826

main90950-01826

64 parts on this diagram · 3 diagrams in section
