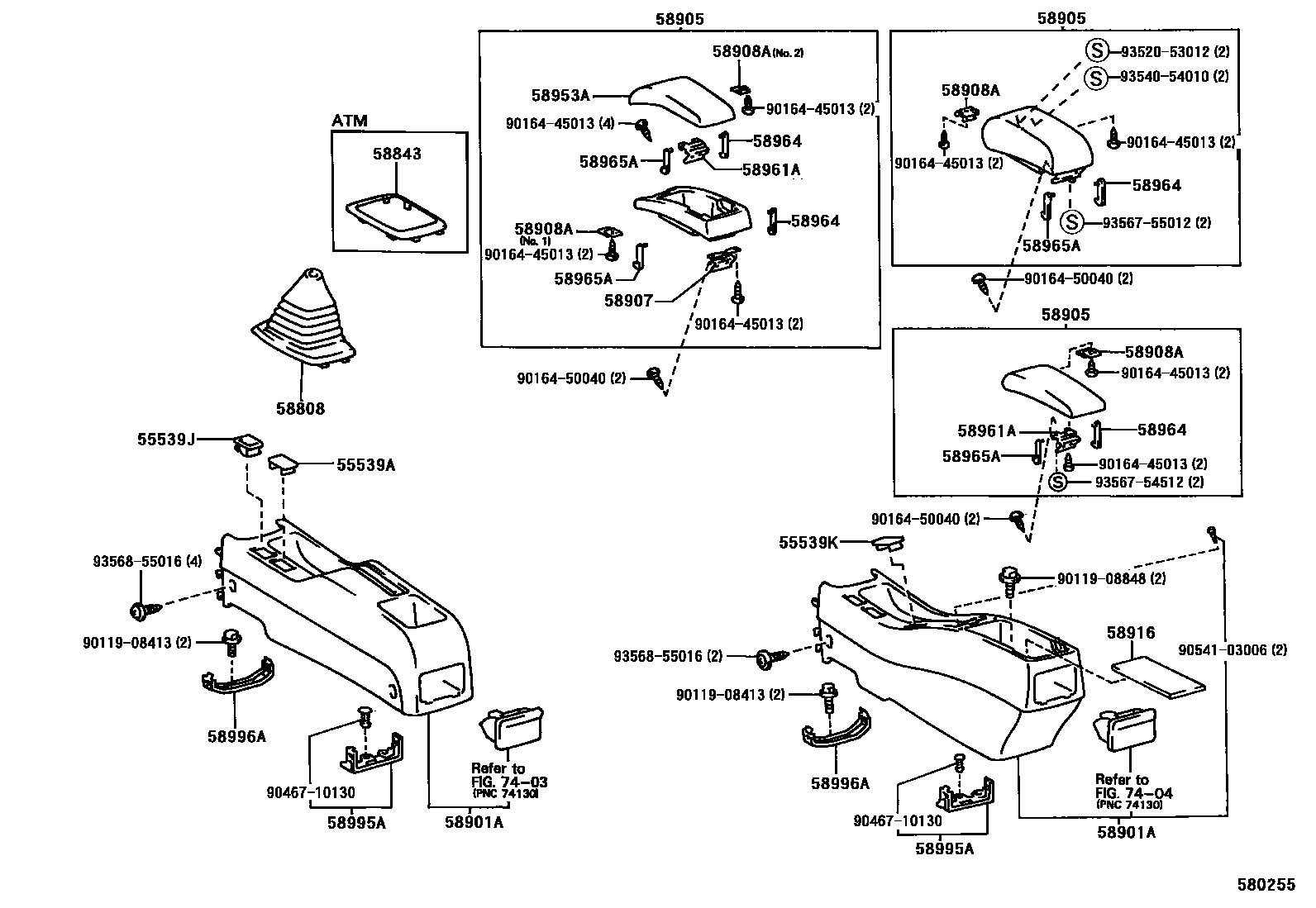

CONSOLE BOX & BRACKET

0001 1 0002 1

55539ACOVER, SPARE SWITCH HOLE

main55539-12120-B0iAE10#,CE100,EE100,101,105..SED,WG199108-200111

SHADOW GRAY,TRIM1#

main55539-12120-J0iEE100..STD;AE101,EE100..WG..(GCC,GEN)199607-199704

DARK BLUE,TRIM8#

main55539-12120-K0iAE10#,CE100,EE100,101..SED199108-199505

TAUPE,TRIM9#

main55539-20020-03iEE108199109-199208

SHADOW GRAY,TRIM1#

main55539-20020-11iAE101..4FC..SJ199205-199211

BLACK,TRIM20,21,22

main55539-20020-C0iAE101..4FC..SJ199305-199505

BLACK,TRIM2#

main55539-20020-P0iAE101..WG..GEN199405-199505

W(*PW),SHADOW GRAY,TRIM1#

main55539-20020-W3iAE101..WG..GEN199405-199505

W(*PW),DARK BLUE,TRIM8#

main55539-32040-C0iAE101..SJ199108-199205

BLACK,TRIM20,21,22

55539JCOVER, SPARE SWITCH HOLE

main55539-20020-03iAE10#,CE100,EE100,101,105..SED,WG199108-199208

SHADOW GRAY,TRIM1#

main55539-20020-11iAE101..5F..SJ; AE101..GTAPX199205-199211

BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main55539-20020-C0iAE101..CP..5F199305-199505

BLACK,TRIM2#

main55539-20020-K0iEE101;AE101..SEG;AE101,EE100..SED..GCC199505-199508

TAUPE,TRIM9#

main55539-20020-P0iAE10#,CE100,EE100,101,105..SED,WG199208-200111

SHADOW GRAY,TRIM1#

main55539-20020-W3iAE10#,CE100,EE100,101,105..SED,WG199108-199305

DARK BLUE,TRIM8#

main55539-32040-C0iAE101..5F..SJ; AE101..GTAPX199108-199205

BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

55539KCOVER, SPARE SWITCH HOLE

main55539-12120-B0iAE10#,EE100..GL,GLI,LX,SEG199108-199409

SHADOW GRAY,TRIM1#

main55539-12120-J0iAE101,102,EE100..GL,GLI199409-199607

DARK BLUE,TRIM8#

main55539-12120-K0iAE101..SEG;AE101..GLI..GCC199505-199508

TAUPE,TRIM9#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12110-K0iAE10#,EE100..SED..MTM199108-199205

TAUPE,TRIM9#

main58808-12110-P0iAE10#,EE10#..(SED,WG)..MTM199108-199205

SHADOW GRAY,TRIM1#

main58808-12110-W3iAE10#,EE100..SED..MTM199108-199205

DARK BLUE,TRIM8#

main58808-12111-K0iAE100,101,CE100,EE100,101..SED..MTM199205-199312

TAUPE,TRIM9#

main58808-12111-P0iAE100,101,CE100,EE10#..(SED,WG)..MTM199205-199312

SHADOW GRAY,TRIM1#

main58808-12111-W3iAE10#,CE100,EE100,101,105..(SED,WG)..MTM199205-199305

DARK BLUE,TRIM8#

main58808-12112-K0iAE100,101,CE100,EE100,101..SED..MTM199312-199505

TAUPE,TRIM9#

main58808-12112-P0iAE10#,CE100,EE10#..(SED,WG)..MTM199312-200111

SHADOW GRAY,TRIM1#

main58808-12112-W3iAE102,CE100..LHD..5F;AE101,EE100..SED..5F..TUR;AE101,EE100,101..MTM..(GL,GLI,STD,XL,XLI)..(GCC,GEN)199408-200111

DARK BLUE,TRIM8#

main58808-12120-22iAE101..5F..SJ; AE101..GTAPX199108-199305

BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

58843BEZEL, SHIFTING HOLE

main58843-12060-K0iAE10#,EE100,101..SED..ATM199108-199312

TAUPE,TRIM9#

main58843-12060-P0iAE10#,EE100,101..(SED,WG)..ATM199108-199312

SHADOW GRAY,TRIM1#

main58843-12060-W3iAE10#,EE100,101..(SED,WG)..ATM199108-199305

DARK BLUE,TRIM8#

main58843-12070-22iAE101..4FC..SJ199108-199305

BLACK,TRIM20,21,22

main58843-12080iAE101..ATM..(XL,XLI)199704-199805

main58843-12080-B0iAE10#..4FC..GLI199704

SHADOW GRAY,TRIM1#

main58843-12080-J0iAE10#..4FC..GLI199704

DARK BLUE,TRIM8#

main58843-12080-K0iEE101..3FC;AE101..4FC..SEG;AE101,EE100..SED..ATM..GCC199505-199508

TAUPE,TRIM9#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12220-B0iAE10#,EE100..(GL,GLI)..(GCC,GEN)199601-199701

SHADOW GRAY,TRIM1#

main58901-12220-J0iAE101,102,EE100..GL,GLI199305-199601

DARK BLUE,TRIM8#

main58901-12220-K0iAE10#,EE100..GL,GLI,LX,SEG199108-199505

TAUPE,TRIM9#

main58901-12230-K0iEE101199508-199511

TAUPE,TRIM9#

main58901-12230-P0iAE101..GLI..TUR;AE101,CE100,EE10#..L,STD,XL,XLI199601-199701

SHADOW GRAY,TRIM1#

main58901-12230-W3iAE101,EE100..SED..(XL,XLI)..TUR;AE101,CE100,EE100,101..(STD,XL,XLI)..(GCC,GEN)199408-199601

DARK BLUE,TRIM8#

main58901-12270-C0iAE101..GTAPX; AE101..SJ199108-199305

BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main58901-12360-B0iEE100..LHD..5F..XL..GEN199601-199711

PHILIPPINES SPEC,SHADOW GRAY,TRIM1#

main58901-12360-J0iEE100..LHD..5F..XL..GEN199601-199711

PHILIPPINES SPEC,DARK BLUE,TRIM8#

main58901-12370-B0iAE101..LHD..GLI..GEN199601-199711

PHILIPPINES SPEC,SHADOW GRAY,TRIM1#

main58901-12370-J0iAE101..LHD..GLI..GEN199601-199711

PHILIPPINES SPEC,DARK BLUE,TRIM8#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12110-B0iAE10#,EE100..(GL,GLI,SEG)..GEN199108-199409

SHADOW GRAY,TRIM1#

main58905-12110-J0iAE101,102,EE100..(GL,GLI)..(GEN,TUR)199409-199511

DARK BLUE,TRIM8#

main58905-12110-K0iAE101..SEG199505-199510

TAUPE,TRIM9#

main58905-12120-B0iAE101..GLI..(GCC,TUR)199701

SHADOW GRAY,TRIM1#

main58905-12120-J0iAE101..GLI..GCC199601-199701

DARK BLUE,TRIM8#

main58905-12120-K0iAE100..LX;AE101..GLI..GCC199108-199508

TAUPE,TRIM9#

main58905-12140-C0iAE101..GTAPX; AE101..SJ199108-199305

BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12030iAE10#,EE100..(GL,GLI,SEG)..(GEN,TUR)199409-199511

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12020-B0iAE101..GL;AE102,EE100..GL,GLI;AE101..5F..GLI..GEN;AE101..LHD..4FC..GLI..GEN199511

SHADOW GRAY,TRIM1#,NO.2

main58908-12020-J0iAE101..RHD..4FC..GLI199108

DARK BLUE,TRIM8#

main58908-12020-K0iAE101..GL,SEG;AE101..5F..GLI..GEN;AE100,102,EE100..GL,GLI;AE101..LHD..4FC..GLI..GEN199108-199409

TAUPE,TRIM9#,NO.2

main58908-32020iAE10#,EE100..(GL,GLI,SEG)..(GEN,TUR)199409-199511

NO.1

58916MAT, BOX BOTTOM

main58916-12020iAE101..CP199108-199405

main58916-12040iAE10#,EE100..GL,GLI,LX,SEG199108-199405

58953ADOOR, CONSOLE COMPARTMENT, UPPER

main58953-12040-B0iAE10#,EE100..(GL,GLI,SEG)..GEN199108-199409

SHADOW GRAY,TRIM1#

main58953-12040-J0iAE10#,EE100..(GL,GLI,SEG)..GEN199108-199305

DARK BLUE,TRIM8#

main58953-12040-K0iAE10#,EE100..(GL,GLI,SEG)..GEN199108-199409

TAUPE,TRIM9#

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-12060-C0iAE101..GTAPX; AE101..SJ199108-199305

BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main58961-12080iAE10#,EE100..(GL,GLI,SEG)..(GEN,TUR)199409-199511

main58961-12090iAE101..GLI..(GCC,TUR)199701

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-12040×2iAE10#,EE100..(GL,GLI)..GEN199511

main58964-12050iAE101..CP199108-199505

RH

main58965-12050iAE101..CP199108-199505

LH

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iAE101..CP199108-199505

LH

main58965-12040×2iAE10#,EE100..(GL,GLI,SEG)..(GEN,TUR)199409-199511

main58965-20020iAE101..CP199108-199505

RH

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12080iAE10#,CE100,EE10#..MTM199509

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12090iAE101..GLI..TUR;AE101,CE100,EE10#..L,STD,XL,XLI199601-199701

9011908413

main90119-08413

9011908848

main90119-08848

9016445013

main90164-45013

9016450040

main90164-50040

9046710130

main90467-10130

9054103006

main90541-03006

9352053012

main93520-53012

9354054010

main93540-54010

9356754512

main93567-54512

9356755012

main93567-55012

9356855016

main93568-55016

27 parts on this diagram · 2 diagrams in section
