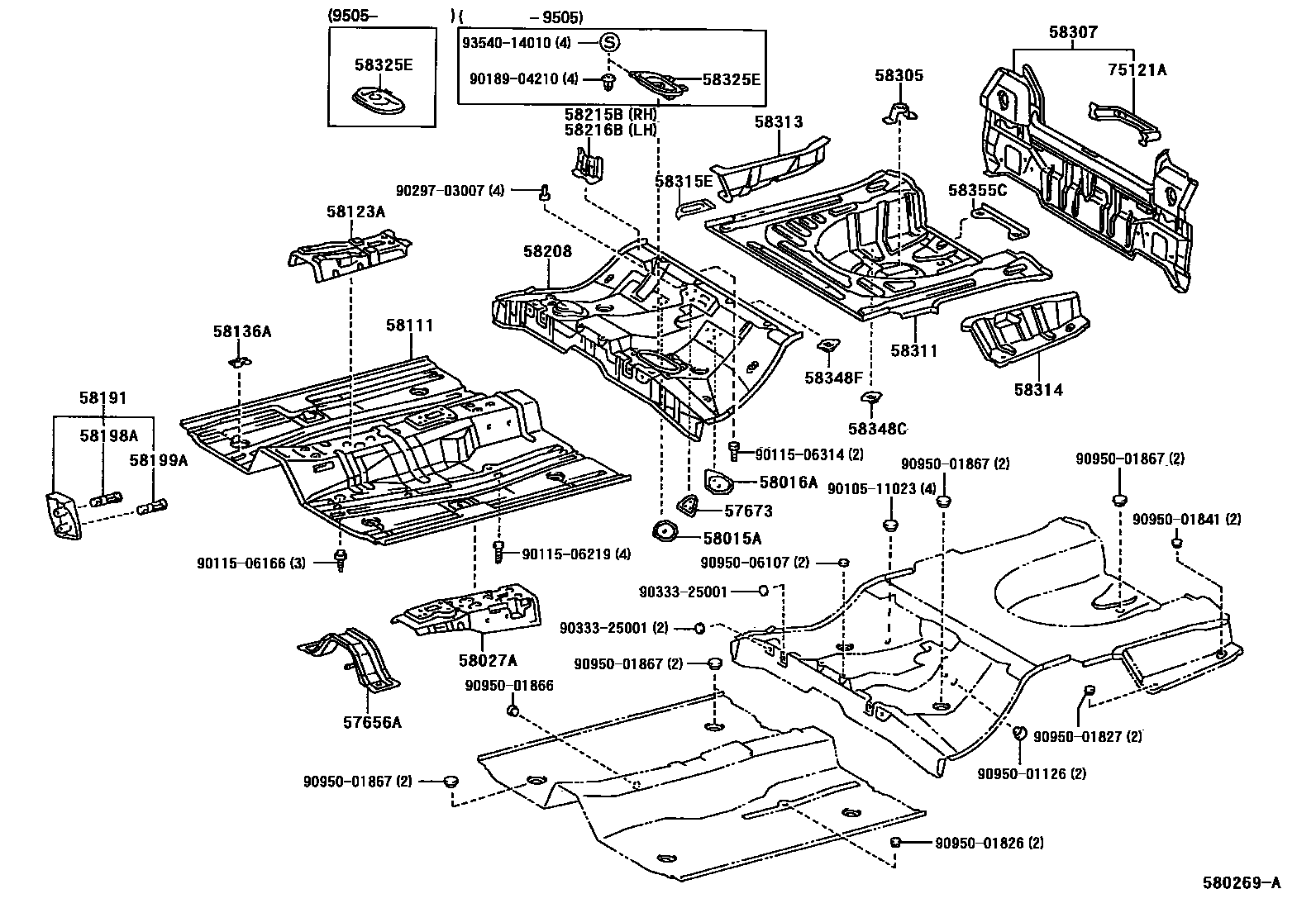

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-12060iAE10#,CE100,EE10#199205-199409

main57656-12070iAE10#,EE10#199108-199205

main57656-12080iEE105199704-199910

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-12070iAE101..SEG199108-199510

CKD SPEC

main57673-12080iAE101..CP199108-199505

main57673-13010iAE101,EE100..WG199509-199905

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12040iAE10#,CE100,EE100,101199509-199704

main58015-12050iAE101..CP199108-199505

main58015-13020iEE104,105,108199109-199910

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-12010iAE101..3FC,5F;AE101..4FC..TUR;AE102,CE100,EE100..GLI,XL199712-199805

main58016-12020iAE101..CP199108-199505

main58016-13010iEE104,105,108199109-199910

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12120iAE10#,CE100,EE10#199108-199409

main58027-12121iAE10#,CE100,EE10#199505-199509

58111PAN, FRONT FLOOR

main58111-12260iAE10#,CE100,EE10#199108-199409

main58111-12261iAE10#,CE100,EE10#199505-199508

main58111-12262iAE10#,CE100,EE10#199508-199509

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12020iAE10#,CE100,EE10#199108-199409

main58013-12060iAE10#,CE100,EE10#199505-199509

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020×2iAE10#,CE100,EE10#199108-199301

main58136-12030×2iAE10#,CE100,EE10#199704

58191FOOTREST, FRONT FLOOR

main58191-12110iAE100,101,CE100,EE100,101..RHD..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)199108-199704

main58192-12060iAE101..LHD..XLI..GEN;EE100..LHD..(GL,XL)..GEN;AE101,102,CE100..LHD..(GL,GLI,XL)199409-199807

58198ACLIP, FOOTREST, NO.1

main58198-12030iAE100,101,CE100,EE100,101..RHD..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)199108-199704

main58198-12040iAE101..LHD..XLI..GEN;EE100..LHD..(GL,XL)..GEN;AE101,102,CE100..LHD..(GL,GLI,XL)199205-199409

58199ACLIP, FOOTREST, NO.2

main58198-12040iAE101..LHD..XLI..GEN;EE100..LHD..(GL,XL)..GEN;AE101,102,CE100..LHD..(GL,GLI,XL)199409-199807

main58199-12020iAE100,101,CE100,EE100,101..RHD..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)199108-199704

58208PAN, CENTER FLOOR

main58211-12340iAE101..SED..(SEG,STD,XL,XLI);AE100,CE100,EE100,101..SED..(GLI,LX,STD,XL,XLI)199108-199409

main58211-12350iAE101,CE100,EE100,101..SED..(XL,XLI)..(GCC,GEN); AE101..SEG199108-199505

CKD SPEC; REAR SEAT(SPLIT FOLD DOWN TYPE)

main58211-12370iAE101..CP199108-199505

main58211-12901iAE10#,CE100,EE100..SED199603-199605

main58211-12910iAE101..4FC..TUR;AE101..SED..(3FC,5F);AE102,CE100,EE100..SED..(GLI,XL)199712

main58211-13900iAE101,EE100..WG199205-199505

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-12040iAE10#,CE100,EE100,101..CP,SED199108-199409

main58215-12041iAE10#,CE100,EE100,101..SED199505-199704

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-12040iAE10#,CE100,EE100,101..CP,SED199108-199409

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAE10#,CE100,EE100,101199108-199409

main58351-12040iAE10#,CE100,EE100,101199412-199509

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A230iAE10#,CE100,EE100,101..SED..(GCC,GEN)199108-199704

main58307-1A240iAE101,EE100..SED..TUR199409-199807

main58307-1A290iAE101..CP199108-199505

58311PAN, REAR FLOOR

main58311-12210iAE10#,CE100,EE100,101199409-199509

main58311-13150iEE105..STD199205-199704

main58311-13160iEE104,105,108..5F199109-199910

58313PANEL, REAR FLOOR SIDE, RH

main58313-12900iAE10#,CE100,EE100,101..CP,SED199108-199409

main58313-12904iAE10#,CE100,EE100..SED199704

58314PANEL, REAR FLOOR SIDE, LH

main58314-12250iAE10#,CE100,EE100,101..CP,SED199108-199409

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-12070iAE10#,CE100,EE100,101199108-199409

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12080iEE104,105199508-199910

main58325-12090iAE101..CP199108-199505

main58325-12100iAE10#,CE100,EE100,101199508-199509

58348CBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58348-12020iAE10#,CE100,EE100,101199108-199409

58348FBRACKET, CENTER FLOOR HEAR INSULATOR, NO.3

main58348-12020×2iAE10#,CE100,EE100,101199108-199409

58355CBRACKET, REAR BUMPER ARM

main58355-12040iAE10#,CE100,EE100,101..SED199108-199409

75121ABRACKET, REAR LICENSE PLATE

main75121-12030iAE10#,CE100,EE100,101..SED..(GCC,GEN)199108-199704

main75121-12040iAE101..CP199108-199505

9010511023

main90105-11023

9011506166

main90115-06166

9011506219

main90115-06219

9011506314

main90115-06314

9018904210

main90189-04210

9029703007

main90297-03007

9033325001

main90333-25001

9095001126

main90950-01126

9095001826

main90950-01826

9095001827

main90950-01827

9095001841

main90950-01841

9095001866

main90950-01866

9095001867

main90950-01867

9095006107

main90950-06107

9354014010

main93540-14010

40 parts on this diagram · 4 diagrams in section
