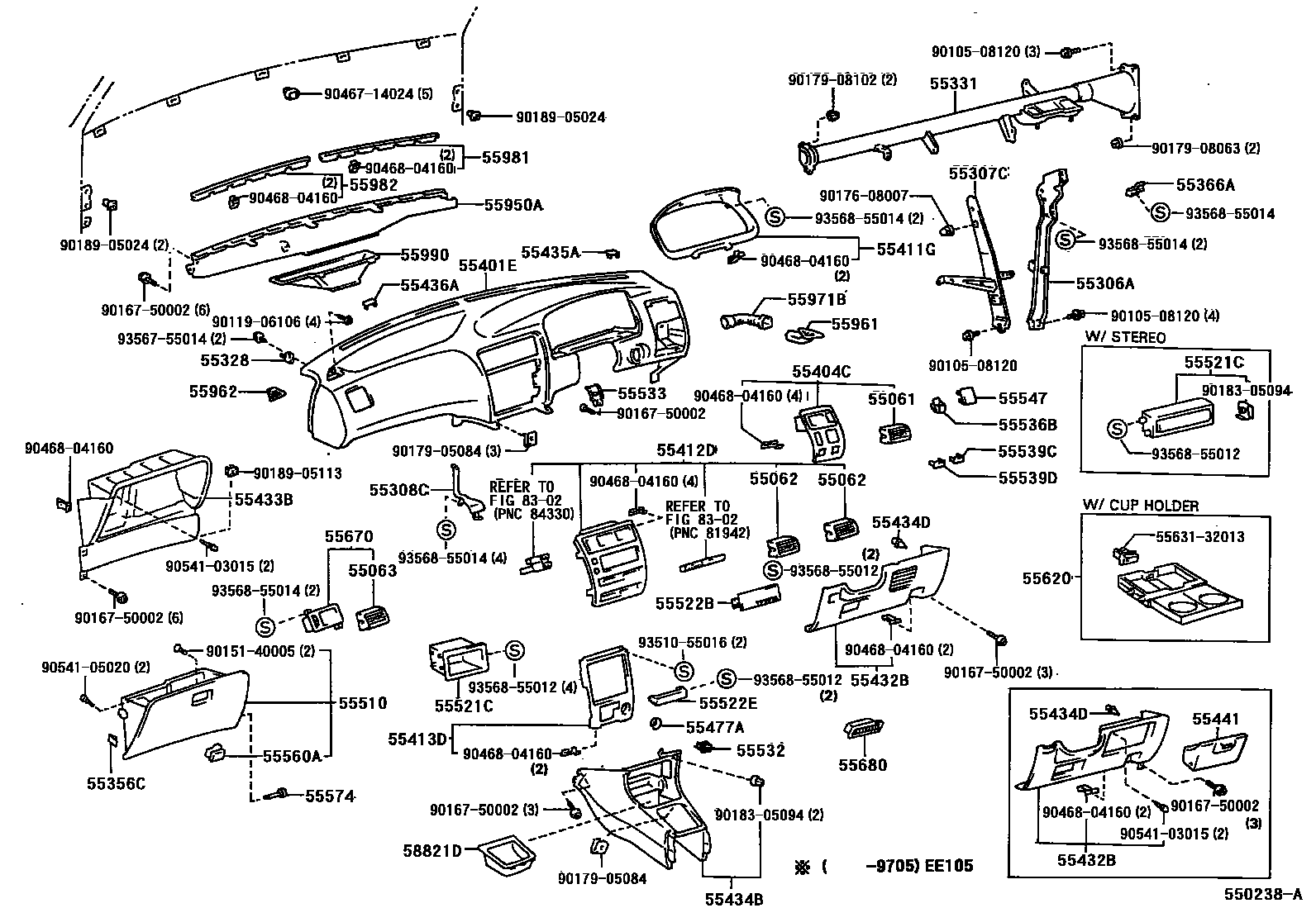

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1

55061REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1

main55061-12150iAE101,CE100,EE10#..RHD199108-199704

main55061-12170iAE101,102,CE100,EE100,105..LHD199205-199910

55062REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2

main55062-12060iAE101,CE100,EE10#..RHD199108-199704

main55062-12080iAE101,102,CE100,EE100,105..LHD199205-199910

55063REGISTER SUB-ASSY, INSTRUMENT, NO.3

main55061-12180-B0iAE101,102,CE100,EE100,105..LHD199205-199910

SHADOW GRAY,TRIM1#

sub55061-12170

main55061-12180-J0iAE101..GLI..TUR;AE10#,CE100,EE100..LHD..(GCC,GEN)199205-199807

DARK BLUE,TRIM8#

sub55061-12170

main55061-12180-K0iAE101,EE100..SED..GCC199205-199508

TAUPE,TRIM9#

sub55061-12170

main55063-12050-B0iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-200111

SHADOW GRAY,TRIM1#

sub55063-12050

main55063-12050-J0iAE101,EE100,101..RHD..(GL,GLI,STD,XL,XLI)199108-200111

DARK BLUE,TRIM8#

sub55063-12050

main55063-12050-K0iAE100,101,EE100,101..RHD..SED199205-199511

TAUPE,TRIM9#

sub55063-12050

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12150iAE10#,EE10#..RHD..(SED,WG)199108-199305

sub55306-12200

main55306-12160iAE101..CP199108-199305

main55306-12180iAE101,CE100,EE100,105..LHD199205-199305

sub55306-12220

sub85999-12330

main55306-12200iAE101,CE100,EE10#..RHD199305-199704

main55306-12210iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

main55306-12220iAE101,102,CE100,EE100,105..LHD199305-199910

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12200iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-199610

sub55307-12201

main55307-12201iAE101,CE100,EE10#..RHD199610-199704

main55307-12210iAE101..CP199108-199305

main55307-12220iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

main55307-12230iAE101,102,CE100,EE100,105..LHD199205-199910

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12180iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-199704

main55308-12190iAE101..CP199108-199505

main55308-12200iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

main55308-12210iAE101,102,CE100,EE100,105..LHD199205-199910

main55308-12230iEE104199610-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12060iAE10#,CE100,EE10#..SED,WG199108-199706

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12240iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-199704

sub55330-12241

main55330-12241iAE101,CE100,EE10#..RHD199705

main55330-12250iAE101..CP199108-199401

main55330-12260iAE101,102,CE100,EE100,105..LHD199205-199505

sub55330-12261

main55330-12261iAE10#,CE100,EE100,105..LHD199505-199910

main55330-12291iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

main55330-12330iEE104199610-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

sub55330-12331

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-12060iAE10#,CE100,EE10#..SED,WG199108-199301

NO.2

main55356-12060iAE101,CE100,EE100,105..LHD199205-199305

NO.1

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-12040iAE101,CE100,EE10#..RHD199108-199704

main55366-12050iAE101,102,CE100,EE100,105..LHD199205-199910

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-12300-K0iAE10#,EE100..SED199108-199311

TAUPE,TRIM9#

sub55401-12370

sub55404-12610

sub55404-12620

main55401-12300-P0iAE10#,EE10#..SED,WG199108-199311

SHADOW GRAY,TRIM1#

sub55401-12370

sub55404-12610

sub55404-12620

main55401-12300-W3iAE10#,EE100..SED199108-199311

DARK BLUE,TRIM8#

sub55401-12370

sub55404-12610

sub55404-12620

main55401-12310-22iAE101..SJ199108-199305

BLACK,TRIM2#,20,21,22

main55401-12310-22iAE101..SJ199108-199305

BLACK,TRIM20,21,22

main55401-12310-22iAE101..CP199305-199505

BLACK,TRIM2#

main55401-12320-22iAE101..SJ199108-199305

W(LIVE SOUND),BLACK,TRIM20,21,22

main55401-12320-22iAE101..GTAPX199108-199305

W(LIVE SOUND),BLACK,TRIM2#,20,21,22

main55401-12320-22iAE101..CP199305-199505

W(LIVE SOUND),BLACK,TRIM2#

main55401-12340-B0iAE101,102,CE100,EE100,105..LHD199205-199311

SHADOW GRAY,TRIM1#

sub55401-12400

sub55404-12630

sub55404-12640

main55401-12340-J0iAE101,102,CE100,EE100,105..LHD199205-199311

DARK BLUE,TRIM8#

sub55401-12400

sub55404-12630

sub55404-12640

main55401-12340-K0iAE101,102,CE100,EE100..LHD..SED199205-199311

TAUPE,TRIM9#

sub55401-12400

sub55404-12630

sub55404-12640

main55401-12370-B0iAE100,101,EE10#..RHD..(SED,WG)199311-199503

SHADOW GRAY,TRIM1#

sub55401-12460

main55401-12370-J0iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199311-199503

DARK BLUE,TRIM8#

sub55401-12460

main55401-12370-K0iAE100,101,EE100,101..RHD..SED199311-199503

TAUPE,TRIM9#

sub55401-12460

main55401-12400-B0iAE101,102,CE100,EE100,105..LHD199311-199503

SHADOW GRAY,TRIM1#

sub55401-12450

main55401-12400-J0iAE101,102,CE100,EE100,105..LHD199311-199503

DARK BLUE,TRIM8#

sub55401-12450

main55401-12400-K0iAE101,102,CE100,EE100..LHD..SED199311-199503

TAUPE,TRIM9#

sub55401-12450

main55401-12410-B0iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),SHADOW GRAY,TRIM1#

main55401-12410-J0iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),DARK BLUE,TRIM8#

main55401-12450-B0iAE101,102,CE100,EE100,105..LHD199503-199910

SHADOW GRAY,TRIM1#

main55401-12450-J0iAE101,EE100..SED..TUR;AE101,102,CE100,EE100..LHD..(GCC,GEN)199503-199807

DARK BLUE,TRIM8#

main55401-12460iEE100..GL;AE101,CE100..RHD..(GLI,XL)199704-199706

sub55401-12381

main55401-12460-B0iAE101,EE10#..RHD..(XL,XLI)199503-199910

SHADOW GRAY,TRIM1#

sub55401-12381

main55401-12460-J0iAE101,EE100..RHD..(4F,4FC,5F)199503-199710

DARK BLUE,TRIM8#

sub55401-12381

main55401-12460-K0iAE100,101,EE100,101..RHD..SED199503-199505

TAUPE,TRIM9#

sub55401-12381

main55401-12500-B0iEE104199610-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),SHADOW GRAY,TRIM1#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-12570iAE100,101,EE10#..RHD..(SED,WG)199108-199311

sub55404-12610

main55404-12590iAE101,102,CE100,EE100,105..LHD199205-199311

sub55404-12630

main55404-12610iAE101,CE100,EE10#..RHD199311-199704

main55404-12630iAE101,102,CE100,EE100,105..LHD199311-199910

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-12870iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-199704

main55411-12880iAE101..CP199108-199305

main55411-12890iAE101,102,CE100,EE100,105..LHD199205-199910

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-12480iAE100,EE108..L,LX199108-199305

W(DEFOGGER & HEATER & BOOST VENTILATOR)

main55405-12480iAE100..GLI199205-199305

W/O(AIR CONDITIONER)

main55405-12500iAE100..GLI199108-199505

main55405-12510iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199108-199305

W(BOOST VENTILATOR)

main55405-12510iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199108-199305

W(DEFOGGER & BOOST VENTILATOR)

main55405-12520iAE101..SEG199108-199510

W(HEATER & BOOST VENTILATOR)

main55405-12530iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199108-199308

W(DEFOGGER)

main55405-12540iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199108-199305

W(HEATER & BOOST VENTILATOR)

main55405-12550iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199108-199305

W(BOOST VENTILATOR)

main55405-12560iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199108-199308

main55405-12570iEE100..RHD..5F..XL;AE101..RHD..SED..(GLI,XLI)199208-199301

NEW ZEALAND SPEC & CKD SPEC

sub55405-12790

main55405-12580iAE101,CE100,EE100,105..LHD..(GCC,GEN)199205-199605

W(DEFOGGER & HEATER & BOOST VENTILATOR)

sub55405-12690

main55405-12580iAE102199309-199605

W(HEATER & BOOST VENTILATOR)

sub55405-12690

main55405-12610iAE101,CE100,EE100,105..LHD..(GCC,GEN)199205-199605

W(HEATER & BOOST VENTILATOR)

sub55405-12580

main55405-12620iAE101,CE100,EE100,105..LHD199205-199308

W(DEFOGGER)

main55405-12630iAE101,CE100,EE100,105..LHD199205-199308

sub55405-12620

main55405-12640iAE101,CE100,EE100,105..LHD199205-199308

W(BOOST VENTILATOR)

sub55405-12650

main55405-12640iAE101,CE100,EE100,105..LHD..(GCC,GEN)199308-199605

sub55405-12650

main55405-12650iAE101,CE100,EE100,105..LHD..(GCC,GEN)199308-199605

W(DEFOGGER)

main55405-12650iAE102199309-199605

main55405-12650iAE101,CE100,EE100,105..LHD199205-199308

W(DEFOGGER & BOOST VENTILATOR)

main55405-12660iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199208-199305

W(DEFOGGER & HEATER & BOOST VENTILATOR & AIR CONDITIONER)

main55405-12660iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199205-199208

W(DEFOGGER & AIR CONDITIONER)

main55405-12680iEE100..RHD..5F..XL;AE101..RHD..SED..(GLI,XLI)199301-199305

NEW ZEALAND SPEC & CKD SPEC

sub55405-12790

main55405-12690iAE101,EE100..TUR199409-199605

main55405-12700iAE100,EE104,108..L,LX199305-199605

W(DEFOGGER & HEATER & BOOST VENTILATOR)

main55405-12700iAE100..GLI199305-199505

W/O(AIR CONDITIONER)

main55405-12710iAE101,CE100,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199305-199605

W(HEATER & BOOST VENTILATOR)

main55405-12720iEE104199508-199605

W(AIR CONDITIONER)

main55405-12720iAE101,CE100,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199305-199605

W(DEFOGGER & HEATER & BOOST VENTILATOR & AIR CONDITIONER)

main55405-12730iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199305-199308

W(DEFOGGER & BOOST VENTILATOR)

main55405-12730iAE101..SEG199305-199308

W(BOOST VENTILATOR)

main55405-12730iAE101..SEG199308-199510

main55405-12730iAE101,CE100,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199308-199605

W(DEFOGGER)

main55405-12740iAE101,CE100,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199308-199605

main55405-12740iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199305-199308

W(BOOST VENTILATOR)

main55405-12760iAE101..RHD..XLI;AE101..RHD..4FC..GLI199505-199605

NEW ZEALAND SPEC

main55405-12760iAE101..RHD..XLI;AE101..RHD..4FC..GLI199305-199605

NEW ZEALAND SPEC & CKD SPEC

main55405-12770iAE101,CE100,EE100,105..RHD199605-199704

W(DEFOGGER & HEATER & BOOST VENTILATOR)

main55405-12790iAE101..RHD..XLI;AE101..RHD..4FC..GLI199605

NEW ZEALAND SPEC

main55405-12790iEE100..RHD..5F..XL199605-199706

NEW ZEALAND SPEC & CKD SPEC

main55405-12810iAE101,CE100,EE100,105..RHD199605-199704

W(DEFOGGER)

main55405-12820iAE101,CE100,EE100,105..RHD199605-199704

W(HEATER & BOOST VENTILATOR)

main55405-12830iAE101,CE100,EE100,105..RHD199605-199704

main55405-12840iEE104199605-199704

W(AIR CONDITIONER)

main55405-12840iAE101,CE100,EE100,105..RHD199605-199704

W(DEFOGGER & HEATER & BOOST VENTILATOR & AIR CONDITIONER)

main55405-12850iAE102199605-199805

W(HEATER & BOOST VENTILATOR)

sub55405-12860

main55405-12850iAE101,CE100,EE100,105..LHD..(GCC,GEN)199605-199910

W(DEFOGGER & HEATER & BOOST VENTILATOR)

sub55405-12860

main55405-12860iAE101,EE100..TUR199605-199905

sub55405-12690

main55405-12880iAE101,CE100,EE100,105..LHD..(GCC,GEN)199605-199910

W(HEATER & BOOST VENTILATOR)

main55405-1A010iAE102199605-199805

main55405-1A010iAE101,CE100,EE100,105..LHD..(GCC,GEN)199605-199910

W(DEFOGGER)

main55405-1A020iAE101,CE100,EE100,105..LHD..(GCC,GEN)199605-199910

sub55405-12690

main55412-12470iAE101..CP199108-199305

55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

main55413-12420iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-199704

main55413-12430iAE101,102,CE100,EE100,105..LHD199205-199910

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55045-12180-B0iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),SHADOW GRAY,TRIM1#

main55045-12180-J0iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),DARK BLUE,TRIM8#

main55432-12310-B0iAE100,101,CE100,EE100,101,105..RHD..(GL,GLI,SEG,STD,XL,XLI)199108-200111

SHADOW GRAY,TRIM1#

sub55432-12430

sub55432-12310

main55432-12310-B0iAE100..LX199109-199505

W(2 SPEAKER),SHADOW GRAY,TRIM1#

sub55432-12430

sub55432-12310

main55432-12310-J0iAE10#,EE100,101,105..RHD..(GL,GLI,SEG,STD,XL,XLI)199108-200111

DARK BLUE,TRIM8#

sub55432-12430

sub55432-12310

main55432-12310-J0iAE100..LX199109-199305

W(2 SPEAKER),DARK BLUE,TRIM8#

sub55432-12430

sub55432-12310

main55432-12310-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub55432-12430

sub55432-12310

main55432-12310-K0iAE100..LX199109-199505

W(2 SPEAKER),TAUPE,TRIM9#

sub55432-12430

sub55432-12310

main55432-12320-K0iAE100..4FC199109-199505

FOR HANDICAPPED PERSON,TAUPE,TRIM9#

main55432-12320-K0iAE100..3FC199308-199505

FOR HANDICAP PERSON & W(2 SPEAKER),TAUPE,TRIM9#

main55432-12320-K0iAE100..LX199108-199505

TAUPE,TRIM9#

main55432-12320-P0iAE100,EE104,108..L,LX199108-199704

SHADOW GRAY,TRIM1#

main55432-12320-P0iAE100..4FC199109-199505

FOR HANDICAPPED PERSON,SHADOW GRAY,TRIM1#

main55432-12320-P0iAE100..3FC199308-199505

FOR HANDICAP PERSON & W(2 SPEAKER),SHADOW GRAY,TRIM1#

main55432-12320-W3iAE100..LX199108-199305

DARK BLUE,TRIM8#

main55432-12320-W3iAE100..4FC199109-199305

FOR HANDICAPPED PERSON,DARK BLUE,TRIM8#

main55432-12340-C0iAE101..GTAPX199108-199305

BLACK,TRIM2#,20,21,22

sub55432-12341

main55432-12340-C0iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

sub55432-12341

main55432-12341-C0iAE101..CP199305-199505

BLACK,TRIM2#

sub55432-12341

main55432-12360-B0iAE101,102,CE100,EE100,105..LHD199205-199910

SHADOW GRAY,TRIM1#

main55432-12360-J0iAE101,EE100..SED..TUR;AE101,102,CE100,EE100..LHD..(GCC,GEN)199205-199807

DARK BLUE,TRIM8#

main55432-12360-K0iAE101,EE100..SED..GCC199205-199508

TAUPE,TRIM9#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-12090-B0iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-200111

SHADOW GRAY,TRIM1#

sub55433-12090

main55433-12090-J0iAE10#,EE100,101,105..RHD..(SED,WG)199108-200111

DARK BLUE,TRIM8#

sub55433-12090

main55433-12090-K0iAE100,101,EE100,101..RHD..SED199108-199511

TAUPE,TRIM9#

sub55433-12090

main55433-12100-C0iAE101..SJ199108-199305

BLACK,TRIM2#,20,21,22

sub55433-12101

main55433-12100-C0iAE101..SJ199108-199305

BLACK,TRIM20,21,22

sub55433-12101

main55433-12100-C0iAE101..CP199305-199505

BLACK,TRIM2#

sub55433-12101

main55433-12120-B0iAE101,102,CE100,EE100,105..LHD199205-199910

SHADOW GRAY,TRIM1#

sub55433-12120

main55433-12120-J0iAE101,EE100..SED..TUR;AE101,102,CE100,EE100..LHD..(GCC,GEN)199205-199807

DARK BLUE,TRIM8#

sub55433-12120

main55433-12120-K0iAE101,102,CE100,EE100..LHD..SED199205-199508

TAUPE,TRIM9#

sub55433-12120

main55433-12160-B0iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),SHADOW GRAY,TRIM1#

main55433-12160-J0iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),DARK BLUE,TRIM8#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-12100-K0iAE100,101,EE100,101..RHD..SED199108-199401

TAUPE,TRIM9#

sub55434-12101

main55434-12100-P0iAE100,101,EE10#..RHD..(SED,WG)199108-199401

SHADOW GRAY,TRIM1#

sub55434-12101

main55434-12100-W3iAE10#,EE100,101,105..RHD..(SED,WG)199108-199401

DARK BLUE,TRIM8#

sub55434-12101

main55434-12101-K0iAE100,101,EE100,101..RHD..SED199401-199511

TAUPE,TRIM9#

sub55434-12101

main55434-12101-P0iAE100,101,CE100,EE10#..RHD..(SED,WG)199401-200111

SHADOW GRAY,TRIM1#

sub55434-12101

main55434-12101-W3iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199401-200111

DARK BLUE,TRIM8#

sub55434-12101

main55434-12121-B0iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

main55434-12121-J0iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & PASSENGER SIDE),DARK BLUE,TRIM8#

main55434-12130-B0iAE101,102,CE100,EE100,105..LHD199205-199401

SHADOW GRAY,TRIM1#

sub55434-12131

main55434-12130-J0iAE101,102,CE100,EE100,105..LHD199205-199401

DARK BLUE,TRIM8#

sub55434-12131

main55434-12130-K0iAE101,102,CE100,EE100..LHD..SED199205-199401

TAUPE,TRIM9#

sub55434-12131

main55434-12131-B0iAE101,102,CE100,EE100,105..LHD199401-199910

SHADOW GRAY,TRIM1#

main55434-12131-J0iAE101..WG..GCC;EE100..SED..TUR;EE100..LHD..(GCC,GEN);AE10#,CE100..LHD..SED199401-199807

DARK BLUE,TRIM8#

main55434-12131-K0iAE101,102,CE100,EE100..LHD..SED199401-199508

TAUPE,TRIM9#

55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

main90467-07073iAE101..GLI..TUR199505-199508

main90467-07073-B4iEE105199704-199910

SHADOW GRAY,TRIM1#

sub90467-07073

main90467-07073-C0iCE100;AE101,EE100..WG199109-200111

BLACK,TRIM1#

sub90467-07073

main90467-07073-C0iAE10#,CE100,EE100,101..SED199108-199511

BLACK,TRIM1#,8#,9#

sub90467-07073

main90467-07073-C0iAE101,EE100,105..WG199205-200111

BLACK,TRIM1#,8#

sub90467-07073

main90467-07073-C0iAE100;AE101..SEG199305-199510

BLACK,TRIM1#,9#

sub90467-07073

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-12010-C0iCE100,EE104,105..RHD199310-200111

BLACK,TRIM1#

sub55435-12010

main55435-12010-C0iAE101..WG..GEN199310-200111

BLACK,TRIM1#,8#

sub55435-12010

main55435-12010-C0iAE100;AE101..SEG199310-199510

BLACK,TRIM1#,9#

sub55435-12010

main55435-12010-C0iEE101199310-199511

BLACK,TRIM1#,8#,9#

sub55435-12010

main55435-12010-K0iAE100,101,EE100,101..RHD..SED199108-199310

TAUPE,TRIM9#

sub55435-12010

main55435-12010-P0iAE100,101,EE10#..RHD..(SED,WG)199108-199310

SHADOW GRAY,TRIM1#

sub55435-12010

main55435-12010-W3iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199108-199310

DARK BLUE,TRIM8#

sub55435-12010

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-12020-C0iEE104,108199310-200111

BLACK,TRIM1#,8#

sub55436-12020

main55436-12020-C0iEE104,108199310-200111

BLACK,TRIM1#

sub55436-12020

main55436-12020-C0iAE101,EE100,101..RHD..SED..(GL,GLI,STD,XL,XLI)199310-199511

BLACK,TRIM1#,8#,9#

sub55436-12020

main55436-12020-C0iAE100;AE101..SEG199310-199510

BLACK,TRIM1#,9#

sub55436-12020

main55436-12020-K0iAE100,101,EE100,101..RHD..SED199108-199310

TAUPE,TRIM9#

sub55436-12020

main55436-12020-P0iAE101..SED;AE100,EE10#..GL,L,LX,STD,XL199108-199310

SHADOW GRAY,TRIM1#

sub55436-12020

main55436-12020-W3iAE10#,EE100,101,105..RHD..(SED,WG)199108-199310

DARK BLUE,TRIM8#

sub55436-12020

55441BOX, INSTRUMENT PANEL

main55440-12030-B0iAE100,101,CE100,EE100,101,105..RHD..(SED,WG)199108-200111

SHADOW GRAY,TRIM1#

sub55440-12030

main55440-12030-J0iAE101,EE100,101,105..RHD..(GL,GLI,STD,XL,XLI)199108-200111

DARK BLUE,TRIM8#

sub55440-12030

main55440-12030-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub55440-12030

main55440-12060-C0iAE101..SJ199108-199305

BLACK,TRIM2#,20,21,22

sub55440-12060

main55440-12060-C0iAE101..SJ199108-199305

BLACK,TRIM20,21,22

sub55440-12060

main55440-12060-C0iAE101..CP199305-199505

BLACK,TRIM2#

sub55440-12060

main55440-12070-B0iAE101,102,CE100,EE100,105..LHD199205-199910

SHADOW GRAY,TRIM1#

sub55440-12070

main55440-12070-J0iAE101,EE100..SED..TUR;AE101,102,CE100,EE100..LHD..(GCC,GEN)199205-199807

DARK BLUE,TRIM8#

sub55440-12070

main55440-12070-K0iAE101,EE100..SED..GCC199205-199508

TAUPE,TRIM9#

sub55440-12070

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-12100iAE10#,CE100,EE10#..SED,WG199108-199704

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12310-B0iAE10#,EE10#..RHD..(SED,WG)199108-199308

SHADOW GRAY,TRIM1#

sub55550-12310

main55550-12310-B1iAE100,101,CE100,EE10#..RHD..(SED,WG)199308-200111

SHADOW GRAY,TRIM1#

sub55550-12310

main55550-12310-J0iAE10#,EE100,101,105..RHD..(SED,WG)199108-199308

DARK BLUE,TRIM8#

sub55550-12310

main55550-12310-J1iAE101,EE100,101..RHD..(GL,GLI,STD,XL,XLI)199308-200111

DARK BLUE,TRIM8#

sub55550-12310

main55550-12310-K0iAE10#,EE100,101..RHD..SED199108-199308

TAUPE,TRIM9#

sub55550-12310

main55550-12310-K1iEE101;AE101..SEG199308-199511

TAUPE,TRIM9#

sub55550-12310

main55550-12320-C0iAE101..SJ199108-199305

BLACK,TRIM20,21,22

sub55550-12320

main55550-12320-C0iAE101..GTAPX199108-199305

BLACK,TRIM2#,20,21,22

sub55550-12320

main55550-12320-C0iAE101..CP199305-199505

BLACK,TRIM2#

sub55550-12320

main55550-12340iEE105..LHD199704-199910

main55550-12340-B0iAE101,CE100,EE100,105..LHD199205-199308

SHADOW GRAY,TRIM1#

sub55550-12340

main55550-12340-B1iAE101,102,CE100,EE100,105..LHD199308-199905

SHADOW GRAY,TRIM1#

sub55550-12340

main55550-12340-J0iAE101,CE100,EE100,105..LHD199205-199308

DARK BLUE,TRIM8#

sub55550-12340

main55550-12340-J1iAE101,102,CE100,EE100,105..LHD199308-199807

DARK BLUE,TRIM8#

sub55550-12340

main55550-12340-K0iAE101,CE100,EE100..LHD..SED199205-199308

TAUPE,TRIM9#

sub55550-12340

main55550-12340-K1iAE101,EE100..SED..GCC199308-199508

TAUPE,TRIM9#

sub55550-12340

main55550-12350-B1iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),SHADOW GRAY,TRIM1#

sub55550-12350

main55550-12350-J1iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),DARK BLUE,TRIM8#

sub55550-12350

55521CCOVER, STEREO OPENING

main55521-12140iAE100..GLI199108-199109

W(STEREO),1 DIN COVER

main55521-12140iAE100..GLI199109-199505

W(STEREO)

main55521-16030iAE101..CP199108-199305

main55521-16030iAE101..CP199205-199305

W/O(RADIO)

main55521-16040iAE10#,CE100,EE10#..SED,WG199109-199704

sub55521-36020

main55521-16040iAE10#,EE100..SED199108-199109

2 DIN BOX

sub55521-36020

55522BCOVER, RADIO TUNER OPENING

main55522-12120iAE101,EE100..(XL,XLI)..TUR199409-199905

sub55522-20060

main55522-12120iAE101..RHD..XLI;AE101..RHD..4FC..GLI199505

NEW ZEALAND SPEC

sub55522-20060

main55522-32010iAE10#,CE100,EE10#..GEN199108-199704

sub55522-20070

55522ECOVER, CUP HOLDER OPENING

main55522-12110iAE101,CE100,EE10#199108-199704

55532COVER, CIGAR LIGHTER HOLE

main55532-12030iAE101,EE100,105..STD199108-199705

55533COVER, AUTO CLOCK HOLE

main55533-12130iAE101..GLI..GCC;AE101,CE100,EE100,101,105..(STD,XL,XLI)..(GCC,GEN)199108-199704

55536BCOVER, LIGHT CONTROL SWITCH HOLE

main55536-12010iAE100,EE10#..GLI,L,LX,STD,XL199108-199704

55539COVER, SPARE SWITCH HOLE

main55539-12130-C0iAE101..GTAPX199203-199305

BLACK,TRIM2#,20,21,22

sub55539-12130

sub55539-32010

main55539-12130-C0iAE101..SJ199203-199305

BLACK,TRIM20,21,22

sub55539-12130

sub55539-32010

main55539-12130-C0iAE101..CP199305-199505

BLACK,TRIM2#

sub55539-12130

sub55539-32010

main55539-20080-01iAE101..GTAPX199108-199203

BLACK,TRIM20,21,22

sub55539-20080

sub55539-12130

sub55539-32010

main55539-20080-01iAE101..GTAPX199108-199203

BLACK,TRIM2#,20,21,22

sub55539-20080

sub55539-12130

sub55539-32010

55539CCOVER, SPARE SWITCH HOLE

main55539-12110iAE10#,CE100,EE10#..SED,WG199108-199704

55539DCOVER, SPARE SWITCH HOLE

main55539-12110iAE10#,CE100,EE10#..GEN199108-199704

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-12020iAE10#,CE100,EE10#..GL,GLI,L,LX,STD,XL,XLI199108-199704

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-12080-01iAE101..CP199305-199505

BLACK,TRIM2#

sub55560-12080

main55560-12080-01iAE101..GTAPX199108-199305

BLACK,TRIM2#,20,21,22

sub55560-12080

main55560-12080-01iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

sub55560-12080

main55560-12080-02iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub55560-12080

main55560-12080-03iAE10#,CE100,EE10#..SED,WG199108-199208

SHADOW GRAY,TRIM1#

sub55560-12080

main55560-12080-04iAE101,102,CE100,EE100,101,105..GL,GLI,STD,XL,XLI199108-200111

DARK BLUE,TRIM8#

sub55560-12080

main55560-12080-P0iAE10#,CE100,EE10#..SED,WG199208-200111

SHADOW GRAY,TRIM1#

sub55560-12080

main55560-12090-B0iAE101,EE100..GCC199605-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),SHADOW GRAY,TRIM1#

sub55560-12090

main55560-12090-J0iAE101,EE100..GCC199605-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),DARK BLUE,TRIM8#

sub55560-12090

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010iAE10#,CE100,EE10#199108-199704

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-02010iAE102199309-199405

(L)

main55620-02020iAE102199405

(L)

sub55620-02010

main55620-02020iAE101..LHD..GLI..GEN199406

PHILIPPINES SPEC,(L)

sub55620-02010

main55620-12020iAE100..GLI199108-199405

main55620-12020iEE108199110-199401

L EXTRA OR GL EXTRA OR XL EXTRA

main55620-12020iEE104199401-199405

L EXTRA OR LX LIMITED OR L EXTRA TOURING PACKAGE

main55620-12030iAE101..CP199108-199505

main55620-12040iAE102199309-199408

(J)

sub55620-12060

main55620-12040iAE101..LHD..GLI..GEN199406-199408

PHILIPPINES SPEC,(J)

sub55620-12060

main55620-12050iAE101..XLI..GEN199405-199706

main55620-12050iEE104199405-199705

L EXTRA OR LX LIMITED OR L EXTRA TOURING PACKAGE

main55620-12060iAE102199408

(J)

main55620-12060iAE102199408

PHILIPPINES SPEC

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-12150-B0iAE100,101,CE100,EE10#..RHD..(SED,WG)199407-200111

SHADOW GRAY,TRIM1#

sub55670-12150

main55670-12150-K0iAE100,101,EE100,101..RHD..SED199108-199511

TAUPE,TRIM9#

sub55670-12150

main55670-12150-P0iAE100,101,EE10#..RHD..(SED,WG)199108-199407

SHADOW GRAY,TRIM1#

sub55670-12150

main55670-12150-W3iAE10#,EE100,101,105..RHD..(SED,WG)199108-200111

DARK BLUE,TRIM8#

sub55670-12150

main55670-12160-22iAE101..SJ199108-199305

BLACK,TRIM2#,20,21,22

main55670-12160-22iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

main55670-12160-22iAE101..CP199305-199505

BLACK,TRIM2#

main55670-12180-B0iAE101..WG..GCC;AE101..LHD..SED;AE102,CE100,EE100,105..LHD199205-199910

SHADOW GRAY,TRIM1#

sub55670-12180

main55670-12180-J0iAE101,102,CE100,EE100,105..LHD199205-199807

DARK BLUE,TRIM8#

sub55670-12180

main55670-12180-K0iAE101,102,CE100,EE100..LHD..SED199205-199508

TAUPE,TRIM9#

sub55670-12180

main55670-12200-B0iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),SHADOW GRAY,TRIM1#

sub55670-12200

main55670-12200-J0iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),DARK BLUE,TRIM8#

sub55670-12200

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-12050iAE101,EE100,105..LHD..(GL,STD,XL)..GEN199305-199308

MIDDLE EAST SPEC & W(AIR CONDITIONER)

main55680-12050iAE10#,CE100,EE100,101,105..(GL,GLI,SEG,STD,XL,XLI)..GEN199302-199305

main55680-12050-K0iAE10#,CE100,EE100,101..SED..(GL,GLI,SEG,STD,XL,XLI)..GEN199108-199302

TAUPE,TRIM9#

sub55680-12050

main55680-12050-P0iAE10#,CE100,EE100,101,105..(GL,GLI,SEG,STD,XL,XLI)..GEN199108-199302

SHADOW GRAY,TRIM1#

sub55680-12050

main55680-12050-W3iAE10#,CE100,EE100,101,105..(GL,GLI,SEG,STD,XL,XLI)..GEN199108-199302

DARK BLUE,TRIM8#

sub55680-12050

main55680-17050-01iAE101..SJ199108-199304

BLACK,TRIM2#,20,21,22

sub55680-17050

main55680-17050-01iAE101..SJ199108-199304

BLACK,TRIM20,21,22

sub55680-17050

main55680-89101-C0iAE101..SJ199304-199305

BLACK,TRIM2#,20,21,22

sub55680-17050

main55680-89101-C0iAE101..GTAPX199304-199305

BLACK,TRIM20,21,22

sub55680-17050

55950ANOZZLE ASSY, DEFROSTER

main55950-12140iAE10#,EE10#..RHD..(SED,WG)199108-199208

sub55950-12170

main55950-12150iAE101..CP199108-199305

main55950-12160iAE101,CE100,EE100,105..LHD199205-199208

sub55950-12180

main55950-12170iAE101,CE100,EE10#..RHD199208-199704

main55950-12180iAE101,102,CE100,EE100,105..LHD199208-199910

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12180-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub55961-12180

main55961-12180-P0iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-200111

SHADOW GRAY,TRIM1#

sub55961-12180

main55961-12180-W3iAE10#,EE100,101,105..RHD..(SED,WG)199108-200111

DARK BLUE,TRIM8#

sub55961-12180

main55961-12190-22iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

main55961-12190-22iAE101..GTAPX199108-199305

BLACK,TRIM2#,20,21,22

main55961-12190-22iAE101..CP199305-199505

BLACK,TRIM2#

main55961-12200-B0iAE101,102,CE100,EE100,105..LHD199205-199910

SHADOW GRAY,TRIM1#

sub55961-12200

main55961-12200-J0iAE101,EE100..SED..TUR;AE101,102,CE100,EE100..LHD..(GCC,GEN)199205-199807

DARK BLUE,TRIM8#

sub55961-12200

main55961-12200-K0iAE101,102,CE100,EE100..LHD..SED199205-199508

TAUPE,TRIM9#

sub55961-12200

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12160-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub55962-12160

main55962-12160-P0iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-200111

SHADOW GRAY,TRIM1#

sub55962-12160

main55962-12160-W3iAE101,EE100,101..RHD..(GL,GLI,STD,XL,XLI)199108-200111

DARK BLUE,TRIM8#

sub55962-12160

main55962-12170-22iAE101..SJ199108-199305

BLACK,TRIM2#,20,21,22

main55962-12170-22iAE101..SJ199108-199305

BLACK,TRIM20,21,22

main55962-12170-22iAE101..CP199305-199505

BLACK,TRIM2#

main55962-12180-B0iAE101,102,CE100,EE100,105..LHD199205-199910

SHADOW GRAY,TRIM1#

sub55962-12180

main55962-12180-J0iAE101,102,CE100,EE100,105..LHD199205-199807

DARK BLUE,TRIM8#

sub55962-12180

main55962-12180-K0iAE101,EE100..SED..GCC199205-199508

TAUPE,TRIM9#

sub55962-12180

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-12110iAE10#,CE100,EE10#..SED,WG199108-199704

main55971-12120iAE101..CP199108-199305

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12050iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-199704

main55981-12060-22iAE101..CP199305-199505

BLACK,TRIM2#

main55981-12060-22iAE101..GTAPX199108-199305

BLACK,TRIM2#,20,21,22

main55981-12060-22iAE101..GTAPX199108-199305

BLACK,TRIM20,21,22

main55981-12070iAE101,102,CE100,EE100,105..LHD199205-199910

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-12050iAE101,CE100,EE10#..RHD199108-199704

main55982-12060-22iAE101..SJ199108-199305

BLACK,TRIM2#,20,21,22

main55982-12060-22iAE101..SJ199108-199305

BLACK,TRIM20,21,22

main55982-12060-22iAE101..CP199305-199505

BLACK,TRIM2#

main55982-12070iAE101,102,CE100,EE100,105..LHD199205-199910

55990NOZZLE ASSY, CENTER DEFROSTER

main55990-12010iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-199704

main55990-12020iAE101,102,CE100,EE100,105..LHD199205-199910

58821DPANEL, CONSOLE, UPPER FRONT

main58821-12050-K0iEE101;AE101..SEG199108-199511

TAUPE,TRIM9#

sub58821-12050

main58821-12050-P0iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-200111

SHADOW GRAY,TRIM1#

sub58821-12050

main58821-12050-W3iAE101,EE100,101..RHD..(GL,GLI,STD,XL,XLI)199108-200111

DARK BLUE,TRIM8#

sub58821-12050

main58821-12070-B0iAE101..XLI..TUR;AE101..LHD..(GCC,GEN);AE102,CE100,EE100,105..LHD199205-199910

SHADOW GRAY,TRIM1#

sub58821-12070

main58821-12070-J0iAE101,EE100..SED..TUR;AE101,102,CE100,EE100..LHD..(GCC,GEN)199205-199807

DARK BLUE,TRIM8#

sub58821-12070

main58821-12070-K0iAE101,102,CE100,EE100..LHD..SED199205-199508

TAUPE,TRIM9#

sub58821-12070

8302

5563132013ARM,UNDER TRAY DOOR CHECK

main55631-32013

9010508120

main90105-08120

9011906106

main90119-06106

9015140005

main90151-40005

9016750002

main90167-50002

9017608007

main90176-08007

9017905084

main90179-05084

9017908063

main90179-08063

9017908102

main90179-08102

9018305094

main90183-05094

9018905024

main90189-05024

9018905113

main90189-05113

9046714024

main90467-14024

9046804160

main90468-04160

9054103015

main90541-03015

9054105020

main90541-05020

9351055016

main93510-55016

9356755014

main93567-55014

9356855012

main93568-55012

9356855014

main93568-55014

68 parts on this diagram · 5 diagrams in section
