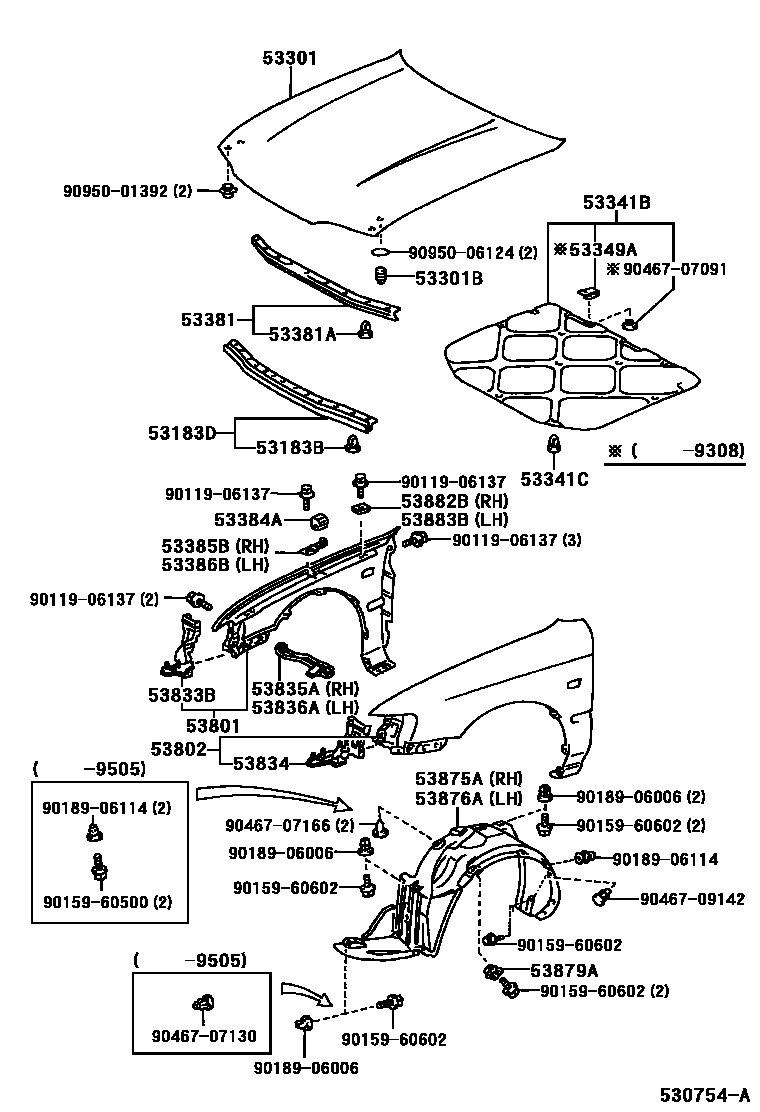

HOOD & FRONT FENDER

0001 1 0002 1

53183BCLIP(FOR HEADLAMP COVER SEAL)

main90467-08011×12iAE10#,CE100,EE10#..SED,WG199108-199409

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-12090iAE10#,EE10#..SED,WG199108-199205

main53183-12140iAE101..CP199108-199505

RH

main53183-12180iAE10#,CE100,EE10#199704

main53184-12090iAE101..CP199108-199505

LH

53301HOOD SUB-ASSY

main53301-12700iAE10#,CE100,EE10#..SED,WG199108-199409

main53301-12720iAE101..CP199108-199505

53301BCUSHION, HOOD BUMPER

main90541-15019×2iAE10#,CE100,EE10#199108-199409

53341BINSULATOR, HOOD

main53341-12060iCE100199205

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×10iCE100199205

53349ARETAINER, HOOD INSULATOR

main53349-50010iCE100199205-199308

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12160iAE10#,CE100,EE10#199108-199409

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iAE10#,CE100,EE10#199108-199409

53384ABUMPER, FENDER TO HOOD

main53384-12070×2iAE101..CP199108-199505

main53384-12080×2iAE10#,CE100,EE10#..SED,WG199409-199509

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-12050iAE101..CP199108-199505

main53386-20020iAE10#,CE100,EE10#..SED,WG199108-199409

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53385-20020iAE10#,CE100,EE10#..SED,WG199108-199409

main53386-12060iAE101..CP199108-199505

53801FENDER SUB-ASSY, FRONT RH

main53801-1E700iAE10#,CE100,EE10#..GEN199704

main53801-1E710iAE100,EE104,108199108-199704

W(*FM)

main53801-1E760iAE101..CP199108-199505

main53801-1E770iAE101..CP199108-199505

W(*FM)

main53801-1E800iAE101,EE100..TUR199409-199509

53802FENDER SUB-ASSY, FRONT LH

main53802-1E580iAE10#,CE100,EE10#..GEN199704

main53802-1E590iAE100,EE104,108199108-199704

W(*FM)

main53802-1E640iAE101..CP199108-199505

main53802-1E650iAE101..CP199108-199505

W(*FM)

main53802-1E680iAE101,EE100..TUR199409-199509

53833BPANEL, FRONT FENDER SIDE, RH

main53083-12050iAE10#,CE100,EE10#199509-199704

main53831-12270iAE101..CP199108-199505

53834PANEL, FRONT FENDER SIDE, LOWER LH

main53084-12050iAE10#,CE100,EE10#..SED,WG199108-199409

main53832-12270iAE101..CP199108-199505

53835ABRACE, FRONT FENDER TO APRON, RH

main53803-12020iAE10#,CE100,EE10#199704

main53835-12090iAE101..CP199108-199505

53836ABRACE, FRONT FENDER TO APRON, LH

main53804-12020iAE10#,CE100,EE10#199509-199704

main53836-12050iAE101..CP199108-199505

53875ALINER, FRONT FENDER, RH

main53875-12210iAE10#,CE100,EE10#..SED,WG199409-199509

main53875-12220iAE101..CP199108-199505

53876ALINER, FRONT FENDER, LH

main53876-12200iAE10#,CE100,EE10#199704

main53876-12210iAE101..CP199108-199505

53879ARETAINER, FRONT FENDER LINER

main53879-14010×4iAE101..CP199306-199505

TYPE A

main75396-12110×2iAE101..CP199306-199505

TYPE B

53882BSEAL, FRONT FENDER, RH

main53882-16030×4iAE10#,CE100,EE10#199108-199409

53883BSEAL, FRONT FENDER, LH

main53882-16030×4iAE10#,CE100,EE10#199509-199704

9011906137

main90119-06137

9015960500

main90159-60500

9015960602

main90159-60602

9018906006

main90189-06006

9018906114

main90189-06114

9046707091

main90467-07091

9046707130

main90467-07130

9046707166

main90467-07166

9046709142

main90467-09142

9095001392

main90950-01392

9095006124

main90950-06124

34 parts on this diagram · 2 diagrams in section
